Lee Machines

Lee Kettle Double Motion 100 NEM

• Manufacturer:Lee
• Model Number:100 NEM
• Frain Number:R29290

Lee, Model 100 NEM, 100 gallon capacity, 316 stainless steel, double motion (scrape & prop) kettle. Vessel dimensions: 36" diameter x 30" deep with a 14" straight wall. Equipped with lift off covers with safety shut-off, bridge mounted 3 HP scrape and 1 HP prop agitator, flush mounted sensor and 2½" OD / 2" ID Tri-Clamp style bottom discharge with ball valve and 15" ground clearance. Mokon, Model DR4018AFW, 18 Kw portable water heater rated fluid temperature up to 250°F with controls and readout.

Jacket Ports:
(4) 1" NPT

Nat’l Brd: 11162
MAWP: 90 PSI @ 332°F
MDMT: -20°F @ 90 PSI

OAD: 48"L x 50"W x 91"H (Kettle)
40"L x 16"W x 25"H (Heater)

Lee Kettle Double Motion 500D9MT

• Manufacturer:Lee
• Model Number:500D9MT
• Frain Number:R28840

李500 d9mt, 500加仑,316不锈钢interior, 304 stainless steel external, double motion, scrape surface, jacketed kettle. Vessel dimensions: 62" ID x 51" in Depth. Equipped with variable speed bridge mounted scrape surface and counter rotation tilt out agitation, dual flip top covers, 1/2 Jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 1-3/4" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. Dish bottom with 3-1/2" OD / 3" ID sanitary center bottom discharge has flush-bottom ball valve with 19" floor clearance. Mounted on (3) stainless steel legs. Pounds / gallons of product per hour dependant on materials and application.

OAD: 108" L x 75" W x 90" H

Lee Kettle Triple Motion 75 DT12T

• Manufacturer:Lee
• Model Number:75 DT12T
• Frain Number:R26112

Lee, Model 75DT12T, 75 Gallon, 316 stainless steel, full jacket,Tri-mixer with volumes of product per hour – depending on materials and application. Bowl dimensions: 32" ID; 38" in Depth. Equipped with flat top, bridge mounted hydraulic tilt out, counter rotating agitation with side / bottom scrape and center high shear mixer. Dual flip up covers with safety grids and micro safety switches. Full jacket rated at MAWP of 90 psi @ 332 Deg F and MDMT of -20 Deg F @ 90 psi threaded side and bottom jacket in/outlets and flush mount pressure gage. Dish bottom with 2" OD center bottom sanitary discharge with 4" floor clearance, Control panel with double motion, high shear, tank light, power on / off and e-stop controls with speed dials, chart recorder. National Board # 5395

OAD: 64" L x 48" W x 97" H Mixer
36" L x 16" W x 60" H Control Panel

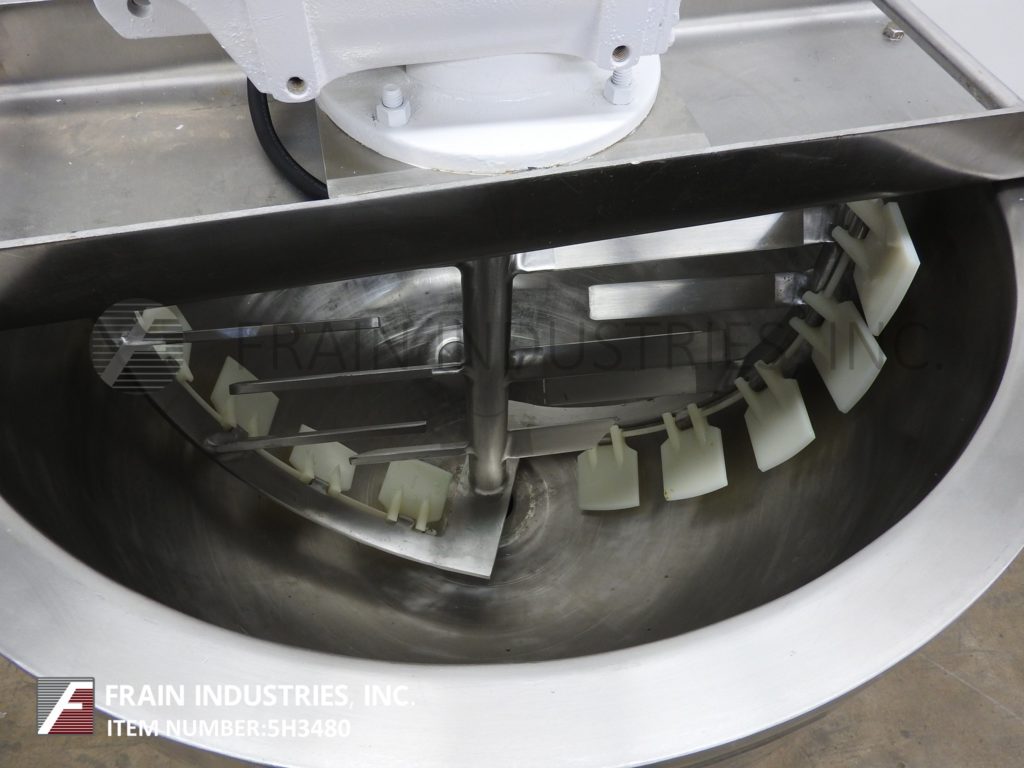

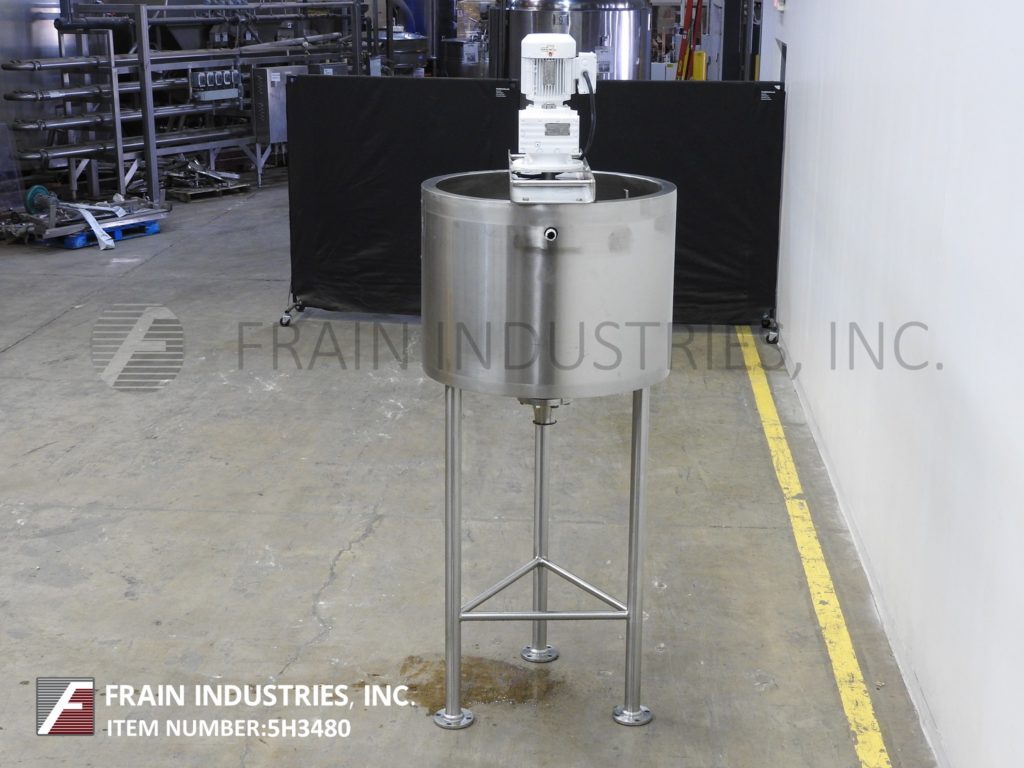

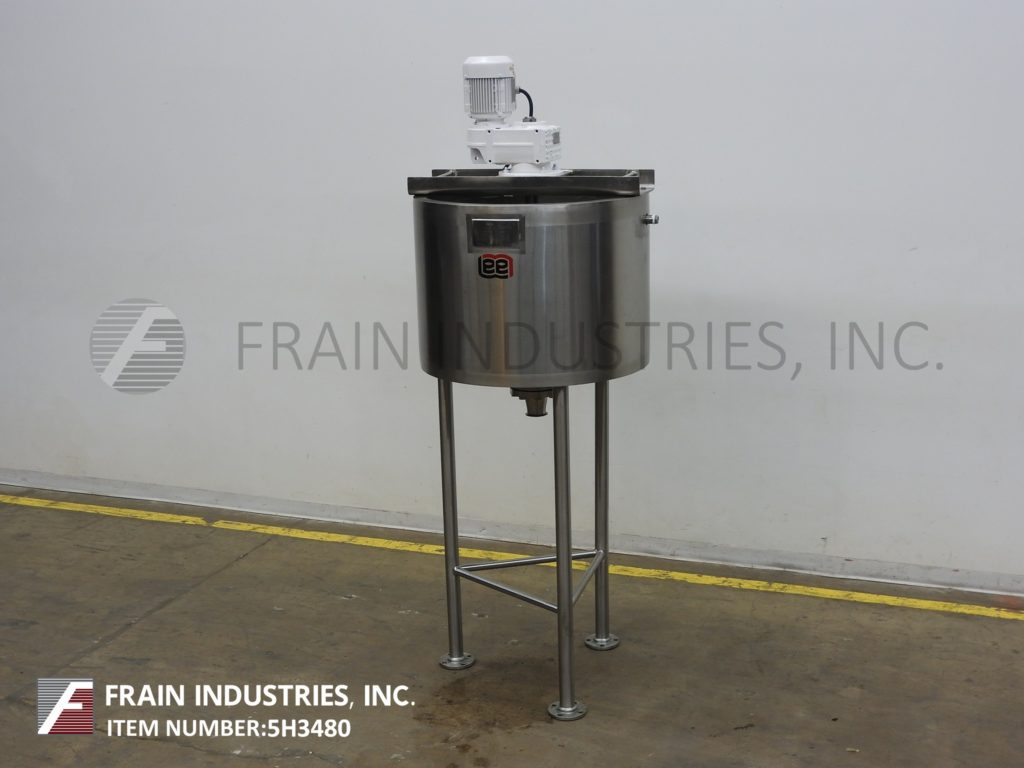

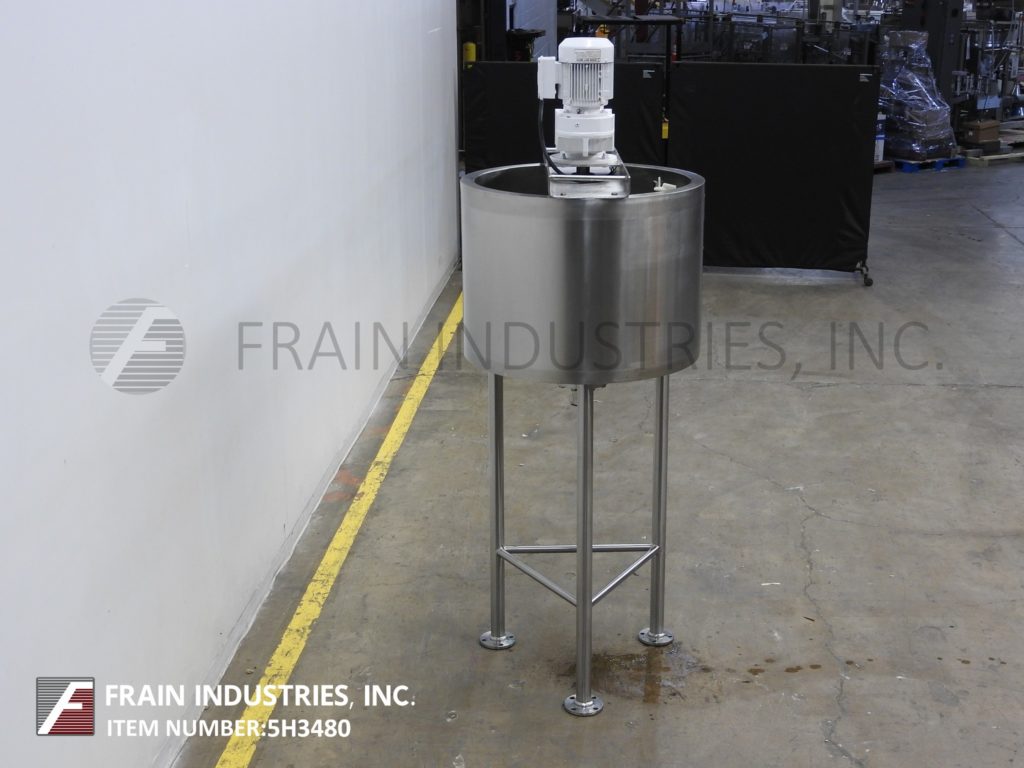

Lee Kettle Single Motion 60D5S

• Manufacturer:Lee
• Model Number:60D5S
• Frain Number:5H3480

李,模型60-D5S, 316不锈钢夹套客ttle. Vessel Dimensions: 32" diameter x 24" deep with a 8" straight wall. Equipped with a bridge mounted anchor style scrape agitator with 7½" OD / 2½"ID flanged bottom discharge with 43" ground clearance. Mounted on (3) tubular leg frame on stainless steel base with casters.

Jacket Fittings:
(2) 1" NPT

MAWP: 45 PSI @ 300° F
Nat’l Brd: 8525

OAD: 52"L x 48"W x 105"H

Lee Kettle Double Motion 300D9MT

• Manufacturer:Lee
• Model Number:300D9MT
• Frain Number:R28480

Lee Model 300D9MT, 300 gallon, 316 stainless steel interior, 304 stainless steel external, double motion, scrape surface, 1/2 jacketed kettle with pounds of product per hour – depending on materials and application. Vessel dimensions: 54" ID x 42" in Depth. Equipped with bridge mounted scrape surface tilt out agitation and dual flip top covers. 1/2 jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 2" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. 2" OD center bottom discharge has flush-bottom ball valve. Mounted on (3) stainless steel legs

OAD: 78" L x 67" W x 72" H

Lee Kettle Double Motion 300D9MT

• Manufacturer:Lee
• Model Number:300D9MT
• Frain Number:R28250

Lee Model 300D9MT, 300 gallon, 316 stainless steel interior, 304 stainless steel external, double motion, scrape surface, 1/2 jacketed kettle with pounds of product per hour – depending on materials and application. Vessel dimensions: 54" ID x 42" in Depth. Equipped with bridge mounted scrape surface tilt out agitation and dual flip top covers. 1/2 jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 2" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. 2" OD center bottom discharge has flush-bottom ball valve. Mounted on (3) stainless steel legs. Variable speed.

OAD: 78" L x 67" W x 72" H

Lee Kettle Double Motion 250D9MS

• Manufacturer:Lee
• Model Number:250D9MS
• Frain Number:5H3795

李,250加仑,304不锈钢夹套凯特le. Vessel Dimensions: 52" diameter x 40" deep with a 16" straight wall. Equipped with a bridge mounted scrape agitator powered by a 2 Hp drive and 2½" OD / 2"ID tri-clamp style discharge with 13" ground clearance.

Jacket Fittings:
(2) 1½" NPT

MAWP: 90 PSI @ 332° F
Nat’l Brd: 2479

OAD: 60"L x 55"W x 92"H

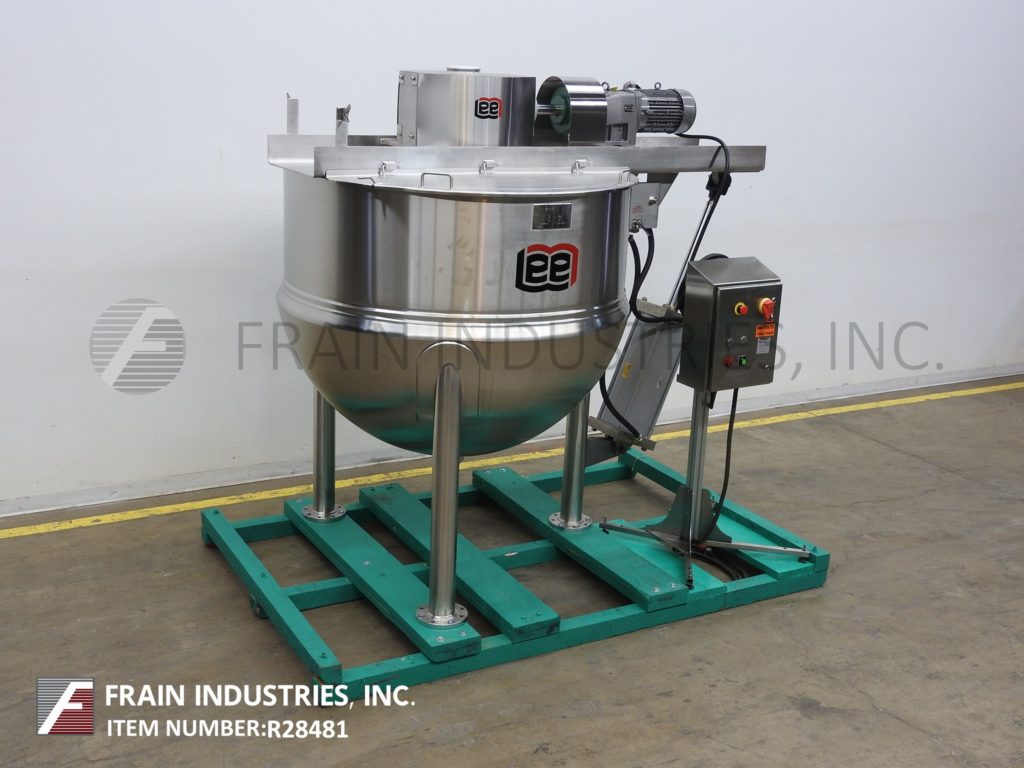

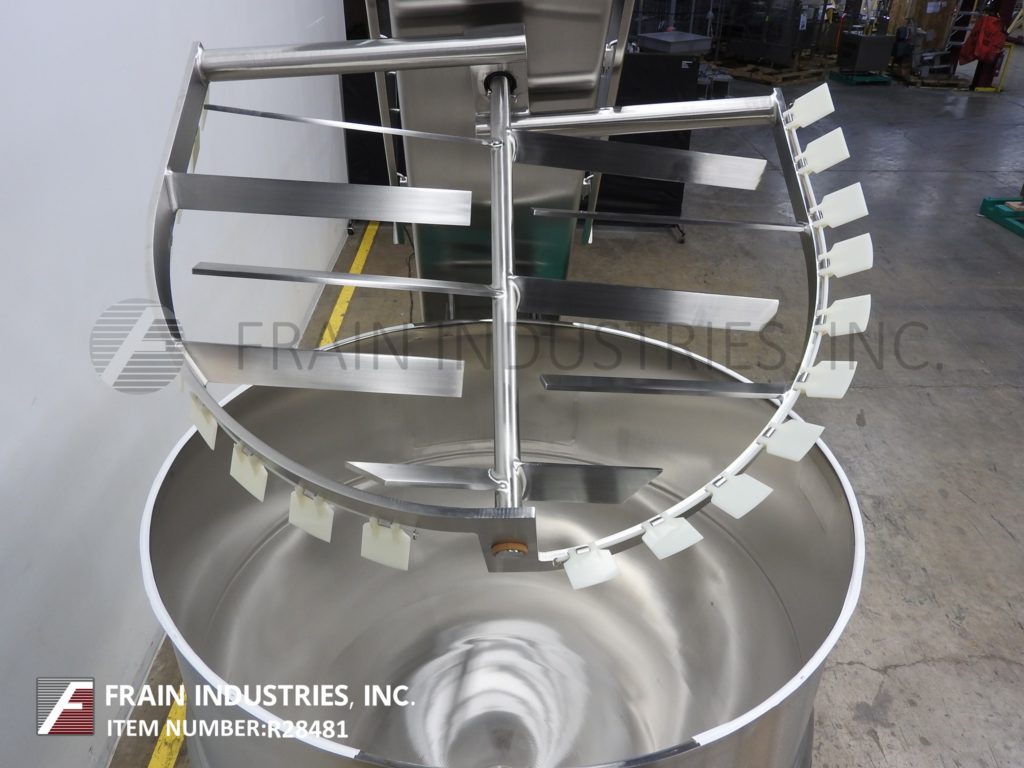

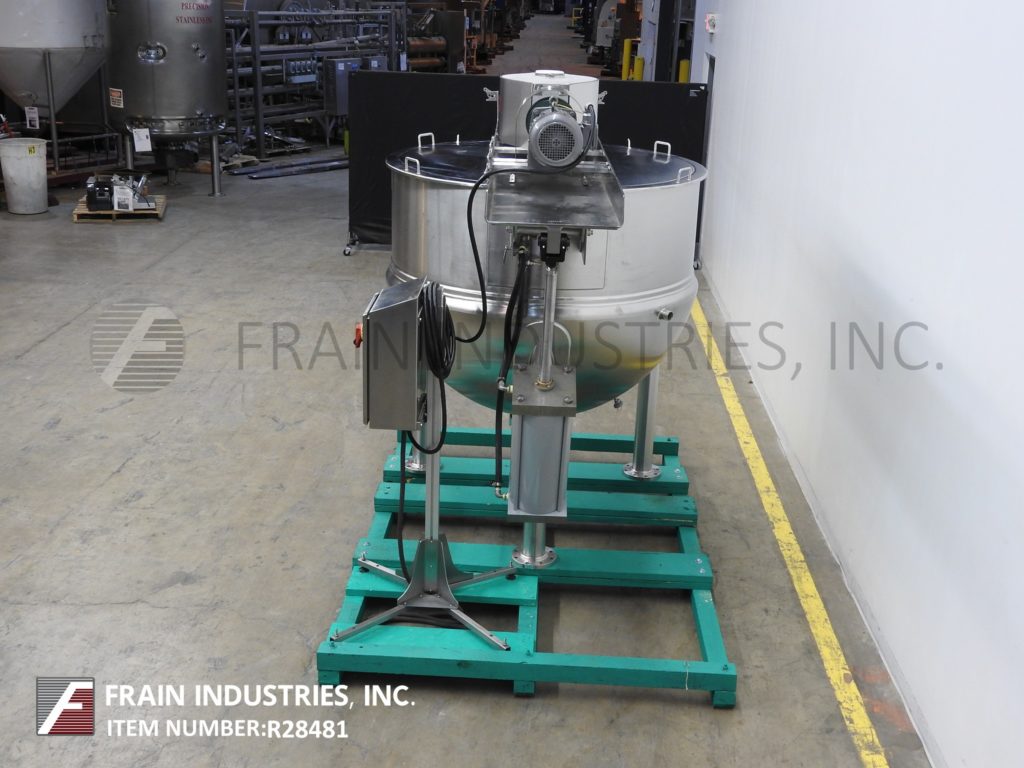

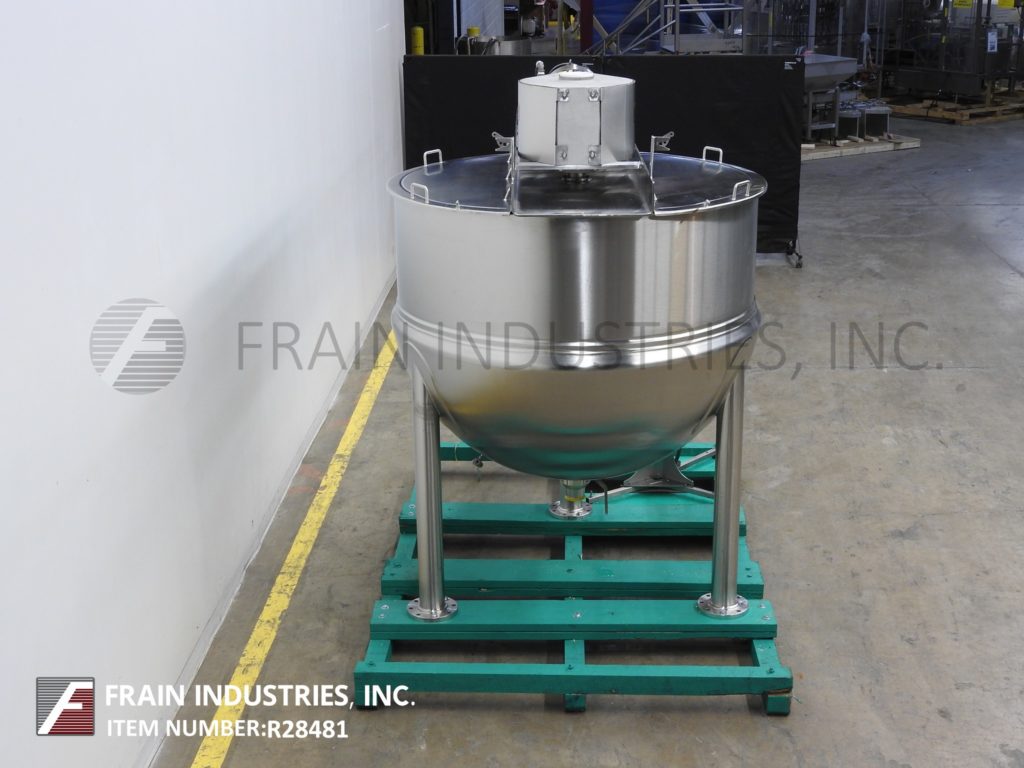

Lee Kettle Double Motion 500D9MT

• Manufacturer:Lee
• Model Number:500D9MT
• Frain Number:R28481

李500 d9mt, 500加仑,316不锈钢interior, 304 stainless steel external, double motion, scrape surface, 1/2 jacketed kettle with pounds of product per hour – depending on materials and application. Vessel dimensions: 62" ID x 51" in Depth. Equipped with bridge mounted scrape surface tilt out agitation and dual flip top covers. 1/2 jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 2" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. 2" OD center bottom discharge has flush-bottom ball valve. Mounted on (3) stainless steel legs

OAD: 96" L x 68" W x 93" H

Lee Kettle Double Motion 300LD9MT

• Manufacturer:Lee
• Model Number:300LD9MT
• Frain Number:5H3385

Lee Model 300LD9MT, 300 Liter, 75 gallon, stainless steel, dual motion, scrape surface tilt agitation, internal vacuum rated and 1/2 steam jacketed kettle. Vessel dimensions of: 32" in Diameter; 34" in Depth. Equipped with heavy duty, bolt down cover, top mounted, tilt scrape surface agitation with 5 Hp motor drive and A/C inverter has touchpad controls with readout and main on / off switch. (7) 2" OD (1) 3-1/2" OD sanitary top ports with 7" OD site port. 1/2 Jacket with MAWP rating of 100 psi @ 338° F; and MDMT of -20° F @ 100 psi. and Internal vacuum with MAWP rating of 60 psi @ 308° F and MDMT of -20° F @ 60 psi.with (2) 1-1/8" OD threaded jacket ports. Dish bottom with 6" OD sanitary center bottom discharge has 16" floor clearence and bottom flush mount RTD temperature sensor. Mounted on stainless steel base frame with casters.
UL Rated

OAD: 69" L x 48" W x 72" H

Lee Kettle Single Motion 200 D9MT

• Manufacturer:Lee
• Model Number:200 D9MT
• Frain Number:5G9655

Lee, 200 gallon capacity, 316 stainless steel jacketed kettle. Vessel dimensions: 48" diameter x 35" deep with a 14" straight wall. Equipped with lift off covers and a 24" x 16" man way with lift up cover and safety grate. 2 Hp bridge mounted scrape agitator and 2½" OD / 2" ID Tri-clamp style bottom discharge with ball valve, 90° elbow and 5" ground clearance.

Jacket Ports:
(3) 1½" NPT

MAWP: 90 PSI @ 350°F
Nat’l Brd: 2001

OAD: 77"L x 53"W x 82"H

Lee Tank SS JKT 1000L

• Manufacturer:Lee
• Model Number:1000L
• Frain Number:5H3041

Lee, 1000 liter capacity, 316L stainless steel, jacketed and insulated, internal vacuum tank. Vessel dimensions: 42" diameter x 54" deep with a 44" straight wall. Equipped with an 18" diameter bolt down manway, (1) thermowell and plug valve with 2"OD / ¾"ID Tri-Clamp style discharge with 11" ground clearance. Mounted on a forkliftable stainless steel base with casters.

Top Ports:
(2) 4½"OD / 4"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(2) 2"OD / 1½"ID Tri-Clamp
(1) 2"OD / ¾"ID Tri-Clamp

Jacket Ports:
(2) 2"OD / ¾"ID Tri-Clamp

MAWP: 45 PSI @ 302°F (Vessel)
100 PSI @ 338°F (Jacket)

MDMT: -20°F @ 45 PSI (Vessel)
-20°F @ 100 PSI (Jacket)

Vac: FV (Vessel)

Nat’l Brd: 6793

OAD: 63"L x 53"W x 80"H

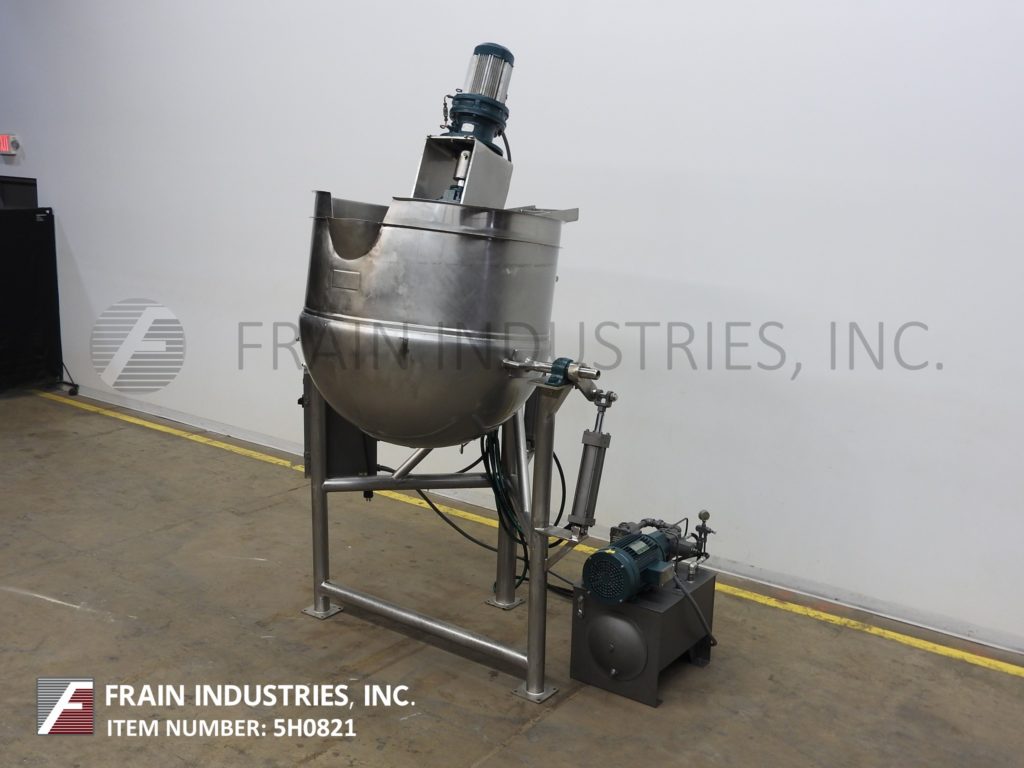

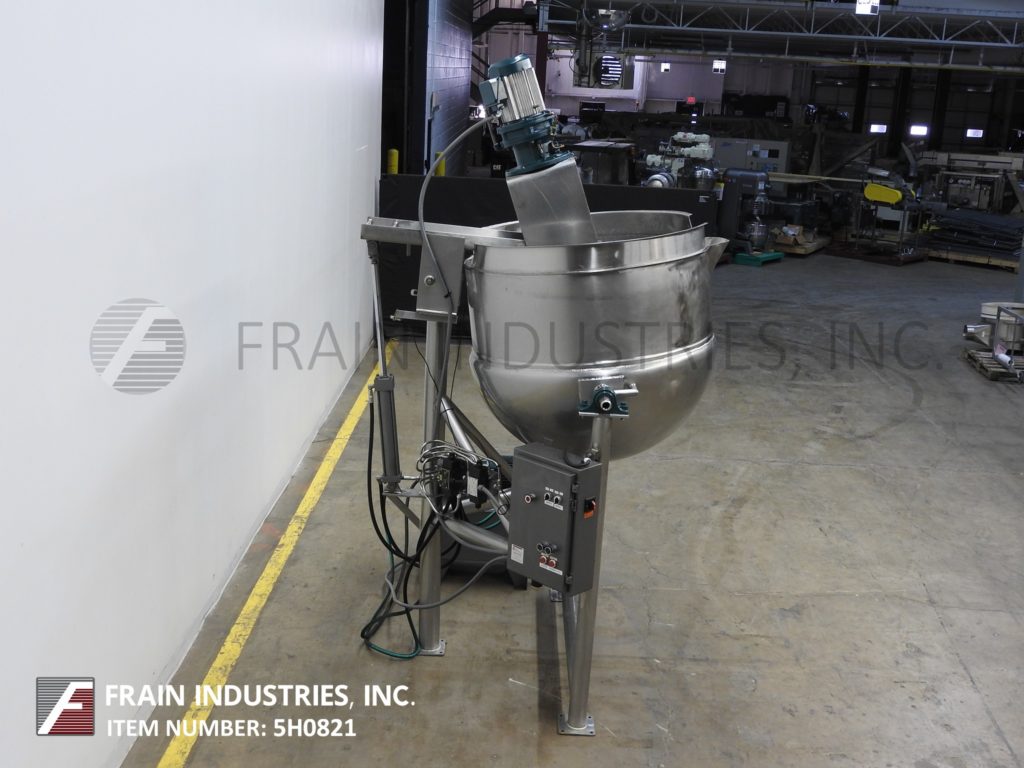

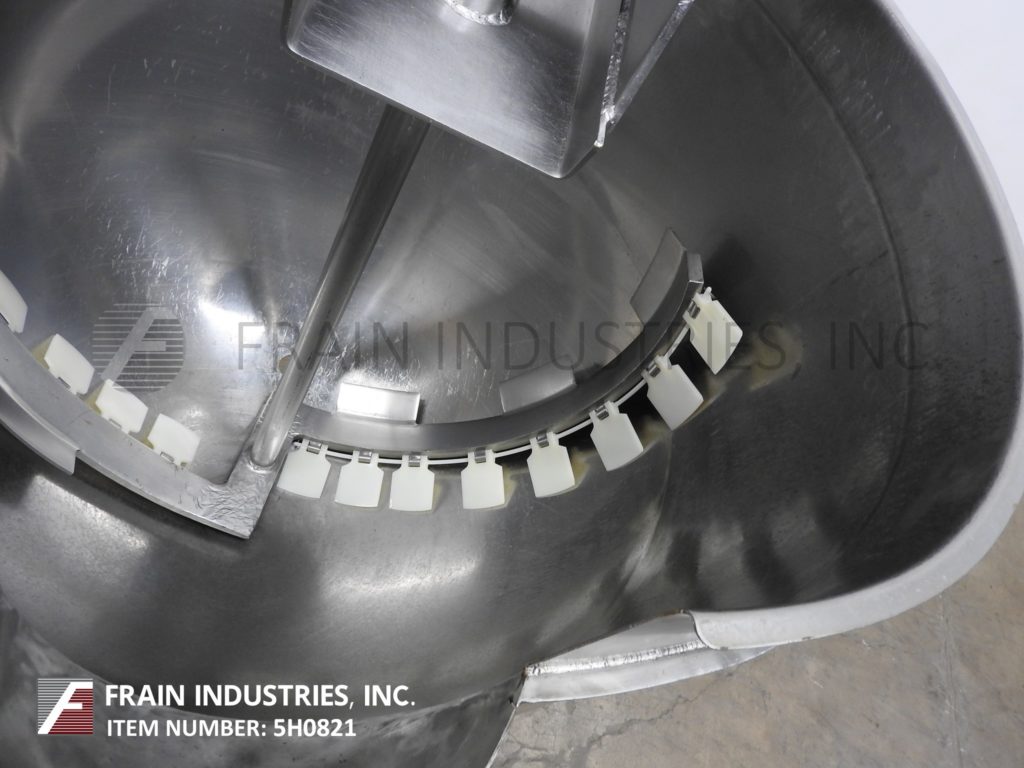

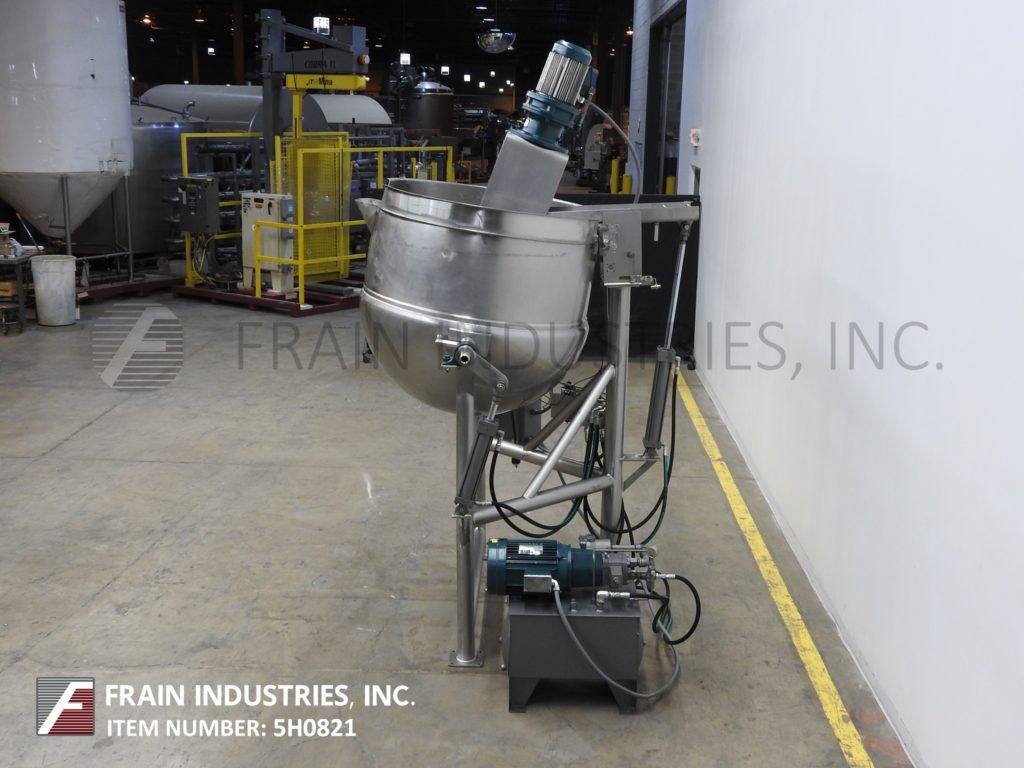

Lee Kettle Single Motion 200 CHD7T

• Manufacturer:Lee
• Model Number:200 CHD7T
• Frain Number:5H0821

Lee, Model 200CHD7T, 200 gallon, 316 stainless steel jacketed single motion kettle. Vessel Dimensions: 48" diameter x 45" deep with a 22" straight wall. Equipped with tilt out angled mount scrape agitation powered by a 4 hp drive, Mounted on (3) stainless steel legs.

MAWP: 100 psi @ 338°F
MDMT: -20°F @ 100 PSI
Nat’l Board: 5747

Jacket Ports:
(2) 1" NPT
(1) ¾" NPT

OAD: 80"L x 76"W x 126"H
