U S瓶盖帽4头（封顶锅）TC-4-14

返回所有设备

• 制造商：你的瓶子
• 模型：TC-4-14
• Frain号码：5H3794
• 类别：封盖
• 子类别：4头（四头）
• 状况：使用，在良好的条件下
• 可用性：有存货

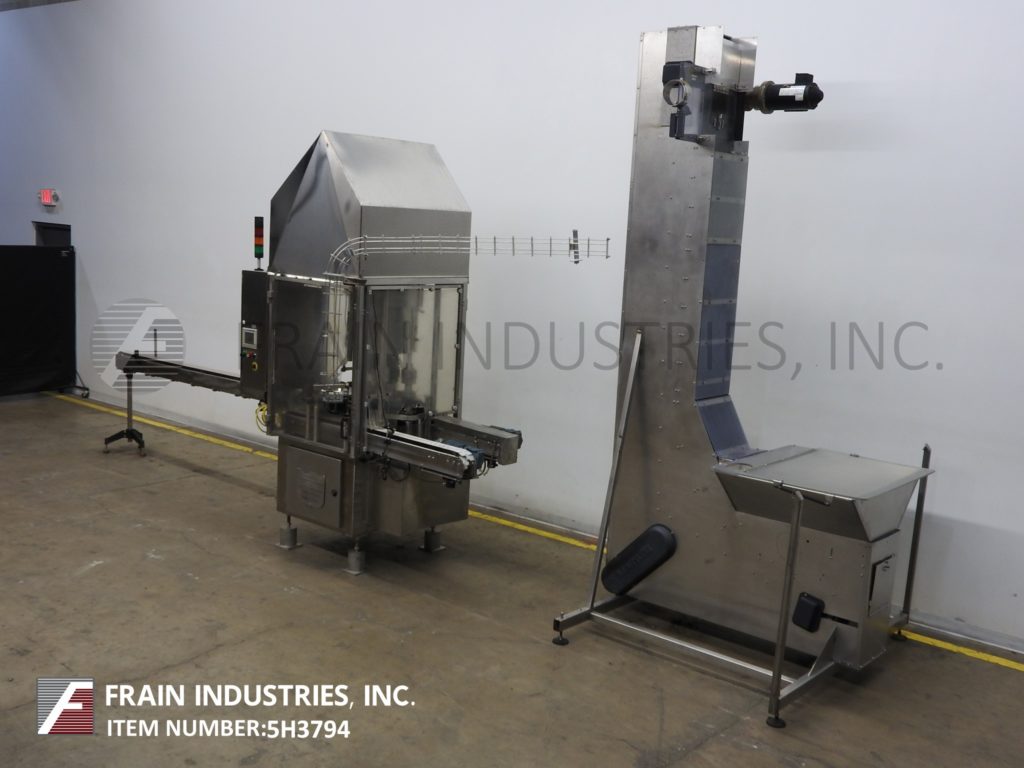

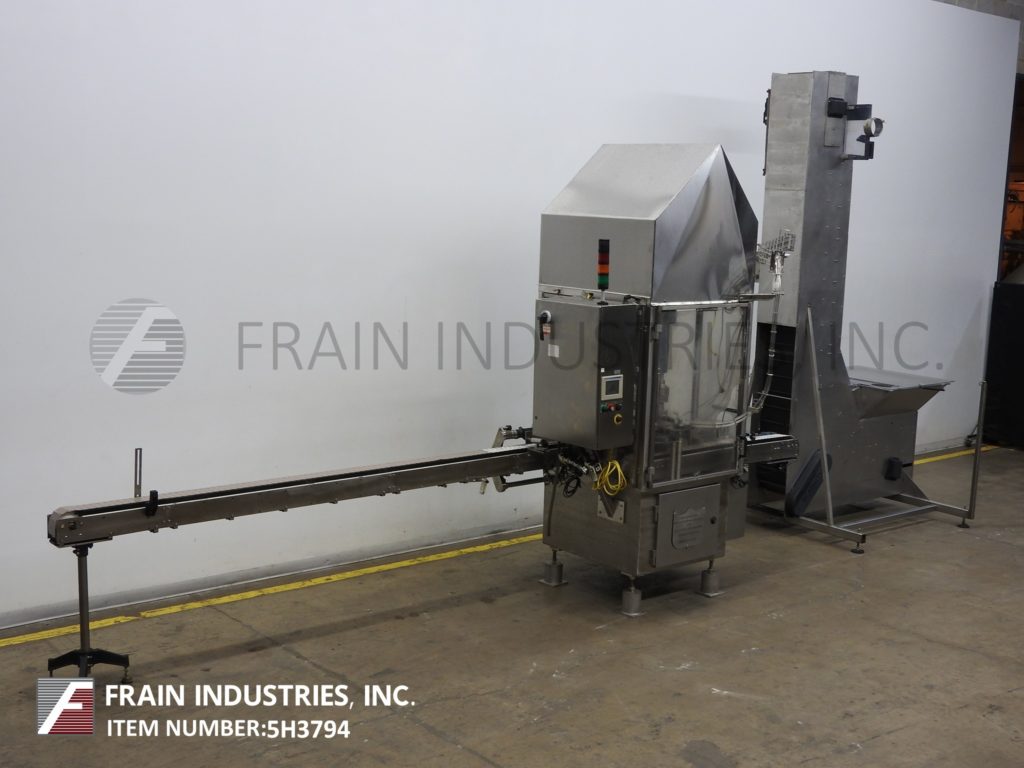

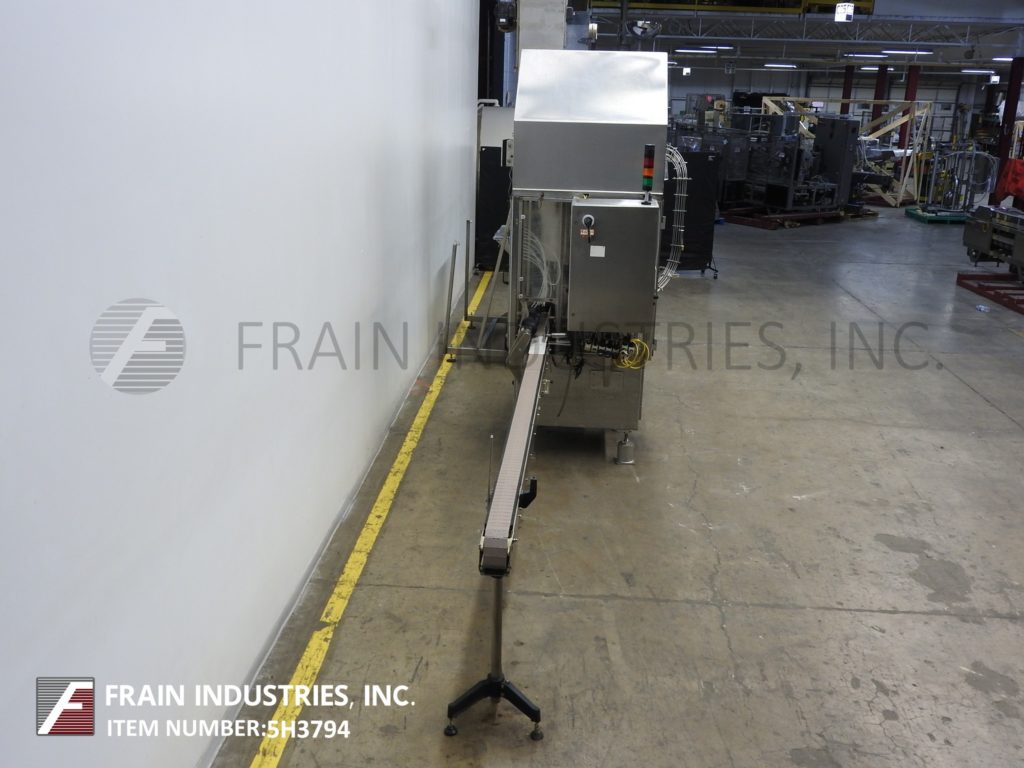

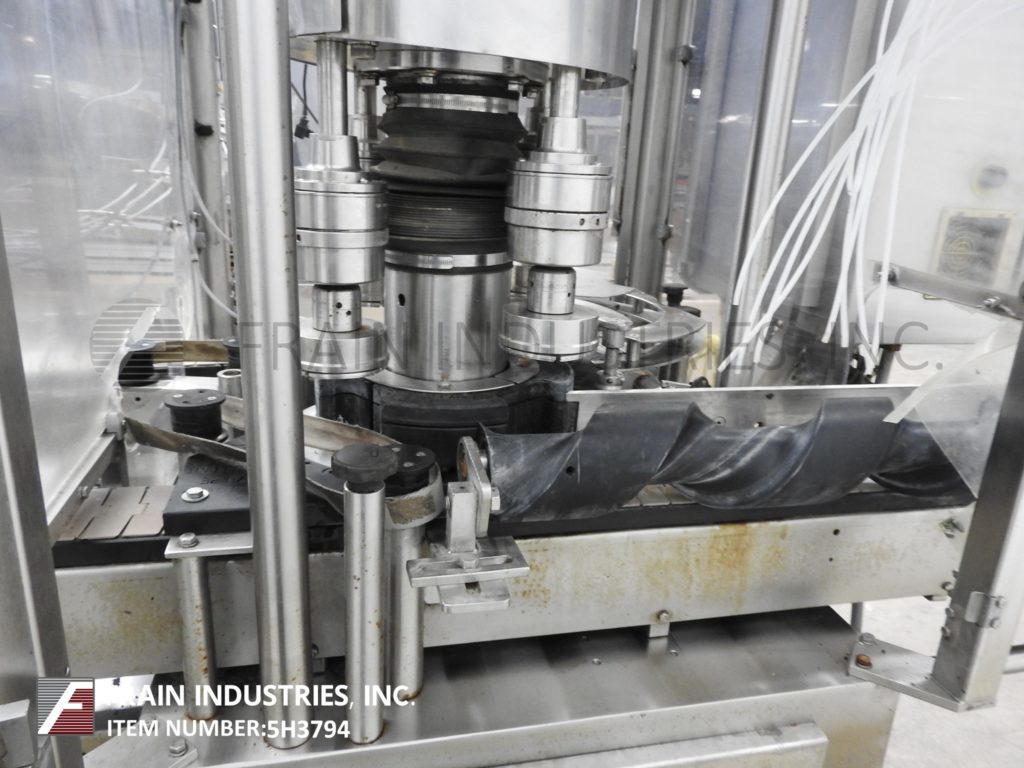

你的瓶子Model TC-4-14, stainless steel, 4 head rotary chuck capper and feeder rated from 16 to 40 containers per minute – depending on materials and application Equipped with 201" long x 4-1/2" wide plastic delrin belt conveyor with worm screw in feed, cap feed chute and 16" OD rotary turret with top mounted motor drive and cone style cover and (4) pneumatic chucks, set on 10" centers with 84" long x 4-1/2" wide plastic delrin belt conveyor with star wheel discharge. Control panel has A/B controller and A/B Panel view with start, stop, reset, e-stop push button controls and statis light bar, with air chuck controls and gauges. Mounted on a stainless steel base frame with safety door guarding. Also a

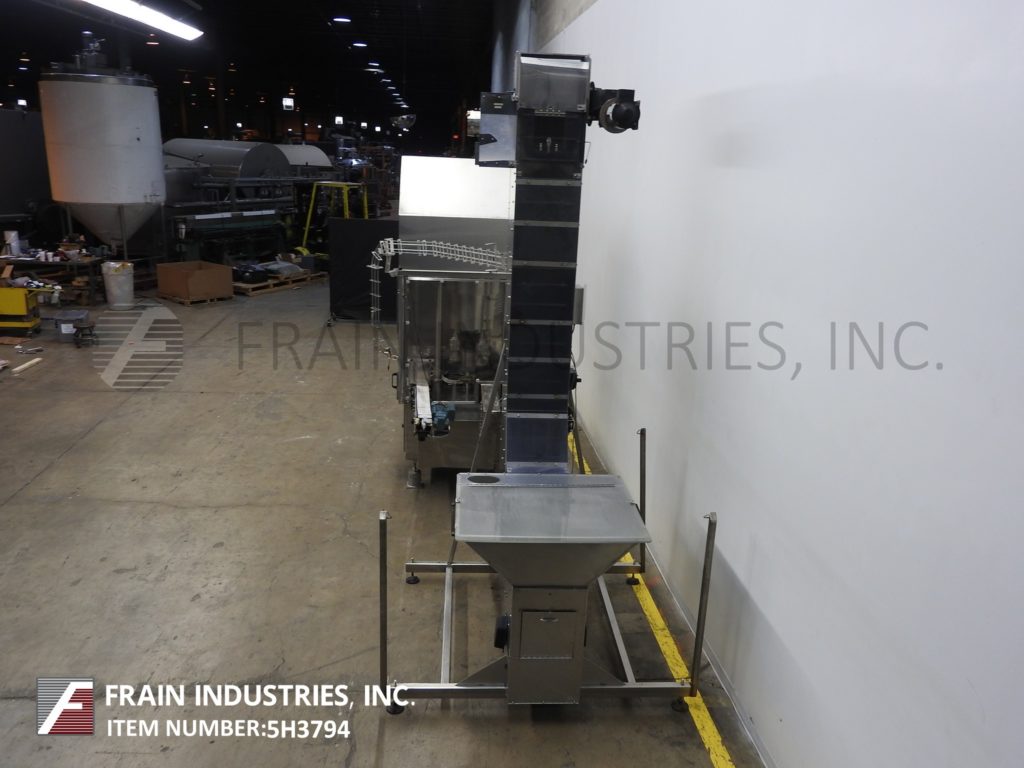

不锈钢，夹紧帽进料器具有32英寸宽x 38“长x 30”深不锈钢盖帽，16英寸宽x 130“长带式输送机，带1”高夹板，设置在6“中心和125”排出高度进入封盖用顶部电机驱动器饲料槽。安装在带腿部腿部的基架上。

OAD：84“L X 48”W x 120“H峰值
80“l x 72”w x 157“H纸器
117“L X 6”W X 36“H在进料输送机中
