股票美国公司罐头反驳篮SURDRY

返回所有设备

• 制造商:美国公司股票
• 模型:SURDRY
• Frain号码:5 h6940
• 类别:罐头
• 子类别:反驳篮子
• 条件:使用过，状态良好
• 可用性:现在有货

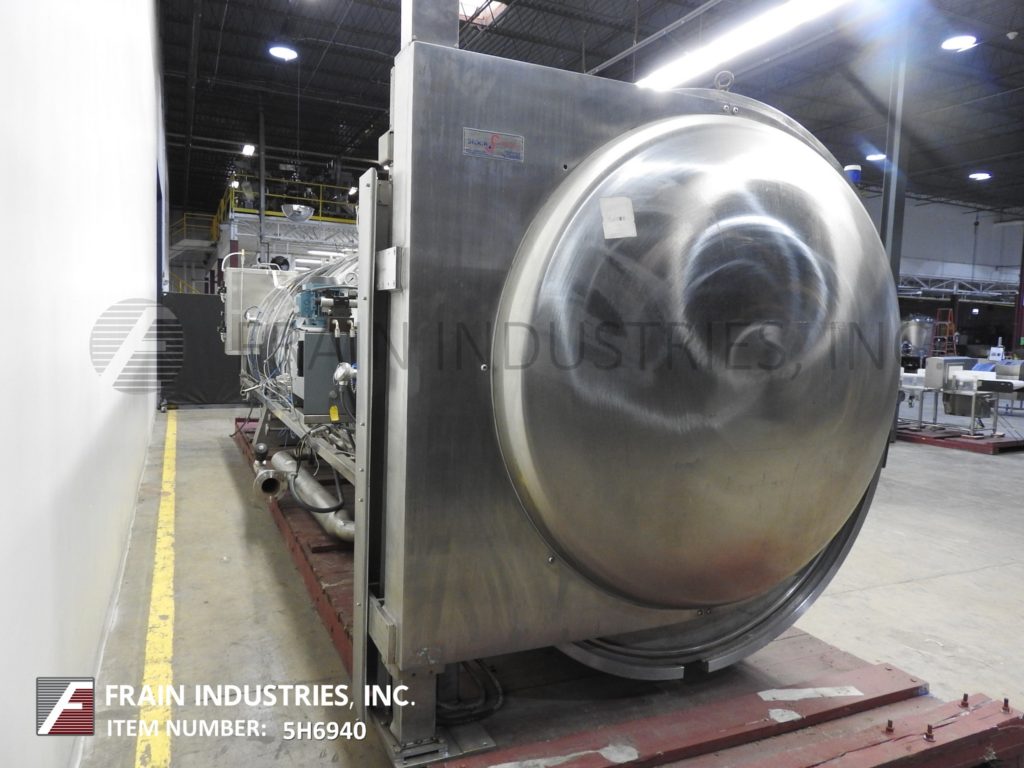

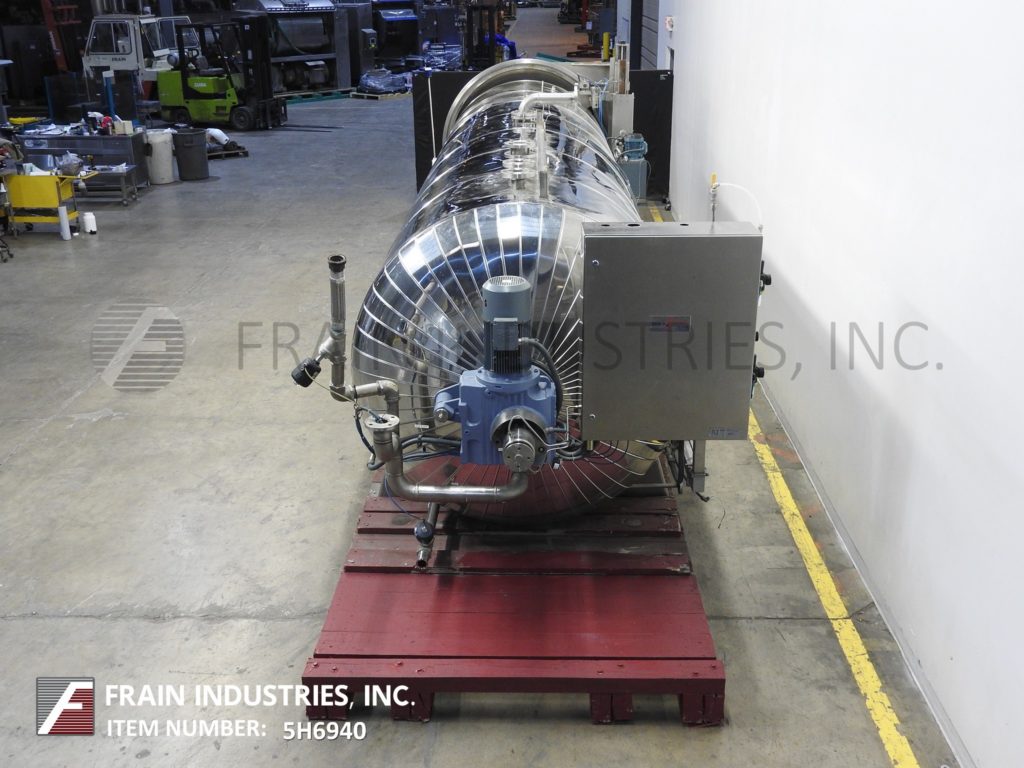

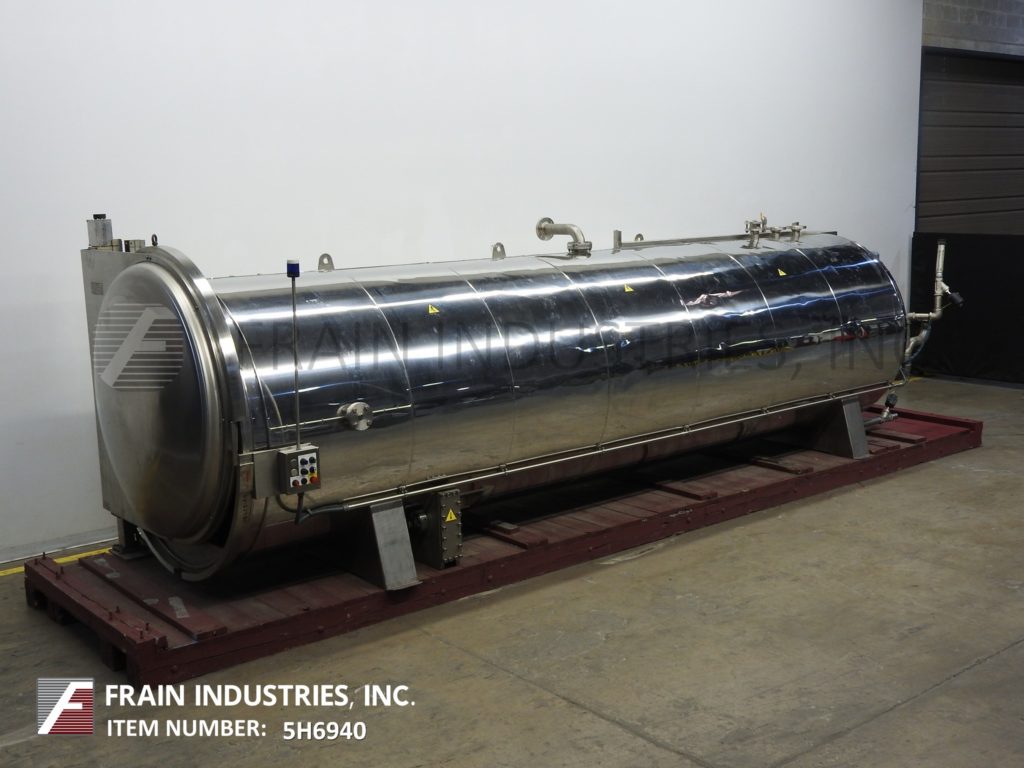

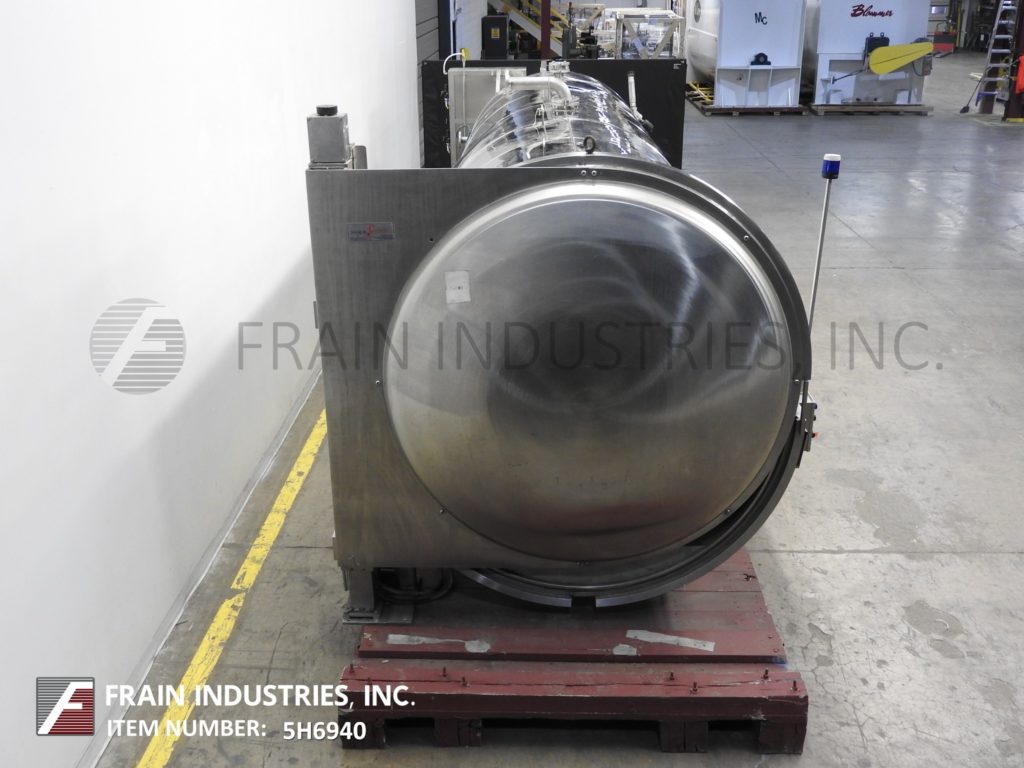

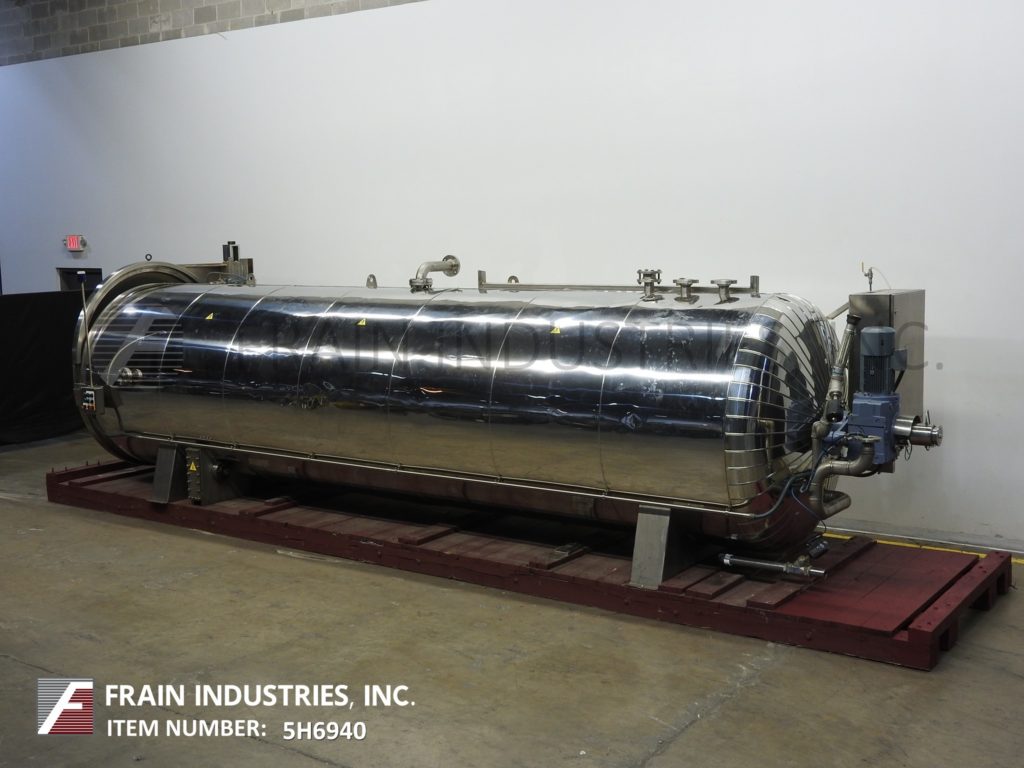

股票美国公司，型号Surdry, SL - AR175-W2，(5)筐，卧式，部分可研磨，旋转分批，蒸汽灭菌，水冷蒸馏塔每小时产品和筐的数量-取决于材料和应用。全不锈钢内外结构。配备(1,700毫米)68"外径液压操作，垂直检修门和旋转室dimmensions 68 x 276(5.6英尺)ID”(23英尺)长绝缘外壳和镜面抛光不锈钢覆层由45惠普马达驱动的MAWP 71 psi @ 302度F和温度分布(+ / - 1°F)的一个精确的压力控制(+ / - 1 psig)和搅拌速度为2to 8 rpm (but 5 rpm maximum is suggested) or you will not get to all the product and it also prevents burn and provides a uniform processes. Has static rotation, oscillation agitation modes and is partial emersable with steam for heating and water spray nozzles for circulation and cooling. Forced convection is obtained by the rotary operation and accelerating of heat transfer to the coldest spots of the product containers, even with products of varying viscosity and has (5) top, (2) side and (6) bottom flanged ports. Control panel has door open, door close, manual, auto and jog switches, with e-stop and statis light. Mounted on heavy duty stainless steel frame.
理想的应用，如汤，酱汁，真空罐装玉米，牛奶饮料，天然金枪鱼，香肠，油蘑菇，大型蔬菜罐头等。
国家董事会44号。

产品规格:332" L x 84" W x 80" H

总重量:空9921磅
总重量:带篮18739磅
总重量:在使用水和产品时，20282磅
