Fillers - Powder Filling Machines

Spee Dee Filler Powder Volumetric CJ6S416

• Manufacturer:Spee Dee
• Model Number:CJ6S416
• Frain Number:R28647

Spee Dee, Model CJ6S416, (6) pocket servo driven volumetric filler. Rated from 10 to 140 indexes per minute with number of containers – depending on materials, application and machine configuration. Cup size range: 1" to 5½" in Diameter; 0.62" to 14" in Depth. Fill range: 0.5 in³ to 300 in³ (with proper change parts). Equipped with 6" diameter charge and 22" OD plate with (6) telescoping fill pockets. Mounted on a stainless steel base with push button single index. start / stop and volume more / less switch.

OAD: 68"L x 40"W x 55"H

Mateer Burt Filler Powder Auger 3820

• Manufacturer:Mateer Burt
• Model Number:3820
• Frain Number:5H3092

Mateer Burt Neotron, Model 3820, single head, stepper driven auger filler. Equipped with a 20" diameter x 20" deep stainless steel product hopper with bolt down dust cover, 7" OD product in feed chute and 93" long x 2½" wide chain conveyor with vibrator, Bimba indexing and containment glove box over filling station for connection to dust collection. Control panel has touch pad controls with digital readout, vibrator speed dial, conveyor speed dial and push button start / stop controls. Mounted on heavy duty base frame. Speed dependant on materials, application and machine configuration.

OAD: 98"L x 42"W x 95"H

Spee Dee Filler Powder Volumetric CBE-4

• Manufacturer:Spee Dee
• Model Number:CBE-4
• Frain Number:5H2170

Spee Dee, Model CBE264, (4) pocket volumetric filler rated from 6 to 48 indexes per minute with number of containers – depending on materials, application and machine configuration. Cup size range: 1" to 4½" in Diameter; 0.62" to 20" in Depth. Fill range: 2 to 1250 cubic inches. Equipped with 12" ID x 16" Deep stainless steel conical product hopper and 13" OD plate with (4) fill pockets. Mounted on a stainless steel base with foot pedal controls. Change parts required to accommodate size range.

OAD: 33"L x 28"W x 70"H

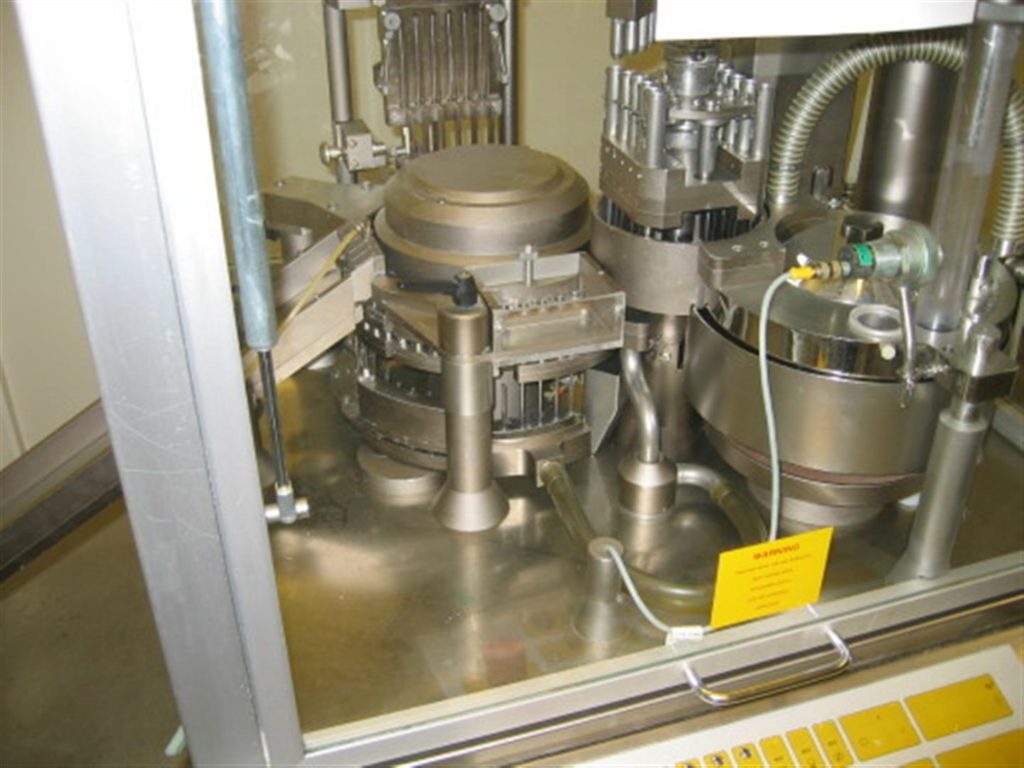

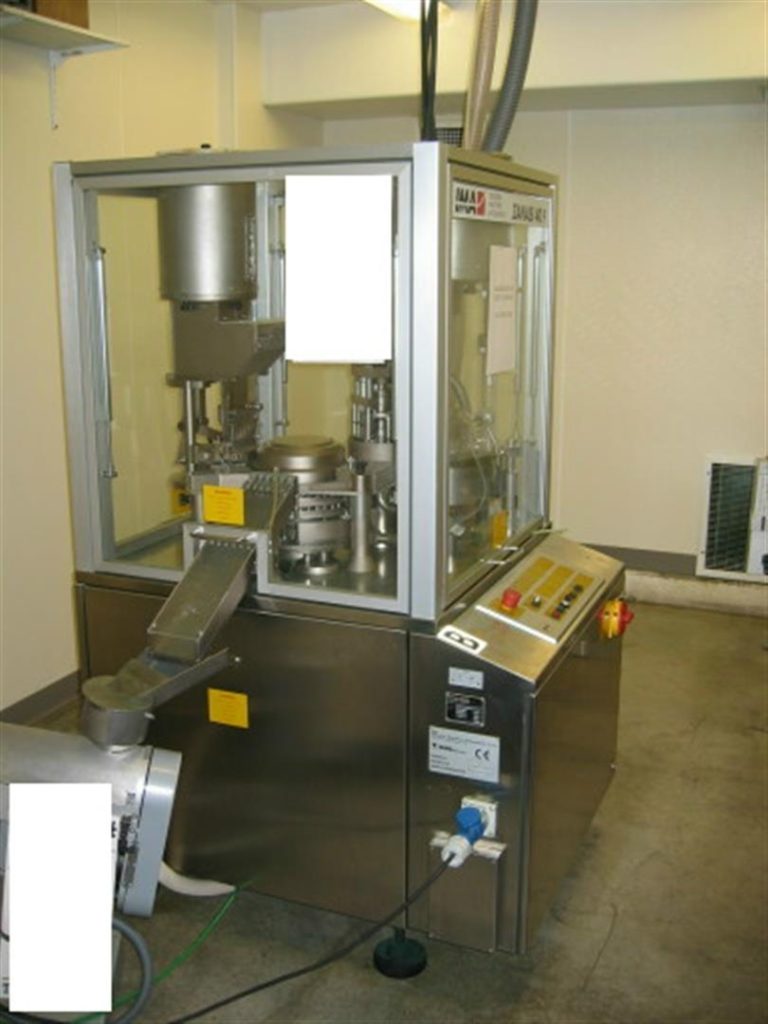

Zanasi Filler Powder Capsule 40F

• Manufacturer:Zanasi
• Model Number:40F
• Frain Number:5G8741

Zanasi, Model 40F, automatic capsule filler. Rated from 5,000 to 40,000 capsules per hour – depending on materials, application and size capsule. Stainless steel construction. Capsule size range: 000 to 5, supro A-E, DB, DBAA (with proper change parts). Equipped with 8 station rotary table that cycles 6 capsules at a time, empty capsule hopper, product hopper, 20" long x 4" wide discharge chute. Control panel with programmable controller. Mounted on a stainless steel base with guarding.

OAD: 50"L x 38"W x 72"H

All Fill Filler Powder Scale R

• Manufacturer:All Fill
• Model Number:R
• Frain Number:5H0120

All Fill twin head 8 station, rotary powder filler with worm screw infeed and table top chain conveyor.

Capsugel Filler Powder Capsule 8

• Manufacturer:Capsugel
• Model Number:8
• Frain Number:R26840

半自动Capsugel、模型8日,不锈钢capsule filler, rated from 4,500 to 33,000 capsules per hour – depending on materials, application, capsule size and operator dexterity. Capsule size range: 000 to 5 with proper change parts. Equipped with 18" wide x 20" long x 10" deep capsule hopper, empty capsule magazine, capsule slide and vacuum rectifier raceway, with 1-3/4" vacuum connection hose. Product ring with clockwise rotation indexing. 7"diameter x 10" deep product hopper with agitation and pneumatic capsule closing assembly with push button control, Eriez Hi-Vi, 3¼" wide x 16" long vibratory discharge conveyor and start / stop push button controls. Mounted on stainless steel base frame.

OAD: 53"L x 36"W x 62"H

Spee Dee Filler Powder Volumetric CB6S-233

• Manufacturer:Spee Dee
• Model Number:CB6S-233
• Frain Number:5G4530

Spee-Dee, Model CB6S-233, 6 pocket volumetric Servo driven cup filler. Equipped with 6-cups plate and standard 1.5 cu.ft stainless steel hopper. Digitronic digital servo gearmotor drive system. PLC Direct micro controller with DV 1000 Operator Interface and control pendant. Manual height adjustment

Fill Volume Range: 0.5-55 cu.in.
Cup Size Range: 1"- 3"Dia., 0.62"-7"lenght
Current Set Up: 2-3/4"Dia.

OAD: 48"L x 40"W x 48"H

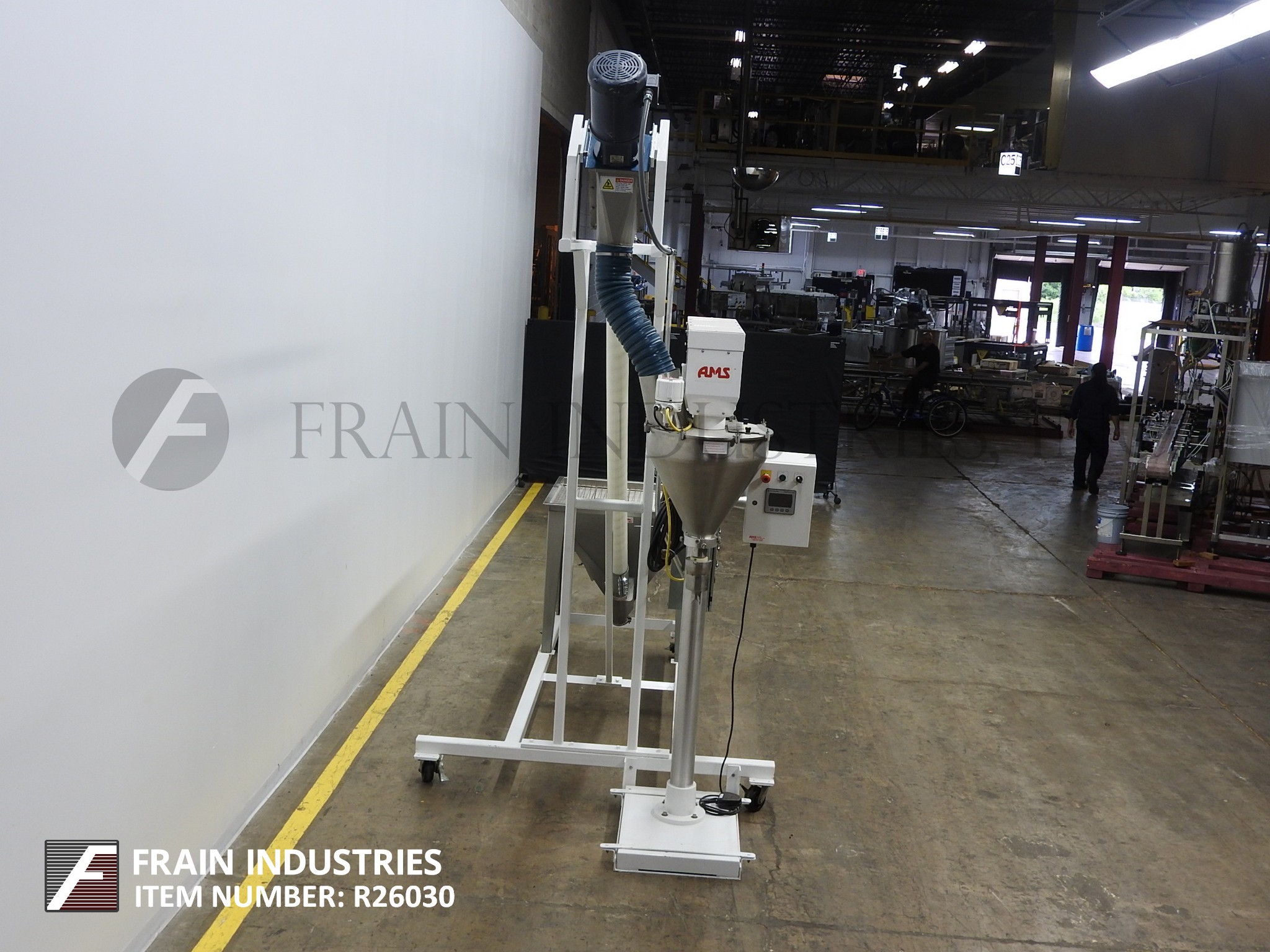

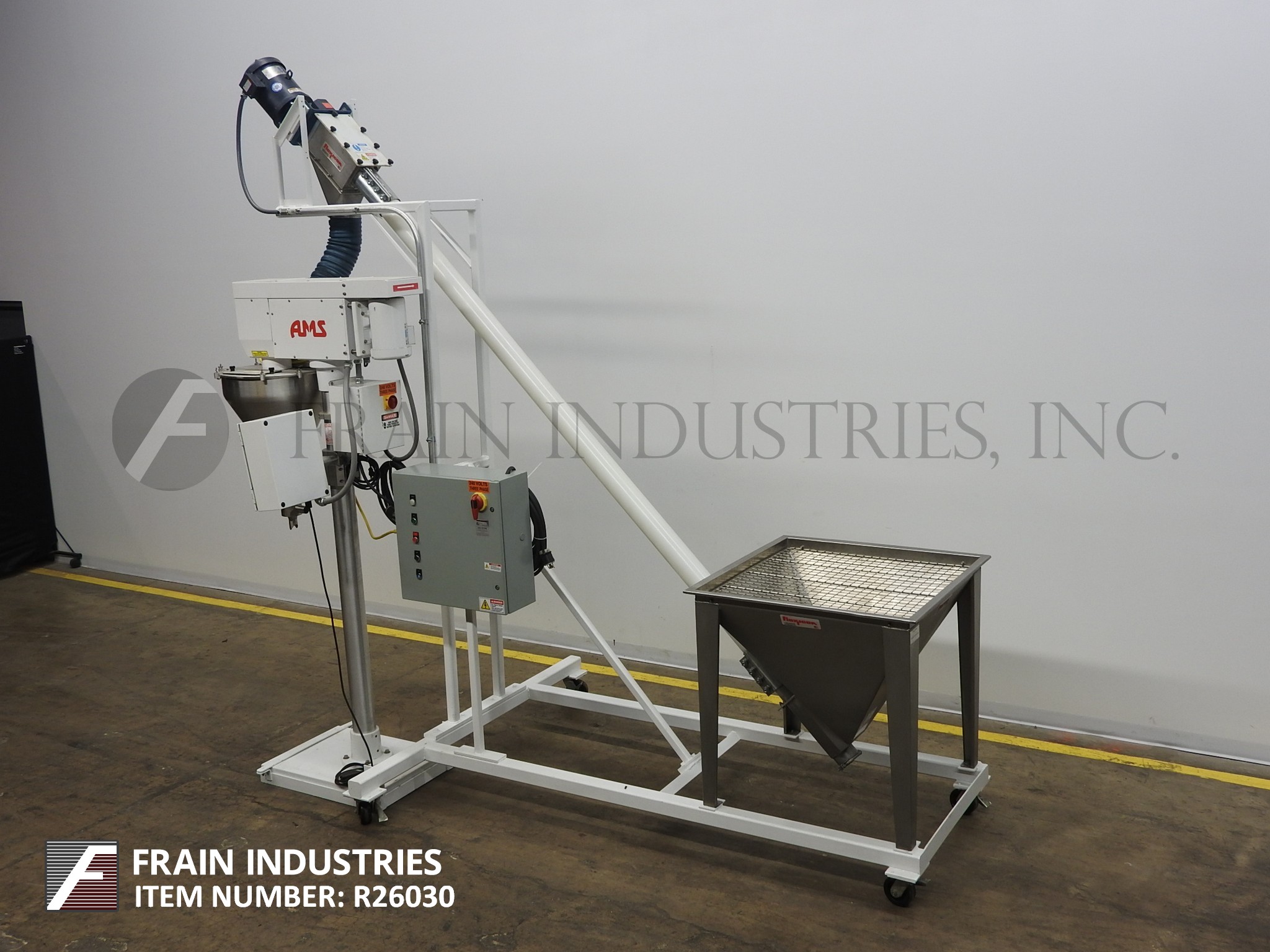

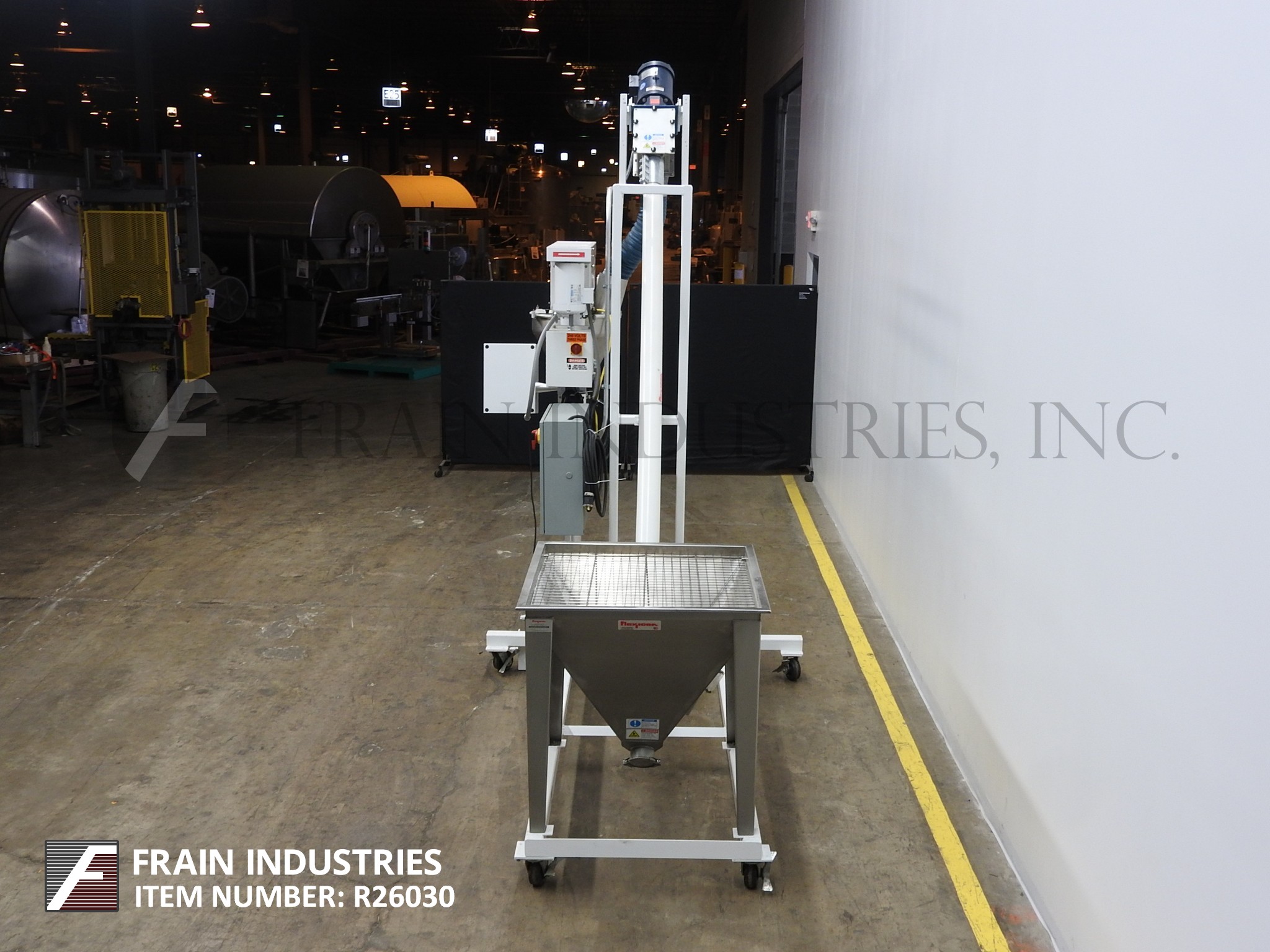

AMS Filling Systems Filler Powder Auger A100/1312

• Manufacturer:AMS Filling Systems
• Model Number:A100/1312
• Frain Number:R26030

AMS A100半自动单头螺旋fi模型ller and Flexicon Model 1312 screw conveyor with number of containers per minute – depending on materials, application and operator dexterity. All 304 stainless steel contact parts. Equipped with 22" OD,16 gallon product hopper, with agitator, bolt down dust cover, 7" OD product port, 6" long x 4" wide bolt down acess port and top mounted level detector. Control panel has A/B controller with readout and start, e-stop and run / reset controls. Mounted on painted stand alone base with foot pedal jog control. Accuracies of +/- 0.25%, depending on product and tooling required per application.

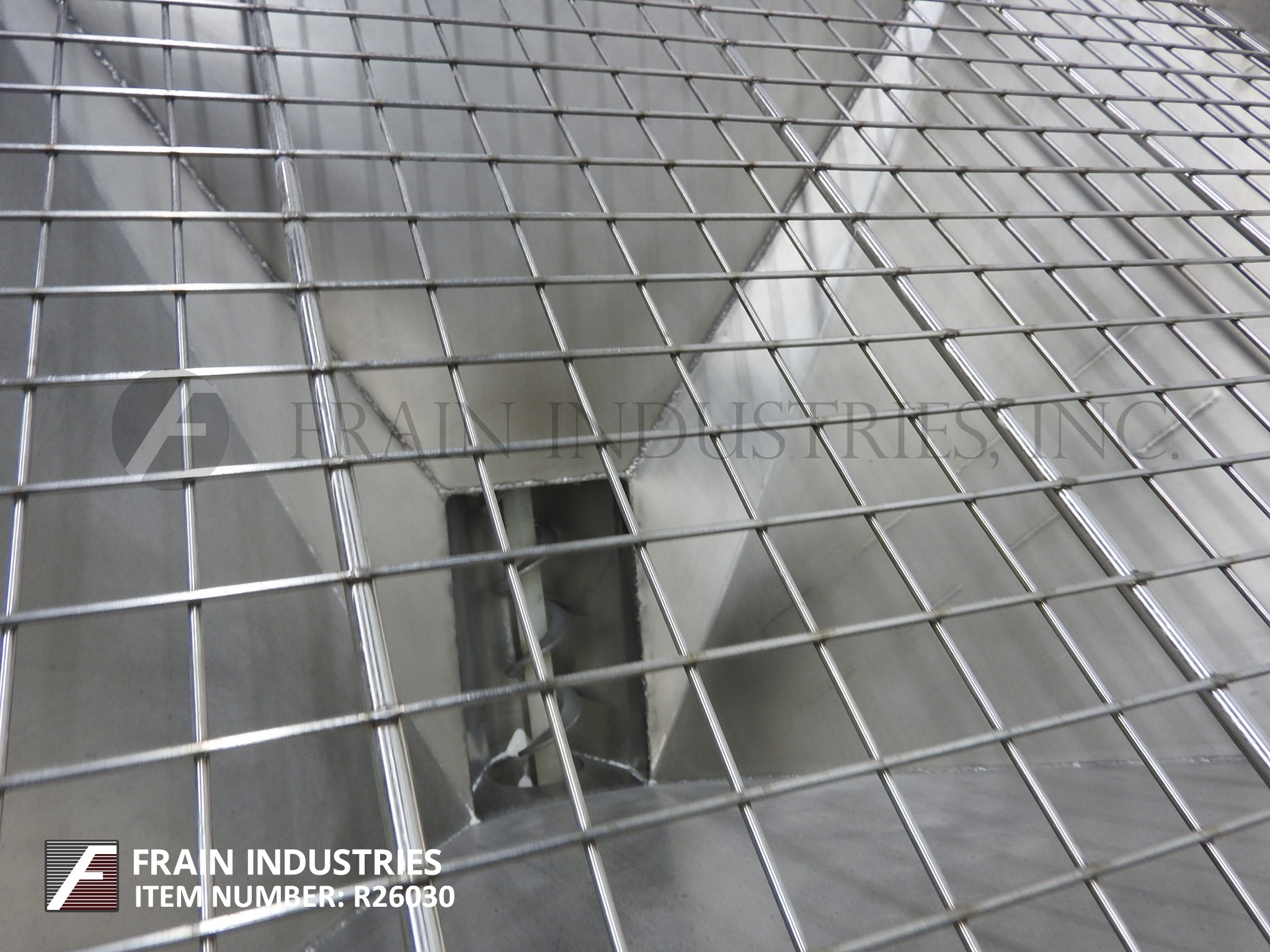

Flexicon 1312 screw conveyor. Equipped with 36" wide x 36" long x 32" deep stainless steel product hopper with safety grid, 3" OD 120" long stainless steel product conveying screw with 3-1/4" flexable poly tube, top 3 Hp motor drive, with 6" ID product discharge port. Control panel with start, e-stop, reset, forward and reverse controls.

OAD: 48" L x 36" W x 86" H Auger Filler
156" L x 36" W x 98" H Screw Feeder

Spee Dee Filler Powder Volumetric CBE-4

• Manufacturer:Spee Dee
• Model Number:CBE-4
• Frain Number:R25744

Spee Dee Model CBE-4, four pocket volumetric filler rated from 4 to 60 indexes per minute with number of containers – depending on materials and application. Cup size range: 1" to 4" in Diameter; 0.62 to 12" in Depth. Fill range: 0.5 to 185 cubic inches. Equipped with 20" ID x 29" Deep, stainless steel, conical product hopper, 12" OD filling plate with (4) 3" ID x 2" Deep product pockets, product discharge funnel with 38" discharge height, foot pedal and mounted on 48" x 36" frame with casters. Applications include popcorn, bird seed, macaroni, rice, dried beans, and many other granulated free flowing products.

OAD: 48" L x 36" W x 90" H

All Fill Filler Powder Auger BSV600

• Manufacturer:All Fill
• Model Number:BSV600
• Frain Number:R23720

Semi-automatic auger filler. Equipped with a 16 gallon agitated hopper and AB Micrologix 1500. Contact parts: 316L stainless steel Tooling required per application.

OAD: 60" L x 48" W x 88" H

Mateer Burt Filler Powder Auger 3000

• Manufacturer:Mateer Burt
• Model Number:3000
• Frain Number:R18981

Automatic stainless steel single head auger filler. Will handle containers from 1" to 7" diameter. Equipped with variable speed dual block chain conveyor with bottom up fill and vibrator for product settling. Includes Microset controls and 318 level detector. Unit has all stainless steel product contact parts and cabinetry. Hopper includes side scrapers to prevent product bridging. Speeds dependant on materials and application.

OAD: 96" L x 48" W x 96" H

Perry Filler Powder Vacuum ESUA

• Manufacturer:Perry
• Model Number:ESUA
• Frain Number:5G6343

Perry Model ESUA, stainless steel powder filler rated from 20 to 120 containers per minute (single dose) – depending on materials and application. Accofil method of vacuum / pressure filling with a fill range of 50 mg to 1.5 gram per single dose, multi dose is optional. Equipped with 9" diameter (8) station dosing wheel with 15mm diameter and 65mm deep chambers 13" diameter x 8" deep hopper with agitation. 3¼" wide x 51" long delrin style conveyor and 6" wide x 23" long roller conveyor with an infeed and discharge height of 33". On/off switches for power, vacuum pump, filler, agitation, conveyor, hopper, and press roller. Variable speed controls for agitation, conveyor, hopper, and press roller. LED display for RPM and pressure guages for dose, vacuum and purge. Mounted on stainless steel height adjustable frame.

OAD: 92"L x 39"W x 67"H
