单臂粘贴混合器非常适合将半固体液体混合，如花生酱以及大多数类型的粉末。

搅拌机由水平罐组成，底部半圆，直线延伸。混合轴和桨叶水平延伸穿过混合器主体，与底部半圆截面紧密匹配。

混合器通常安装在耳朵上，使得它可以旋转90度前向前卸载。

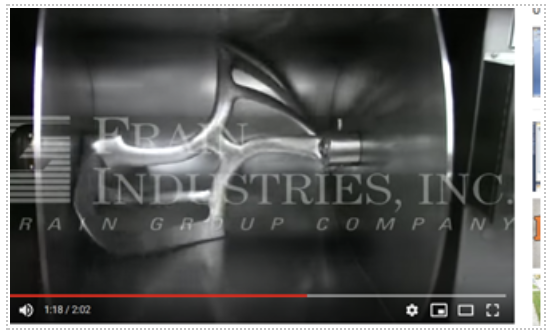

一对成角度的叶片和/或桨叶安装在轴上以进行混合。随着桨叶旋转，一个桨叶将抬起并将产品推到左侧。另一个桨，因为它通过升降机旋转并将产品推向右侧。这确保了很好的混合。速度是可变的，以控制混合是多么蓬松。

The mixer tank and blade is typically constructed of stainless steel, particularly the product contact surfaces to minimize contamination and to assure compatibility with most materials.

在混合过程中,一部分的能量supplied to the motor ends up in the product as frictional heat from mixing. This can cause a problem with overheating during a long mixing cycle. Mixers may be jacketed to allow circulation of chilled water to keep the product temperature stable. In other cases, it may be desirable to keep the product hot. In some cases the product may even be cooked while mixing. Steam or hot water may be circulated in the jacket in that case. NOTE: Circulating steam in any jacket requires that the jacket be properly designed for steam and have appropriate relief valves and other safety devices.

混合罐的顶部应具有盖子以防止污染，作为防止操作员损伤通过与移动的混合桨接触的安全措施。顶部必须包括安全互锁，以便在打开时停止混频器。如果该过程需要在混合过程中添加成分，则可以在盖子中添加小端口。一些搅拌器设计成在压力下运行，并将具有厚重的盖子，具有适当的密封件和闩锁，以允许这一点。

双臂粘贴混合器用于混合重，粘性，产品。这些产品可以干燥或液体或将干燥产品与液体组合。一些常见的产品在双臂混合器中运行包括：粘合剂，面包和糕点面团，陶瓷，食品和糖果产品，药品制剂等。

这些混合器有时是通常称为Sigma混合器，但“Sigma”是指几种常见风格中的混合刀片的一种特定风格。

The mixing vessel, seen from above, is rectangular with a double troughed bottom. Seen from the end, a “W” shape is formed by 2 half-round bottom sections. Sides and ends extend up vertically to enclose the desired mixing volume. Construction may be of carbon steel, coated steel or stainless steel. Size can range from less than a gallon in a benchtop model to hundreds of gallons for large scale production.

The mixer will usually have a lid and it is critical that this lid be interlocked for safety to prevent the mixer from running while open. If it is necessary to add materials during mixing operations, a small port may be provided. Some mixers are pressure rated and the lid seals to allow steam or other gases to be introduced. The friction between blades and product can cause significant heating in long blending cycles. The mixer may be jacketed to allow heating or cooling during mixing.

混合容器通常安装在耳轴上，允许其向前倾斜以便于卸载。对于较低的粘度产品，可以提供用于排出产品的排出阀。该阀门应设计与混合器齐平，以避免混合过程中的死点。另一个卸载选项是混合器底部的挤出机螺钉。

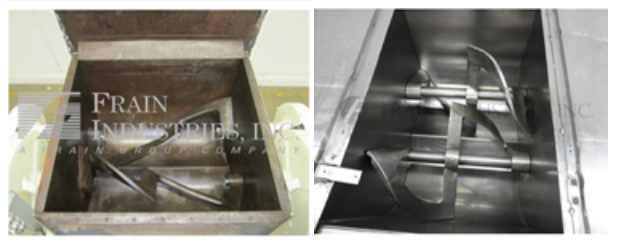

两个轴，每个轴有一个或两个刀片，运行混合器的长度。这些轴通过齿轮箱驱动以进行同步。轴可以以相同的速度或差速器旋转。叶片和容器之间的公差通常很小。这使得这种搅拌器高剪切，加速可能难以结合在其他风格的混合器中的材料的组合。
