Homogenizer Machines
Used Homogenizer Equipment
The homogenizer mixer is a machine that consists of a positive displacement pump and a valve designed for a specific application. The pump is used to maintain a constant flow through the homogenizer mixer equipment. The pump forces the product under pressure through a small adjustable gap between the valve seat and the valve, causing turbulence and intense mixing. Homogenizers are best known in the dairy industry for milk, but Frain has a wide variety of vacuum, inline and high shear homogenizers for several industry applications. Some of the top Homogenizers are from tetra pak, fbf, silverson, gaulin, apv, ross, niro.
Related Categories
Homogenizer Equipment In Stock

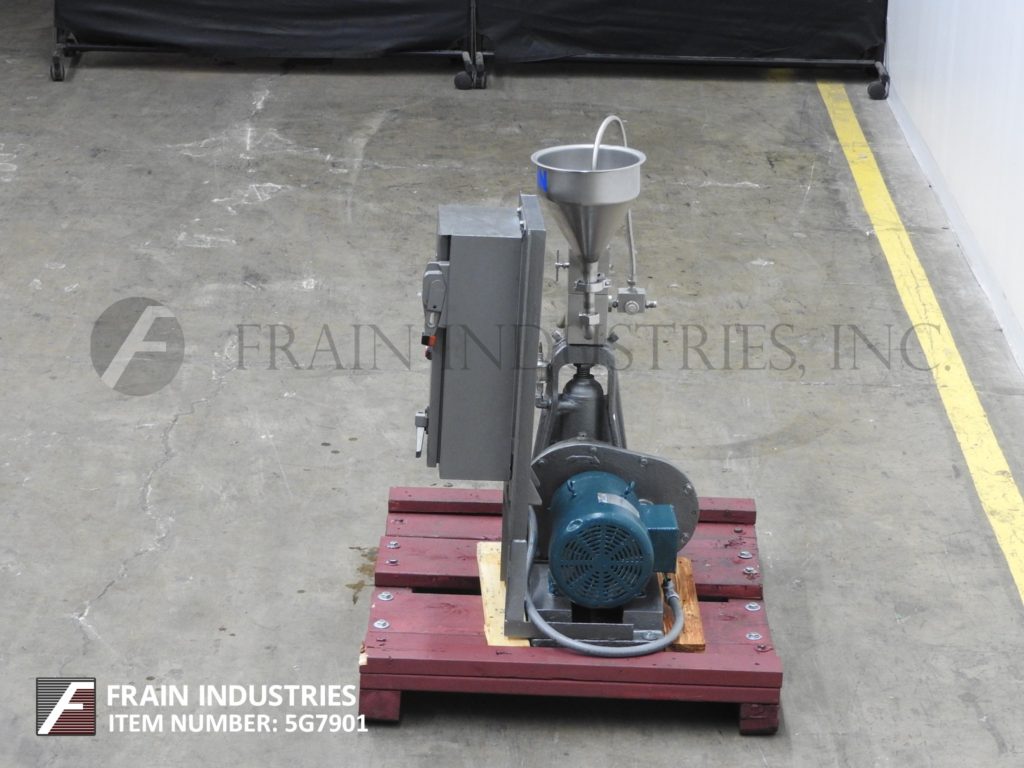

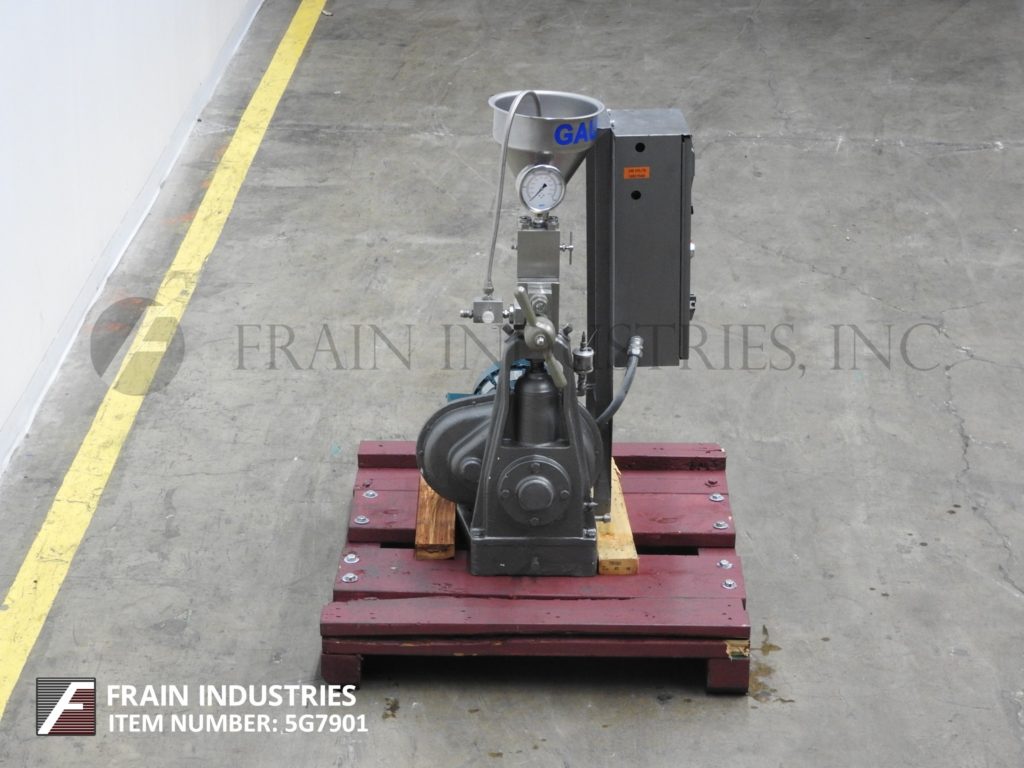

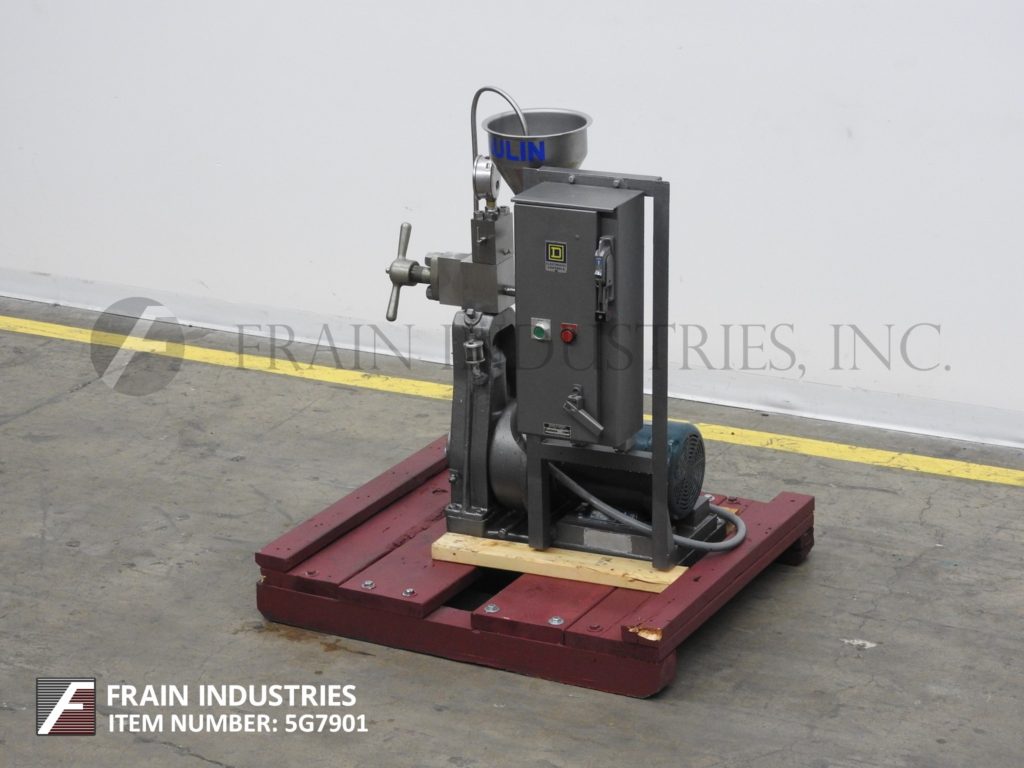

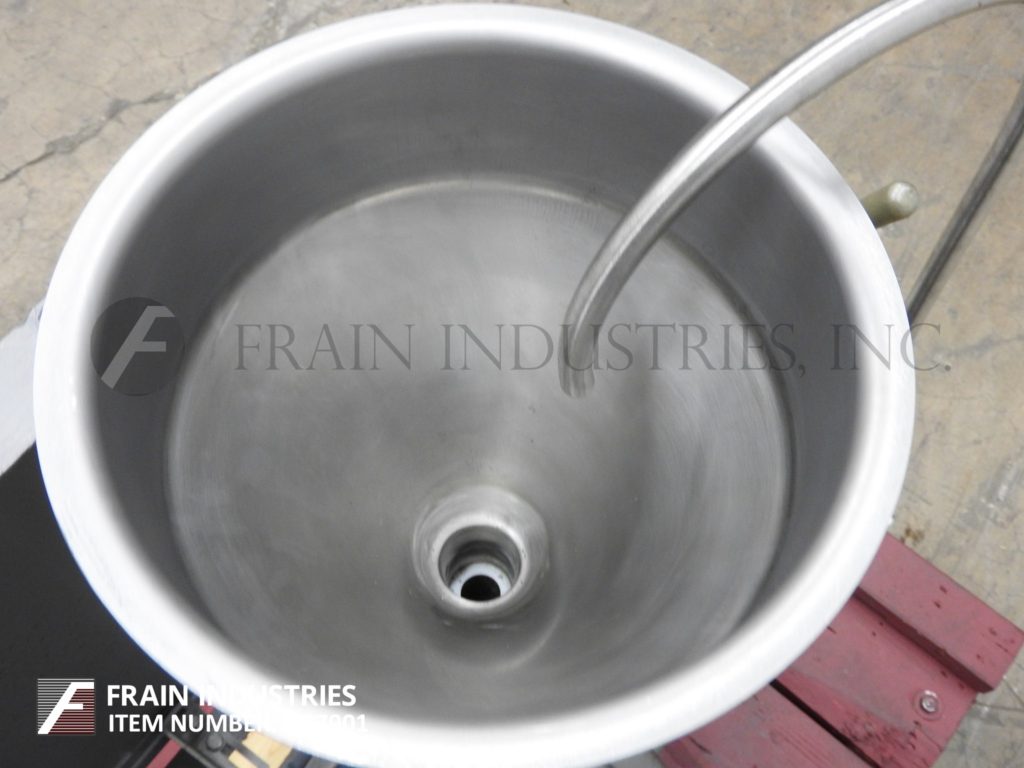

Gaulin Homogenizer Single Stage 15M8TBA
- Manufacturer:Gaulin
- Model Number:15M8TBA
- Frain Number:5G7901
Gaulin, Model 15M 8TBA, single stage, homogenizer. Rated output capacity of 15 gallons per hour – depending on materials and application. Maximum operating pressure up to 8,000 psi. Equipped with ball valve cylinders and cell disruption style valve seat, manual homogenizing valve actuator assembly with a 1½" OD / ¾" ID seated bevel style charge port, ¾" OD / (3/8)" ID threaded discharge ports on a two way valve and pressure gage up to 15,000 psi. Ball valve head is ideally suited for high-viscosity or abrasive products like, peanut butter, evaporated milk, wax emulsions and lubricants. Cell disruption valve seat is designed to optimize the extraction of intracellular materials like proteins and enzymes.
OAD: 34"L x 27"W x 49"H
Get a Free Quote Call:630-629-9900
APV Homogenizer Single Stage 15MR8TBA
- Manufacturer:APV
- Model Number:15MR8TBA
- Frain Number:5G8790
Gaulin, Model 15M 8TBA, single stage, homogenizer. Rated output capacity of 15 gallons per hour – depending on materials and application. Maximum operating pressure up to 8,000 psi. Equipped with ball valve cylinders, manual homogenizing valve actuator assembly with a 6" diameter x 10" deep product hopper, 3 way valve discharge and pressure gage up to 15,000 psi. Ball valve head is ideally suited for high-viscosity or abrasive products like, peanut butter, evaporated milk, wax emulsions and lubricants.
OAD: 35"L x 32"W x 53"H
Get a Free Quote Call:630-629-9900

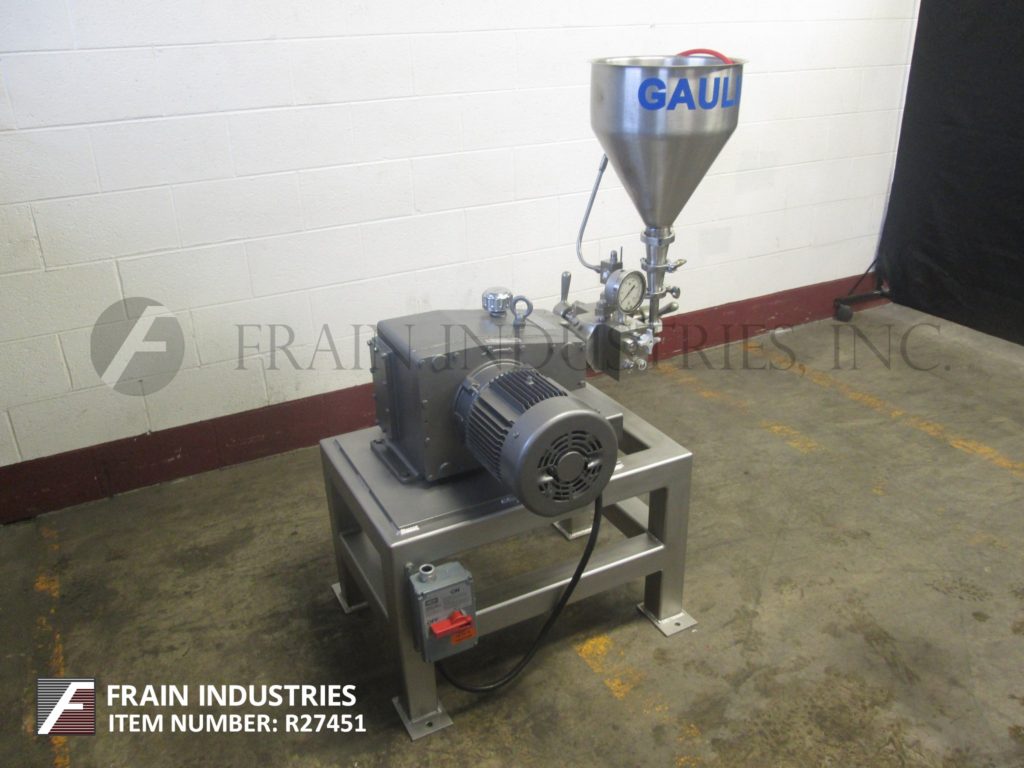

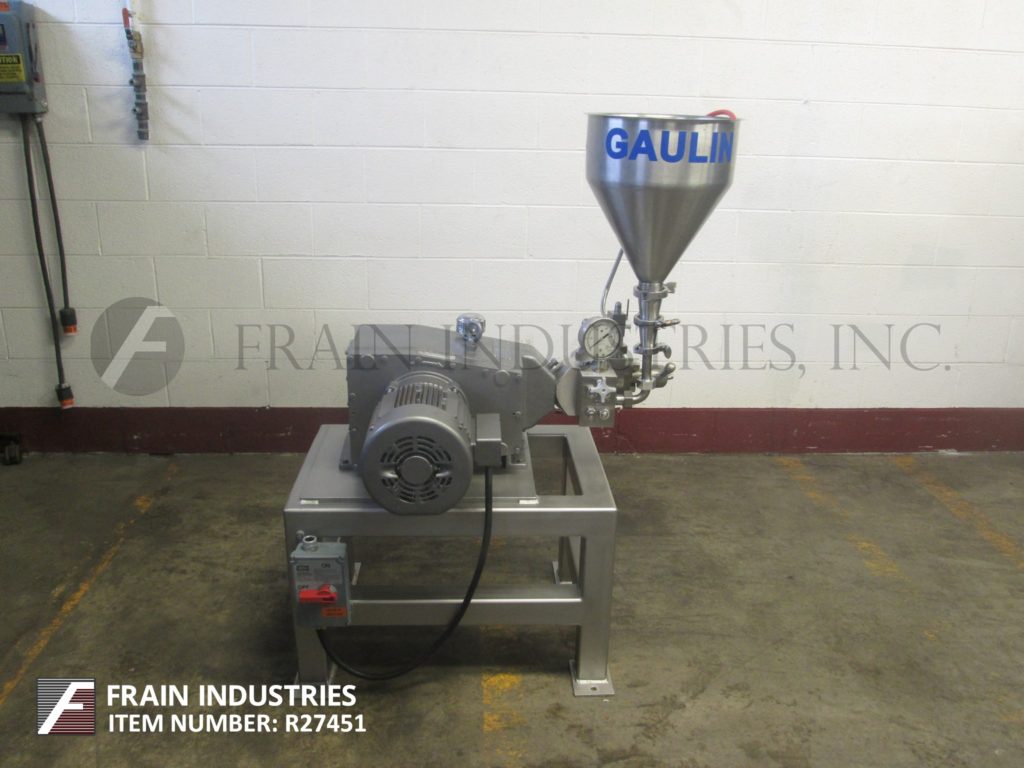

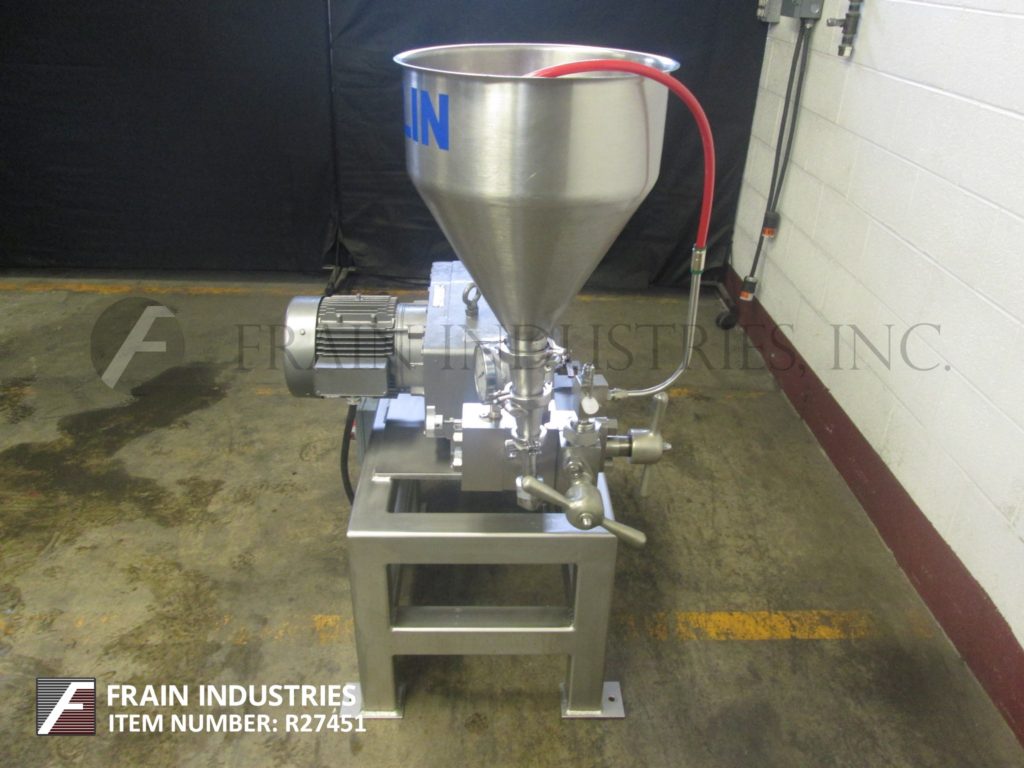

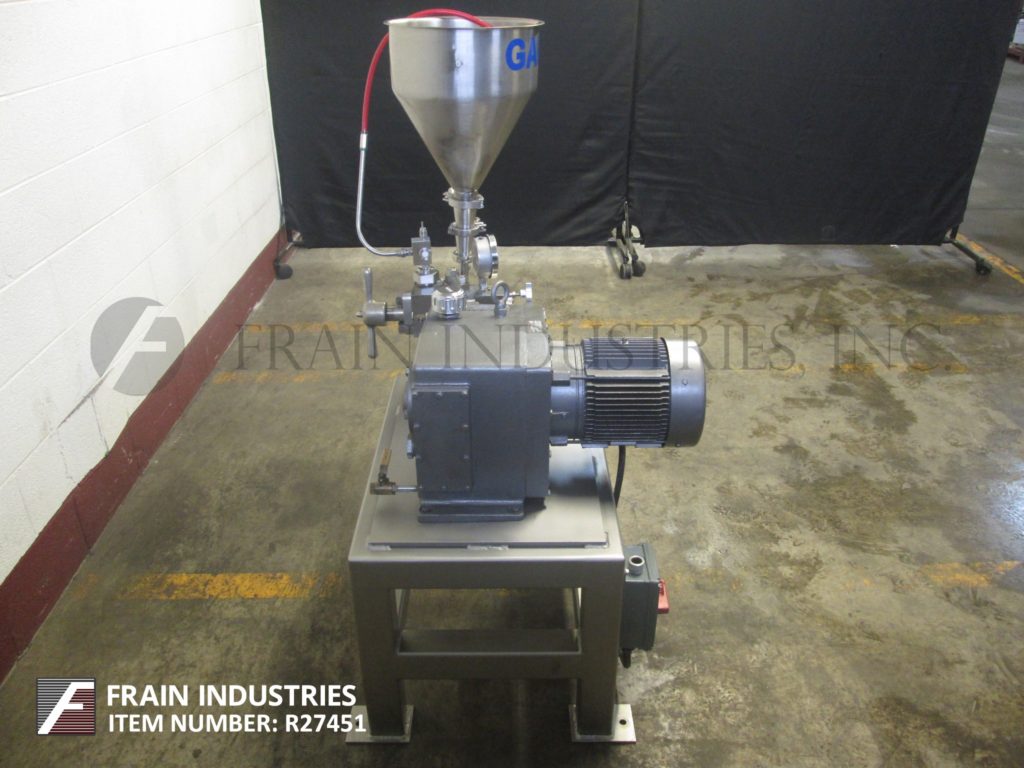

Gaulin Homogenizer 2 Stage 15MR8TBA
- Manufacturer:Gaulin
- Model Number:15MR8TBA
- Frain Number:R27451
APV, Model 15M 8TBA, two stage, homogenizer. Rated output capacity of 15 gallons per hour – depending on materials and application. Maximum operating pressure up to 8000 psi. Equipped with ball valve cylinders and standard style valve seat, manual homogenizing valve actuator assembly with a 14" diameter x 16" deep hopper infeed, three way valve discharge and pressure gage up to 15,000 psi. Ball valve head is ideally suited for high-viscosity or abrasive products like, peanut butter, evaporated milk, wax emulsions and lubricants. Standard valve seat is used for most emulsion and dispersion applications.
OAD: 40"L x 28"W x 54"H
Get a Free Quote Call:630-629-9900
Gaulin Homogenizer 2 Stage 125E
- Manufacturer:Gaulin
- Model Number:125E
- Frain Number:5G7704
Gaulin, Model 125E, two stage, stainless steel homogenizer. Rated output capacity of 125 gallons per hour – depending on materials and application. Maximum operating pressure up to 2500 psi. Equipped with poppet valve cylinders and standard style valve seat. manual homogenizing valve actuator assembly with a 2" OD / 1½" ID Tri-clamp style charge port, 2" OD / ¼" ID Seated bevel style discharge port and pressure gage up to 5000 psi. Poppet valve head is ideally suited for low-viscosity, moderately abrasive products, like ice cream mixes and dairy products, vegetable oils, and silicone emulsions. Standard valve seat is used for most emulsion and dispersion applications.
OAD: 40"L x 30"W x 51"H
Get a Free Quote Call:630-629-9900

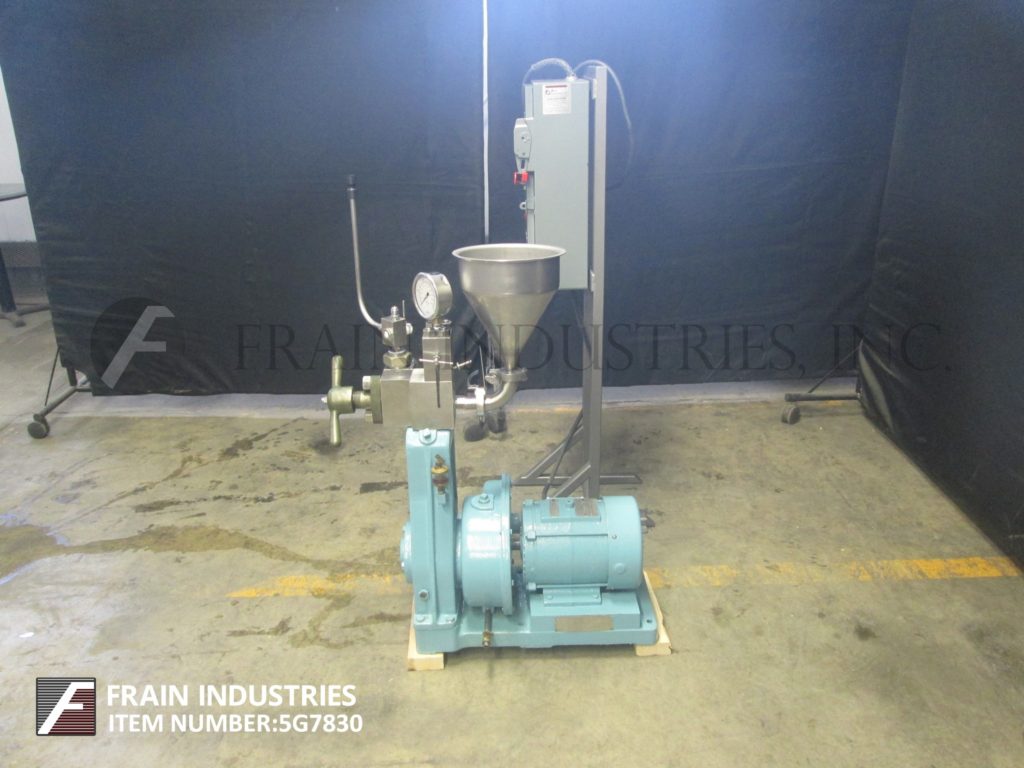

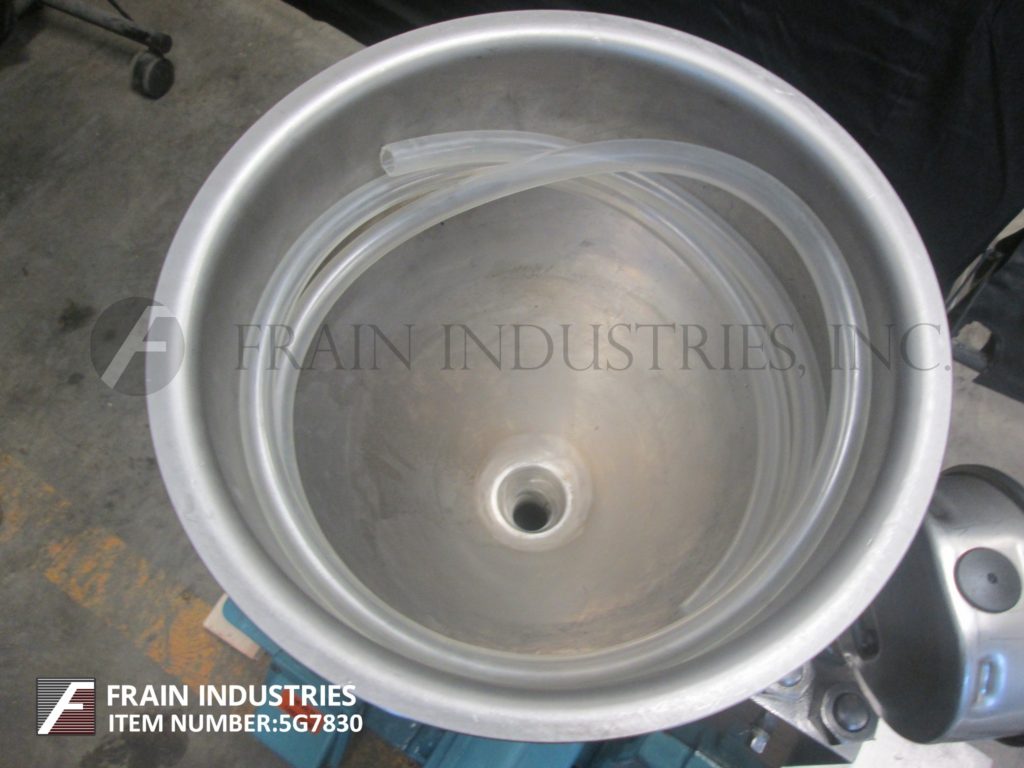

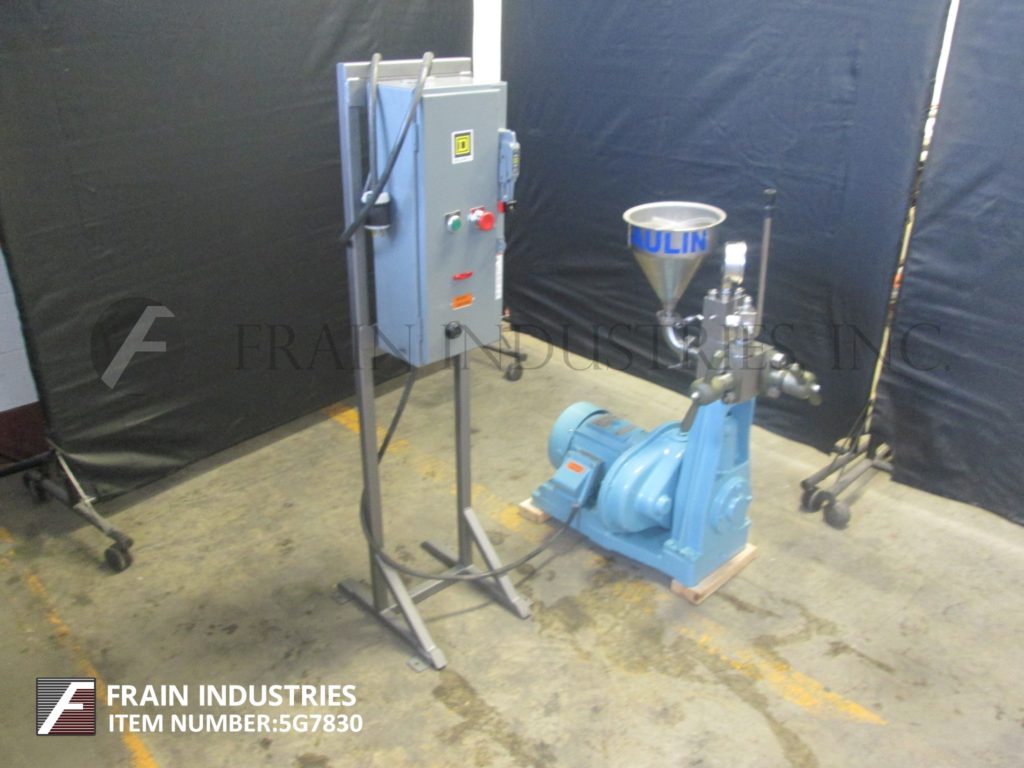

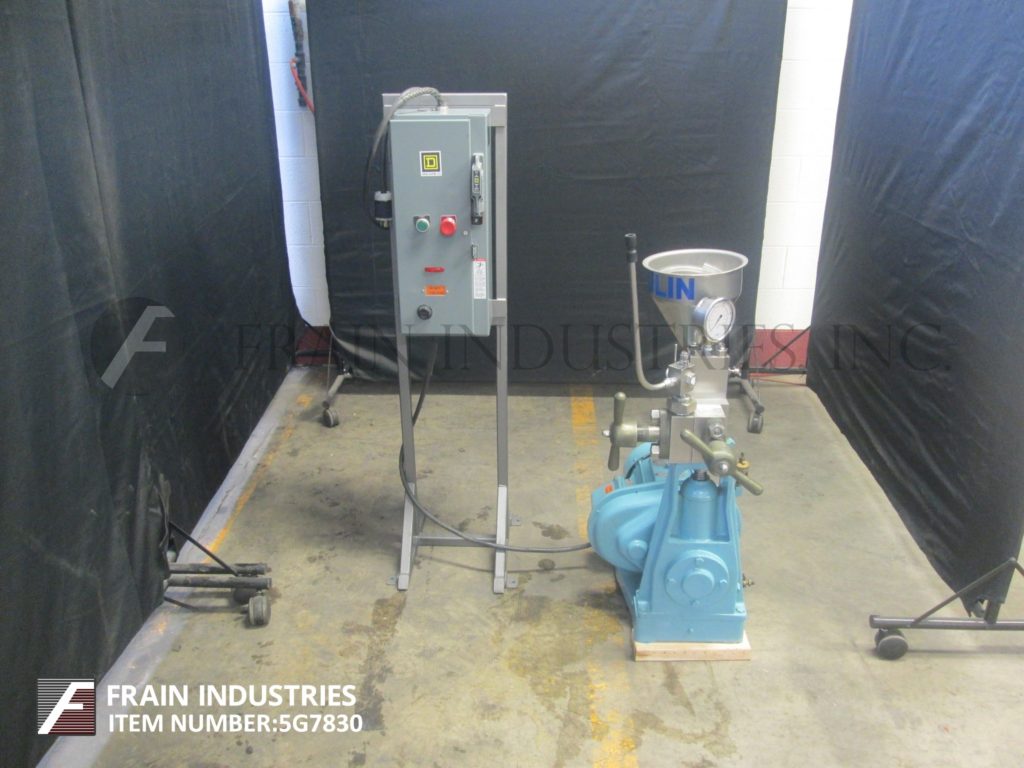

15 m8tasmd Gaulin均质器2阶段
- Manufacturer:Gaulin
- Model Number:15M8TASMD
- Frain Number:5G7830
Gaulin, Model 15M8TASMD, two stage, homogenizer. Rated output capacity of 15 gallons per hour – depending on materials and application. Maximum operating pressure up to 8,000 psi. Equipped with poppet valve cylinders and standard style valve seat, manual homogenizing valve actuator assembly with a 1½" OD / (5/8)" ID seated bevel style charge port, 2" OD / (3/8)" ID seated bevel style discharge port and pressure gage up to 15,000 psi. Poppet valve head is ideally suited for low-viscosity, moderately abrasive products, like ice cream mixes and dairy products, vegetable oils, and silicone emulsions. Standard valve seat is used for most emulsion and dispersion applications.
OAD: 32"L x 23"W x 37"H
Get a Free Quote Call:630-629-9900

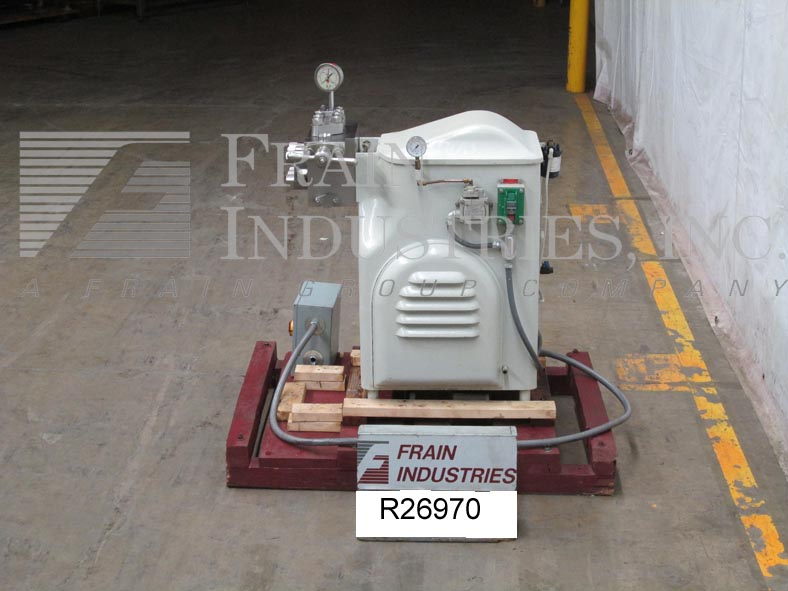

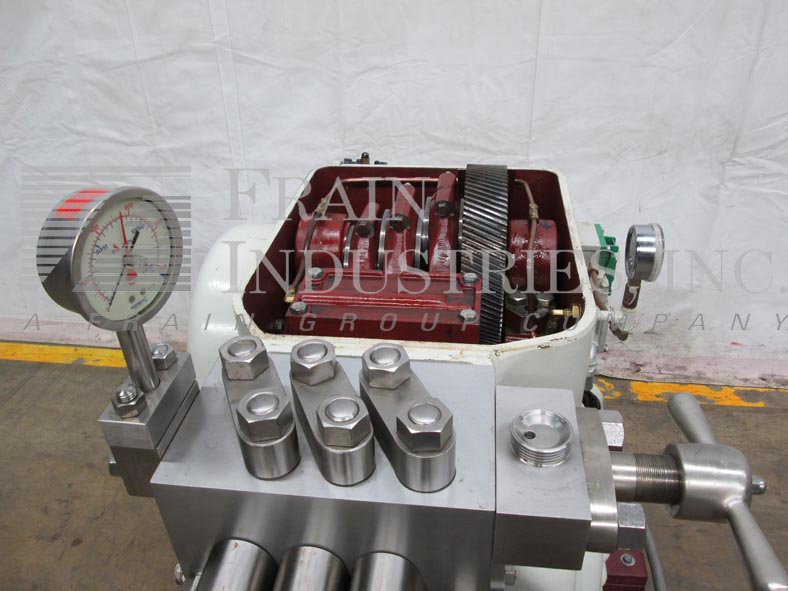

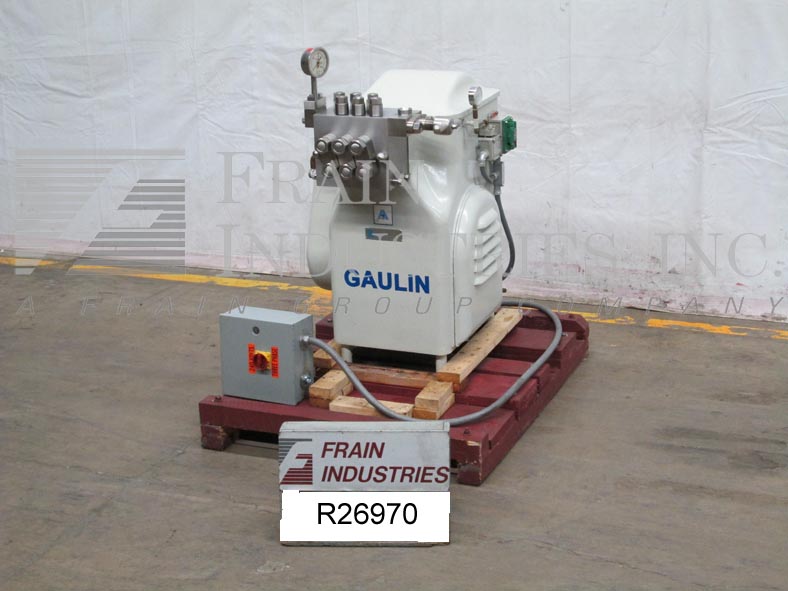

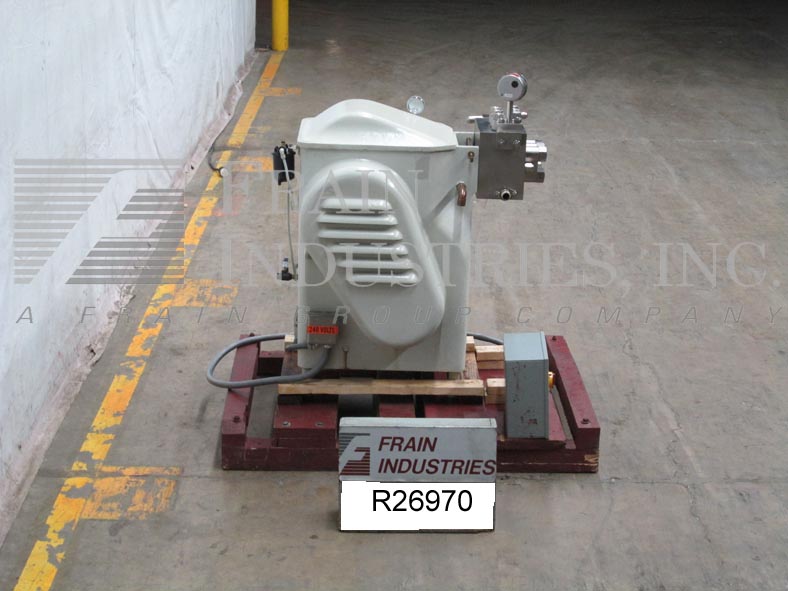

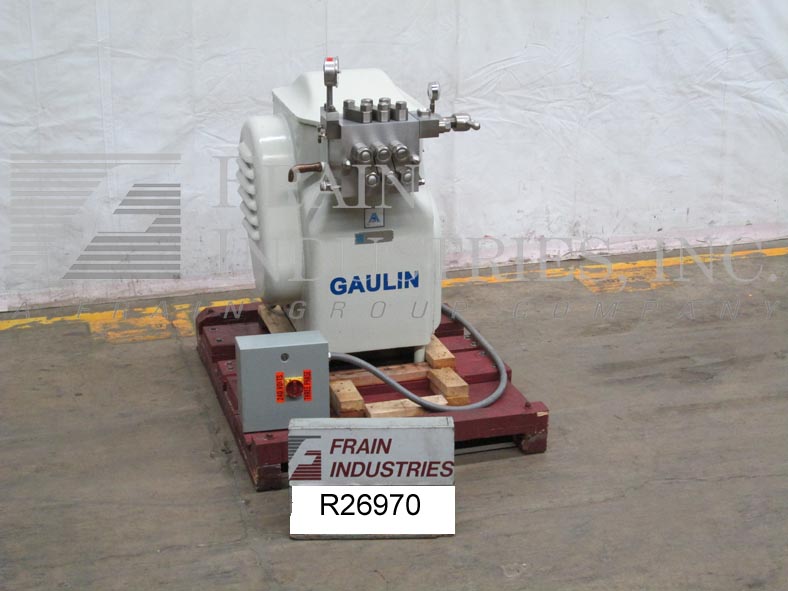

Gaulin Homogenizer Single Stage 90M38TBS
- Manufacturer:Gaulin
- Model Number:90M38TBS
- Frain Number:R26970
Gaulin、90 m38tbs模型、单级不锈钢steel homogenizer. Equipped with ball valve cylinders. Rated for an output capacity of up to 90 gallons per hour with a maximum operating pressure of up to 8,000 psi. Manual homogenizing valve actuator assembly with a 2"OD / 1½" ID tri-clamp style charge port, 2"OD / 1½" ID tri-clamp style discharge port and pressure gage up to 15,000 psi. Ball valve head is ideally suited for high-viscosity or abrasive products like, peanut butter, evaporated milk, wax emulsions and lubricants.
OAD: 33"L x 40"W x 46"H
Get a Free Quote Call:630-629-9900
Cherry Burrell / Waukesha Homogenizer 2 Stage 3000
- Manufacturer:Cherry Burrell / Waukesha
- Model Number:3000
- Frain Number:R26690
Cherry Burrell / Waukesha, Model 3000, two stage three valve, stainless steel homogenizer. Equipped with poppet-valve cylinder whith output capacity up to 2500 gallons per hour. Operating pressure up to 3000 psi, two stage pneumatic homogenizing valve actuator assembly with (2) 4"OD / 3"ID I-Line style charge ports and 3½"OD / 1¼"ID I-Line style discharge port and pressure gage up to 5000 psi.
OAD: 59"L x 52"W x 69"H
Get a Free Quote Call:630-629-9900
APV Gaulin Homogenizer Single Stage 30CD
- Manufacturer:APV Gaulin
- Model Number:30CD
- Frain Number:R26780
Gaulin, Model 30 CD, single stage stainless steel homogenizer. Equipped with ball valve cylinders and CD style valve seat. Rated for an output capacity of up to 30 gallons per hour with a maximum operating pressure of up to 15,000 psi. Manual homogenizing valve actuator assembly with a 1" OD / (3/8)" ID tri-clamp style charge port, 1" OD / (3/8)" ID tri-clamp style discharge port and pressure gage up to 30,000 psi. Ball valve head is ideally suited for high-viscosity or abrasive products like, peanut butter, evaporated milk, wax emulsions and lubricants. Cell disruption valve seat is designed to optimize the extraction of intracellular materials like proteins and enzymes
OAD: 35"L x 30"W x 53"H
Get a Free Quote Call:630-629-9900
Gaulin Homogenizer 2 Stage 300 CGD
- Manufacturer:Gaulin
- Model Number:300 CGD
- Frain Number:R26700
Gaulin, Model 300 CGD, two stage, stainless steel homogenizer. Equipped with poppet-valve cylinder which has an output capacity of up to 200 gallons per hour with a maximum operating pressure of up to 1,250 psi, two stage manual homogenizing valve actuator assembly with a 2"OD / 1¼"ID seated bevel thread style charge port and 2"OD / ¼"ID seated bevel thread style discharge port and pressure gage up to 5,000 psi. Poppet valve head is ideally suited for low-viscosity, moderately abrasive products, like ice cream mixes and dairy products, vegetable oils, and silicone emulsions.
OAD: 53"L x 38"W x 53"H
Get a Free Quote Call:630-629-9900
Cherry Burrell / Waukesha Homogenizer 2 Stage 400-HD6
- Manufacturer:Cherry Burrell / Waukesha
- Model Number:400-HD6
- Frain Number:R26530
Cherry Burrell Model Steller series 400 superhomo, two stage homoginizer rated up to 200 gals per hour – depending on materials and appliaction. All 316 S/S contact parts, with 13/16" cylinder rated to 2500 psi, heavy duty construction, 15 Hp direct V-belt driven pump. Equipped with 2.5"OD/1¾"ID tri-clamp style fittings.
OAD: 46" L x 28" W x 53" H
Get a Free Quote Call:630-629-9900
Gaulin Homogenizer Single Stage 30CD887
- Manufacturer:Gaulin
- Model Number:30CD887
- Frain Number:R26380
Gaulin, Model 30CD887, single stage stainless steel homogenizer. Equipped with ball valve cylinder and CD style valve seat. Rated for an output capacity of up to 30 gallons per hour with a maximum operating pressure of up to 15,000 psi. Manual homogenizing valve actuator assembly with a 1"OD / (3/8)" ID tri-clamp style charge port, 1"OD / (3/8)" ID tri-clamp style discharge port and pressure gage up to 15,000 psi. Ball valve head is ideally suited for high-viscosity or abrasive products like, peanut butter, evaporated milk, wax emulsions and lubricants. Cell disruption valve seat is designed to optimize the extraction of intracellular materials like proteins and enzymes.
OAD: 30"L x 24"W x 48"H
Get a Free Quote Call:630-629-9900
APV Gaulin Homogenizer 2 Stage 15MR8TA
- Manufacturer:APV Gaulin
- Model Number:15MR8TA
- Frain Number:R22921
Two stage, single plunger, laboratory homogenizer capable of 15 gph and minimum sample size of one pint. All 316 S/S contacts, sub micron dispenser has 8,000 psi continuous operating pressure, 10,000 psi intermittent operating pressure (20 minute maximum), 2 1/8" stroke, ball valve cylinder, and 3-way valve and bypass with S/S tubing. Equipped with pressure gauge. Mounted on stainless steel frame with casters.
外形尺寸:36 W x 60“L x 30 H
Get a Free Quote Call:630-629-9900
