Kettle Machines

Walker Kettle Single Motion R2046KET003

• Manufacturer:Walker
• Model Number:R2046KET003
• Frain Number:5H3121

Walker, 250 Liter capacity, 316L stainless steel, insulated and jacketed kettle. Vessel dimensions: 30" diameter x 30" deep with a 24" straight wall. Equipped with (1) thermowell, ½ HP top mounted prop agitation and plug valve with 2½"OD / 2"ID Tri-Clamp style discharge with 3" ground clearance.

Top Ports:
(1) 3"ID Seated Bevel
(4) 2½"OD / 2"ID Tri-Clamp

Jacket Ports:
(2) 1½" NPT
(1) ¾" NPT

MAWP: 100 PSI / -15 PSI @ 300°F
MDMT: -20°F @ 100 PSI
Nat’l Brd: 4974

OAD: 42"L x 38"W x 79"H

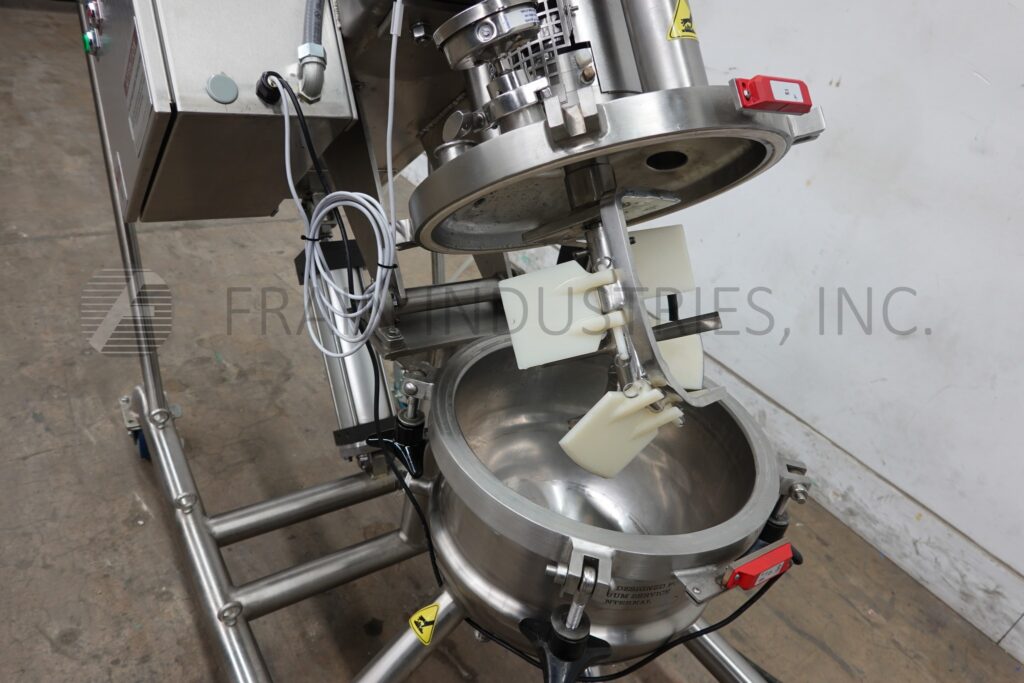

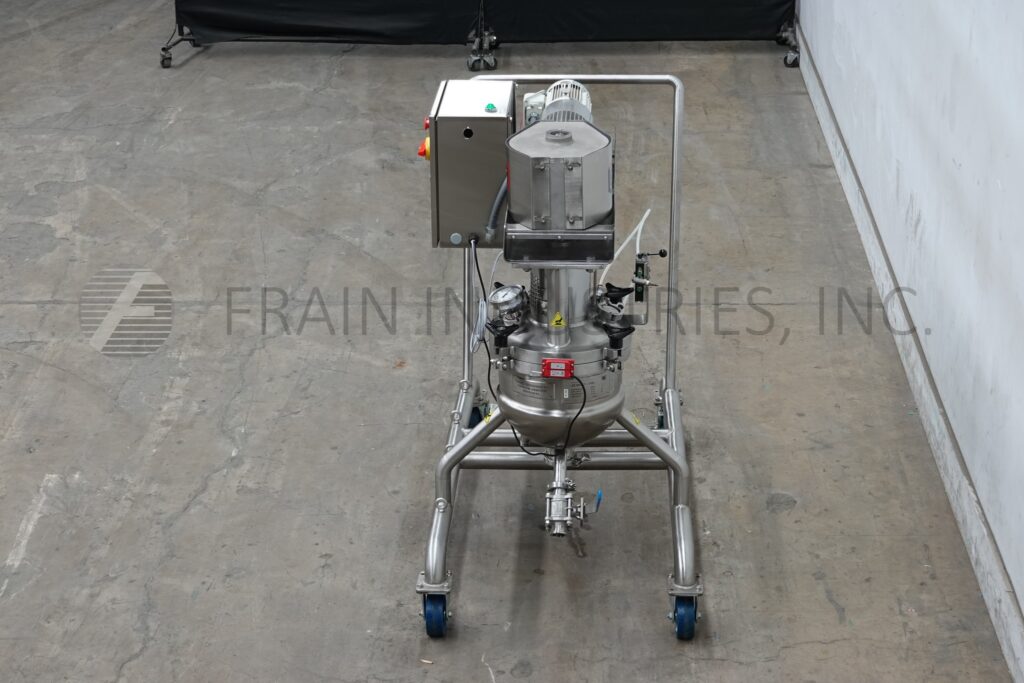

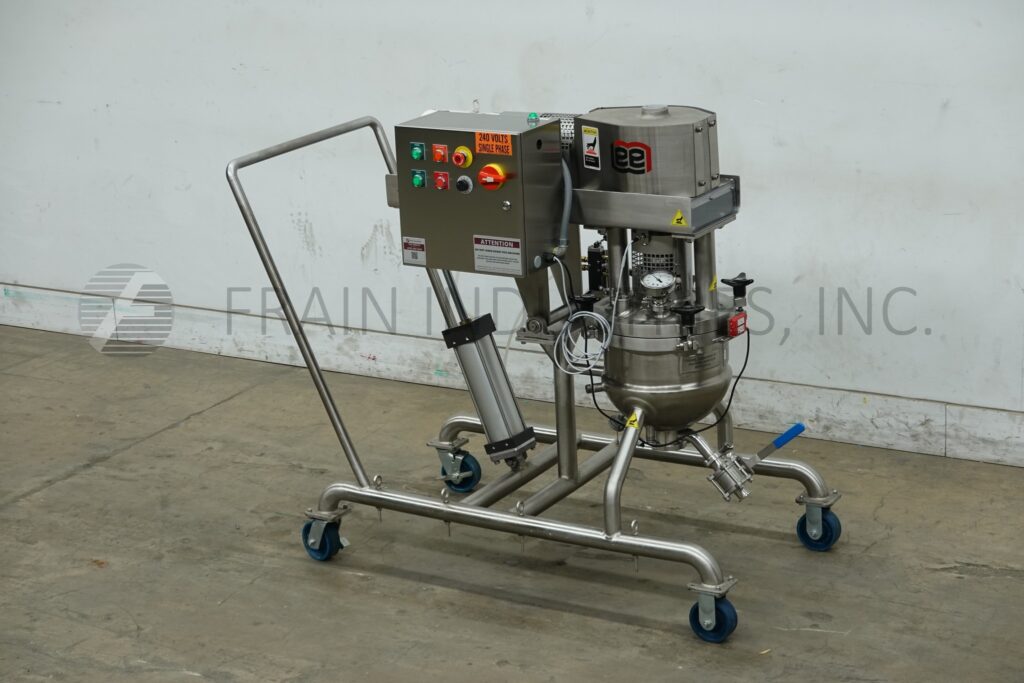

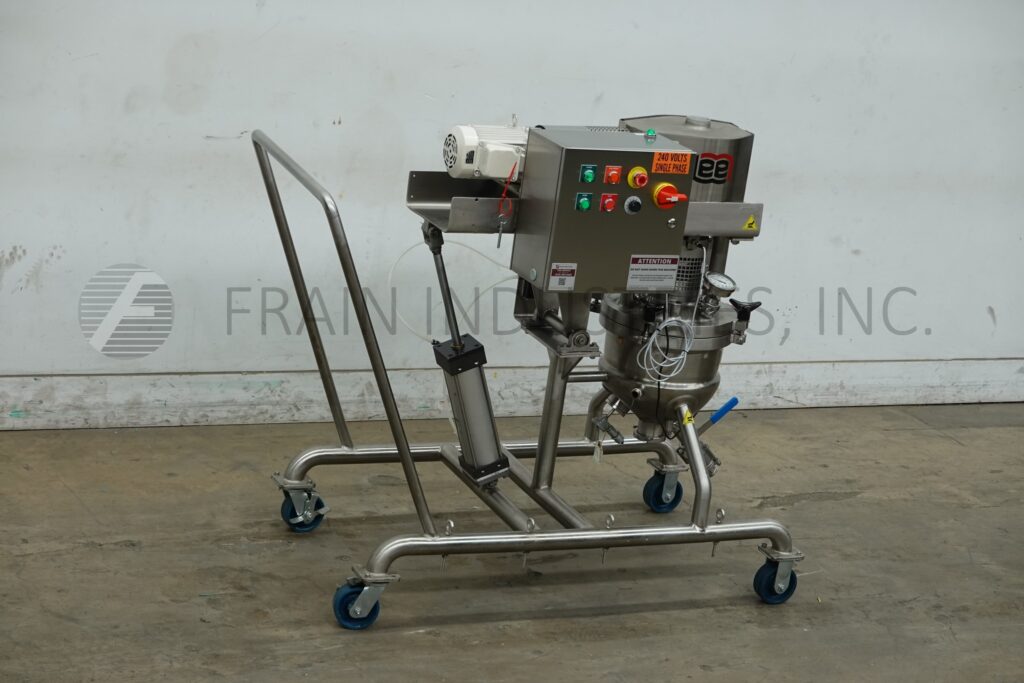

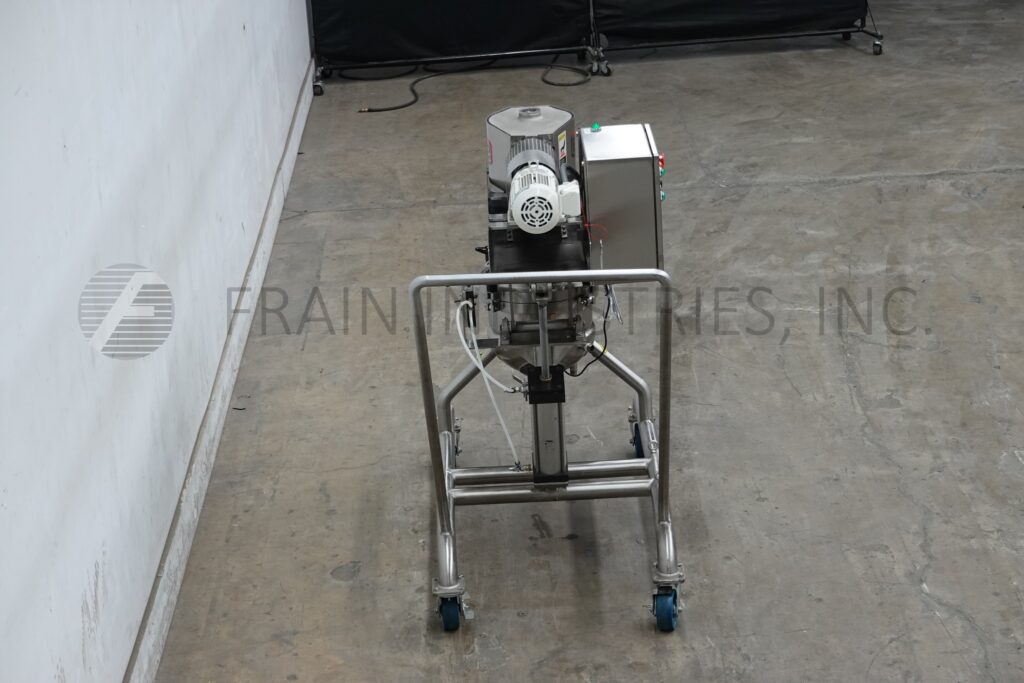

李Kettle Double Motion 15LD9MT

• Manufacturer:李
• Model Number:15LD9MT
• Frain Number:R34992

李Model 15LD9MT, 5 gallon, 316 stainless steel, double motion 1/2 jacketed kettle with amount of product per hour – depending on materials and application. Vessel dimensions: 14" diameter x 12" Deep with a 6" straight wall. Equipped with tilt out double motion, counter rotating scrape surface agitation, with bolt down cover and (2) 2-1/2" OD and (1) 2" OD sanitary top ports, Full jacket rated at: MAWP of 60 psi @ 308°F and MDMT of -20°F @ 60 psi with (1) 1-1/2" OD threaded side bottom jacket port. Dish bottom with 3" OD center bottom sanitary discharge with 16" floor clearance and secondary butterfly valvewith temperature senser. Control panel has reset, e-stop buttons with vari speed controller. Mounted on stainless steel frame with push handle and locking casters.

OAD: 60" L x 36" W x 62" H

李Kettle Triple Motion 1000GALD12T

• Manufacturer:李
• Model Number:1000GALD12T
• Frain Number:R33860

李, Model 1000GALD12, 1000 gallon 316 stainless steel jacketed kettle. Vessel Dimensions: 72" ID x 72" deep. Equipped with a tilt out bridge mounted double motion scrape agitator powered by a 30 Hp drive, high shear agitator powered by a 60 hp direct drive, 18" manway, flush mounted sensor and 3½" OD / 3"ID tri-clamp style discharge with ball valve and 36" ground clearance.

Jacket Fittings: 2" NPT

Nat’l Brd: 7577
MAWP: 90 PSI @ 332° F (jacket)
MDMT: -20°F @ 90 PSI (jacket)

MAWP: 15/FV PSI @ 250° F (vessel)
MDMT: -20°F @ 15/FV PSI (vessel)

OAD: 118"L x 76"W x 202"H

李Kettle Triple Motion 1000GALD12T

• Manufacturer:李
• Model Number:1000GALD12T
• Frain Number:R33861

李, Model 1000GALD12, 1000 gallon 316 stainless steel jacketed kettle. Vessel Dimensions: 72" ID x 72" deep. Equipped with a tilt out bridge mounted double motion scrape agitator powered by a 30 Hp drive, high shear agitator powered by a 60 hp direct drive, 18" manway, flush mounted sensor and 3½" OD / 3"ID tri-clamp style discharge with ball valve and 36" ground clearance.

Jacket Fittings: 2" NPT

Nat’l Brd: 7577
MAWP: 90 PSI @ 332° F (jacket)
MDMT: -20°F @ 90 PSI (jacket)

MAWP: 15/FV PSI @ 250° F (vessel)
MDMT: -20°F @ 15/FV PSI (vessel)

OAD: 118"L x 76"W x 202"H

李Kettle Double Motion 10D9MT

• Manufacturer:李
• Model Number:10D9MT
• Frain Number:5H7860

李, Model 10DPMT, 10 gallon, 316 stainless steel jacketed double motion kettle. Vessel Dimensions: 18" diameter x 13" deep. Equipped with tilt out scrape agitation, 1 hp drive and 2"OD / 1½"ID Tri-Clamp discharge with 216" ground clearance. Mounted on a stainless steel base with casters.

MAWP:阵线/ 60 psi @ 287°F(船)
MAWP: 40 psi @ 287°F (Jacket)
Nat’l Brd: 3278

Jacket Ports:
(2) ¾" NPT

Top Access:
(1) 4½" OD / 4"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp

OAD: 54"L x 38"W x 66"H

Kettle Single Motion 400 GAL

• Model Number:400 GAL
• Frain Number:5H7741

400 gallon capacity, 304 stainless steel low pressure jacketed process tank. Vessel dimensions: 82" diameter x 32" deep with a 12" straight wall and cone bottom. Equipped with lift up covers, 2 Hp top mounted scrape agitator and 8" x 6" flanged bottom discharge with 14½" ground clearance.

Top Ports:
(2) 3½"OD / 3"ID Tri-clamp

Jacket Ports:
(2) 1½" NPT

OAD: 86"L x 84"W x 77"H

李Kettle Double Motion 500D9MS

• Manufacturer:李
• Model Number:500D9MS
• Frain Number:R31211

李500 gallon, stainless steel, double motion, jacketed kettle. Equipped with variable speed, double motion (scrape surface & counter rotation) agitation, dual flip top covers and 3" OD center bottom discharge with flush-bottom ball valve and sanitary tri-clamp connection at 16" floor clearance. Contact parts are 316 stainless steel with #4 finish and non-contact parts are 304 stainless steel. Pounds of product per hour dependant on materials and application.

容器尺寸:直径62”;51”深度
Jacket MAWP: 90 psi @ 332°F
Jacket MDMT: -20°F @ 90 psi
Jacket in/outlets: Threaded, 2" OD / 1-1/2" ID
Viscosity Rating: up to 100,000 cps

OAD: 90" L x 70" W x 90" H

Feldmeier Kettle Double Motion 150GAL

• Manufacturer:Feldmeier
• Model Number:150GAL
• Frain Number:R31842

Feldmeier Model 150-44-TMIX, Atmospheric, 150 gallon working capacity, 316 stainless steel contact and 304 stainless steel support materials, jacketed double motion kettle with number of gallons of product per hour – depending on materials and application. Vessel bowl dimensions: 44" ID x 39" deep with #4 polish finish inside and outside with all welds ground flush, polished and buffed for food grade application. Equipped with bridge mounted counter rotating 3 Hp side and bottom scrape surface agitator with nylon scraper blades, 3 Hp secondary turbine impeller (4) 3" OD top ports and CIP spray ball with dual flip top covers. Full jacket with MAWP of 150 psi @ 350 Deg F, MDMT -20 Deg F @ 150 psi with 1.5" NPT jacket in / outlets ports. Dish bttom has 3" ferrule center bottom discharge with 16" floor clearance and product not to exceed 100,000 Cps and is ASME coded. Mounted on (4) stainless steel pipe style hip socket legs with foot pads. NB # 10737

OAD: 57" L x 54" W x 98" H

Feldmeier Kettle Double Motion 150GAL

• Manufacturer:Feldmeier
• Model Number:150GAL
• Frain Number:R31841

Feldmeier Model 150-44-TMIX, 150 gallon, jacketed double motion kettle. 316 Stainless steel contact materials and 304 stainless steel non-contact materials, Vessel dimensions: 44" ID; 39" in Depth. #4 Finish inside and outside with all welds ground flush, polished and buffed. Equipped with bridge mounted counter rotating 3 Hp side and bottom scrape surface agitator, 3 Hp secondary turbine impeller, (4) 3" OD top ports and CIP spray ball. 1.5" NPT jacket in / outlets. 3" Center bottom discharge with 16" floor clearance. Rated up to 100,000 Cps. Number of gallons of product per hour dependent on materials and application.

Jacket rating:
MAWP of 150 psi @ 350 Deg F
FV
MDMT -20 Deg F @ 150 psi.

N/B #: 10736

OAD: 57" L x 54" W x 98" H

Feldmeier Kettle Double Motion 150GAL

• Manufacturer:Feldmeier
• Model Number:150GAL
• Frain Number:R31840

Feldmeier Model 150-44-TMIX, Atmospheric, 150 gallon working capacity, 316 stainless steel contact and 304 stainless steel support materials, jacketed double motion kettle with number of gallons of product per hour – depending on materials and application. Vessel bowl dimensions: 44" ID x 39" deep with #4 polish finish inside and outside with all welds ground flush, polished and buffed for food grade application. Equipped with bridge mounted counter rotating 3 Hp side and bottom scrape surface agitator with nylon scraper blades, 3 Hp secondary turbine impeller (4) 3" OD top ports and CIP spray ball with dual flip top covers. Full jacket with MAWP of 150 psi @ 350 Deg F, MDMT -20 Deg F @ 150 psi with 1.5" NPT jacket in / outlets ports. Dish bttom has 3" ferrule center bottom discharge with 16" floor clearance and product not to exceed 100,000 Cps and is ASME coded. Mounted on (4) stainless steel pipe style hip socket legs with foot pads. N/B # 10735

OAD: 57" L x 54" W x 98" H

李Kettle Double Motion D9MS

• Manufacturer:李
• Model Number:D9MS
• Frain Number:R31210

李Model 500D9MS, 500 gallon, atmosheric design, stainless steel, double motion, scrape surface, 1/2 jacketed kettle with pounds of product per hour – depending on materials and application. 316 stainless steel shell and agitator; 304 stainless steel jacket and channel support on rim, with # 4 finish inside and # 4 finish outside were applicable. Vessel dimensions: 62" ID x 51" in Depth. Equipped with bridge mounted scrape surface, double motion, tilt out agitation with dual flip top covers and has a maximum product visacosity of 100,000 cps. 1/2 jacket, with MAWP of 90 psi @ 332 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 2" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. 3" OD center bottom discharge has flush-bottom ball valve outlet and sanitory tri-clamp with 16" floor clearence. Mounted on (3) stainless steel legs

OAD: 90" L x 70" W x 90" H

李Kettle Double Motion 500D9MT

• Manufacturer:李
• Model Number:500D9MT
• Frain Number:R30780

李Model 500D9MT, 500 gallon, 316 stainless steel interior, 304 stainless steel external, double motion, scrape surface, 1/2 jacketed kettle with pounds of product per hour – depending on materials and application. Vessel dimensions: 61" ID x 51" in Depth. Equipped with bridge mounted scrape surface tilt out agitation with dual flip top covers. 1/2 jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 2" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. 3" OD center bottom discharge has flush-bottom ball valve and 16" floor clearence. Mounted on (3) stainless steel legs

OAD: 96" L x 70" W x 92" H
