Kettle Machines

Lee Kettle Single Motion 300D

• Manufacturer:Lee
• Model Number:300D
• Frain Number:5 h3933

Lee, Model 300D, 316 stainless steel jacketed kettle. Vessel Dimensions: 54" diameter x 36" deep with a 15" straight wall. Equipped with prop agitation, flip up cover with a 15" flip up manway. Spherical bottom with 3¼" NPT style center bottom discharge and 41" ground clearance. Mounted on (3) tubular leg frame.

Jacket Fittings:
(2) 2" NPT

MAWP: 125 PSI @ 353° F
MDMT: -20°F @ 125 PSI
Nat’l Brd: 12419

OAD: 56"L x 54"W x 104"H

Groen凯特le Double Motion TA-250-SP

• Manufacturer:Groen
• Model Number:TA-250-SP
• Frain Number:5H3158

Groen, Model RA-250-SP, 304 stainless steel jacketed kettle. Vessel Dimensions: 52" diameter x 38" deep with a 14" straight wall. Equipped with bridge mounted scrape surface agitator, X-mas tree agitation and flip up covers. Dish bottom with 3½" OD / 3"ID Tri-Clamp center bottom discharge with17" ground clearance. Mounted on (4) tubular leg frame.

Jacket Fittings: (3) 1½" NPT

MAWP: 60 PSI @ 325° F
Nat’l Brd: 59720

OAD: 55"L x 55"w x 105"H

Lee Kettle Triple Motion 300D12T

• Manufacturer:Lee
• Model Number:300D12T
• Frain Number:R30290

Lee, Model 300D12T, 300 gallon 316 stainless steel jacketed kettle. Vessel Dimensions: 54" ID x 342" deep with a 18" straight wall. Equipped with a tilt out bridge mounted double motion scrape agitator powered by a 20 Hp drive, high shear agitator powered by a 75 hp direct drive, CIP spray ball supplied by a 2"OD / 1"ID tri-clamp fitting, (1) 2½" OD / 2"ID tri-clamp style discharge with ball valve and 15" ground clearance and (1) 2" OD / 1½"ID tri-clamp style discharge with ball valve and 18" ground clearance.

Top Access:
(2) 3¾"OD / 3"ID Tri-Clamp
(5) 2½"OD / 2"ID Tri-Clamp

Side Access:
(1) 2½"OD / 2"ID Tri-Clamp

Jacket Fittings:
(4) 1" NPT

Nat’l Brd: 8830
MAWP: 90 PSI @ 332° F (jacket)
MDMT: -20°F @ 90 PSI (jacket)
MAWP: 15 PSI @ 250°F (vessel)
MDMT: -20°F @ 15 PSI (vessel)

*vessel rated for internal vacuum service*

OAD: 110"L x 64"W x 157"H

Lee Kettle Double Motion 200D9MSI

• Manufacturer:Lee
• Model Number:200D9MSI
• Frain Number:R29911

Lee, Model 200D9MSI, 316 stainless steel 1/2 jacketed kettle. with amount of product per hour – depending on materials and application. Vessel Dimensions: 48" ID x 39" Deep mixing bowl. Equipped with bridge mounted scrape surface agitator and flip top covers. Dish bottom with 4½" OD / 4" ID tri-clamp style center bottom discharge with 21" floor clearence. Mounted on (4) stainless steel tubular leg frame.

Jacket Fittings:
(2) 2" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 7992

OAD: 68" L x 52" W x 97 H

Walker Kettle Double Motion 500 PZCR

• Manufacturer:Walker
• Model Number:500 PZCR
• Frain Number:5H4695

完整的不锈钢,融化和混合系统m with amount of product per hour – depending on materials and application. Includes (1) Chester Jensen, 367 gallon, stainless steel cone bottom jacketed cooker / cooler with 74" ID x 21-1/2" straight wall x 19-1/2" cone bottom. Bridge mounted dual motion scrape surface agitation, counter rotating high speed tri-blade agitator and curved stationary baffle. (1) 2 Hp and (1) 3 Hp, motor drives with gear reducer and (2) 2" inlet ports with 2-piece flip-up covers and proximity sensors. Bottom dimpled jacket rated at MAWP 100psi @ 340°F and MDMT -20°F @ 100psi. with (2) bottom 2" npt jacket in / outlet ports. (1) Walker 500 gallon 304 stainless steel full jacketed cone bottom tank. 57"I.D. x 49-1/2" high staight wall, Bridge mounted dual motion scrape surface agitation (1) 2 Hp and (1) 3 Hp motor drives with gear reducer, (4) 3" tri-clamp inlet ports and 2-piece flip-up cover with proximity sensors. Full multi zone jacket rated at MAWP 100psi @ 350°F and MDMT -20°F @ 100psi, with 4-side and 2-bottom 1-1/2" jacket inlet / outlet ports and bottom mounted temperature probe (1) Fristam 10 Hp centrifugal pump with 2-1/2" x 2" in/outlet tri-clamp ports, (1) Rotan 5 Hp and (1) Rotan 1.5 Hp 3" flanged port pumps. (1) Bunting 3" stainless steel in line magnetic trap (1) Sani-Matic stainless steel streamline filter. 316L stainless steel hygienic jacketed piping as well as all associated valves and fittings. Mounted on 246" long x 62-1/2" wide x 7" high stainless steel base frame and 207" long x 132" wide x 42" high side railing, inspection platform with control panel.

Lee Kettle Double Motion 5CD9MT

• Manufacturer:Lee
• Model Number:5CD9MT
• Frain Number:R30110

Lee, Model 5CD9MT, 5 gallon, 316 stainless steel jacketed double motion kettle. Vessel Dimensions: 16" diameter x 10" deep with a 3" straight wall. Equipped with tilt out (scrape & counter rotation) agitation, ½ hp variable speed drive and manual tilt discharge with 21" ground clearance. Mounted on a 40" x 40" painted base with casters.

MAWP: 40 psi @ 300°F
Nat’l Brd: 2693

Jacket Ports:
(2) ¾" NPT

OAD: 50"L x 45"W x 50"H

Lee Kettle Double Motion 50D9MT

• Manufacturer:Lee
• Model Number:50D9MT
• Frain Number:R29180

Lee, 50 gallon, 304 stainless steel jacketed kettle. Vessel Dimensions: 32" diameter x 22" deep with a 10" straight wall. Equipped with a bridge mounted scrape agitator powered by a single 2 Hp drive, flush mount sensor, bottom feed port with backflow valve and 2½" OD / 2"ID tri-clamp style discharge with butterfly valve and 7" ground clearance. Mounted on (3) tubular leg frame.

Jacket Fittings:
(2) ¾" NPT

MAWP: 40 PSI @ 287° F
MDMT: -20°F @ 40 PSI

OAD: 57"L x 35"W x 54"H

Lee Kettle Double Motion 80EDA

• Manufacturer:Lee
• Model Number:80EDA
• Frain Number:R29650

Lee, Model 80EDA, platform mounted 80 gallon stainless steel batch mixing system. Kettle Dimensions: 36" diameter x 24" deep. Equipped with bridge mounted double motion scrape surface agitation and mounted on Weigh Tronix load cells. Kettle discharges to a Waukesha, Model 45, positive displacement pump with a jacketed head and 3¼"OD / 1¾"ID I-Line style fitting with 16" ground clearance. Heat transfer surfaces supplied by a self contained 18000w Watlow heating system with hot water tank and Waukesha, Model C, centrifugal pump. Control panel with AB PanelView 550 HMI and AB PLC. System mounted on heavy duty stainless steel push cart.

MAWP: 90 PSI @ 332°F
MDMT: -20°F @ 90 PSI

OAD: 105"L x 68"W x 90"W

Lee Kettle Double Motion 300 D9MT

• Manufacturer:Lee
• Model Number:300 D9MT
• Frain Number:R28090

Lee, Model 300D9MT, 316 stainless steel jacketed kettle. Vessel Dimensions: 54" diameter x 42" deep with an 18" straight wall. Equipped with a flush mount sensor, tilt out bridge mounted scrape agitator powered by a single 3 Hp drive with variable speed control and 2½" OD / 2"ID tri-clamp style discharge with ball valve and 15" ground clearance. Mounted on (3) tubular leg frame.

Jacket Fittings: (2) 1½" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 13872

OAD: 78"L x 58"W x 80"H

Lee Kettle Double Motion 150D9MT

• Manufacturer:Lee
• Model Number:150D9MT
• Frain Number:R28091

Lee, Model 150D9MT, 316 stainless steel jacketed kettle. Vessel Dimensions: 42" diameter x 34" deep with a 15" straight wall. Equipped with a flush mount sensor, tilt out bridge mounted scrape agitator powered by a single 2 Hp drive with variable speed control and 2½" OD / 2"ID tri-clamp style discharge with ball valve and 15" ground clearance. Mounted on (3) tubular leg frame.

Jacket Fittings: (2) 1½" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 13878

OAD: 68"L x 48"W x 68"H

Lee Kettle Double Motion 100 NEM

• Manufacturer:Lee
• Model Number:100 NEM
• Frain Number:R29290

Lee, Model 100 NEM, 100 gallon capacity, 316 stainless steel, double motion (scrape & prop) kettle. Vessel dimensions: 36" diameter x 30" deep with a 14" straight wall. Equipped with lift off covers with safety shut-off, bridge mounted 3 HP scrape and 1 HP prop agitator, flush mounted sensor and 2½" OD / 2" ID Tri-Clamp style bottom discharge with ball valve and 15" ground clearance. Mokon, Model DR4018AFW, 18 Kw portable water heater rated fluid temperature up to 250°F with controls and readout.

Jacket Ports:
(4) 1" NPT

Nat’l Brd: 11162
MAWP: 90 PSI @ 332°F
MDMT: -20°F @ 90 PSI

OAD: 48"L x 50"W x 91"H (Kettle)
40"L x 16"W x 25"H (Heater)

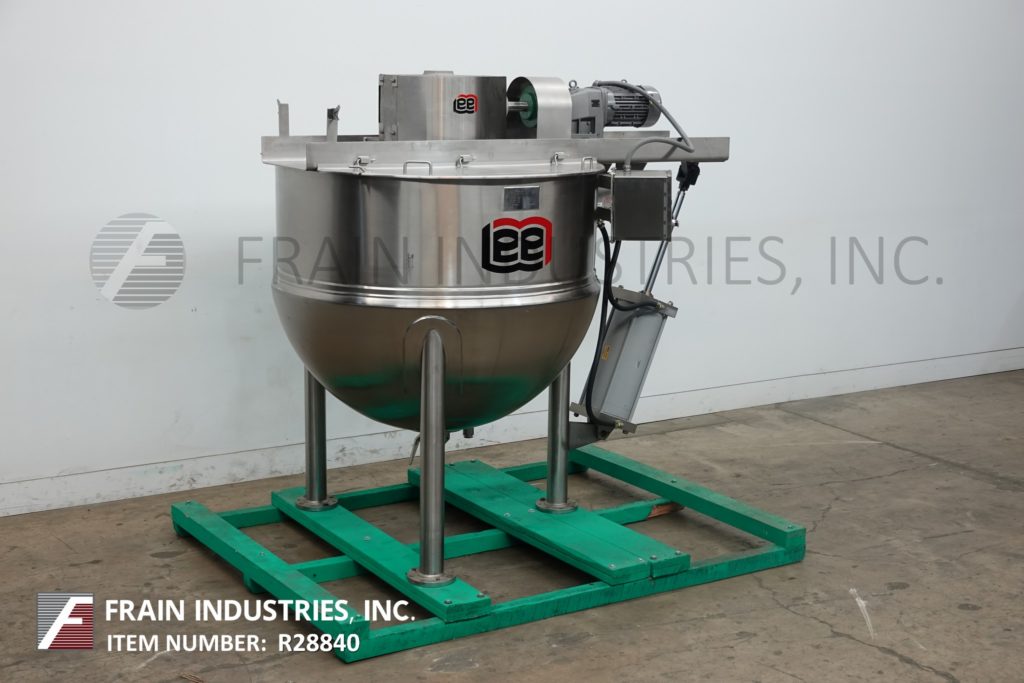

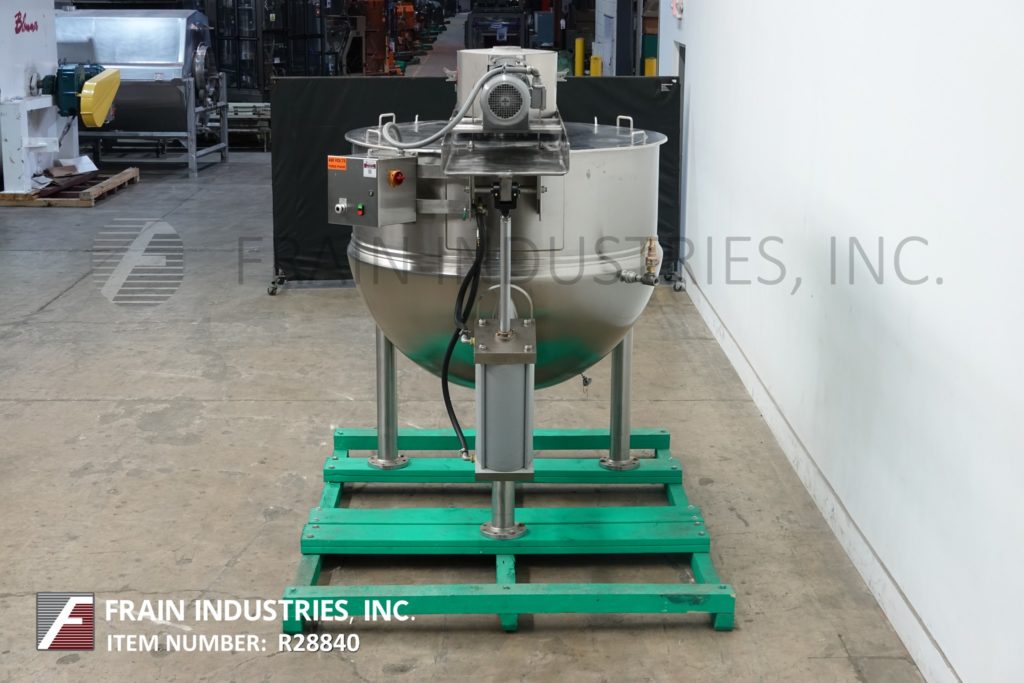

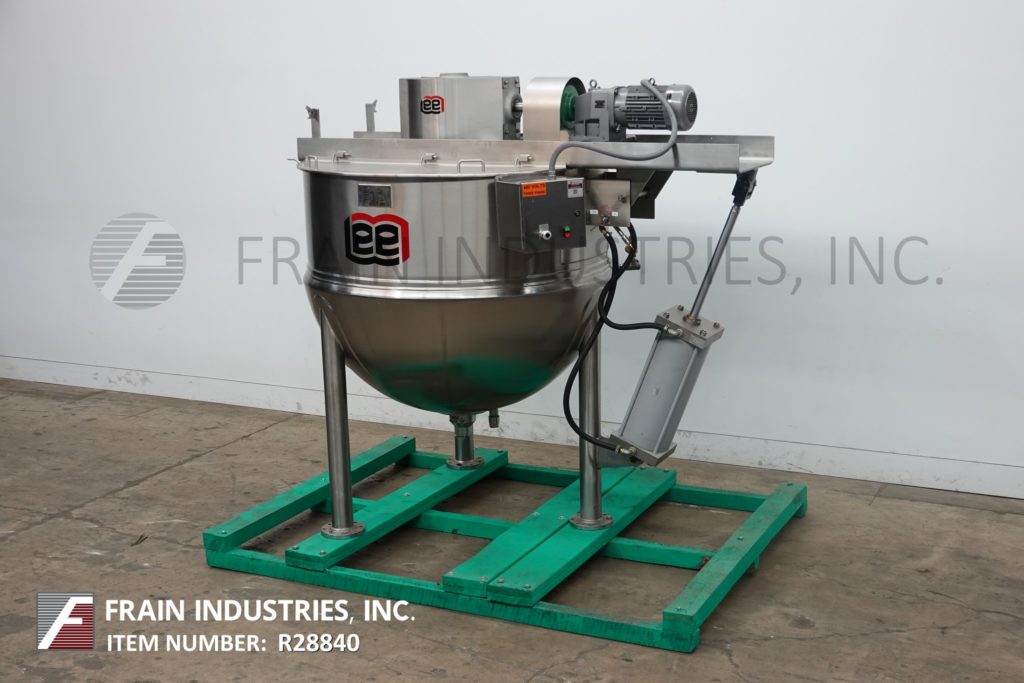

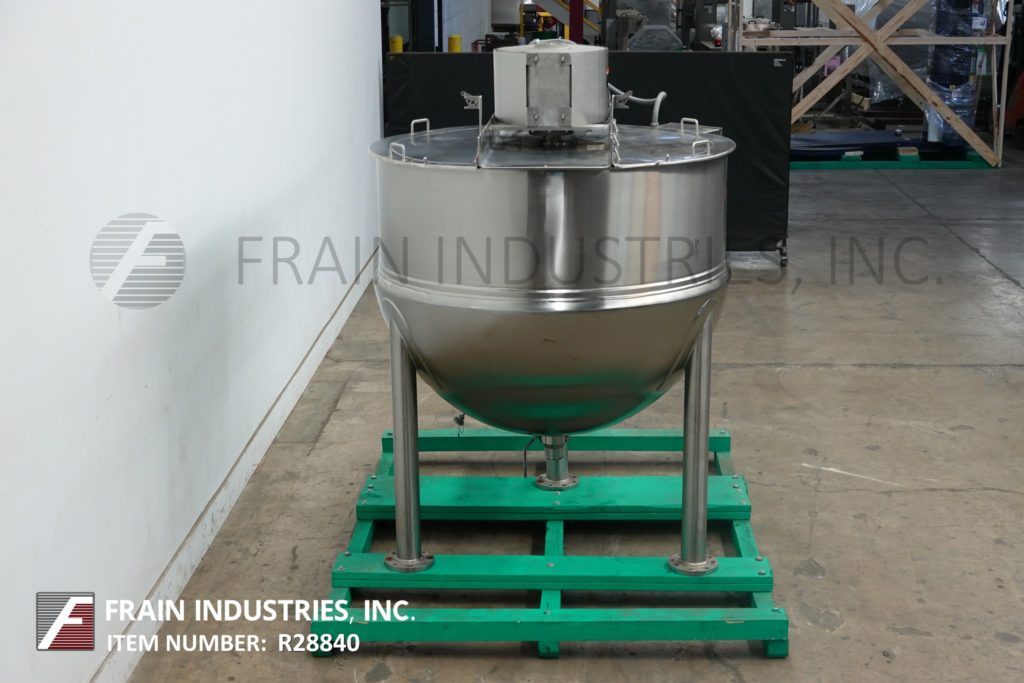

Lee Kettle Double Motion 500D9MT

• Manufacturer:Lee
• Model Number:500D9MT
• Frain Number:R28840

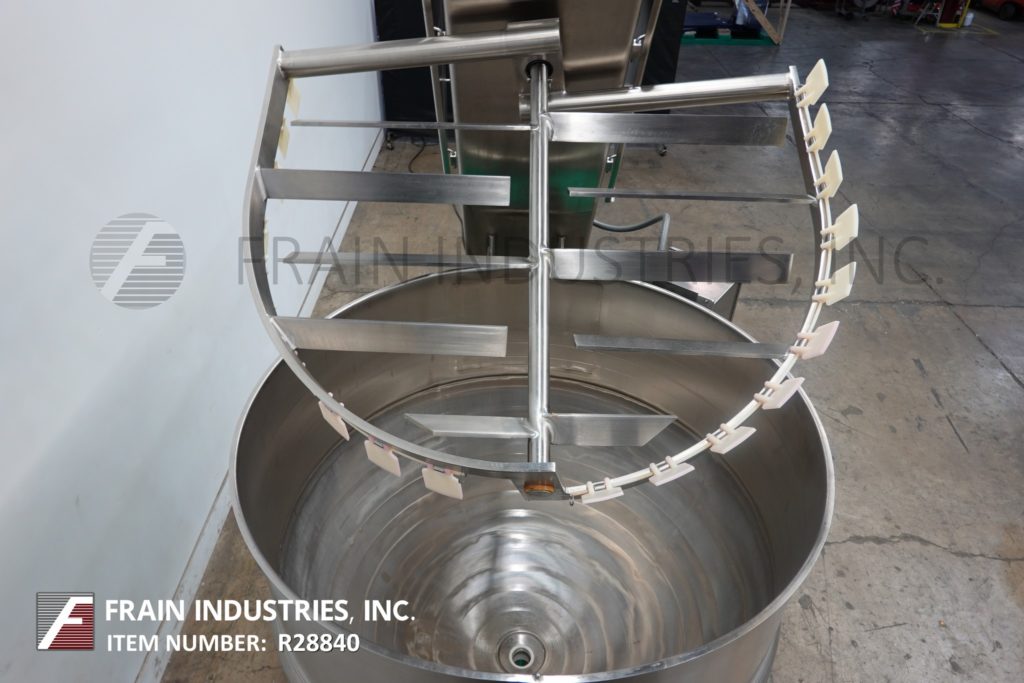

李500 d9mt, 500加仑,316不锈钢interior, 304 stainless steel external, double motion, scrape surface, jacketed kettle. Vessel dimensions: 62" ID x 51" in Depth. Equipped with variable speed bridge mounted scrape surface and counter rotation tilt out agitation, dual flip top covers, 1/2 Jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 1-3/4" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. Dish bottom with 3-1/2" OD / 3" ID sanitary center bottom discharge has flush-bottom ball valve with 19" floor clearance. Mounted on (3) stainless steel legs. Pounds / gallons of product per hour dependant on materials and application.

OAD: 108" L x 75" W x 90" H
