Frain Industries can help you with your rotary tablet press project no matter how big or small your press needs. A rotary tablet press is designed with a rotating disc to provide a pocket into which the powder is deposited and pressed into tablet forms. Rotary tablet presses form tablets as a continuous operation and runs at higher speeds than a single action tablet press.
Related Categories
片剂旋转Equipment In Stock
Courtoy Press Tablet Rotary R100/24 D tooling, 24 station, 10 ton, to 2266 tpm
- Manufacturer:Courtoy
- Model Number:R100/24
- 数字：5E1510
CORTOY型号R100/24，自动，24个机构，单面，缎面钢，旋转片，旋转板压力机，每分钟285至2266平板电脑，具体取决于材料，应用，机器配置和环境，配备了“ D”工具，最大压缩力为：1000磅，美国和主要压缩力变量最高10吨。最大平板电脑直径：25.4毫米和最大填充深度：20mm，可以处理最大直径25.4mm的冲孔，上下打孔长度为133.6毫米，直径为38.1毫米，直径为38.1毫米，高度为23.8mm。直径为20英寸。配备（1）件钢制炮塔，带有硬镀铬工作表面和24个站，不锈钢粉料斗，Courtoy Memo系统，记忆，监视和设置所有生产参数，并带有触摸板监视器，文档打印，输出，文档打印，自动换气系统可提供生产反馈，并能够对运行进行调整。安装在不锈钢底架上。客户提供工具。
OAD：70“ L X 96” W X 76“ H
Get a Free Quote Call:630-629-9900
Stokes /压缩组件Press Tablet Rotary 9005181
- Manufacturer:Stokes /压缩组件
- Model Number:9005181
- 数字：5F1507
Stokes 16 station rotary tablet press. Rated up to 650 tablets per minute – depending on materials, application, machine configuration and environment being run in. Maximum operating pressure: 4 tons. Maximum tablet diameter round: 11/16", maximum tablet or capsule shaped length of 3/4". Equipped with stainless steel product hopper, brass feed frames, simultaneous top and bottom compression, automatic pressure release. Mounted on 36 x 36 base frame. Customer to supply tooling.
OAD：48“ L X 36” W X 72“ H
Get a Free Quote Call:630-629-9900
Stokes /压缩组件Press Tablet Rotary 16 HD
- Manufacturer:Stokes /压缩组件
- Model Number:16 HD
- 数字：5F1525
Stokes, 16 station, rotary tablet press rated up to 1200 tablets per minute – depending on materials, application, machine configuration and environment being run in. Maximum operating pressure: 4 tons. Maximum tablet diameter round: 11/16". Maximum tablet diameter 5/8" and maximum capsule shaped length 3/4". Equipped with stainless steel simultaneous top and bottom compression, and automatic pressure release. Mounted on 36 x 36 base frame. Customer to supply tooling.
OAD：54“ L X 40” W X 64“ H
Get a Free Quote Call:630-629-9900
Stokes /压缩组件Press Tablet Rotary BB2-D53
- Manufacturer:Stokes /压缩组件
- Model Number:BB2-D53
- 数字：5F1506
Stokes, 33 station rotary tablet press, rated up to 1700 tablets per minute – depending on materials, application, machine configuration and environment being run in. Maximum operating pressure: 4 tons. Maximum tablet diameter: 7/16", Maximum fill depth: 11/16". Die diameter: 0.945". Equipped with dual stainless steel product hoppers, keyed uppers, brass feed frames, simultaneous top and bottom compression, automatic pressure release, split discharge chute. Mounted on 33 x 33 base frame. Customer to supply tooling.
OAD: 51" L x 38" W x 80" H
Get a Free Quote Call:630-629-9900
Fette Press Tablet Rotary P3000
- Manufacturer:Fette
- Model Number:P3000
- 数字：5C5821
Fette Model P3000, 55 station "BB Tooling" rotary tablet press rated up to 495,000 tablets per hour – depending on materials and application. .Equipped w with force feeders, precompression and auto lube system, stainless steel table and keyed upper turrett. CAS analog controls w/Klimatek (lexan) enclosure: oil and compressed air, pre pressure and main pressure w/over pressure indicators. Tablets per minute indicator, clutch on, clutch off and clutch dragging indicators. Has SIKO gauge adjustments for tablet weight, thickness and punch entry. Mounted onheavy duty base frame. Customer to supply tooling.
OAD: 5′ L x 5′ W x 7′ H Tablet Press
4′ L x 18" W x 7 ‘6" H Control Panel
Colton Press Tablet Rotary 244
- Manufacturer:Colton
- Model Number:244
- 数字：5C5825
Colton Model 244, 33 station, dual layer, dual sided rotary tablet press rated up to 2625 tablets per minute – depending on materials and application. with low granulation shut off. Maximum tablet diameter of 7/16", maximum fill depth of 3/4", Maximum pressure rating of 4 tons. Equipped with keyed uppers, brass feed frames and a micrometer cell for accurate tablet weight adjustment. 5 Hp variable speed V-Belt motor drive.
安装在重型基础框架上。客户提供工具。
OAD：61“ H X 47” W X 38” L
Get a Free Quote Call:630-629-9900
Stokes /压缩组件Press Tablet Rotary DD2-516-1
- Manufacturer:Stokes /压缩组件
- Model Number:DD2-516-1
- 数字：5C4779
Stokes Model DD2, 31 station, rotary tablet press, rated from 100 to 975 tablets per minute – depending on material, application and envirerment being run in. Maximum tablet diameter of 15/16”, maximum fill depth of 1 1/16” and 15 tons working pressure. Equipped with dual feed hoppers, non-keyed machine. Mounted on heavy duty base frame. Customer to supply tooling.
OAD：84英寸l x 60英寸W x 90英寸h
Get a Free Quote Call:630-629-9900
Stokes /压缩组件按片剂旋转PACER-1
- Manufacturer:Stokes /压缩组件
- Model Number:PACER-1
- 数字：5C4045
斯托克斯模型溜蹄的,自动的,45台,旋转tablet press rated up to 4200 tablets per minute – depending on materials and application. Maximum operating pressure of 4 tons. Maximum tablet diameter 7/16". Maximum fill depth adjustable 0" to 11/16", and upper punch entrance adjustable 1/8" to 3/8". Constructed of no pigmental finishes in product compacting zone, and equipped with transit level tunnel feeder, adjustable vertical hoppers, hand wheel controls, floating guide bans, tablet weight and lower cam adjusment, covered upper dwell camming, and CHORD-LOC die arrangement. Punch Length upper: 5-1/4" lower 5-1/4". Punch Diameter: upper 3/4" lower 3/4" Die Diam: .945" and Die Depth: 7/8". Mounted on heavy duty base frame. Customer to supply tooling.
OAD: 50" L x 50" W x 65" H
WT 2500#

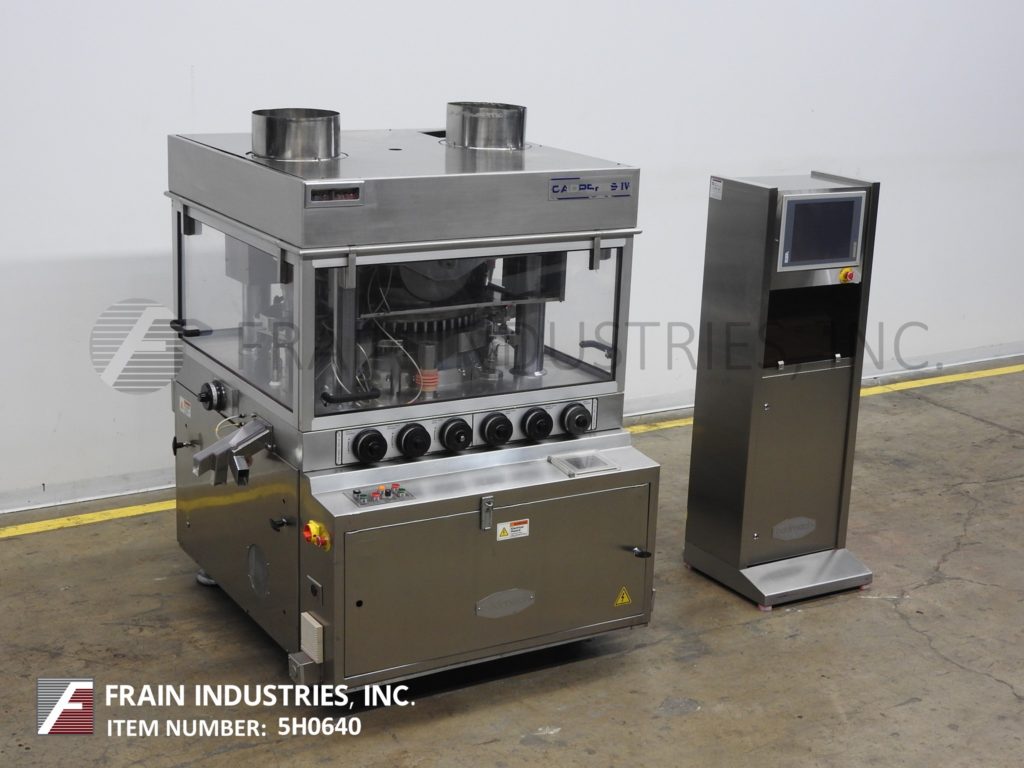

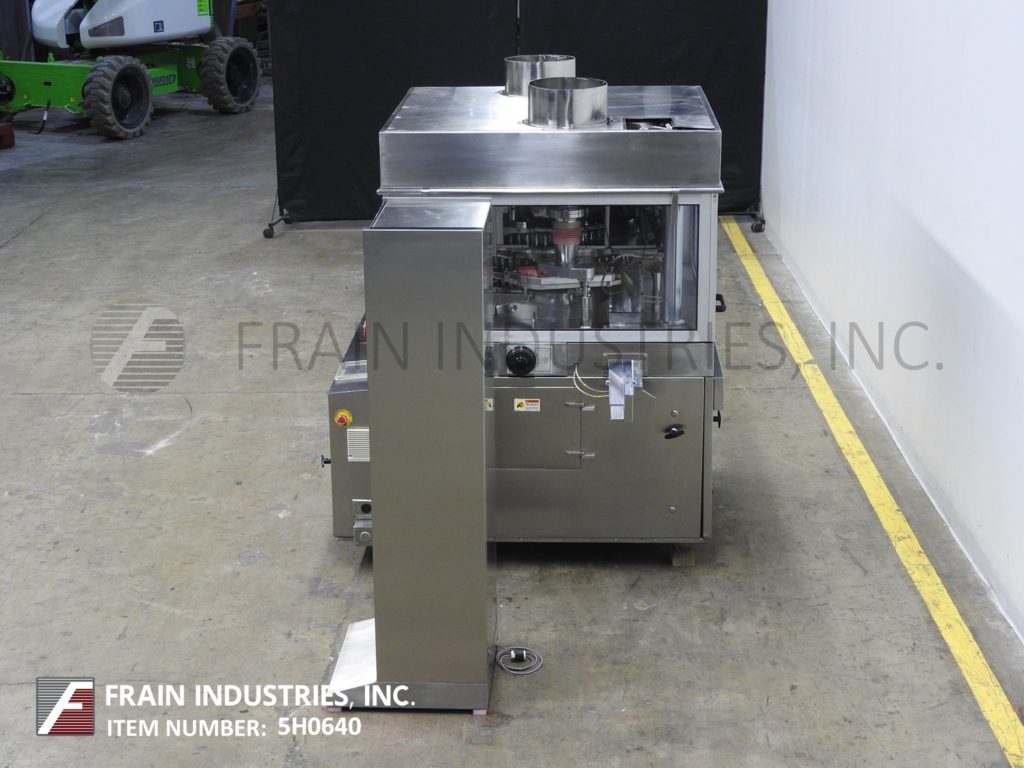

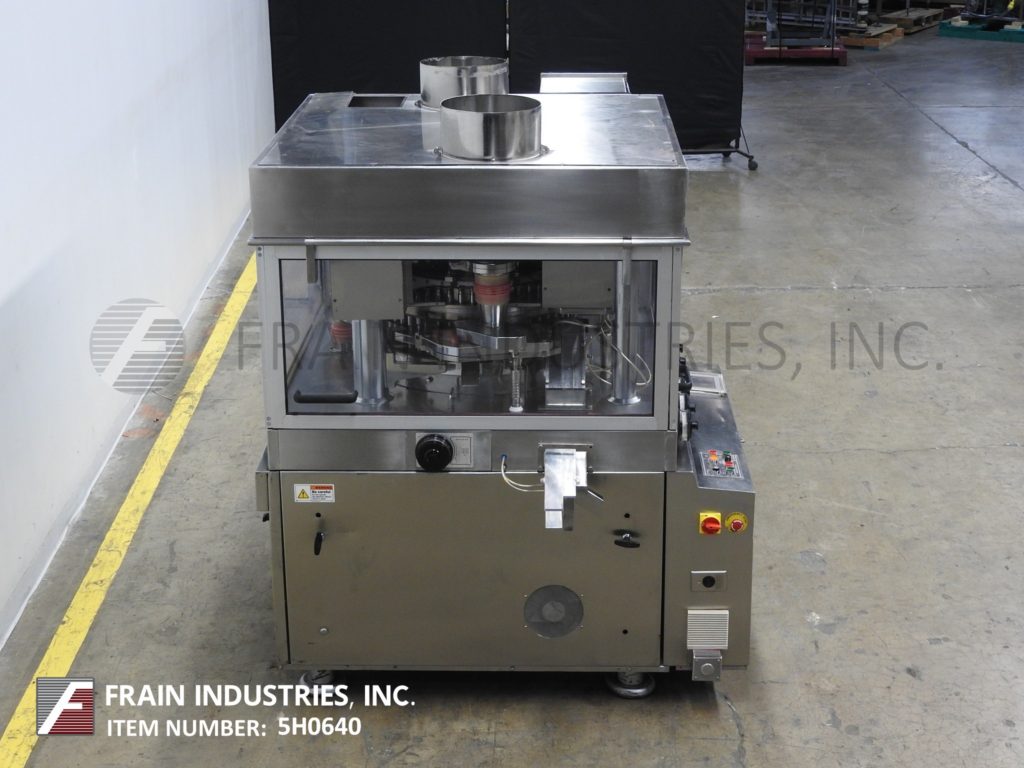

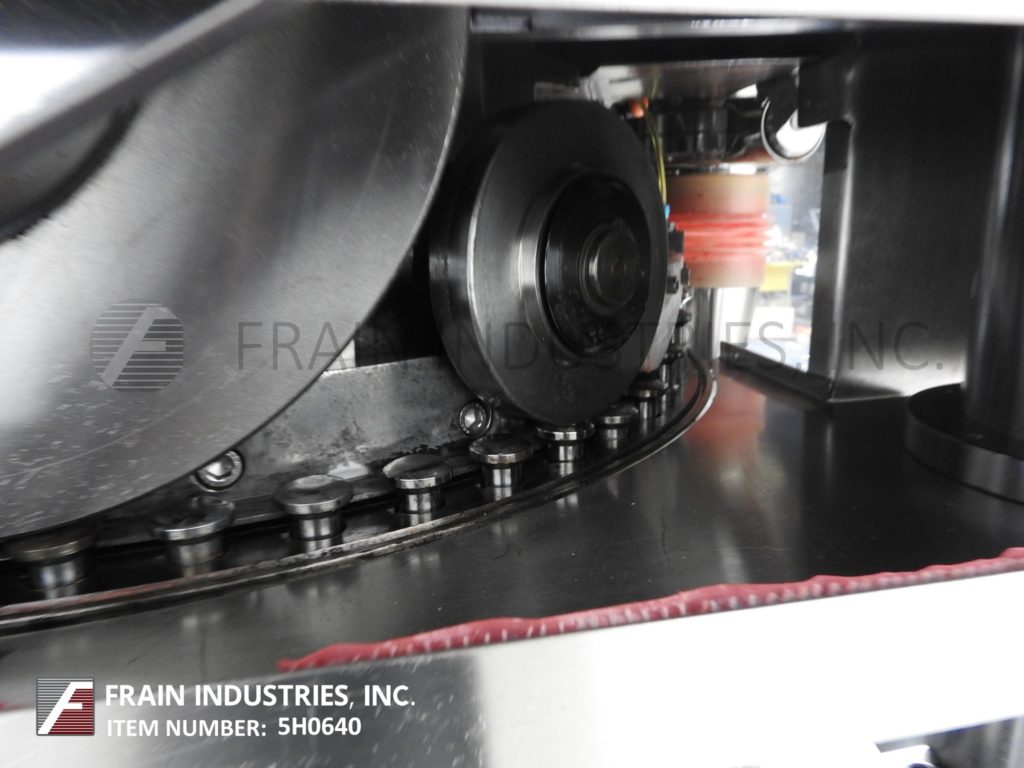

Cadmach / CMC Machinery LLC US Press Tablet Rotary CPDIV55
- Manufacturer:Cadmach / CMC Machinery LLC US
- Model Number:CPDIV55
- 数字：5H0640
Cadmach, Model CPD IV-55, 2 sided, 55 station rotary tablet press, rated from 1,320 to 6,600 tablets per minute – depending on materials, application, machine configeration and enivorment being run in. Compression: up to 6 tons. Maximum tablet diameter of 16mm; Maximum fill depth of 17mm. Equipped with "B" tooling, keyed uppers, (2) 12" diameter x 20" deep product hoppers with level sensors and flow valves, 1 ton pre-compression, and (2) three lane discharge chutes with diverters for random sampling and start relief rejecting. Remote control panel with AB controller, touch screen display, push button start / stop, push button compression force and variable speed dial. Mounted on stainless steel base frame. Customer to supply tooling.
OAD: 70"L x 63"W x 75"H (Press)
22"L x 22"W x 66"H (Remote Console)
Key International Press Tablet Rotary BBC35
- Manufacturer:Key International
- Model Number:BBC35
- 数字：5E5860
Automatic, 35 station rotary tablet press capable of speeds from 1325 to 2725 tpm depending on size, shape and depth of tablet. Has a maximum operating pressure of 6.5 tons, and maximum tablet dia round of: 5/8", maximum tablet dia capsule of: 3/4", and maximum fill depth of: 11/16". Currently set for a single layer tablet with 3/4" dia keyed upper dia plate, and 1 1/8" dia die on lower plate, dual S/S product feed hoppers, and a vari-speed belt drive, with push button start / stop controls. Mounted on a forkable base stand. Customer to supply tooling.
OAD: 48" L x 36" W x 74" H With Hoppers
Get a Free Quote Call:630-629-9900
Colton Press Tablet Rotary 216
- Manufacturer:Colton
- Model Number:216
- 数字：5G0660
Colton型号216自动旋转16个电台平板电脑按每分钟100至650片的压力，具体取决于材料和应用。最大平板电脑直径5/8英寸，最大填充深度3/4“。单压压力，最大压力为3吨。此外，具有千分尺调节，钥匙额的上头，铜管馈线和不锈钢料斗。安装在46 x 36框架上。客户提供工具。
OAD 46“ L X 36” W X 64“ H
Get a Free Quote Call:630-629-9900
Stokes /压缩组件Press Tablet Rotary RD4
- Manufacturer:Stokes /压缩组件
- Model Number:RD4
- 数字：5G0354
Stokes Model RD4, 16 station rotary tablet press, rated up to 300 tablets per minute – depending on size, shape, depth and product being run. Compression: up to 7 tons. Maximum tablet diameter: 15/16". Maximum die diameter: 1-3/16". Maximum fill depth: 13/16". Equipped with 12" diameter x 24" deep hopper, single layer, keyed uppers. Mounted on 42 x 36 base frame. Customer to supply tooling.
OAD: 42"L x 42" W x 73" H
Get a Free Quote Call:630-629-9900
