Feldmeier Machines
Feldmeier Machines In Stock
Feldmeier Tank SS Single Wall 600 GALLON
- Manufacturer:Feldmeier
- Model Number:600 GALLON
- Frain Number:5G2578
Feldmeier, 600, 304 stainless steel single wall tank. Vessel dimensions: 80" diameter with a 30" straight wall. Dome top equipped with a 3 paddle agitator powered by a 1 HP drive, 20" diameter circular man way, (2) 6"ID vents, (2) ¾" threaded ports and (1) 3"OD/2½"ID tri-clamp fitting. Side wall contains (1) pressure guage. Dish bottom (1) 2"ID center bottom discharge with butterfly valve and 10" ground clearance. Mounted on four stainless steel legs.
OAD: 91"L x 87"W x 85"H
Get a Free Quote Call:630-629-9900
Feldmeier Tank SS Single Wall 1200 GALLON
- Manufacturer:Feldmeier
- Model Number:1200 GALLON
- Frain Number:5G2577
Feldmeier, 1200 gallon, 304 stainless steel single wall tank. Vessel dimensions: 80" diameter with a 60" straight wall. Dome top equipped with a 12 paddle agitator powered by a 3 HP drive, 30" x 16" oval man way, (3) 6"ID vents, (2) ¾" threaded ports and (1) 3½"OD/2¾"ID tri-clamp fitting. Side wall contains one ¾" threaded port and one pressure guage. Dish bottom has a ¾" threaded drain plug and 6½"OD/5½"ID tri-clamp center bottom discharge with 18" ground clearance. Mounted on four stainless steel legs.
外形尺寸:93 W x 118“L x 93 H
Get a Free Quote Call:630-629-9900
Feldmeier Tank SS Single Wall 600 GALLON
- Manufacturer:Feldmeier
- Model Number:600 GALLON
- Frain Number:5G2491
Feldmeier, insulated, 600 gallon, 316 stainless steel (contact parts) single wall tank. 60" diameter x 50" straight wall. Vessel has a dome top with (1) 2"ID (1) 3"ID (1) 3.75"ID ports and a 18" lift and bolt down cover man way. The sidewall has a fitted temperature probe. Dish bottom has (1) 4" ID center discharge with 31" ground clearance and (1) 2" threaded discharge, off center, with 25" ground clearance. Mounted on (4) stainless steel legs.
OAD: 66" L x 66" W x 109" H
Get a Free Quote Call:630-629-9900
Feldmeier Tank SS Single Wall 1200 GALLON
- Manufacturer:Feldmeier
- Model Number:1200 GALLON
- Frain Number:5G2477
Feldmeier, 1200 gallon, 316 stainless steel, single wall mixing tank. Vessel has a 70" staight wall with a 72" diameter. Sweep style agitation. Dome top is equipped with one 18" lift up and bolt down man way, one 3.5"OD/2.75"ID tri-clamp, one 3.75"OD/2.75"ID I-line and three 2.5"OD/1.75"ID I-line style fittings; as well as one 4"ID open vent. Sidewall has one 3.75"OD/2.75"ID I-line fitting and one temperature probe. Dish bottom has one 3.75"OD/2.75"ID I-line center discharge with 21" ground clearance and a pressure sensor. Mounted on four stainless steel legs.
OAD: 73"L x 73"W x 140"H
Get a Free Quote Call:630-629-9900

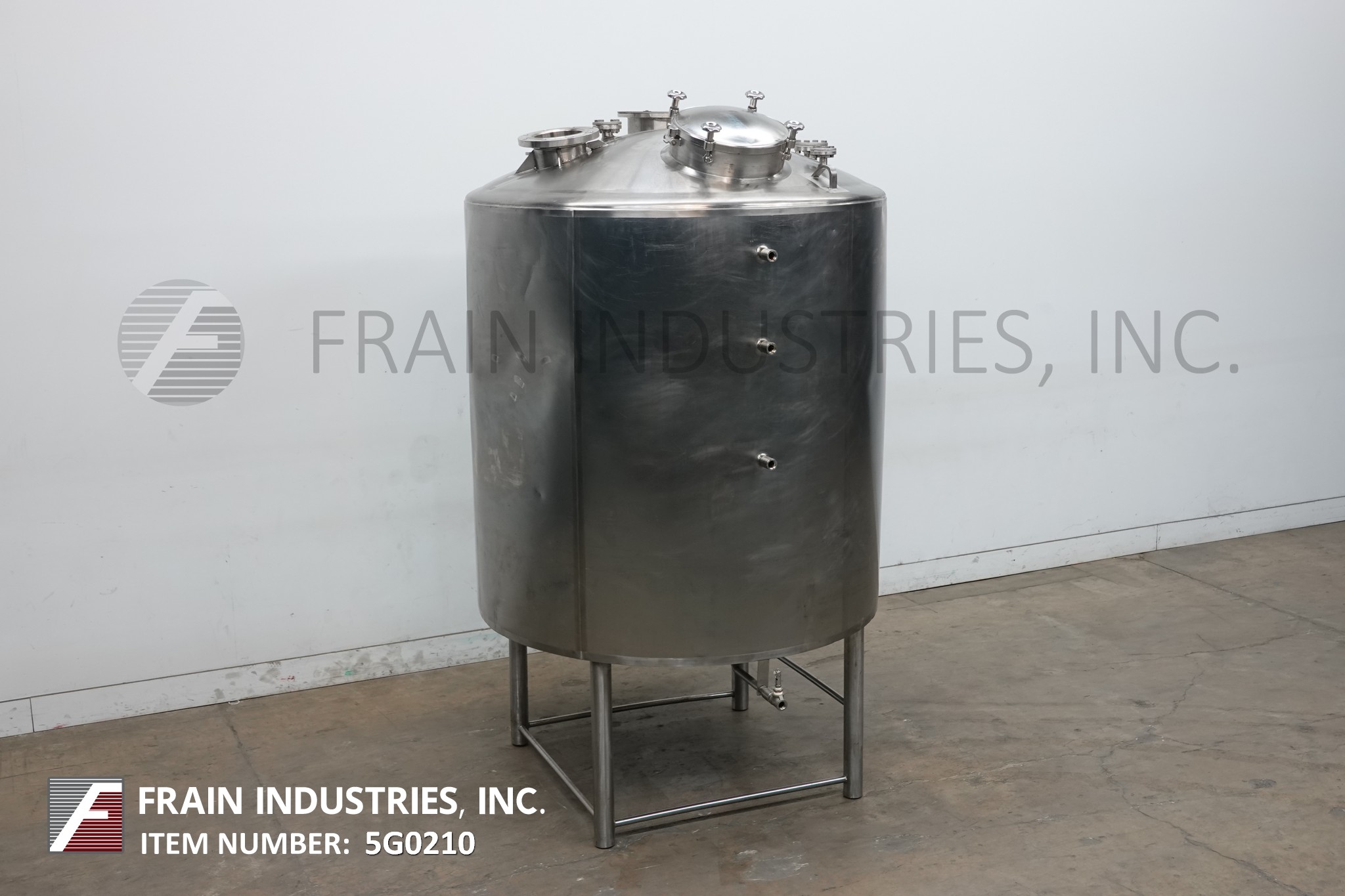

Feldmeier Tank SS JKT 1000 GALLON
- Manufacturer:Feldmeier
- Model Number:1000 GALLON
- Frain Number:5G0210
Feldmeier, 1000 Gallon, 304 stainless steel, 3 zone jacketed tank. Vessel dimensions: 72" in Diameter; 72" Straight wall. Pressure ratings: MAWP: 100 psi @ 350° F; MDMT: -20° F @ 100 psi. Equipped with a dome top, 20" diameter man way with bolt down cover, one 6" diameter flanged sanitary top port, one 5" diameter flanged sanitary top port, two 4" diameter flanged sanitary top inlet, one 16" diameter flanged sanitary top inlet, one 13.5" diameter flanged sanitary top inlet, 1.5" OD threaded jacket inlet / outlets, dish bottom with flat stainless steel cover, four 1.5" OD bottom side outlets, and a 5" diameter OD sanitary flanged center bottom discharge with shut off valve and 28" of ground clearance. Mounted on stainless steel legs.
外形尺寸:80 W x 120“L x 72 H
Get a Free Quote Call:630-629-9900
