Fitzmill Machines

Fitzmill Mill Hammer DAS06

• Manufacturer:Fitzmill
• Model Number:DAS06
• Frain Number:R30380

Fitzmill、模型DAS06不锈钢锤式粉碎机with pounds of product per hour – depending on materials and application. Equipped with 20" wide x 20" long x 4" deep feed pan, (16) fixed knife / impact blades and 15" x 5" discharge with 32" of ground clearance. Mounted on (4) leg stainless steel frame with casters.

OAD: 48"L x 30"W x 61"H

Fitzmill Mill Hammer DKAS012

• Manufacturer:Fitzmill
• Model Number:DKAS012
• Frain Number:R30383

Fitzmill, Model DKAS012, stainless steel hammer mill with pounds of product per hour – depending on materials and application. Equipped with 20" wide x 24" long x 4" deep feed pan, (32) 3" long x 1½" wide fixed knife blades and 12" x 15" discharge with 45" of ground clearance. Mounted on (4) leg stainless steel frame with casters

OAD: 50"L x 50"W x 78"H

Fitzmill Mill Hammer DAS06

• Manufacturer:Fitzmill
• Model Number:DAS06
• Frain Number:R30008

Fitzmill Model DAS06, 316 S/S, pan fed hammer mill with pounds of product per hour – depending on materials and application. Equipped with 26" long x 20" wide stainless steel feed pan, with 6" x 11" feed throat, with 6" x 11" feed throught and 16 fixed stainless steel reversible blunt / knife blades with a discharge height of 36". Control panel with reset, start and stop push button controls. Mounted on a (4) leg base frame with casters.

OAD: 52" L x 30" W x 66" H

Fitzmill Mill Hammer JT

• Manufacturer:Fitzmill
• Model Number:JT
• Frain Number:R26109

Fitzpatrick, Model JT, 316 stainless steel homoloid mill. with production rates per minute – depending on materials and application. Equipped with 12" ID x 3" deep 304 stainless steel feed pan with 2.75" ID product port, (12) swinging knife impact blades with screen area of 2" wide x 16" long and 8" long x 2" wide bottom product discharge with 36” ground clearance. Start, stop and reset button controls and mounted on a base with locking casters.

OAD: 44"L x 34"W x 53"H

Fitzmill Mill Hammer DAS06 SS

• Manufacturer:Fitzmill
• Model Number:DAS06 SS
• Frain Number:R18912

Stainless steel hammer mill used to grind,chop, emulsify, de-lump,pulverize and process wet and dry products. Equipped with a 29” x 20’" x 4” deep pan in feed, 16” long x 6” wide throat and fixed knife/impact blades. . Product discharge is 15”L x 5 1/2” W with 36” of clearance under the unit. Includers starter. Stainless steel base with locking casters.
OAD is 46”L x 30”W x 65”H

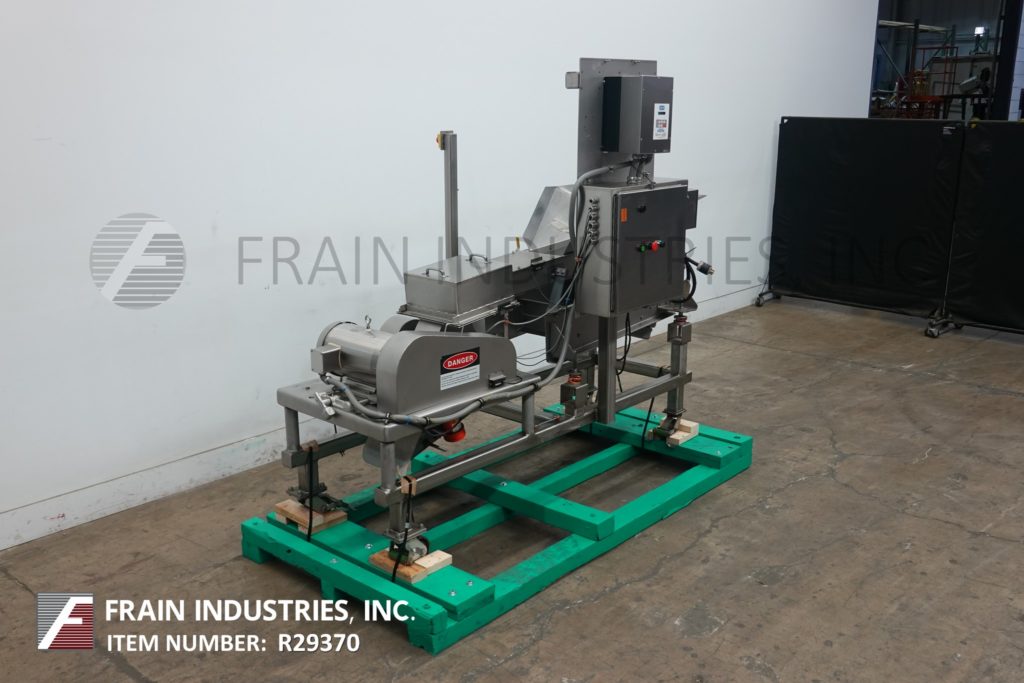

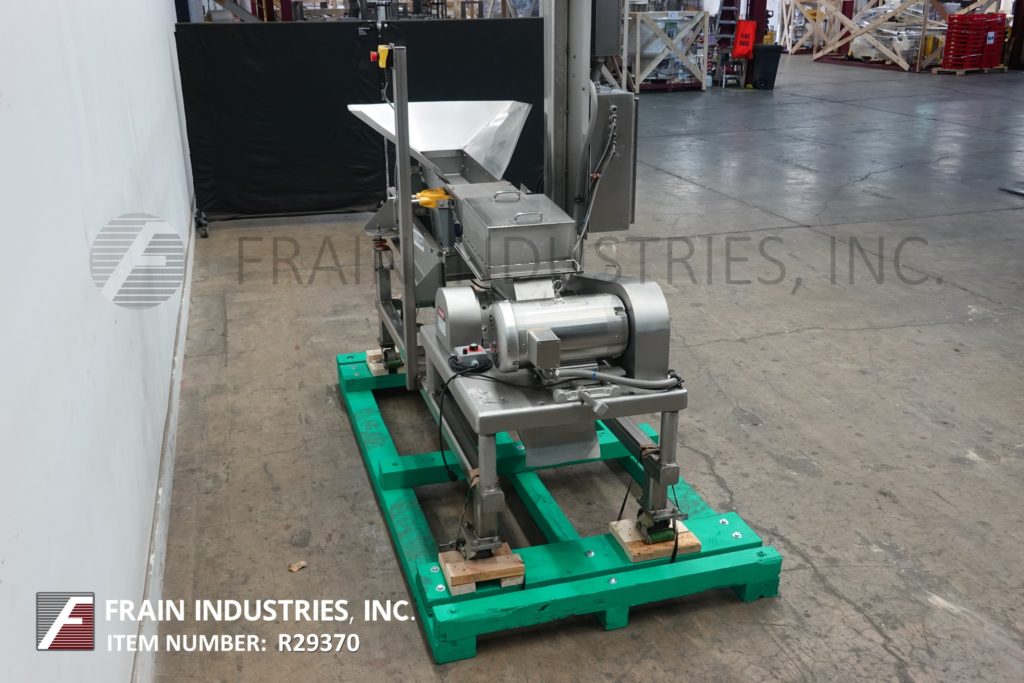

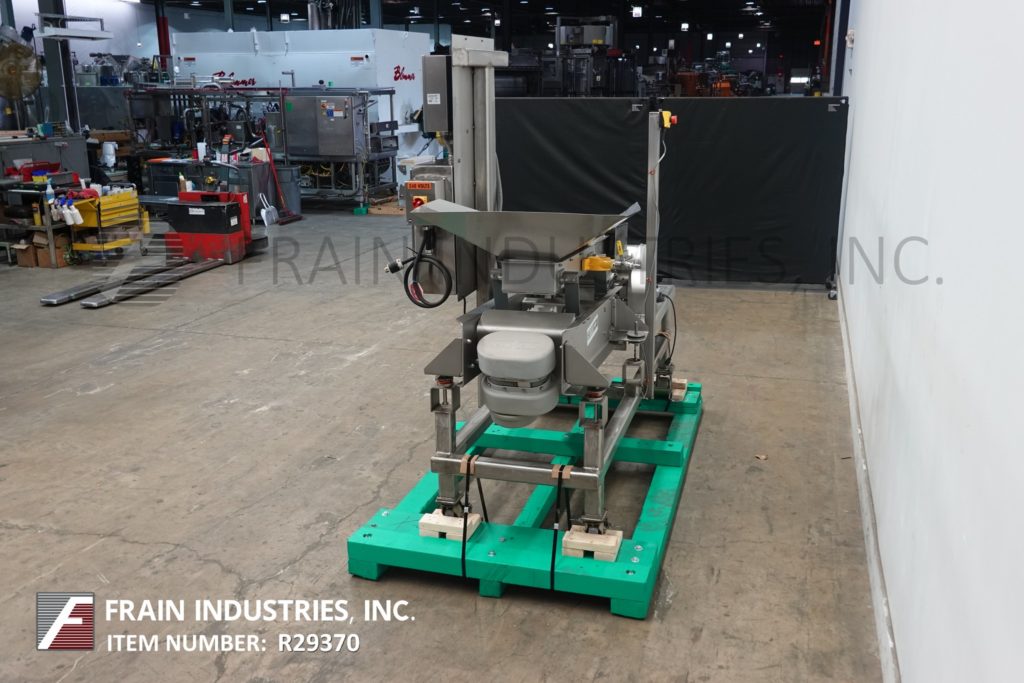

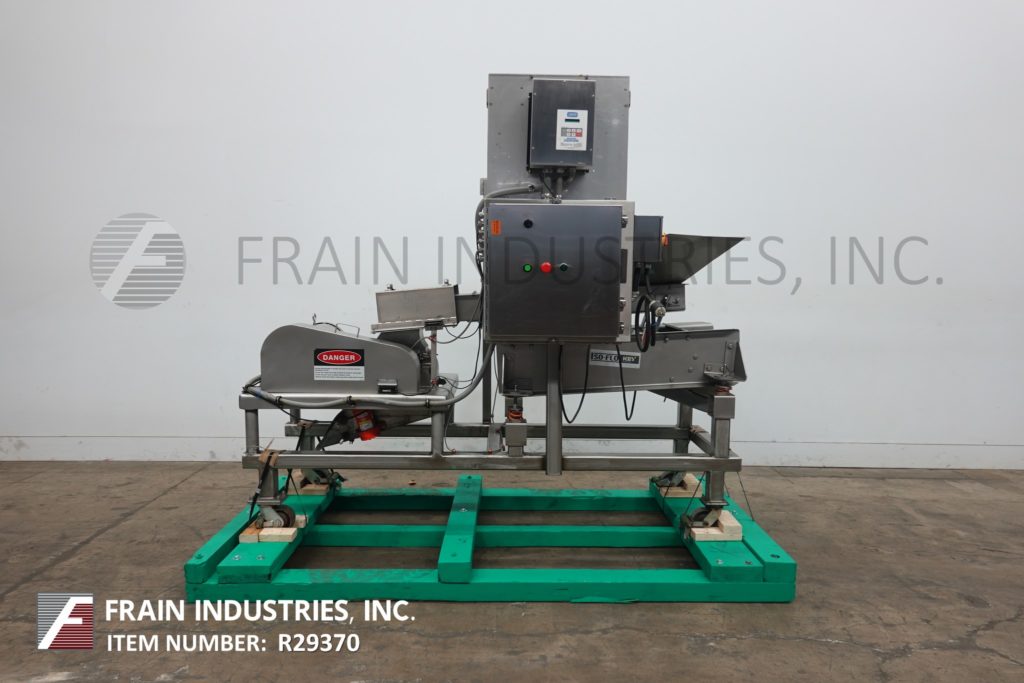

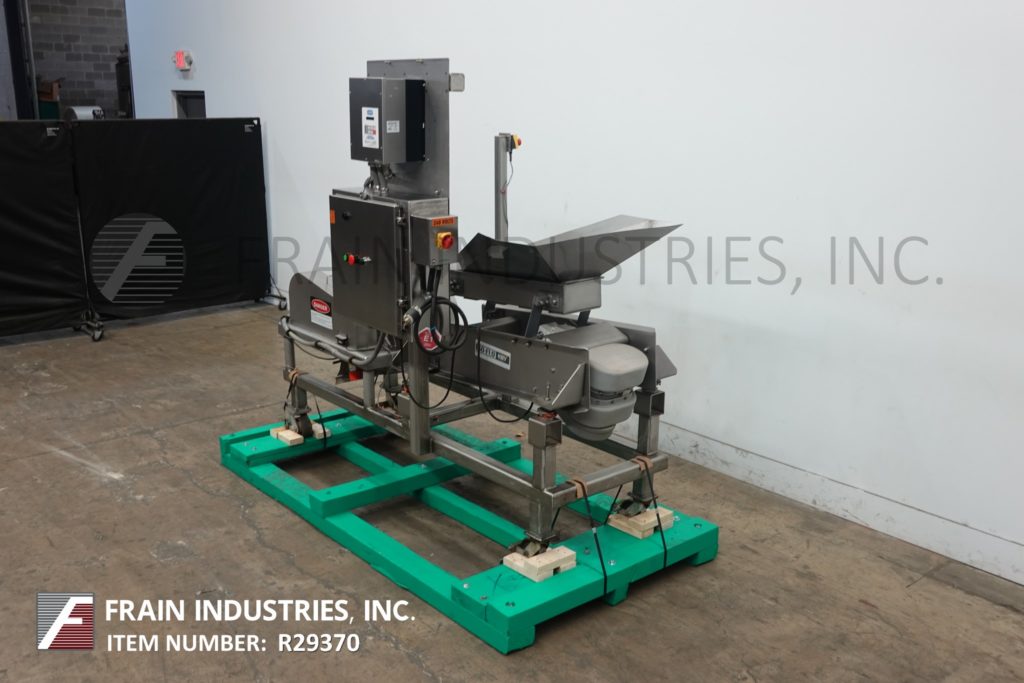

Eisai Pharmaceutical Tab/Cap Ins. DAS06 Eisai Pharmaceutical Tab/Cap Ins. DAS06 Fitzmill Mill Hammer DAS06

• Manufacturer:Fitzmill
• Model Number:DAS06
• Frain Number:R29370

Eisai, Model RMS-200-5, Plain and coated tablet, soft gelatine, capsule and hard candy, plain and coated tablet sorter rated up to 500,000 tablets per hour – depending on materials, application and machine configuration. Equipped with 18" wide x 8" long x 14" deep product hopper with stepper driven lift for easy loading, (5) channel vibratory feeder and tablet sorter with adjustable width and angle channel rollers with (3) discharge zones. High throughput, high precision, thickness sorting and is accuracy adjustable up to ± 1/20 mm. Control panel has AB controller with touch pad display e-stop and statis light bar. Mounted on a stainless steel frame.

Operation:
Product to be inspected is placed into the hopper is then lifted by linear actuator, where the hopper is rotated to the production position by the operator. The hopper then lowered into position for inspection operation. Front hopper gate is opened, by operator, to a gap of 1.5 to 2.0 times the thickness of the tablets. vibratory feeder tray beneath the hopper feeds product onto the rollers and are adjusted with smaller gap at the top and larger gap at the bottom. This gapping enables product to be sorted into undersize, acceptable and oversize categories. The rotation of the rollers and the downward angle of the roller carriage cause the product to move forward. The product drops through the rollers onto angled dividers, then into discharge chutes and then into the containers.

OAD: 57"L x 42"W x 85"H

Fitzmill Mill Hammer DAS06

• Manufacturer:Fitzmill
• Model Number:DAS06
• Frain Number:5H2890

Fitzmill、模型DAS06不锈钢锤式粉碎机. with pounds of product per hour – depending on materials and application. Equipped with 12" long x 12" wide x 12" deep (½ ft³) product hopper, 4" diameter feed screw with 2" centers powered by ¾ HP drive and (26) 4" long x 3" wide fixed knife blades powered by a 15 hp drive. Product discharge is 9½”L x 6” W with 31" of ground clearance. Mounted on (4) leg painted frame base.

OAD: 55"L x 40"W x 62"H

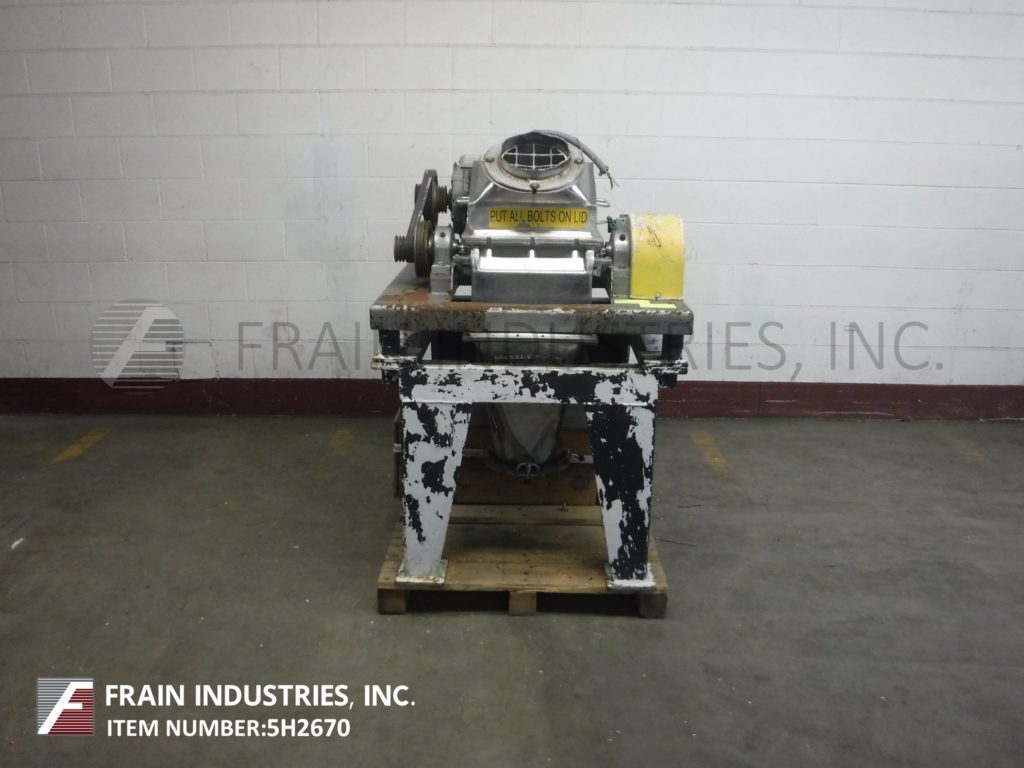

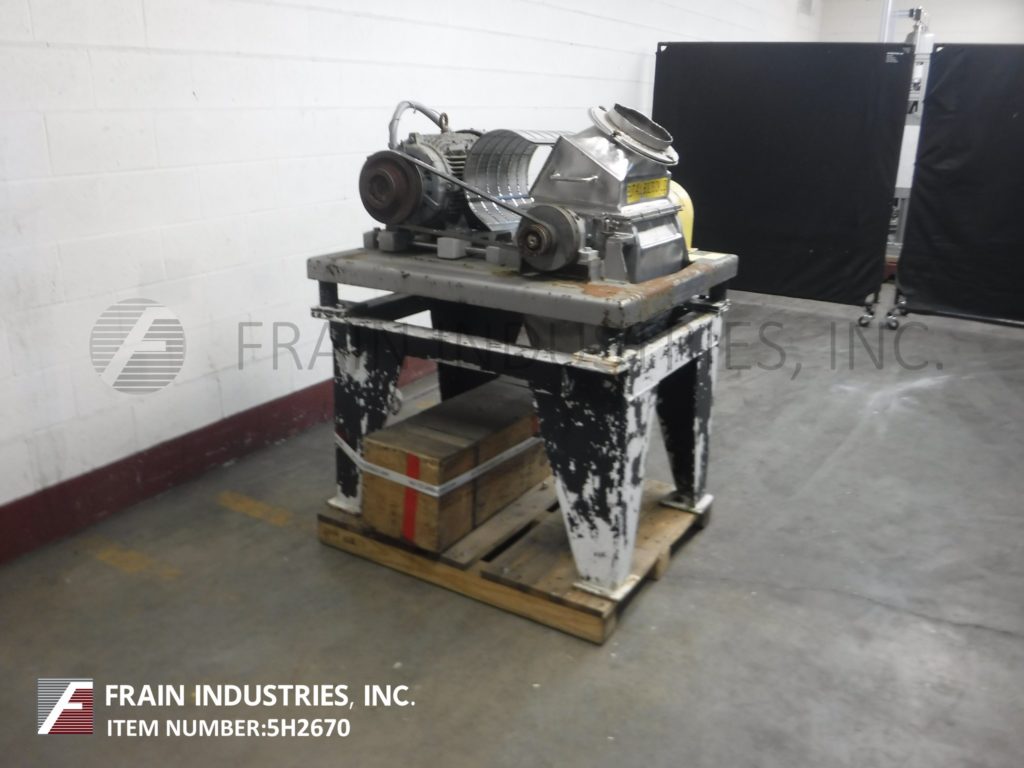

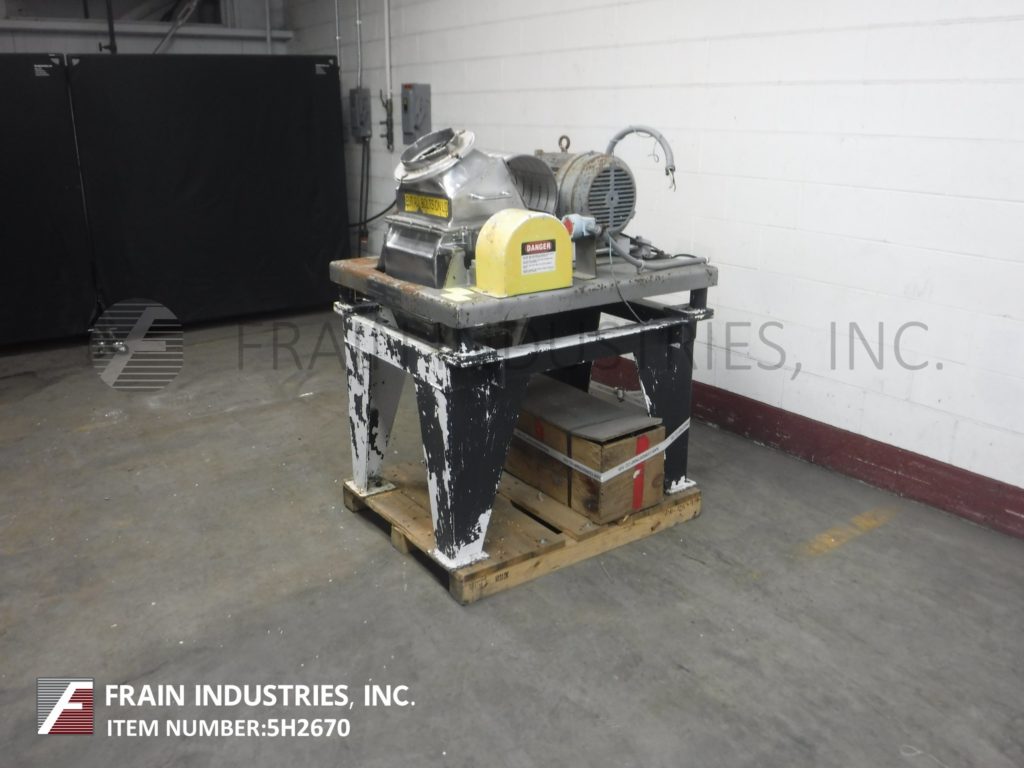

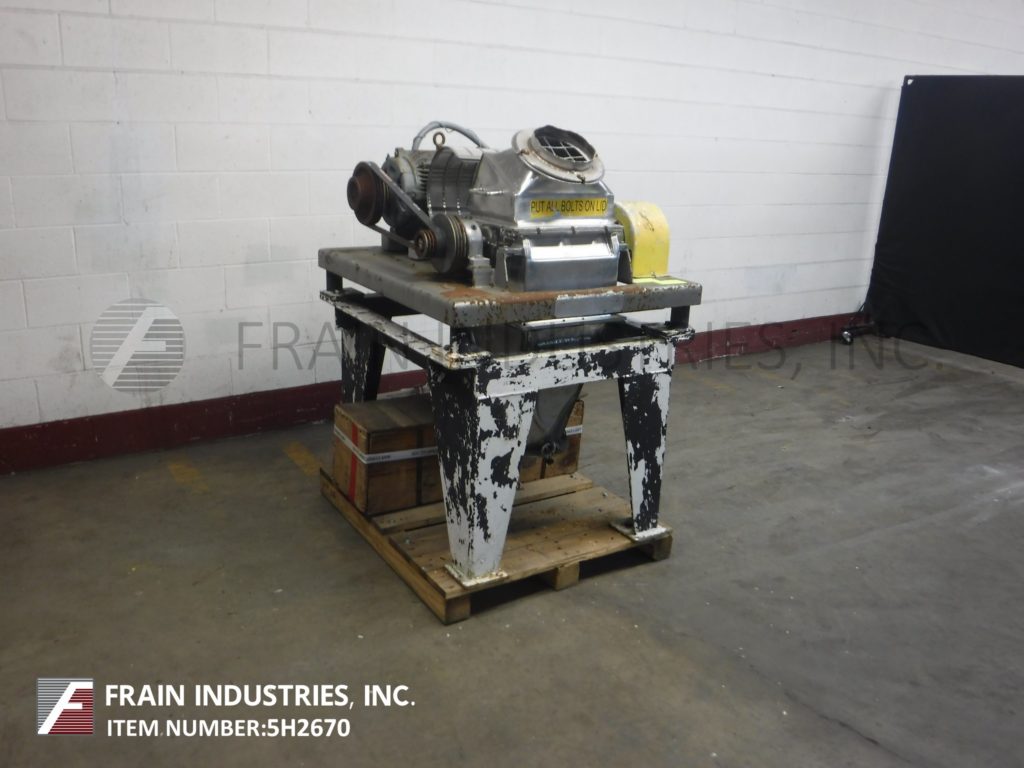

Fitzmill Mill Hammer DKAS012

• Manufacturer:Fitzmill
• Model Number:DKAS012
• Frain Number:5H2670

Fitzmill, Model DKAS012, hammer mill with stainless steel contact parts. Production rates per hour – depending on materials, application and machine configuration. Equipped with an 8" diameter charge port and (32) 1½" wide by 3" long fixed knife blades powered by a 15 hp drive. 11"OD / 8"ID flanged product discharge with 12” floor clearance. Mounted on a (4) leg painted base frame. Used to grind, de-lump, pulverize and process wet / dry products.

OAD: 45"L x 36"W x 55"H

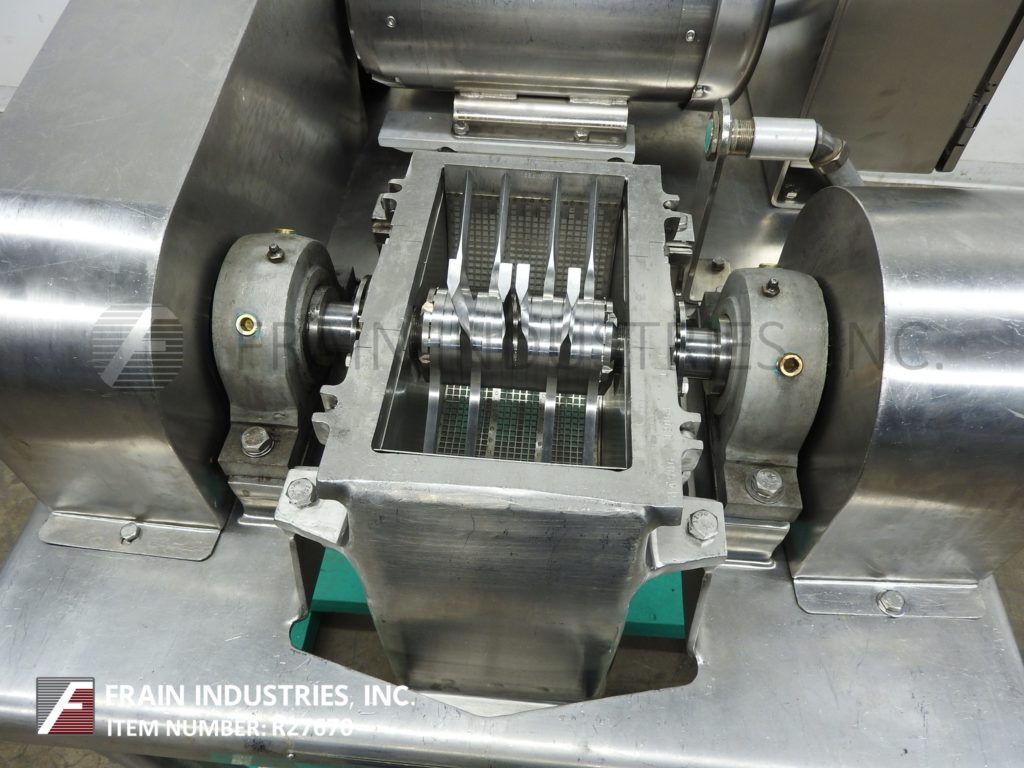

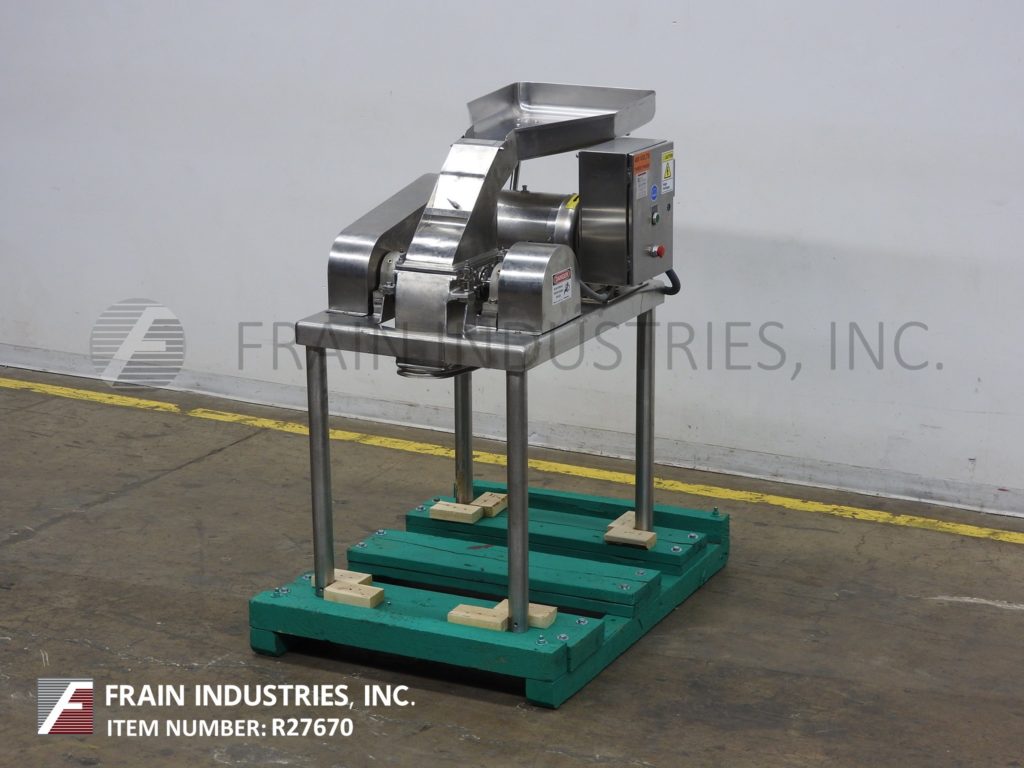

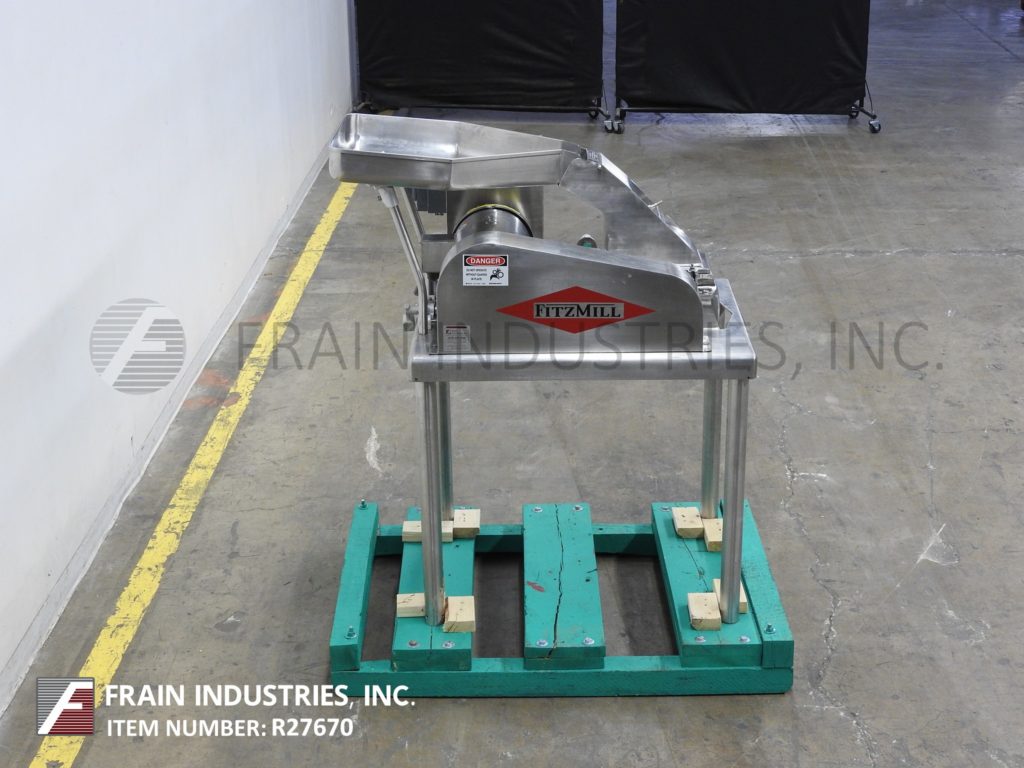

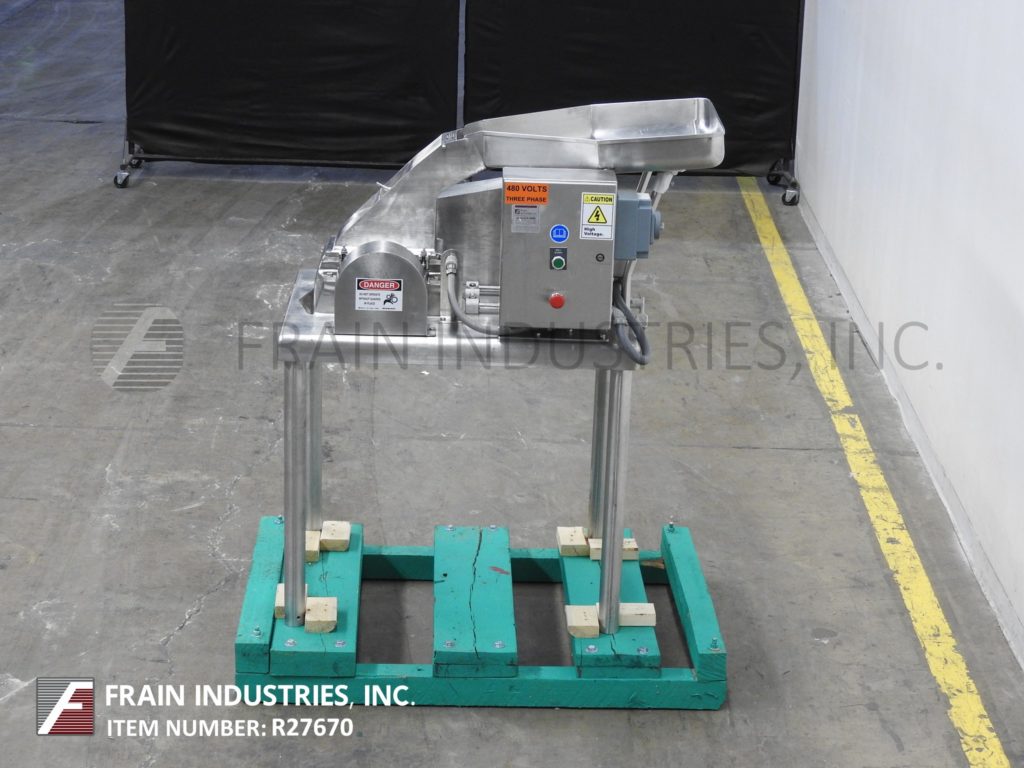

Fitzmill Mill Hammer DAS06

• Manufacturer:Fitzmill
• Model Number:DAS06
• Frain Number:R27670

Fitzmill, Model DASO6, stainless steel hammer mill. Equipped with a 28" long x 20" wide x 4" deep feed pan, 6" wide x 4" high feed throat, 11” long x 6” wide blade chamber and (16) fixed knife / impact blades powered by a 7½ Hp motor drive. Product discharge is 15½” long x 5¾” wide with 36” floor clearance. Start / stop controls, mounted on casters.
Production rates dependant on materials, application and machine configuration.
OAD: 48"L x 35"W x 64"H

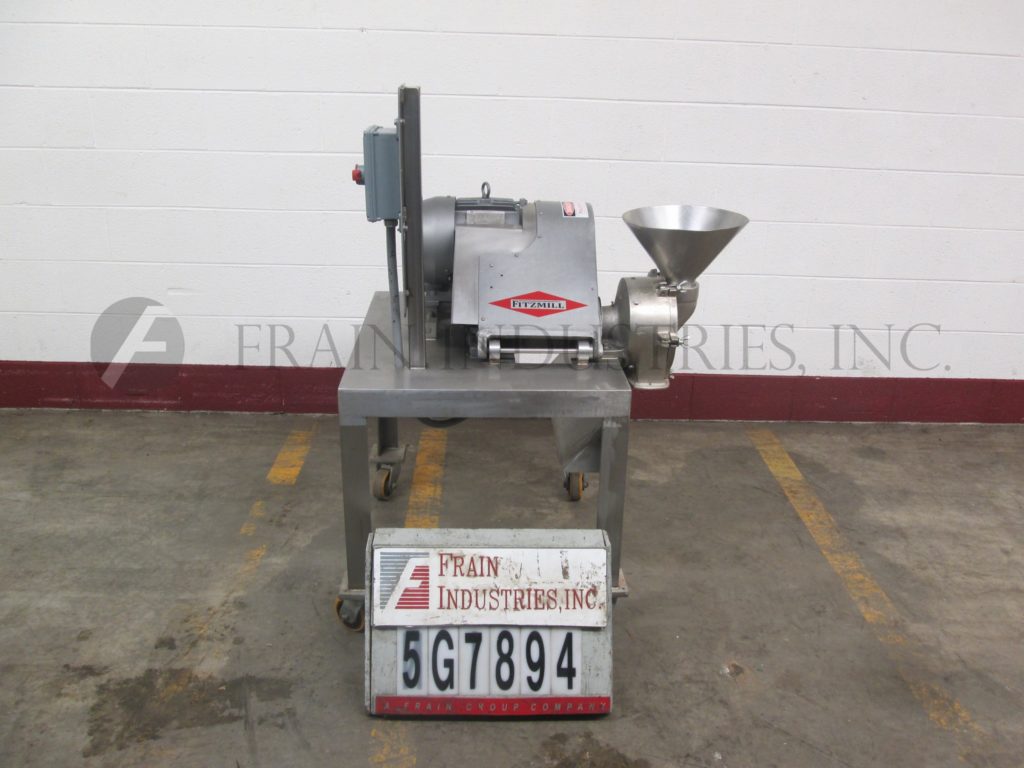

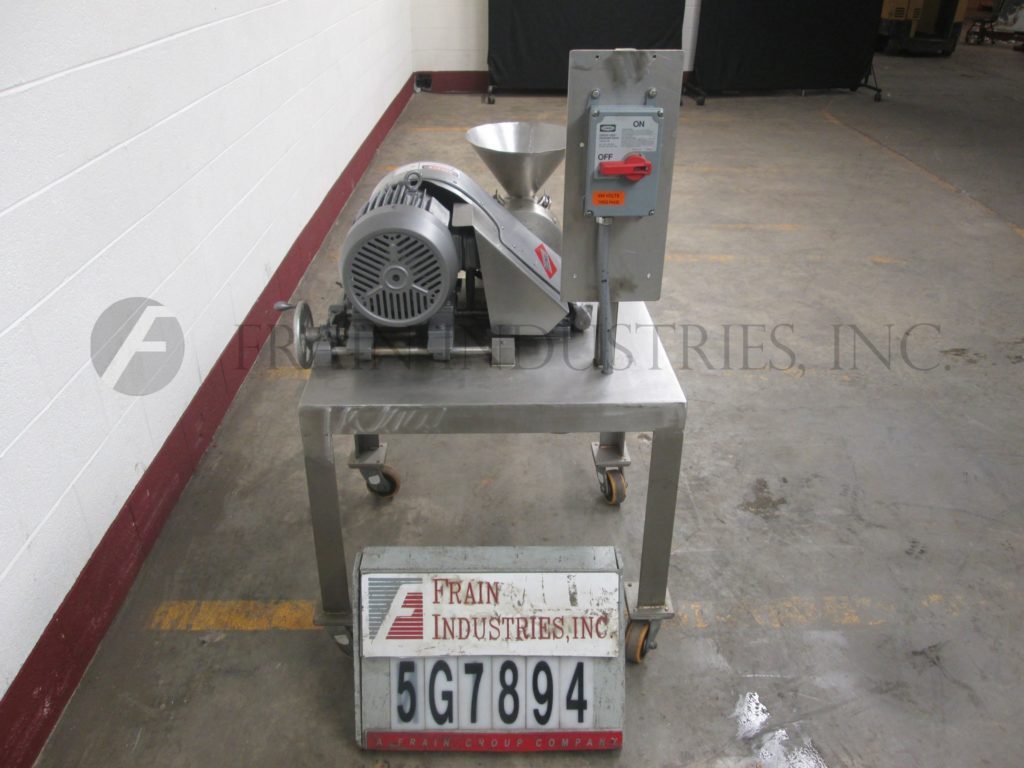

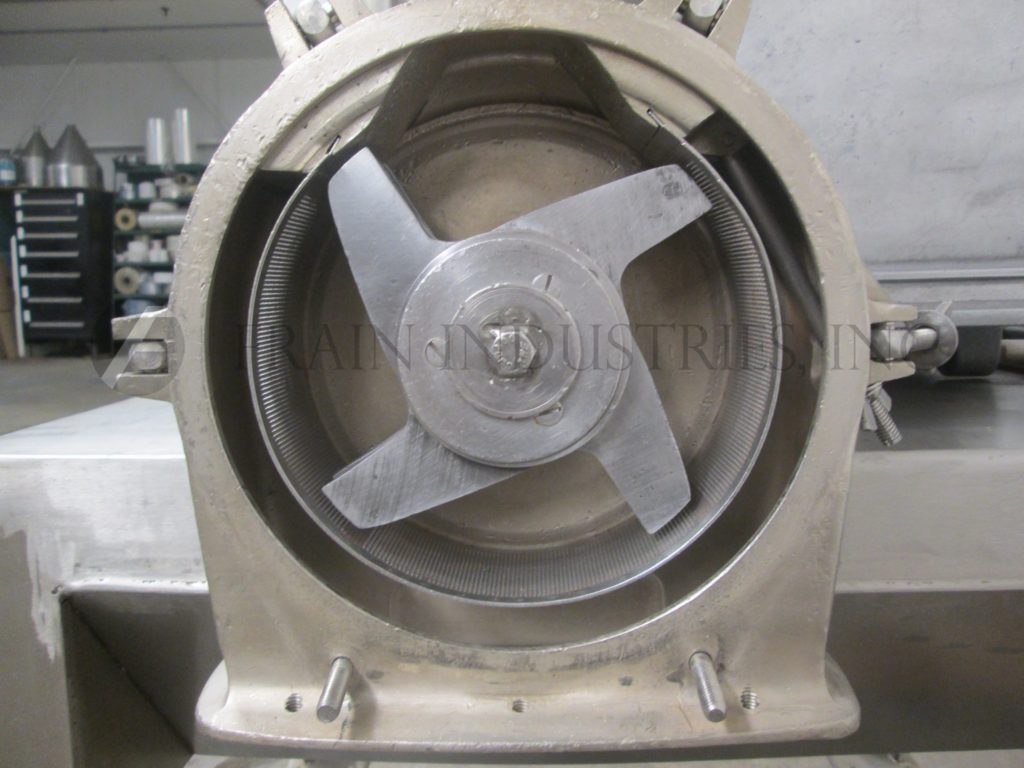

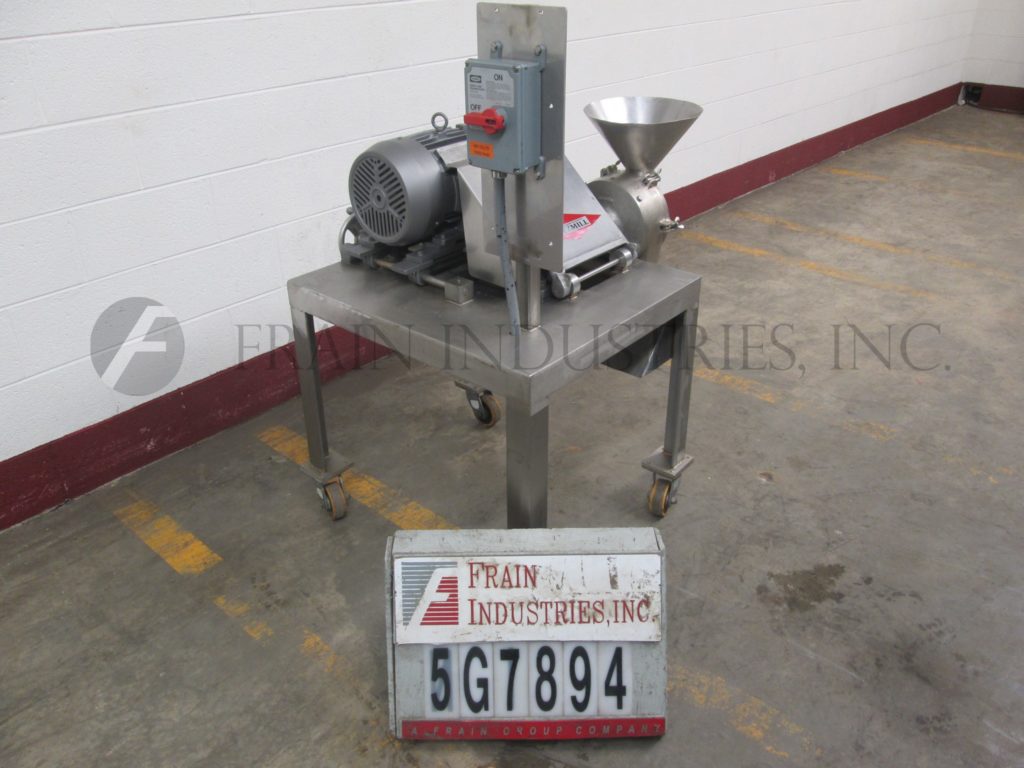

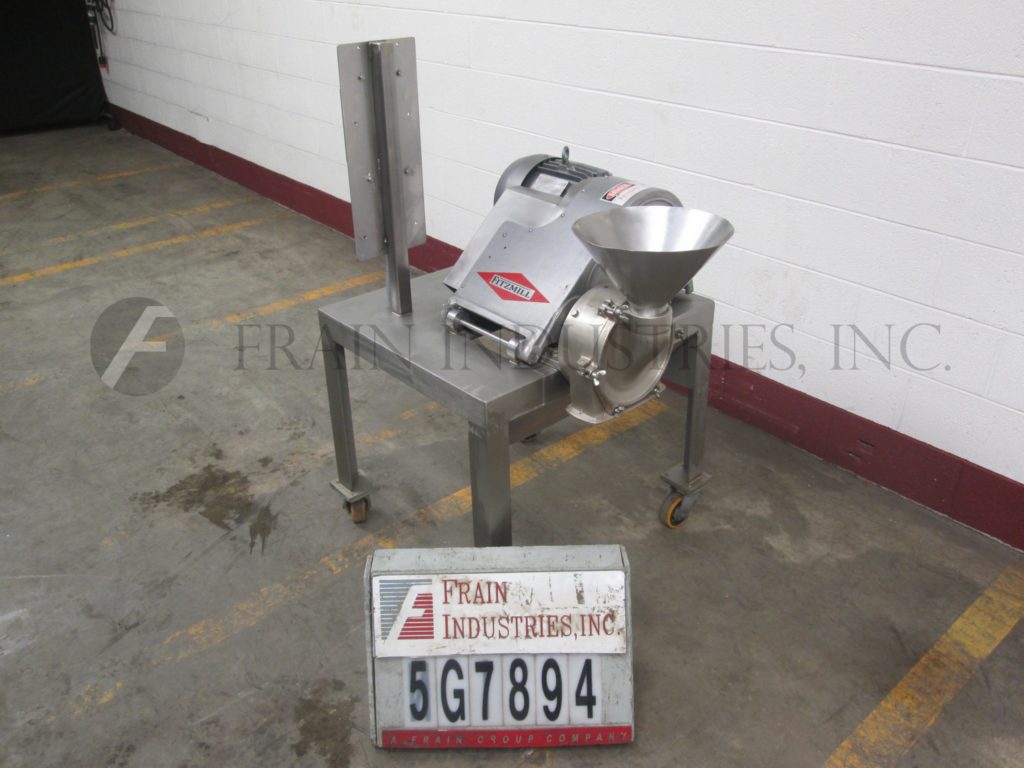

Fitzmill Mill Hammer JT

• Manufacturer:Fitzmill
• Model Number:JT
• Frain Number:5G7894

Fitzpatrick, Model JT, 304 stainless steel homoloid mill. with production rates per minute – depending on materials and application. Equipped with12" ID x 6" deep feed pan with 3" diameter product port, (12) fixed impact blades with screen area of 2½" wide x 16" long and 8" long x 2½" wide bottom product discharge with 24” ground clearance. Start, stop push button controls and mounted on a base with casters.

OAD: 38"L x 35"W x 53"H

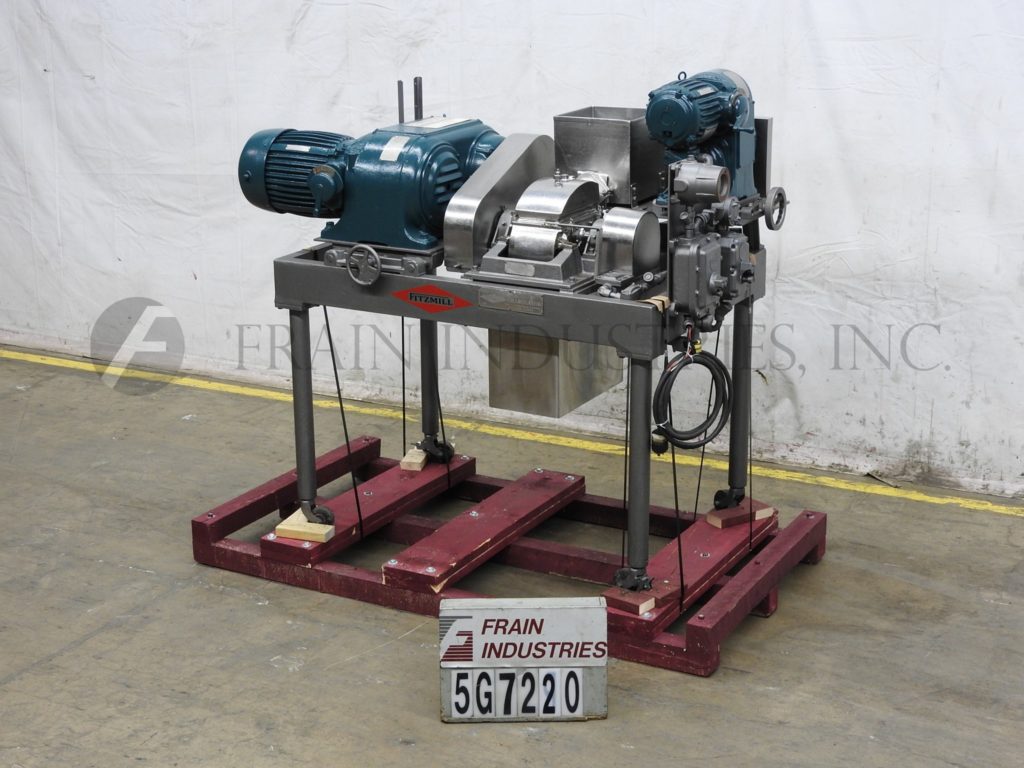

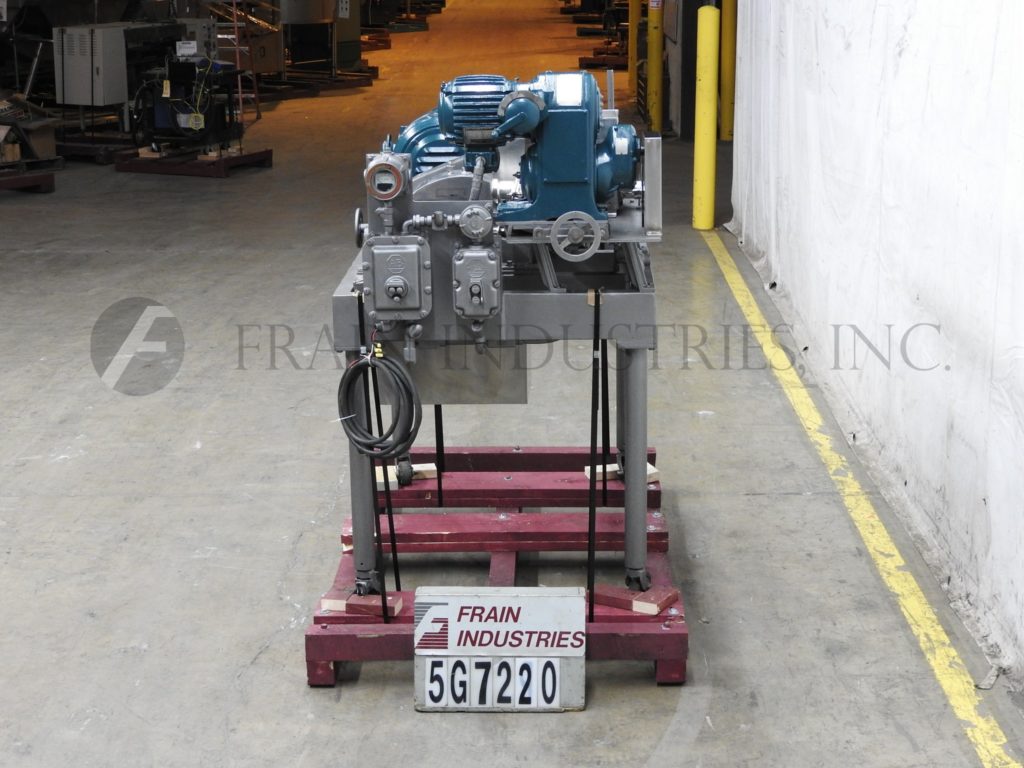

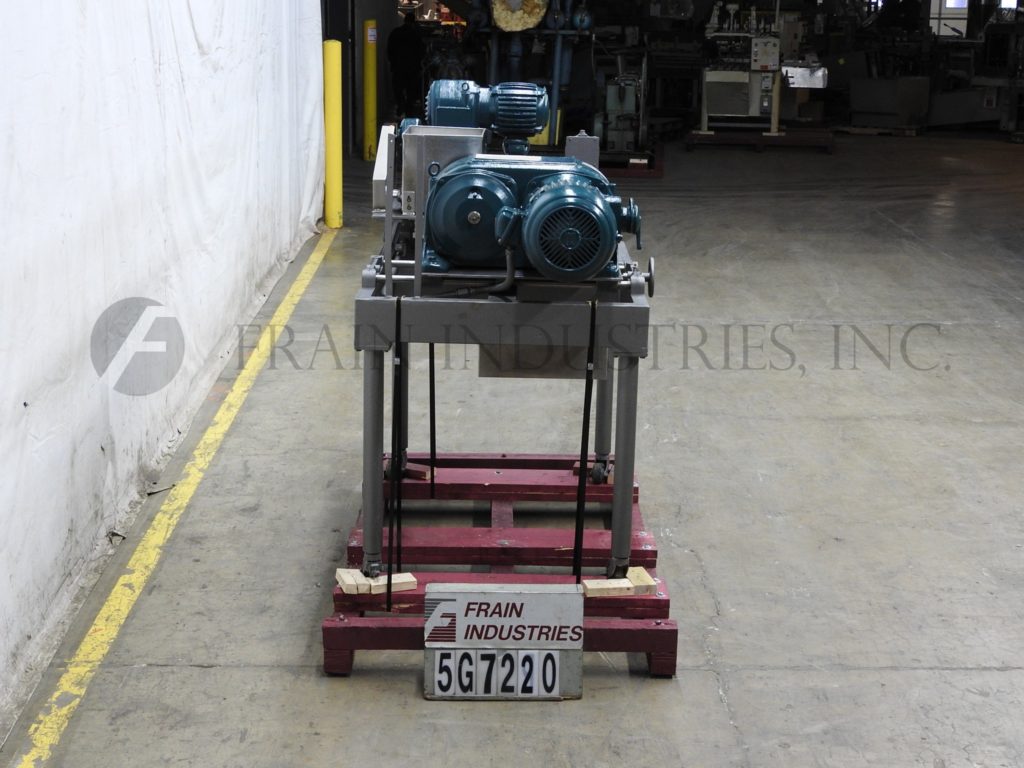

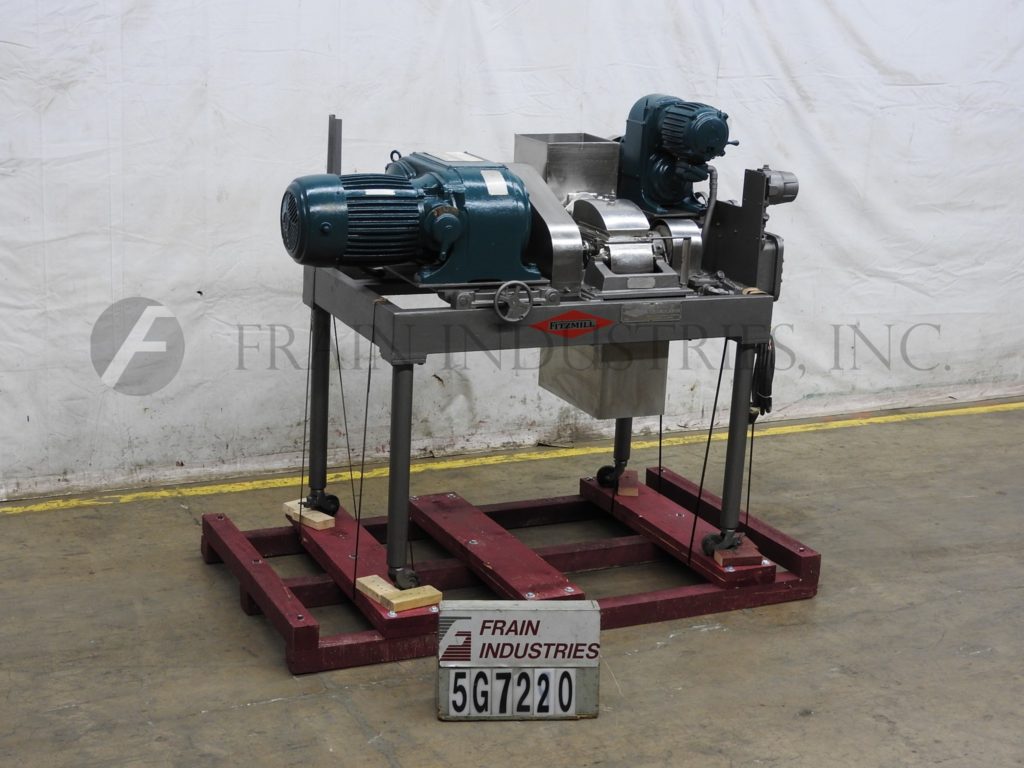

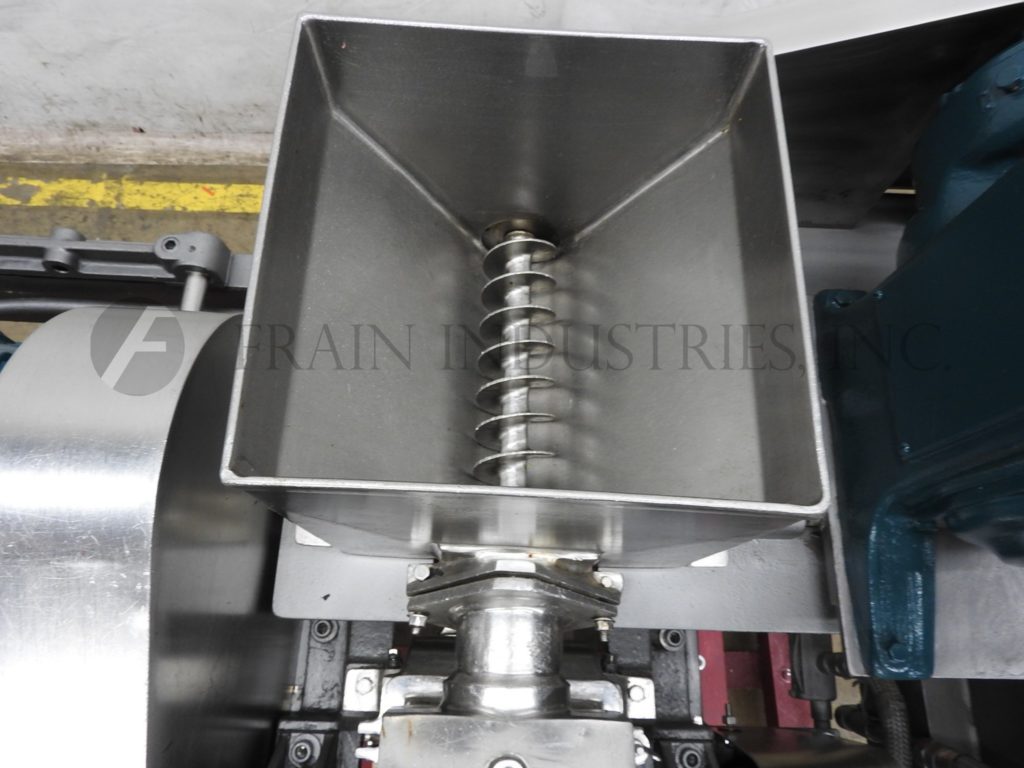

Fitzmill Mill Hammer DAS06

• Manufacturer:Fitzmill
• Model Number:DAS06
• Frain Number:5G7220

Fitzmill模型U,不锈钢锤式粉碎机。情商uipped with a 12" L x 12" W x 12" D (½ ft³) product hopper, 3" diameter feed screw with 1½" centers powered by a ¼ HP drive with variable speed gearbox and (16) 4" L x 1" W fixed impact blades powered by a 7½ HP drive with variable speed gearbox. Product discharge is 15”L x 5½” W with 38" of ground clearance. Unit mounted on mild steel frame with casters.

OAD: 80"L x 40" W x 70"H

Fitzmill Mill Hammer D6

• Manufacturer:Fitzmill
• Model Number:D6
• Frain Number:5G7210

Fitzmill, Model D6, comminutor mill with stainless steel contact parts. Production rates per hour – depending on materials and application. Equipped with a 20" wide x 26" long x 4" deep feed pan, 6" wide x 4" high feed throat, 11” long x 6” wide blade chamber and (16) 1" wide by 4" long swing knife/impact blades powered by a 5 hp drive. Product discharge is 10” long x 5½" wide with 32” floor clearance. Mounted (4) leg mild steel base frame with casters. Used to grind, de-lump, pulverize and process wet / dry products.

OAD: 48"L x 27"W x 62"H
