Hartness Machines

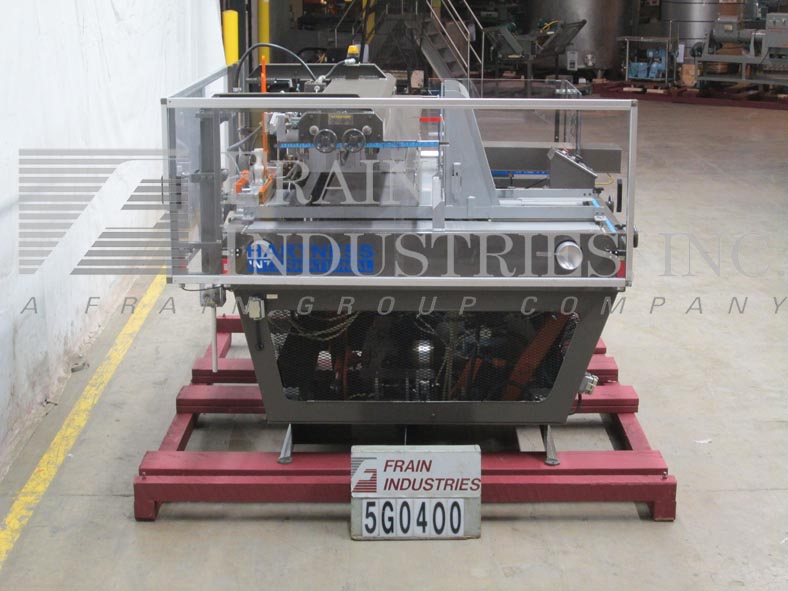

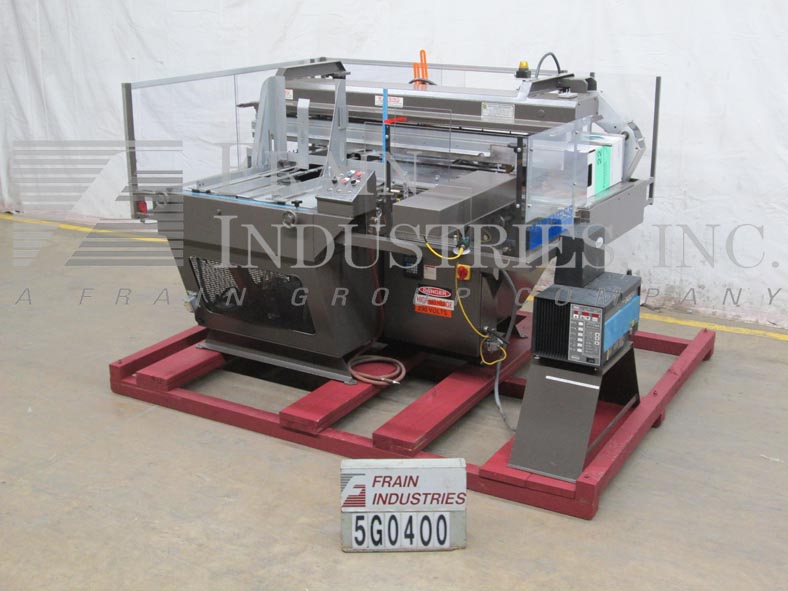

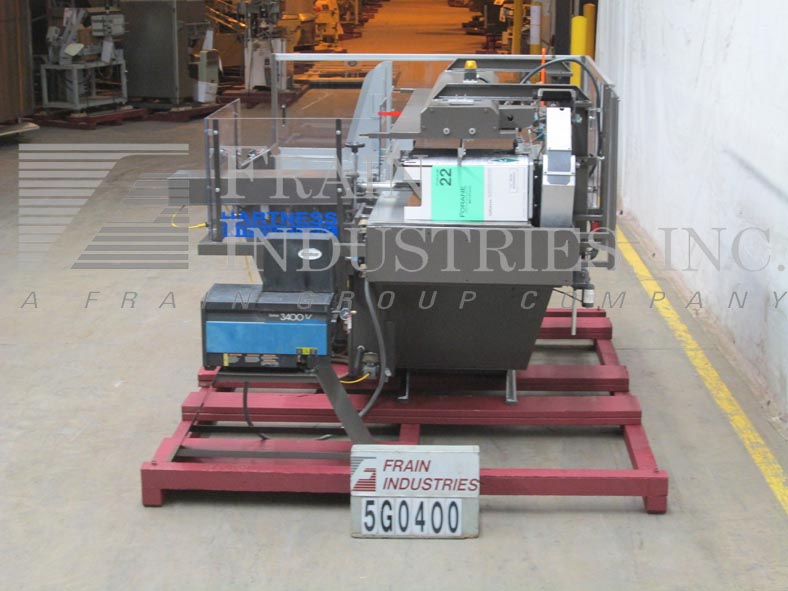

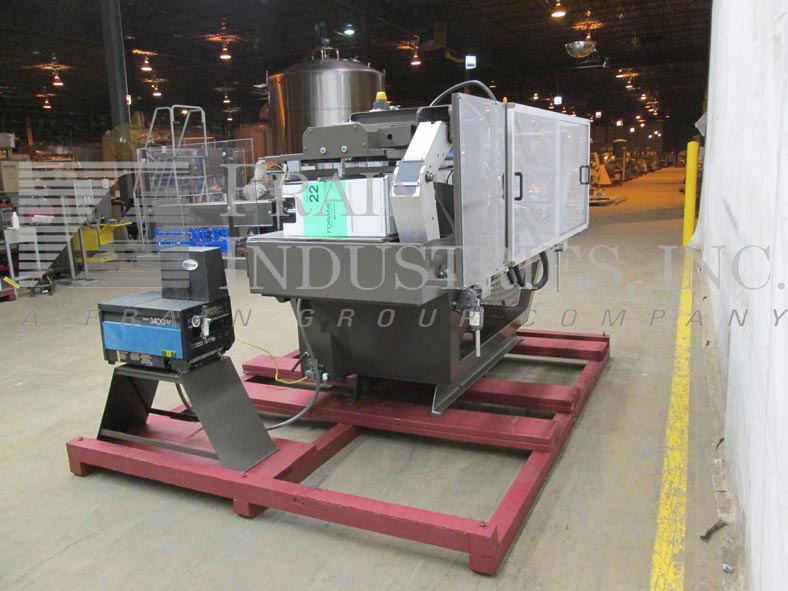

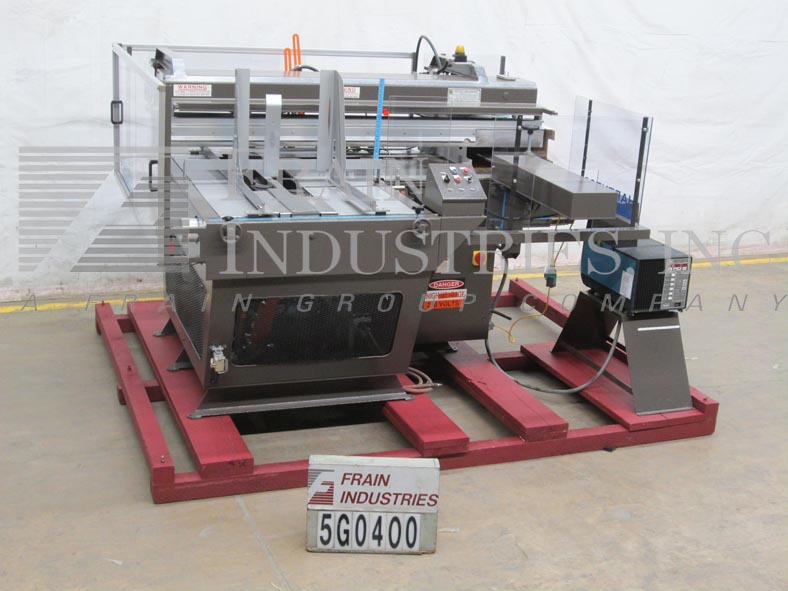

Hartness Case Erector Glue CE201G

• Manufacturer:Hartness
• Model Number:CE201G
• Frain Number:5G0400

Hartness, Model CE201G, automatic, case erector / bottom hot melt glue sealer rated from 5 to 30 cases per minute – depending on materials and application. Case size range: 5-3/4" to 24" in Length; 5-3/4" to 24" in Width; 10" to 33" in Height. Equipped with flat blank case magazine, suction cup case pick and place, erector with plows and flap closers, hot melt glue system and single arm compression ram. Control panel has A/B controller with touch pad controls and digital read out and start, stop, mast up / down switches with e-stop with Lexan safety guarding. Mounted on heavy duty base frame.

OAD: 98" L x 84" W x 71" H

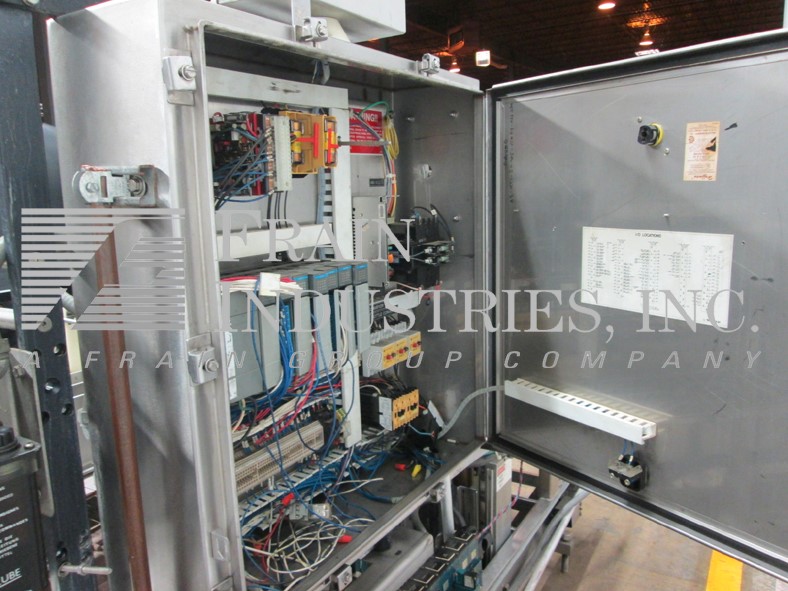

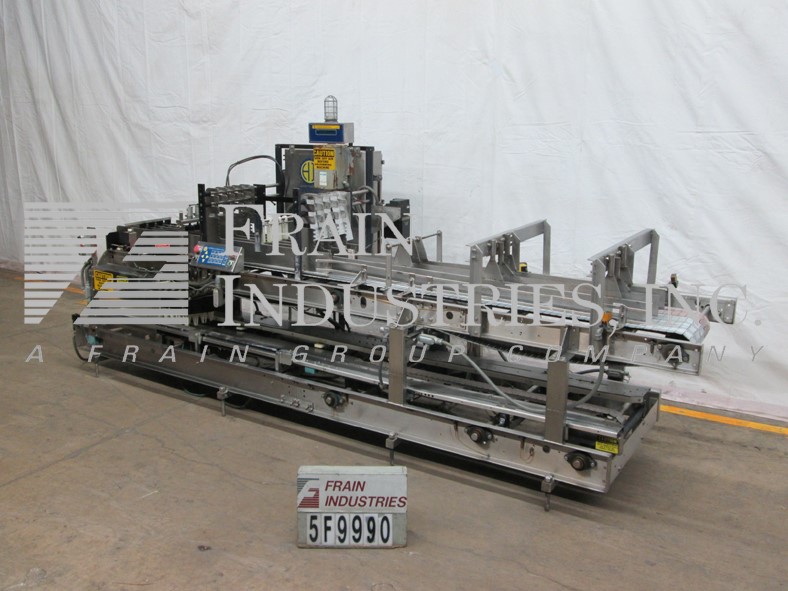

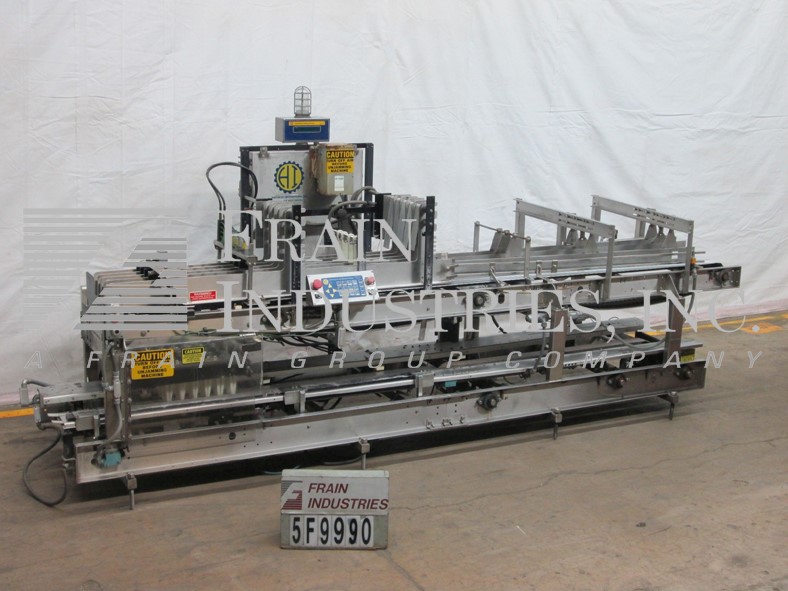

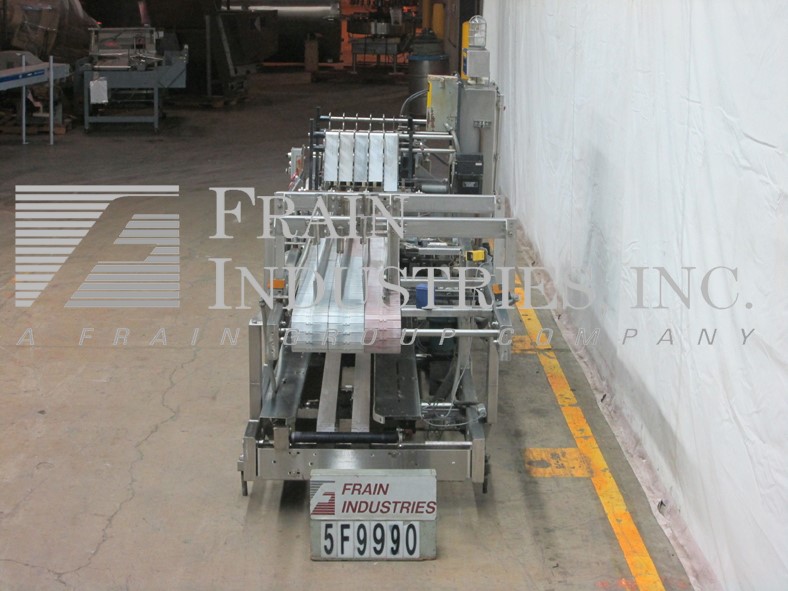

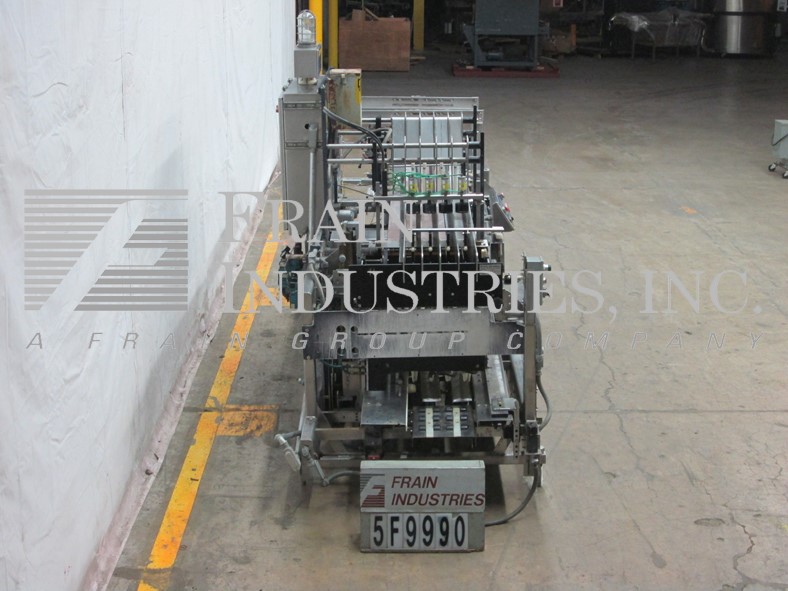

Hartness Case Packer Drop Packer 835

• Manufacturer:Hartness
• Model Number:835
• Frain Number:5F9990

Hartness Model 835, automatic, intermittent motion, drop case packer rated from 5 to 25 cases per minute with number of containers – depending on materials and application. Case size range: 7" to 22-1/2" in Length; 5-1/2" to 16-1/2" in Width; 2" to 20" in Height. Container size range 2oz to 2-1/2 gallons of glass, plastic, cans, round containers and various shapes and sizes and can handle HSC, RSC, tray and display trays (with proper change parts). Equipped with (3) 132" long x 18" wide Delran product in feed conveyors with product static dividers and container stops. (2) 72" long x 4-1/2" bottom empty case in feed conveyors to 84" long x 12" wide choke fed case section, product grid with decending soft container drop. Control panel has A/B controller with push button controls and visual display. Mounted on heavy duty base frame.

OAD: 199" L x 48" W x 75" H

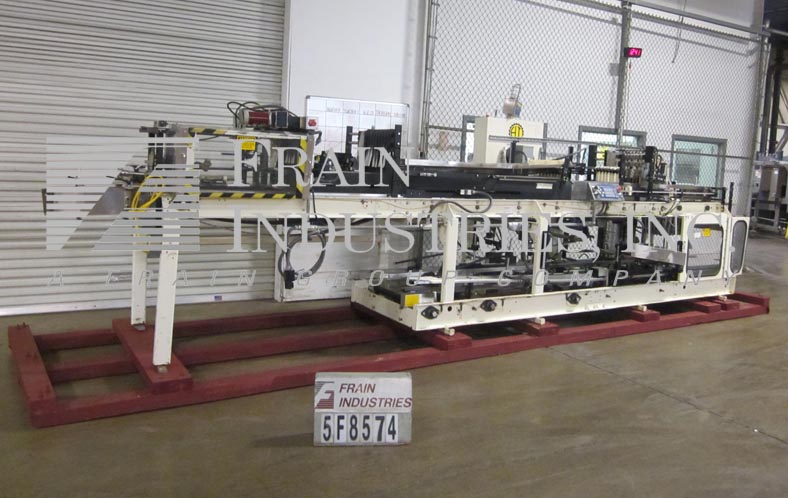

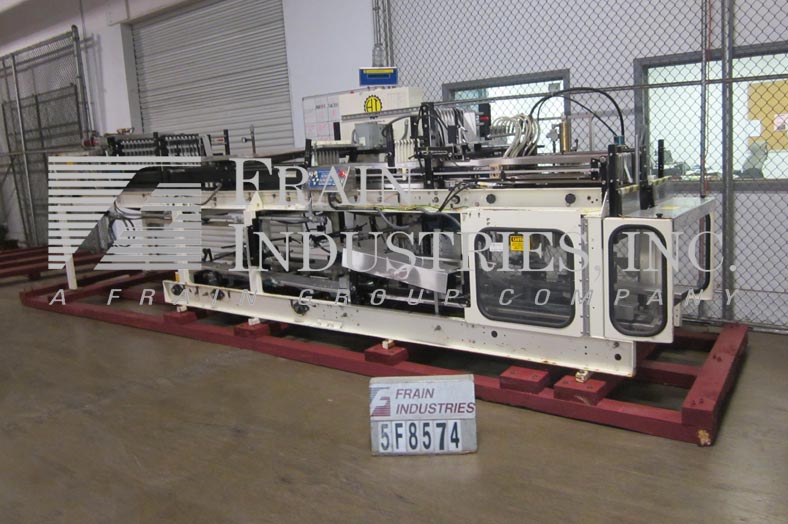

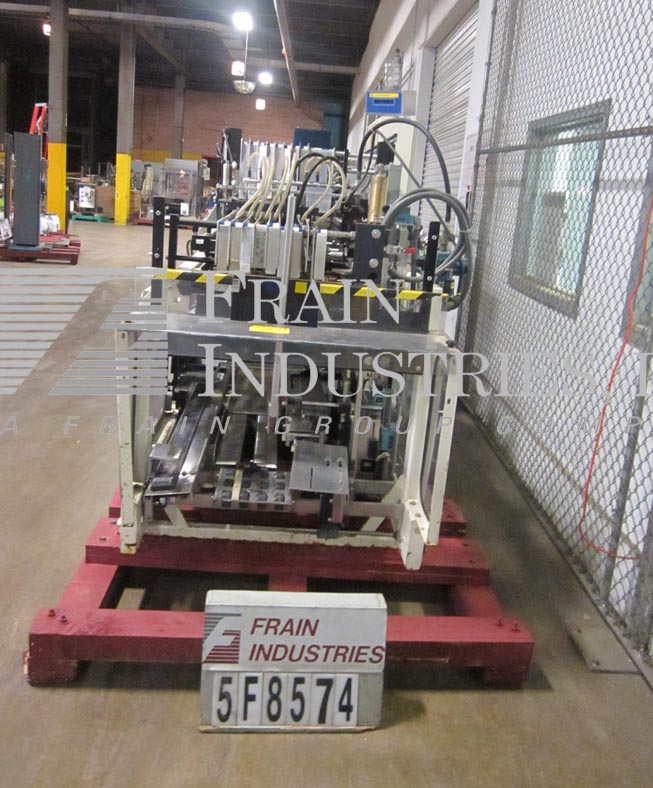

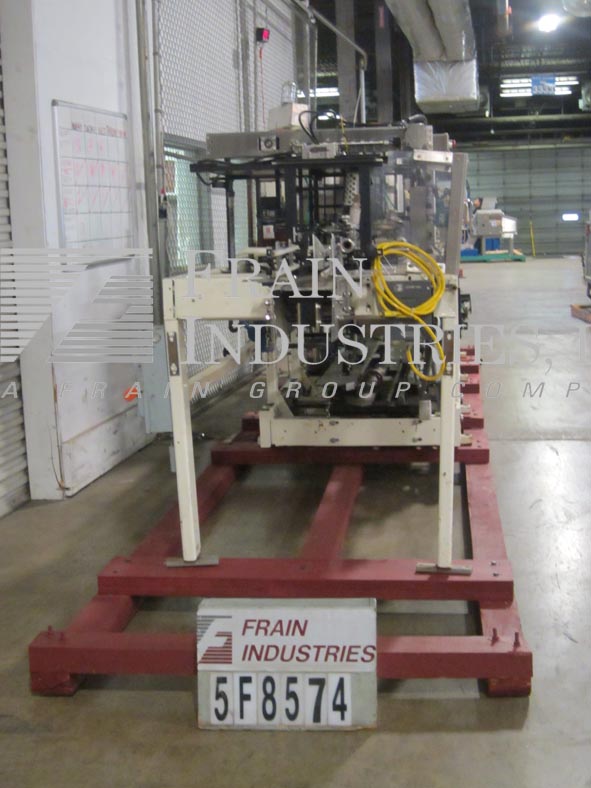

Hartness Case Packer Drop Packer 900

• Manufacturer:Hartness
• Model Number:900
• Frain Number:5F8574

Hartness Model 900, automatic, drop caser packer rated from 5 to 30 cases per minute with number of containers – depending materials, application and pack pattern. Case size range: 6" to 24" in Length; 6" to 16" in Width; 1-1/2" to 19" in Height. vertical case loading,and is capable of handling the most difficult container shapes, yet remains simple and
versatile. to handles containers that tend to bridge, lock up or shingle when conveyed or transferred. Equipped with 72" long x 16" wide product in feed conveyor, that feeds into 128" long product laner currently has (8) lanes with 1" wide conveyors each. 72" long bottom case belt in feed conveyor to 96" long lugged empty case conveyor, desending soft drop, with 17" x 17" grid area currently set for 6 x 8 pack pattern. Control panel has A/B controller with touch pad controls, operator start, stop, e-stop push buttons, central lubrication and pneumatic valve systems. Mounted on heavy duty base frame.

OAD: 276" L x 57" W x 84" H

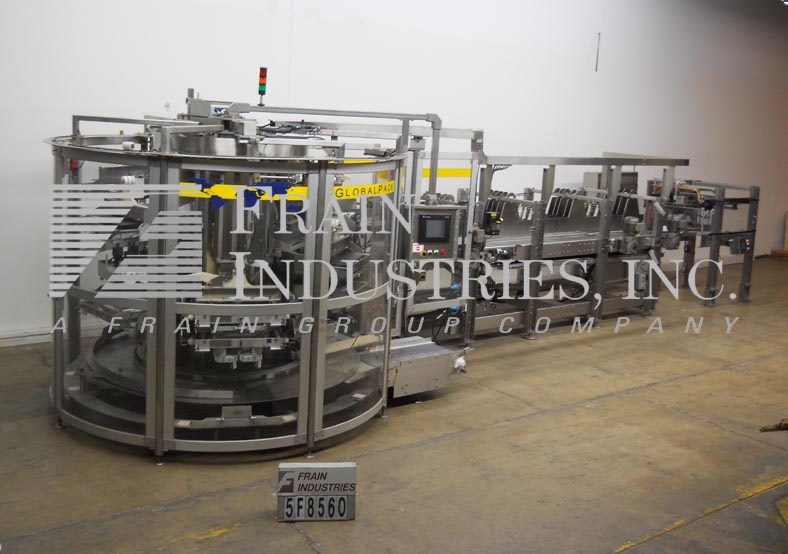

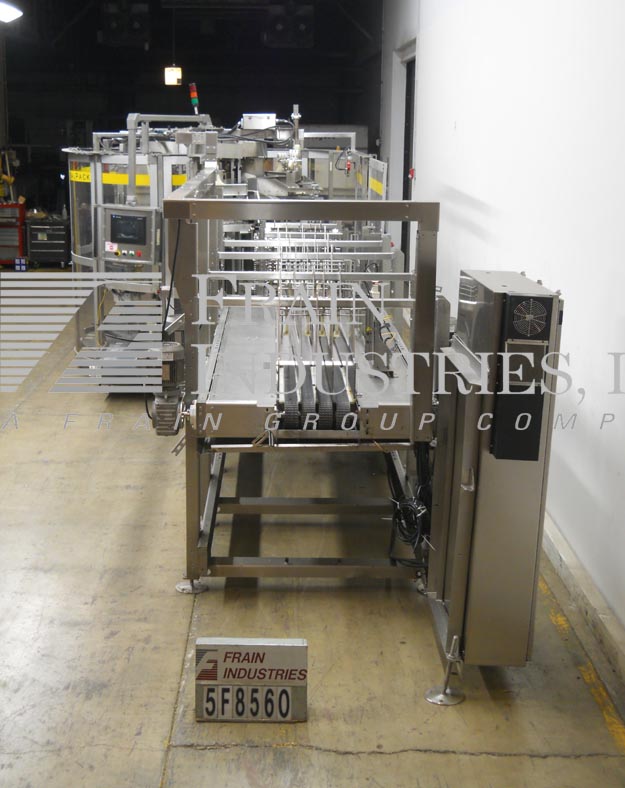

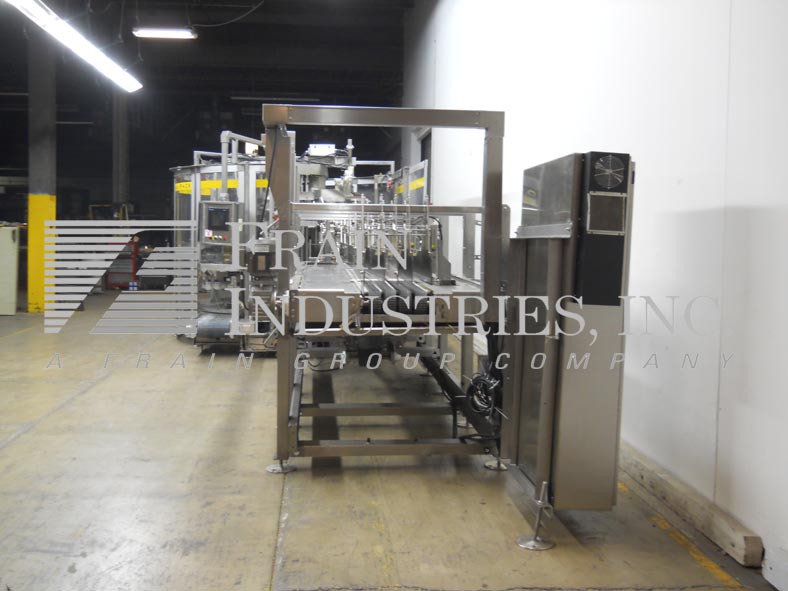

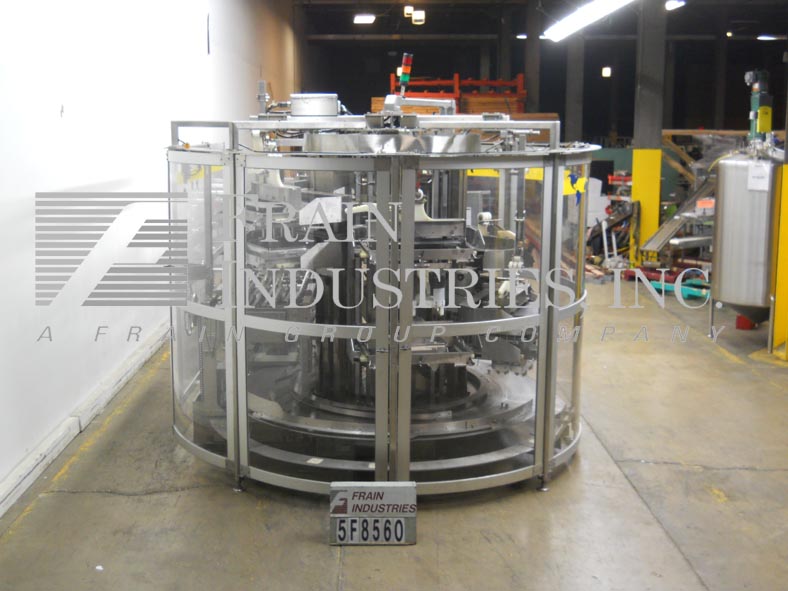

Hartness Case Packer Drop Packer 3500

• Manufacturer:Hartness
• Model Number:3500
• Frain Number:5F8560

Hartness Global Pack Model 3500, 6 station rotary, continuous motion, zero impact, case packer rated from 20 to 35 cases per minute, with number of containers – depending on materials, application and pack pattern. Can handle most containers glass, plastic, round and non round from 10 ounces to 2-1/2 gallons and place into corrugated, tab lock, RSC, or plastic cases. Equipped with (4) 44" long x 3" wide to (1)108" long x 18" to (1) 24" long x 18" wide plastic in feed conveyors with (4) product lane dividers, product overhead orientor and lugged walking beam feeder into 6 head rotary gripper system with grids and gripper fingers to capture containers and ensure perfect alignment of containers every time for zero breakage while desending into the cases. Control panel has A/B controller and A/B swing arm panel view controls with machine start, stop, reset, e-stop buttons, statis light bar and safety guarding. Mounted on heavy duty base frame.

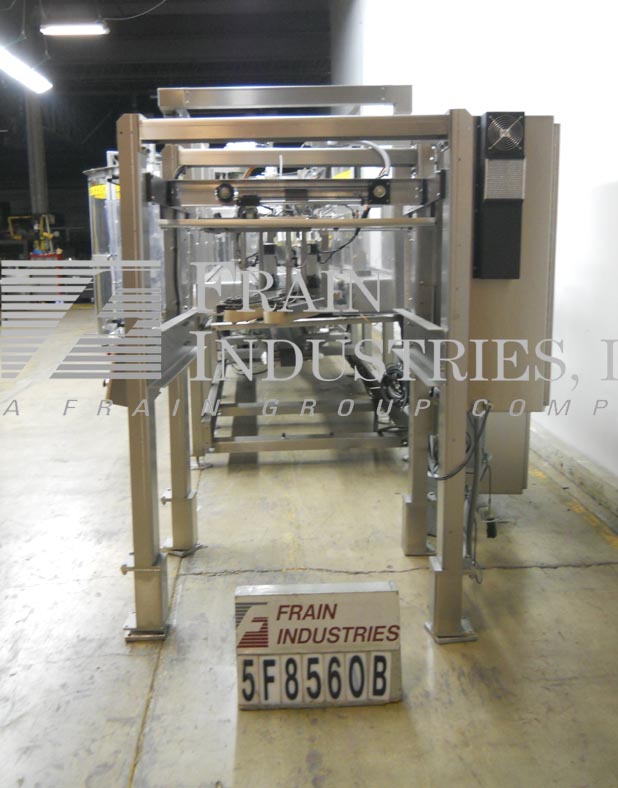

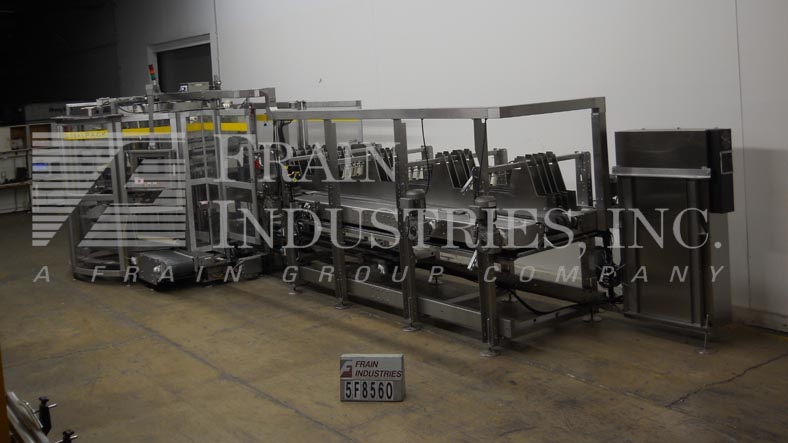

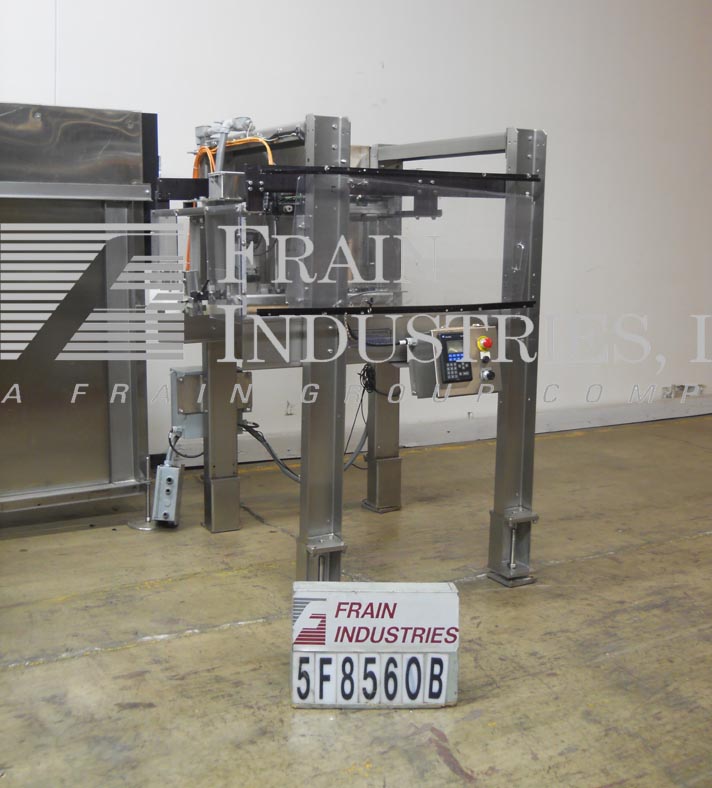

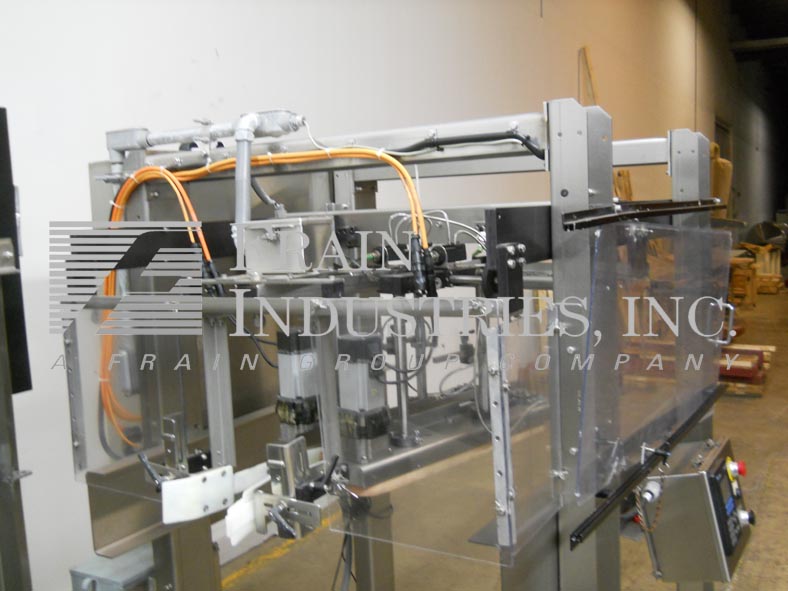

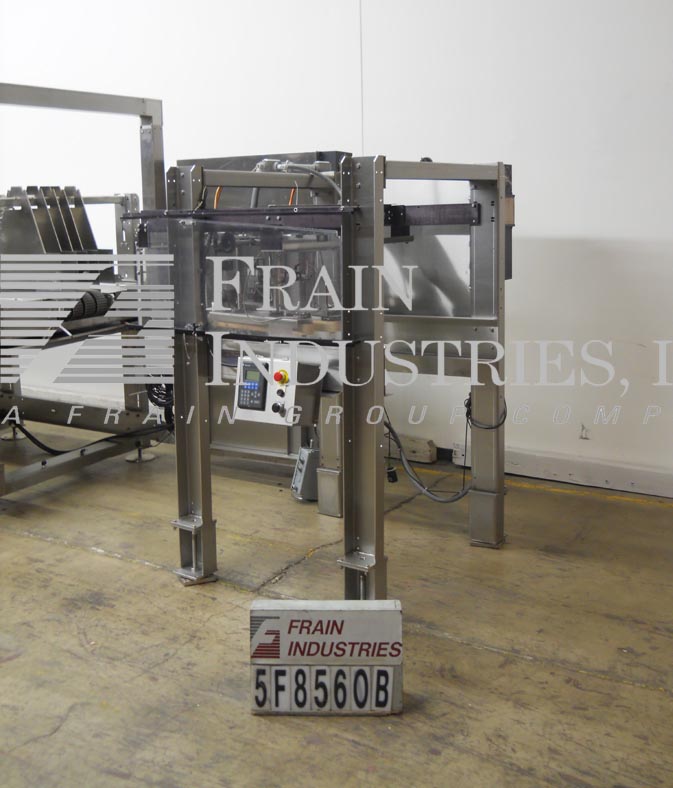

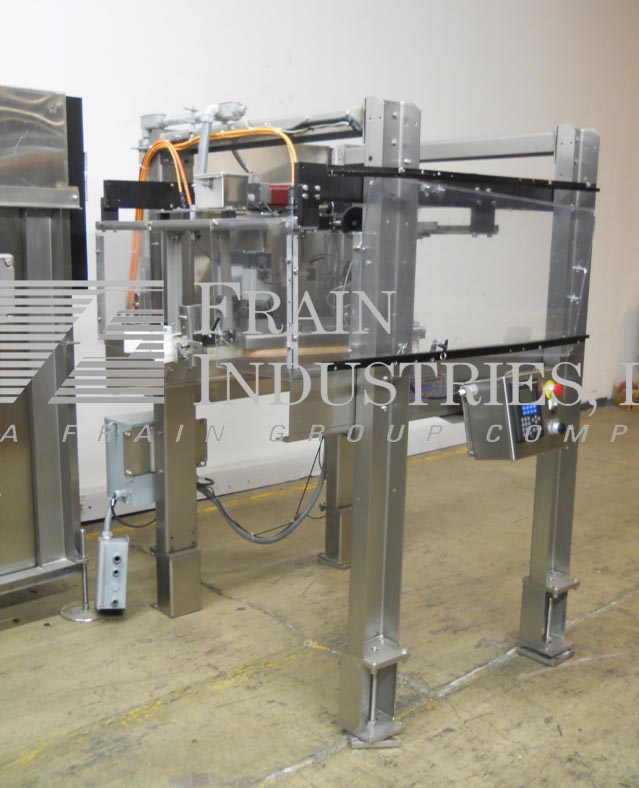

Picture Shows Optional Item # 5F8560B Servo Product Laner. Available at Additional Cost

OAD: 466" L x 156" W x 128" H With Laner
396" L x 156" W x 128" H Without laner

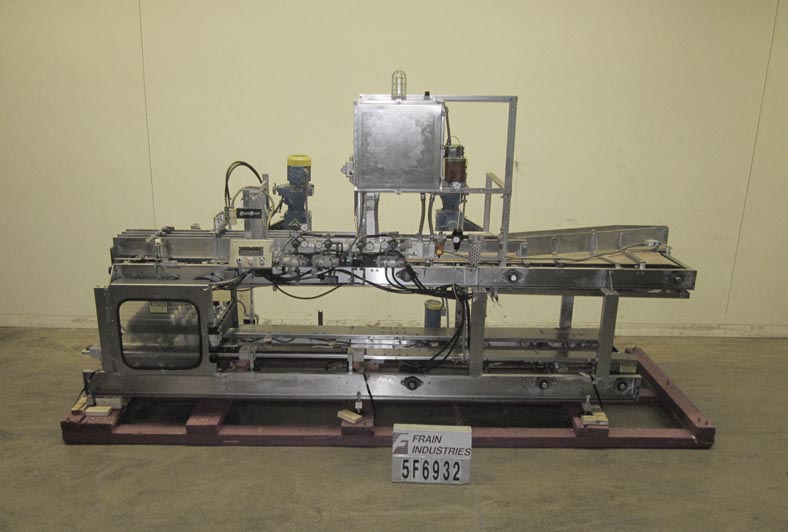

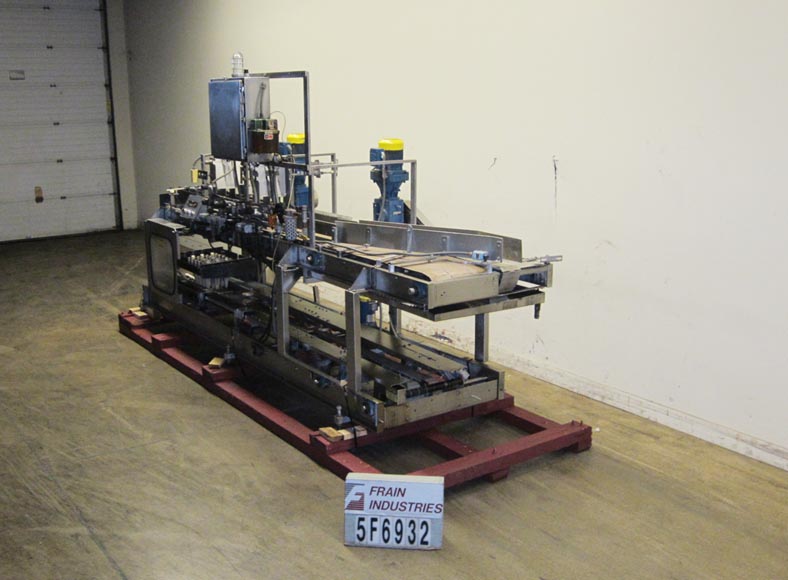

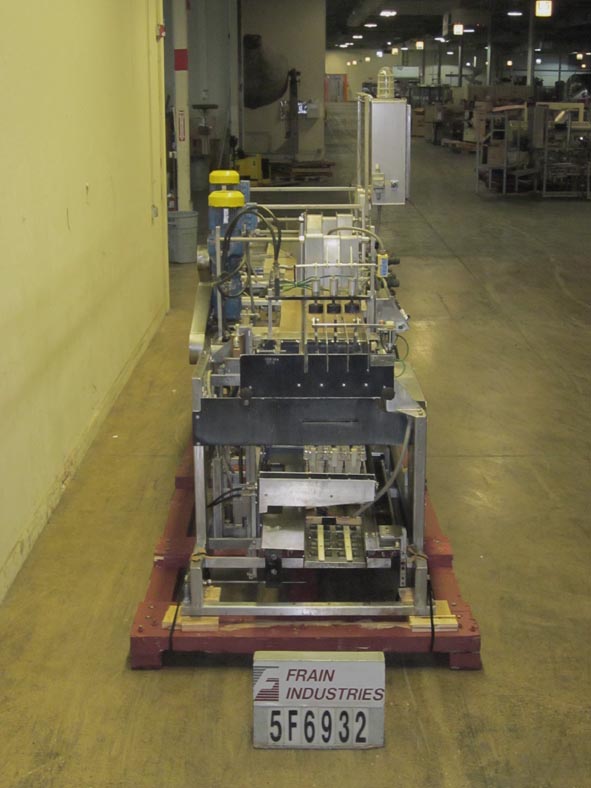

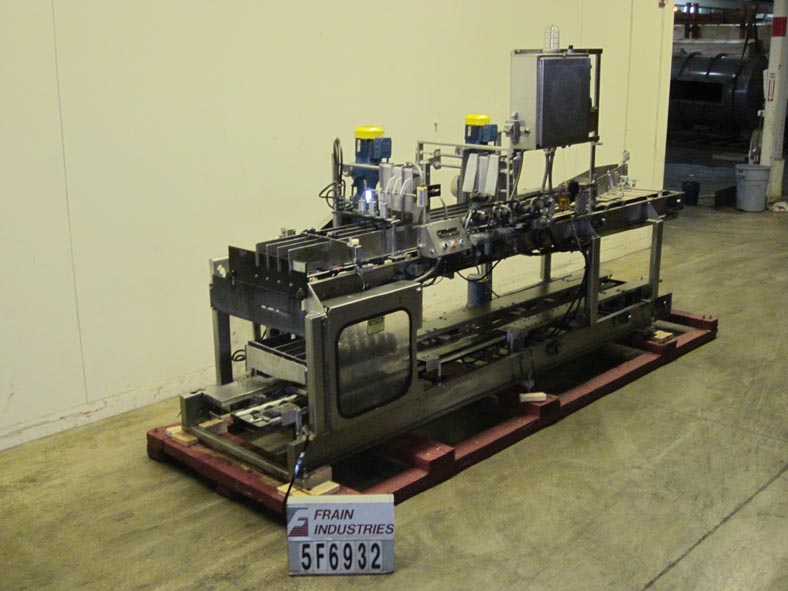

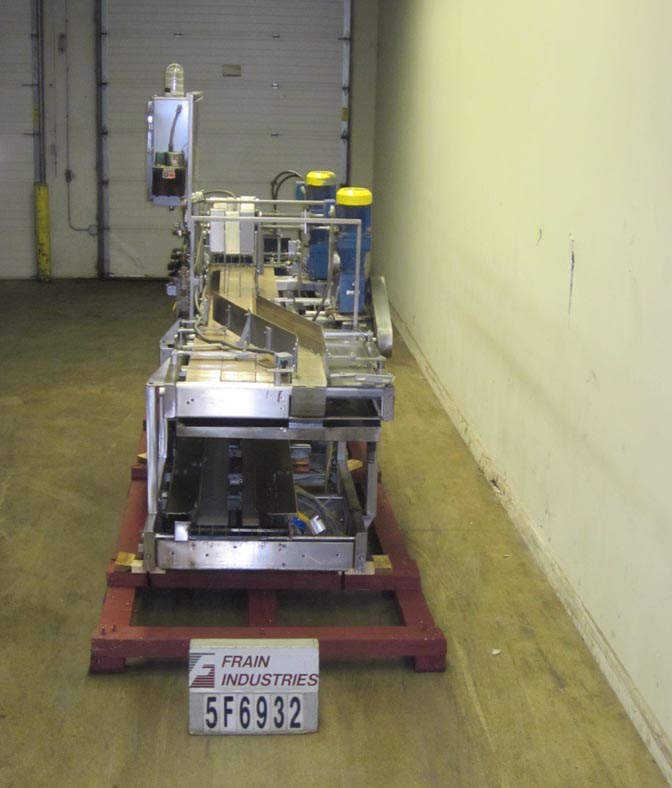

Hartness Case Packer Drop Packer 825

• Manufacturer:Hartness
• Model Number:825
• Frain Number:5F6932

Hartness 825型、自动、不锈钢steel, drop case packer rated from 10 to 35 cases per minute with number of containers – depending on materials and application. Case size range: 6" to 24" in Length; 6" to 16" in Width; 1-1/2" to 12" in Height. Equipped with a 96" long x 18" wide (3) lane Delrin product infeed conveyor, static dividers, container stops, 96" long bottom empty case infeed conveyor, with desending drop product elevator and grid into case with skate roller discharge section. Control panel with push button controls and e-stop. Mounted on stainless steel frame.

OAD: 183" L x 48" W x 93" H

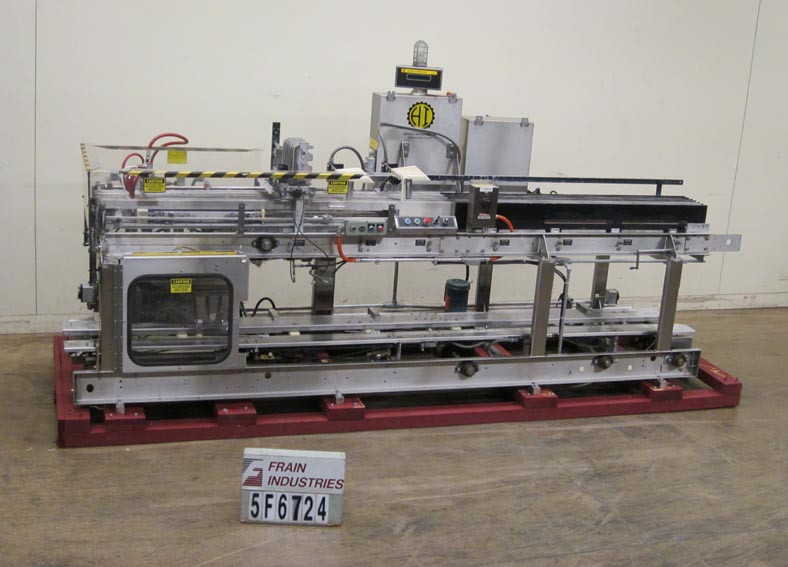

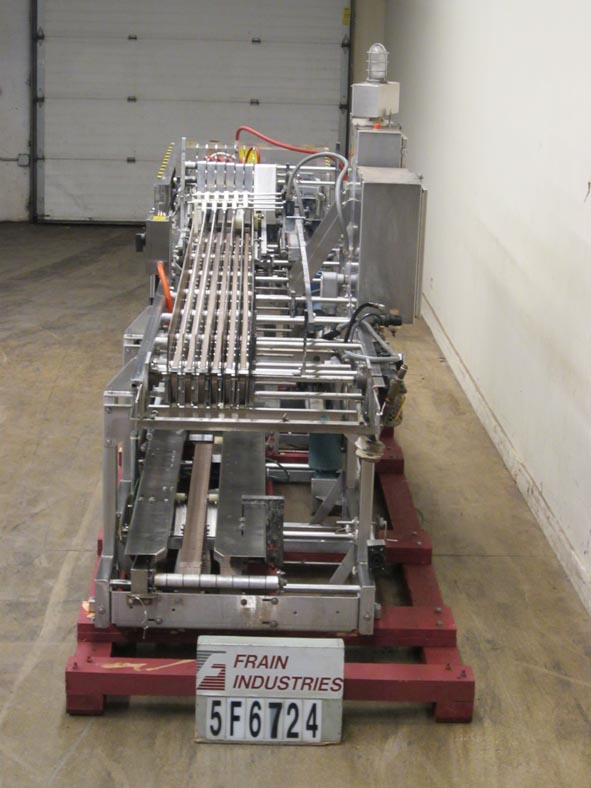

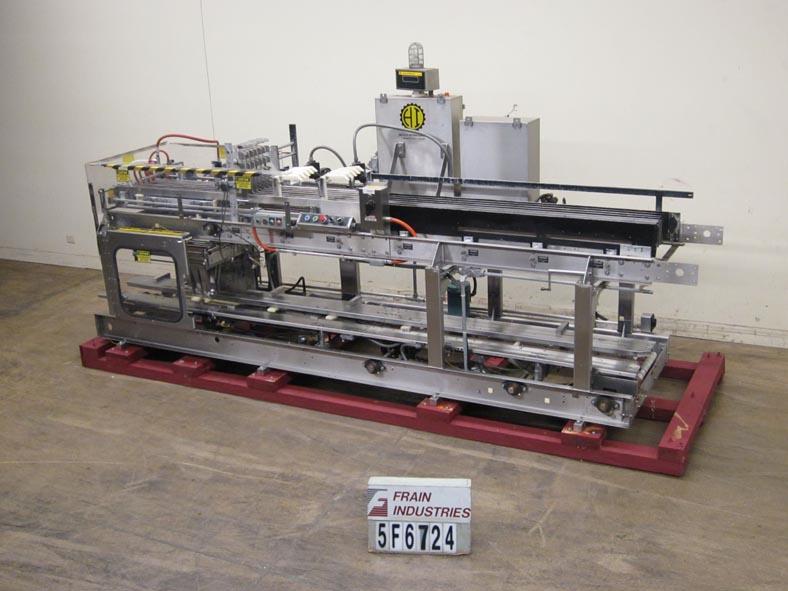

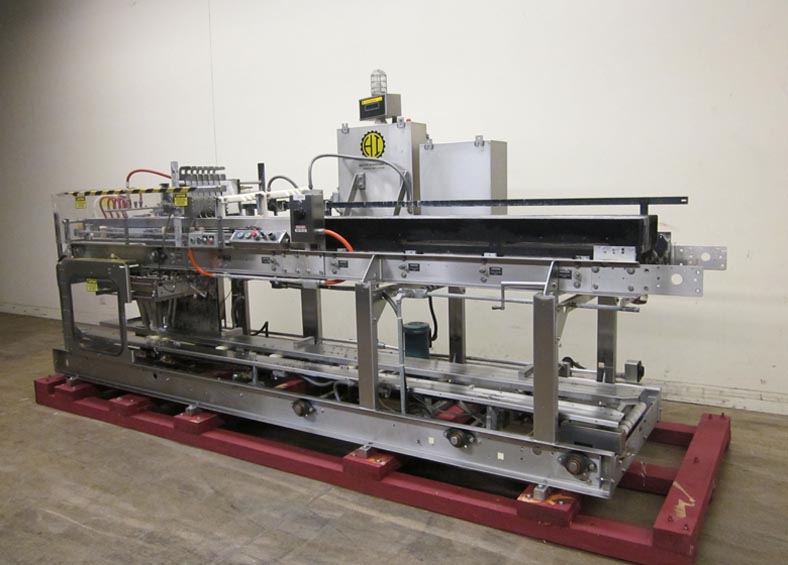

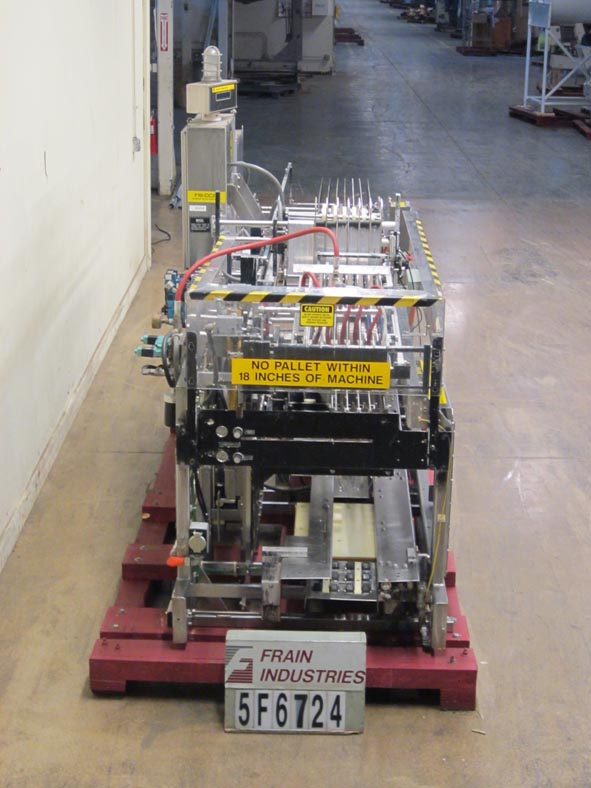

Hartness Case Packer Drop Packer 825

• Manufacturer:Hartness
• Model Number:825
• Frain Number:5F6724

Hartness自动,型号825,紧凑,不锈钢steel, drop case packer rated from 10 to 30 cases per minute with number of product – depending on materials and application. Case size range: 6" to 24" in Length; 6" to 16" in Width; 1-1/2" to 19" in Height Container size range 2oz to 2-1/2 gallons of glass, plastic, cans, round containers and various shapes and sizes and can handle HSC, RSC, tray and display trays (with proper change parts). Equipped with 120" long x 12" wide plastic delron in feed conveyor with 6 adjusatable lane dividers, dual 72" long x 3-1/2" wide empty bottom plastic delron case conveyor with desending soft drop product elevator and grid into case. Control panel with in feed, air bladder and case controls with start and e-stop buttons. Mounted on heavy duty base frame.

OAD: 185" L x 55" W x 94" H

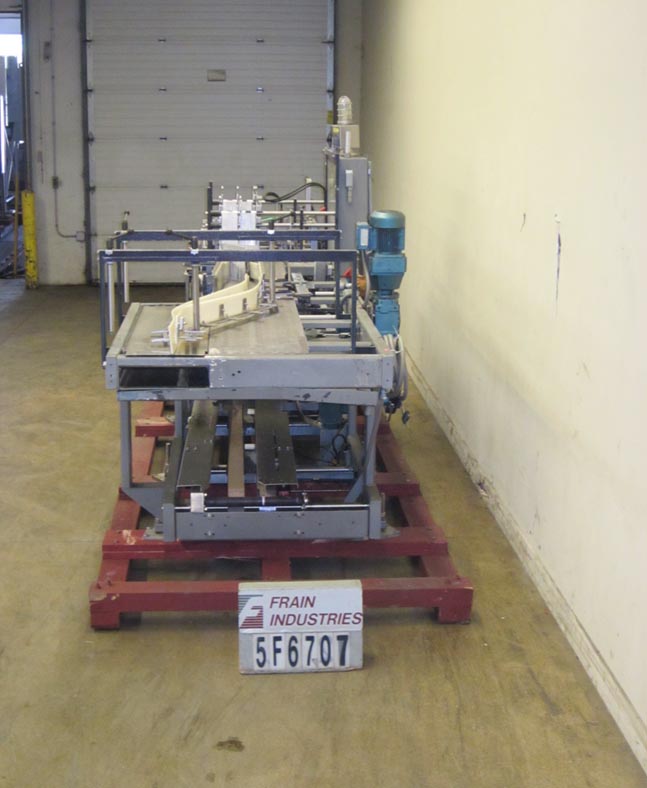

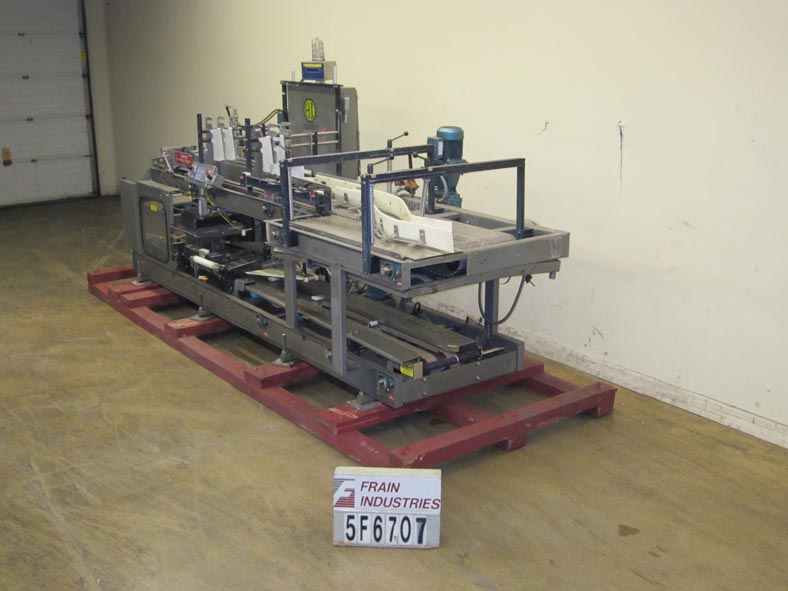

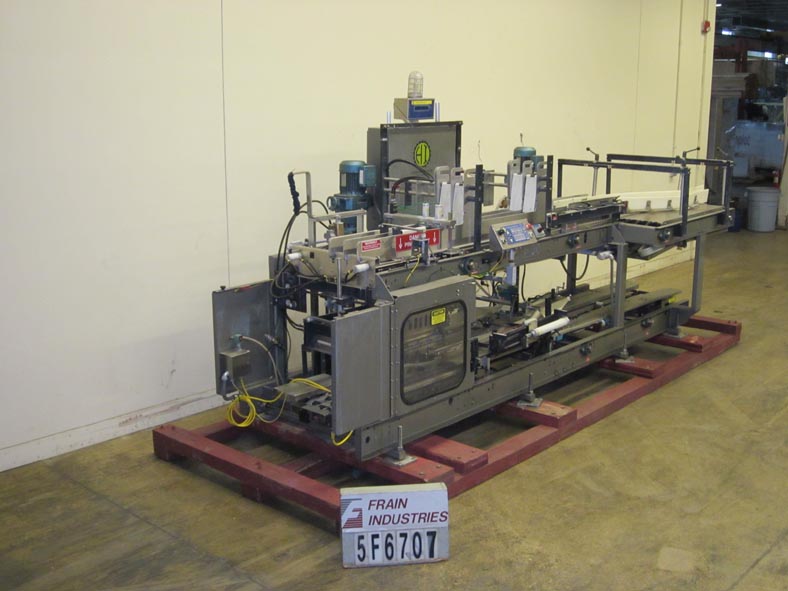

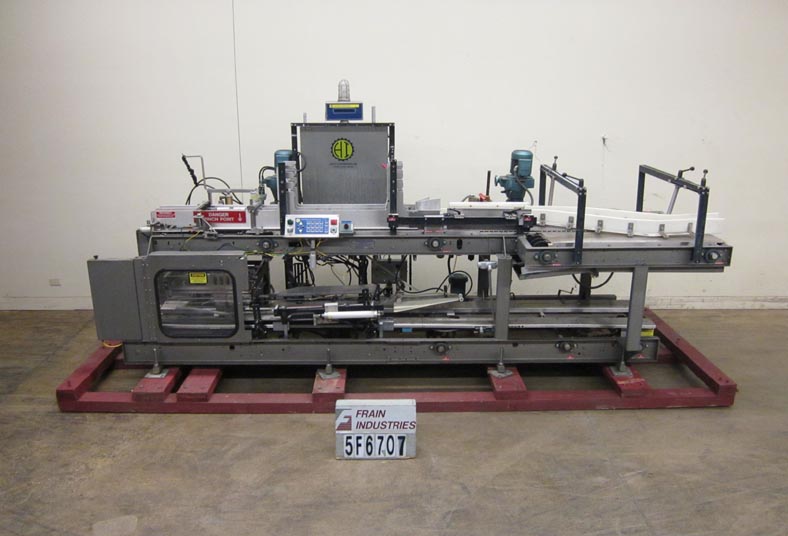

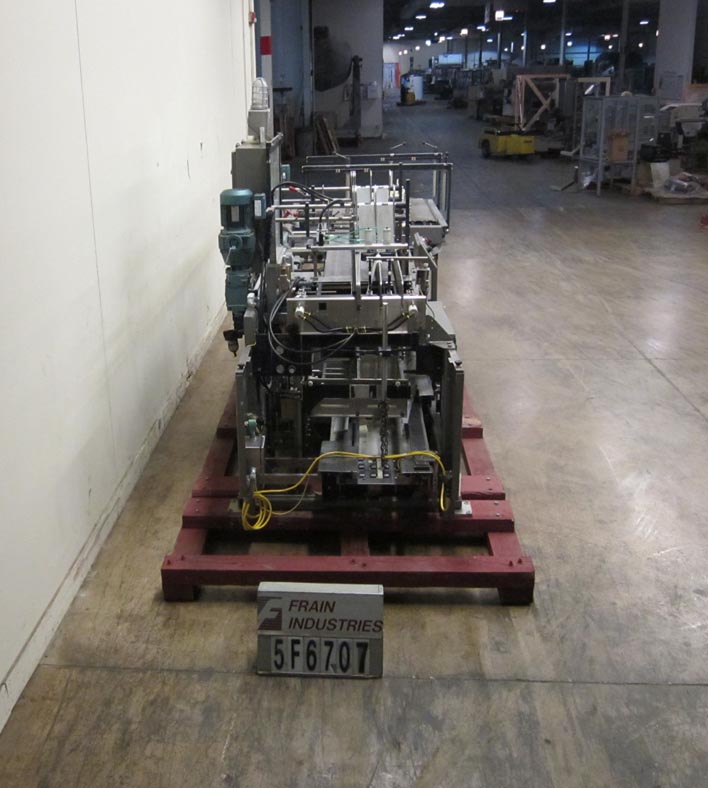

Hartness Case Packer Drop Packer L-130

• Manufacturer:Hartness
• Model Number:L-130
• Frain Number:5F6707

Hartness automatic, compact, desending, drop case packer rated from 10 to 20 cases per minute with number of containers – depending on materials and application. Case size range: 6" to 24" in Length; 6" to 16" in Width; 1-1/2" to 19" in Height and can handle most round and rectangle style containers both with proper change part. Equipped with 130" long x 18" wide heavy duty, thick plastic in feed conveyor with adjustable lane dividers, 60" long x 18" wide empty bottom plastic delron case conveyor, with desending soft drop product grid into case and skate roller discharge section. Control panel has A/B PLC with touch pad controller and variable speed drive controller. Mounted on heavy duty base frame.

OPTION: Flap opening system

OAD: 192" L x 67" W x 88" H

Hartness Case Packer Drop Packer 900

• Manufacturer:Hartness
• Model Number:900
• Frain Number:5E4910

Hartness Model 900, automatic, drop caser packer rated from 5 to 30 cases per minute with number of containers – depending on materials and application Case size range: 6" to 24" in Length x 6" to 16" in Width x 1-1/2" to 19"in height. Equipped with 6′ long x 18-1/2" wide product in feed conveyor, that feeds into 13′ long x 24" wide product laner currently set with (4) lanes 4" wide each, with air blader container handling. 11′ long x 6-1/2" wide empty case conveyor with bottom-up case lift, 30" long x 16" wide grid area, currently set for 3 x 4 pattern. Control panel has Hartness controller with operator start, stop controller, central lubrication system and pneumatic valve bank. Mounted on heavy duty base frame.

OAD: 217" L x 48" W x 94" H
