A & B Process Systems Tank SS Single Wall 400600

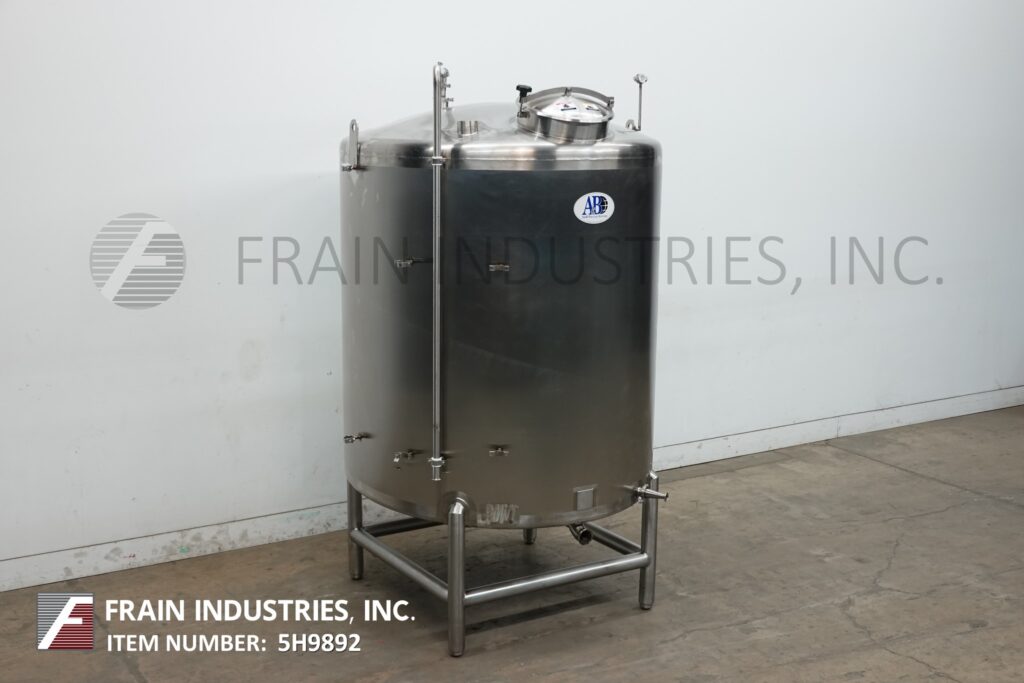

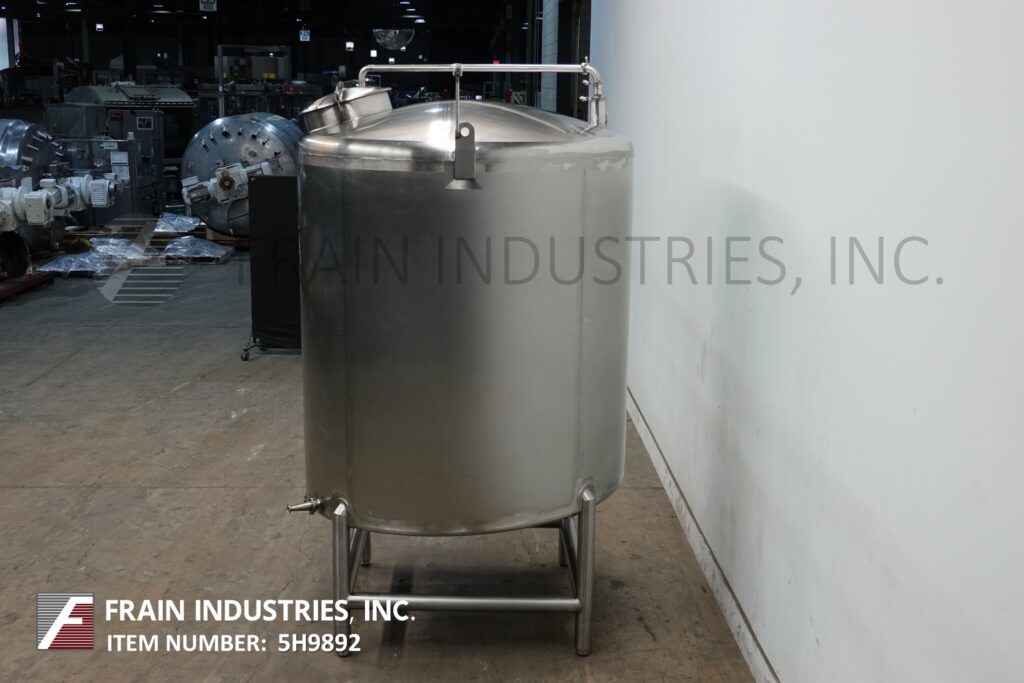

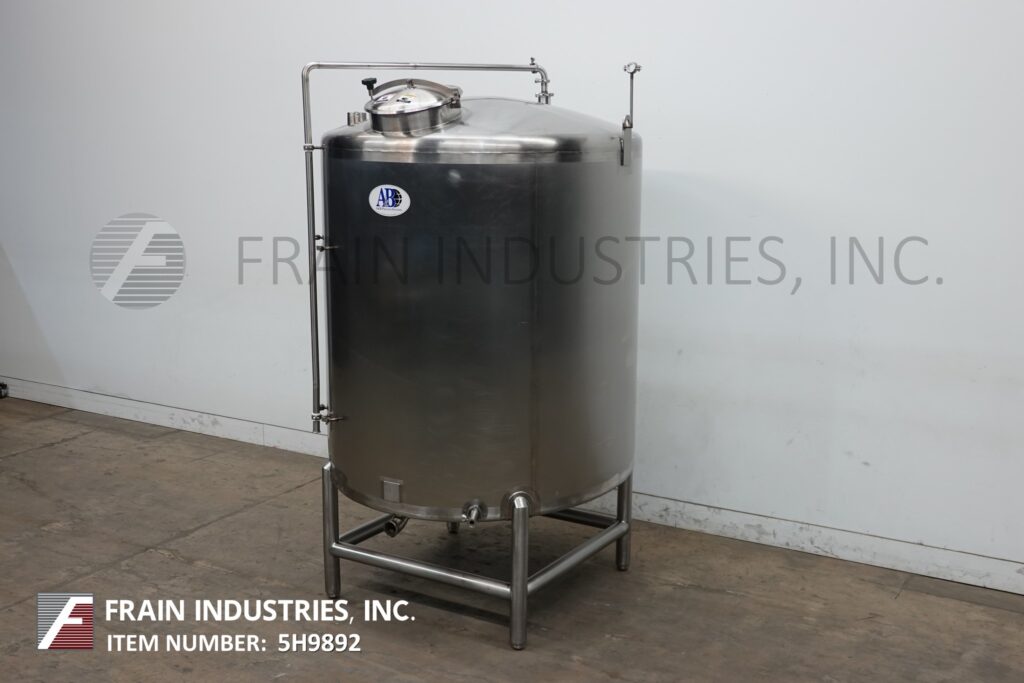

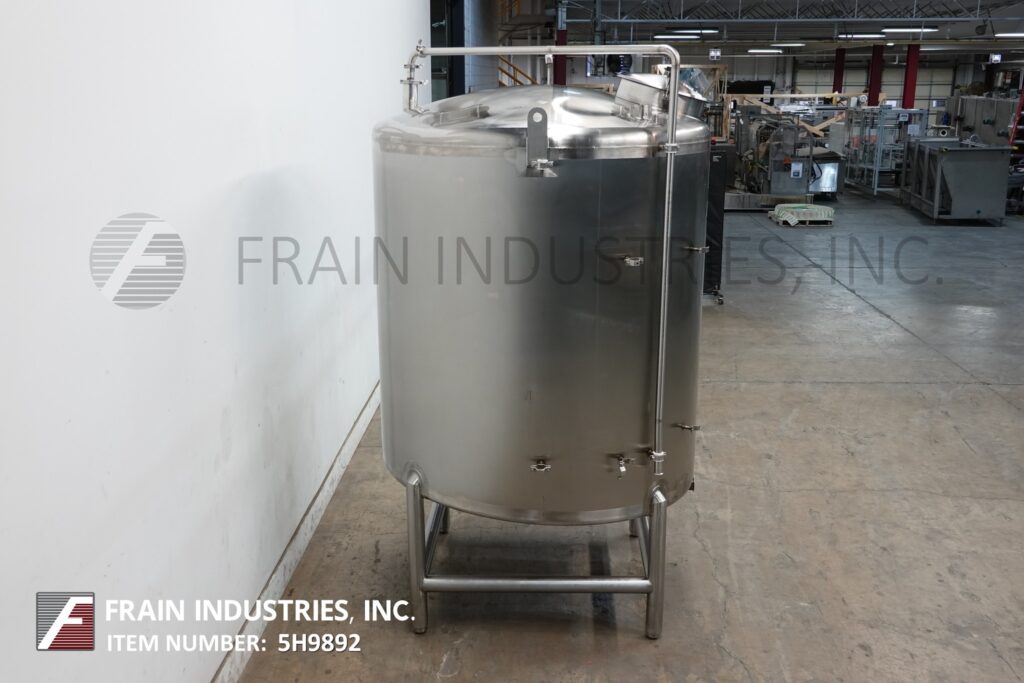

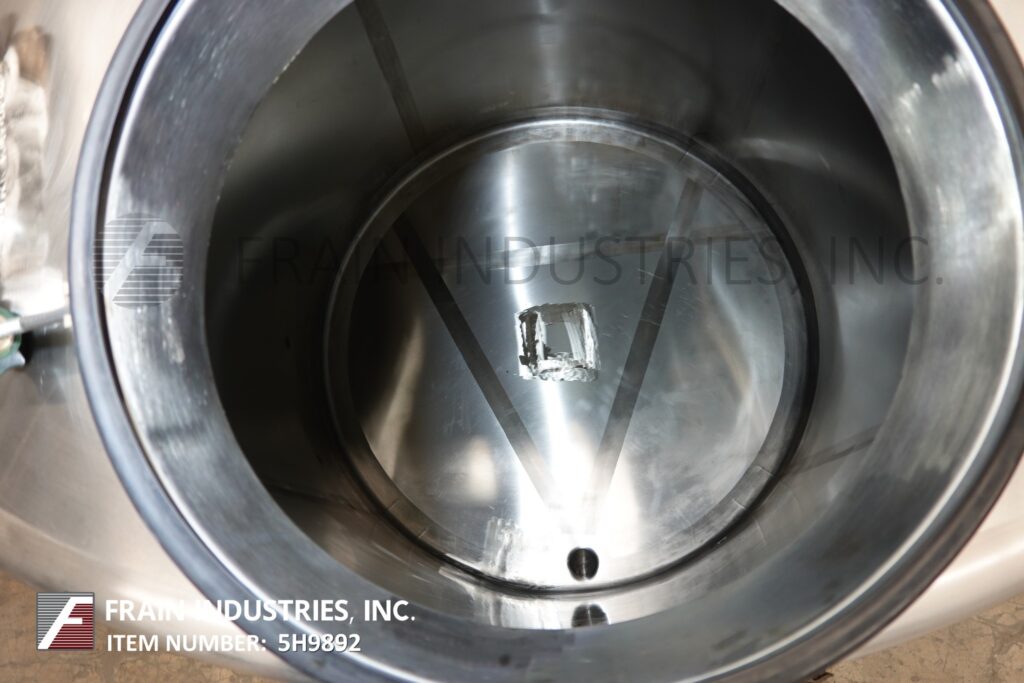

Back to All EquipmentA & B Process Systems, 1000 gallon capacity, 304 stainless steel single wall tank. Vessel dimensions: 70" diameter x 72" straight wall. Equipped with dome top and 18" man way with flip up, bolt down cover. Slant bottom has a 3½" OD / 3" ID Tri-Clamp style bottom discharge with 22½" ground clearance.
Top Access:
(1) 3½"OD / 3"ID Tri-Clamp
(1) 4" OD Open Vent
Side Access:
(1) 2½"OD / 2"ID Tri-Clamp
OAD: 75"L x 75"W x 120"H
