Design Metals Mixer Powder Ribbon S. S. 285 CU FT

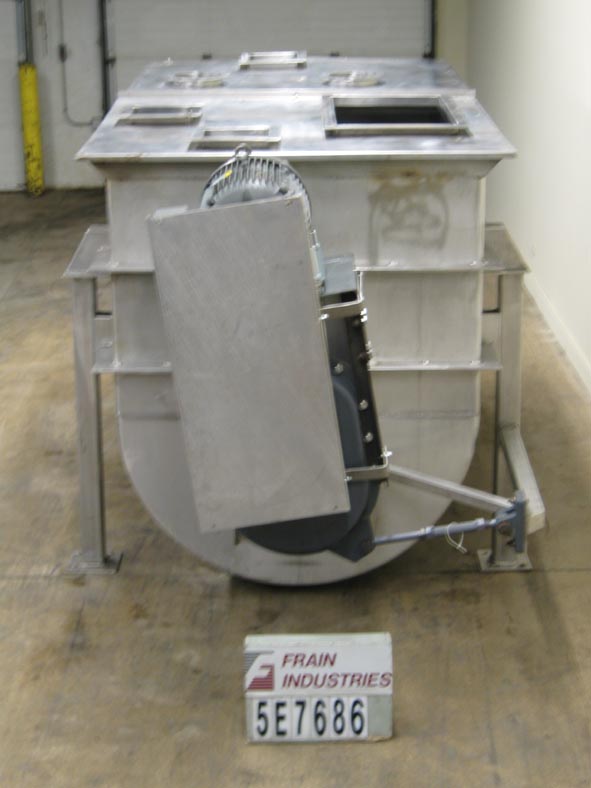

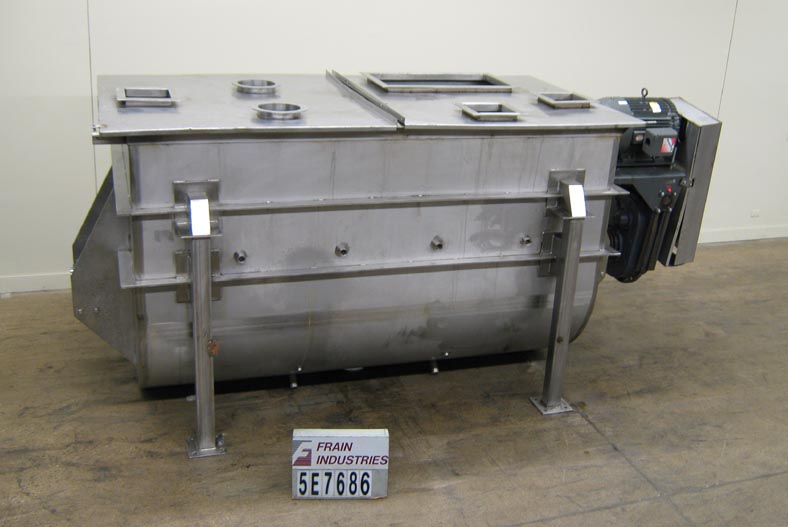

Back to All EquipmentDesign Metals, 285 cubic foot, double ribbon mixer with amounted of product per hour – depending on materials and application. 304 stainless steel. Equipped with inner mixing chamber dimensions: 120" in Length; 64" in Width: 74" in Depth. Double ribbons on 7" OD shaft, with 3" Wide x 1/2" Thick (Outer) ribbons on 3-1/2" Wide x 1/2" Thick spokes with 2" Wide x 1/2" Thick (Inner) ribbons, on 2-1/2" W x 1/2" thick spokes. (2) piece flip up cover has (2) 12" OD flanged 9-1/2" ID with (6) 1/2" bolt holes on 6" centers and (3) 10 x 10, (1) 37 x 20 top ports, and (4) 2" OD sanitary liquid charge ports on side of mixing chamber. Dish bottom has center bottom 11" OD flanged 8" ID discharge port with (6) 1/4" bolt holes on 6" centers and 7" floor clearence, with (2) 3/4" and (2) 1" ID threaded bottom ports, and end 50 Hp belt to motor drive. Mounted on (4) leg frame.
OAD: 174" L x 80" W x 83" H
