B Edl收缩undler FBS22

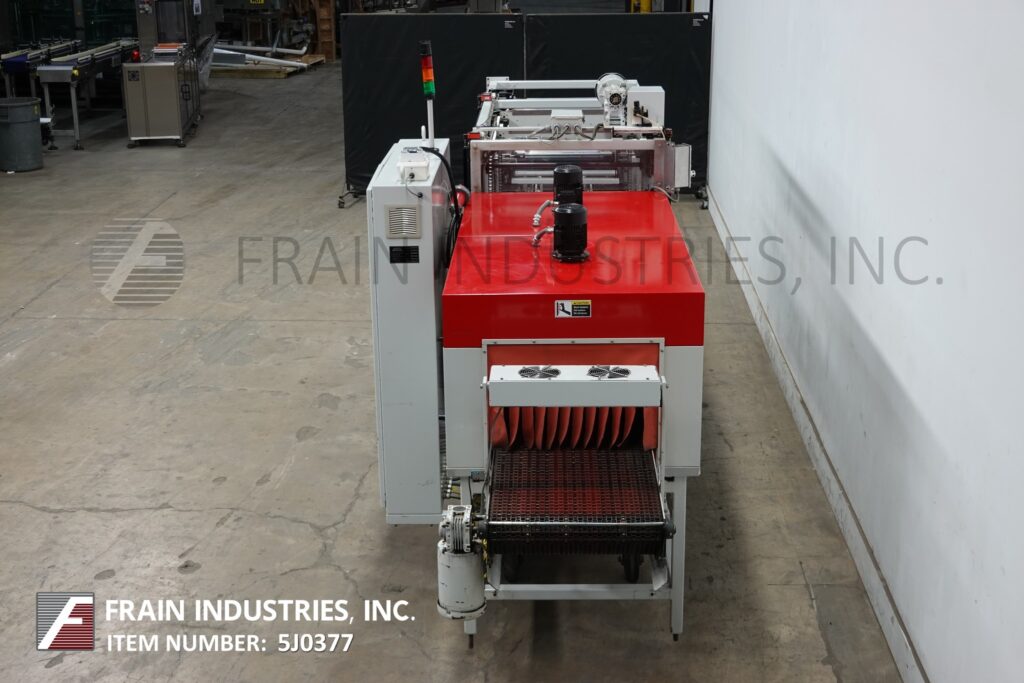

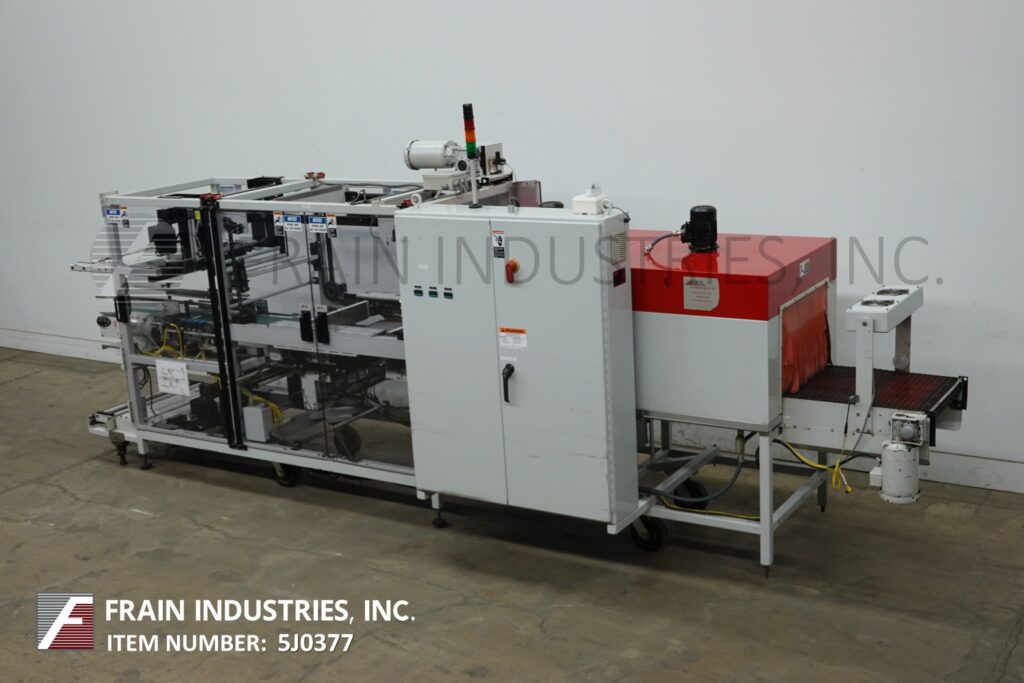

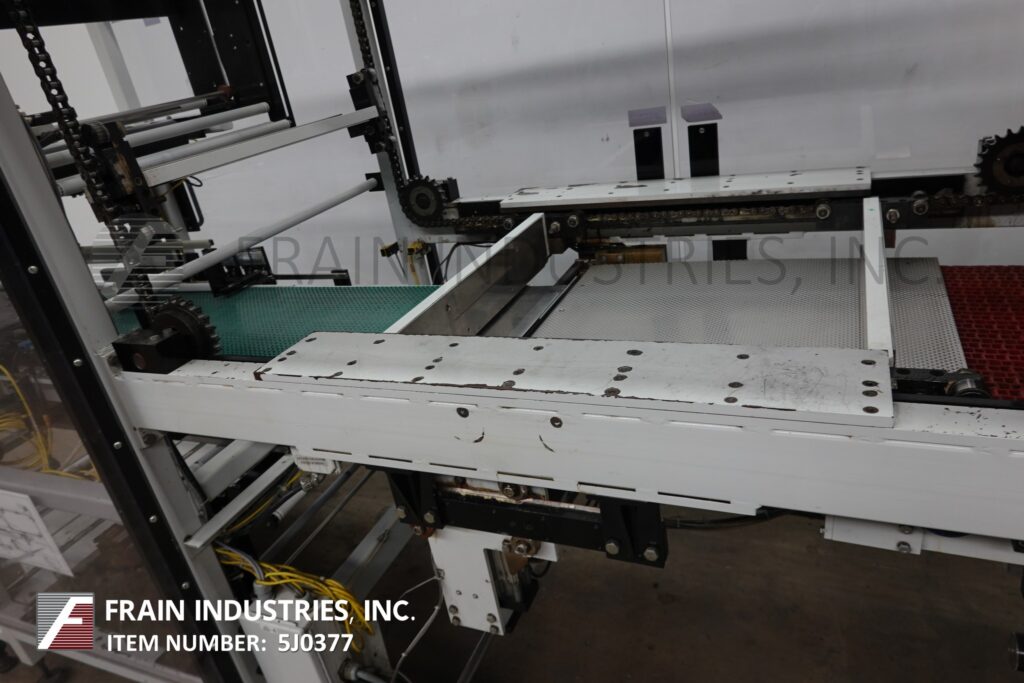

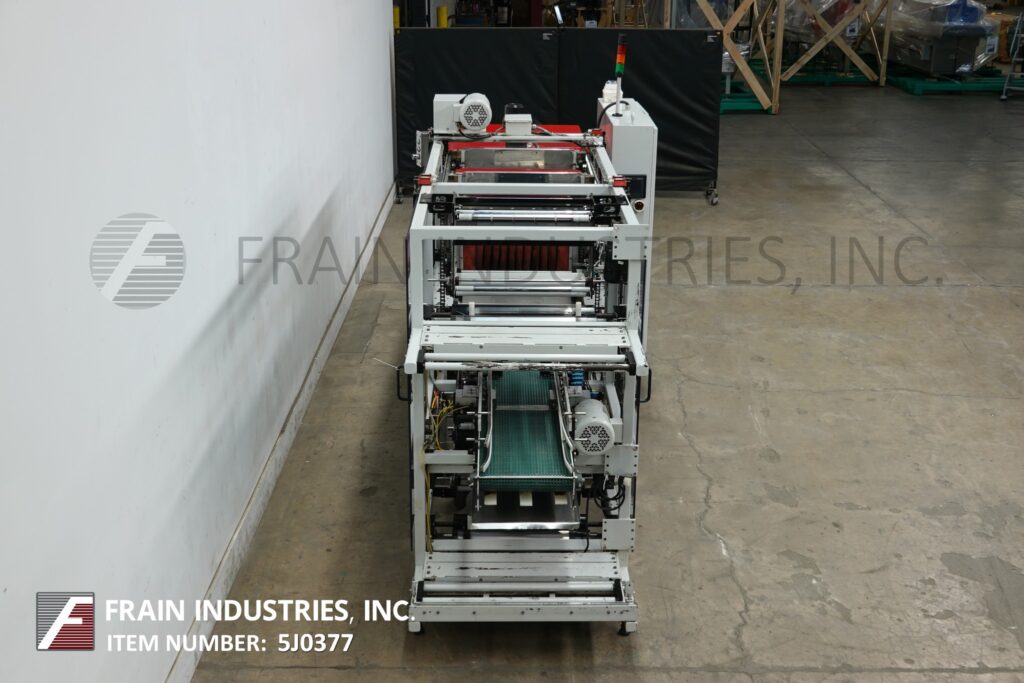

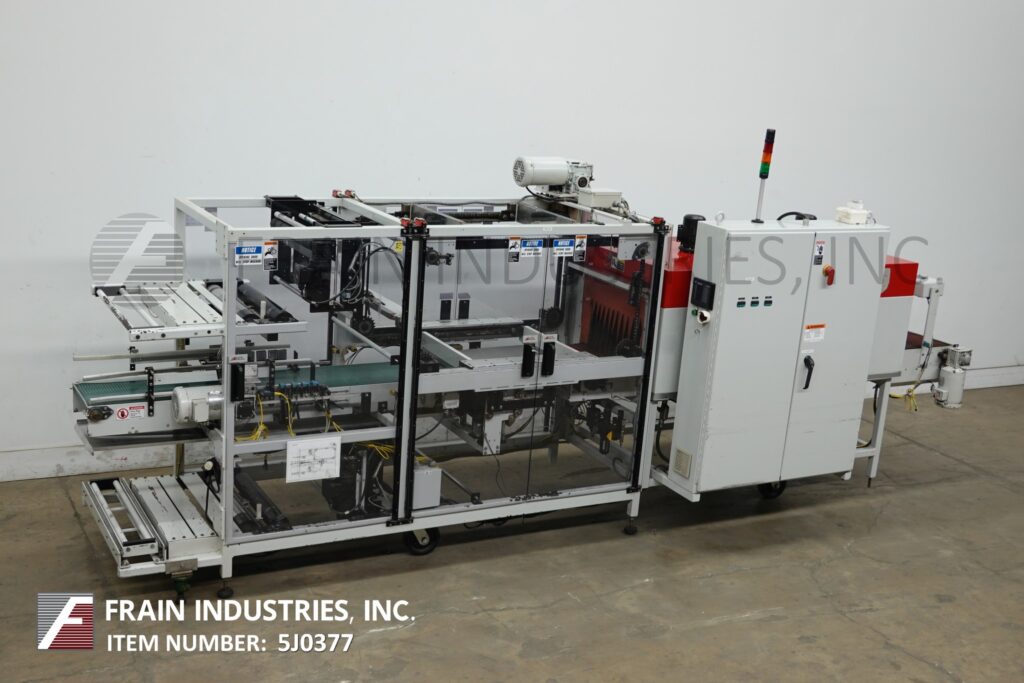

Back to All EquipmentEDL, Model FBS22, inline, continuous motion, bundler and integrated shrink tunnel. Rated up to 55 bundles per minute – depending on materials and application. Product size range: 10" to 24" in Length x 5" to 11" in width x 3" to 10" in Height. Equipped with 76" long x 15" wide in feed conveyor with pneumatic gate indexing, 23" wide hot impulse seal jaws set on 27" centers stream flight bar, with film rolls up to 22" in width; and 12" OD. Single zone shrink tunnel with 24" wide flex link conveyor and 26” in width x 16" in height aperture and 77" long chamber with top mounted blower motor. Control panel has Allen-Bradley controller with touch screen HMI. Mounted on heavy duty frame with status light bar and interlocked safety guarding.
OAD: 231"L x 61"W x 96"H
