Feldmeier Tank Silo Liquid 6000

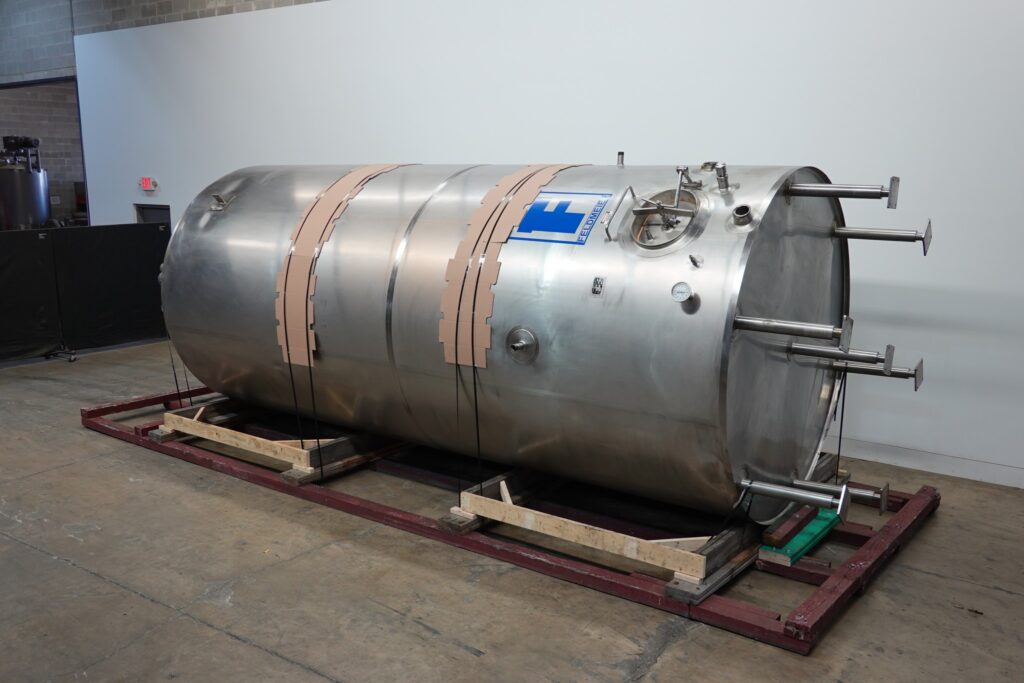

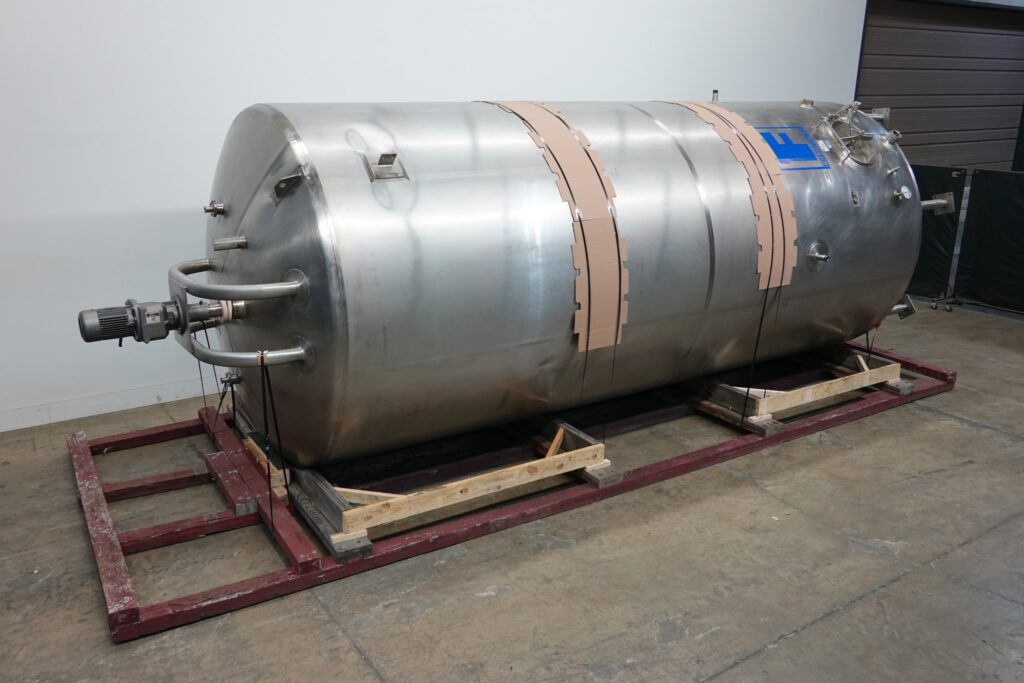

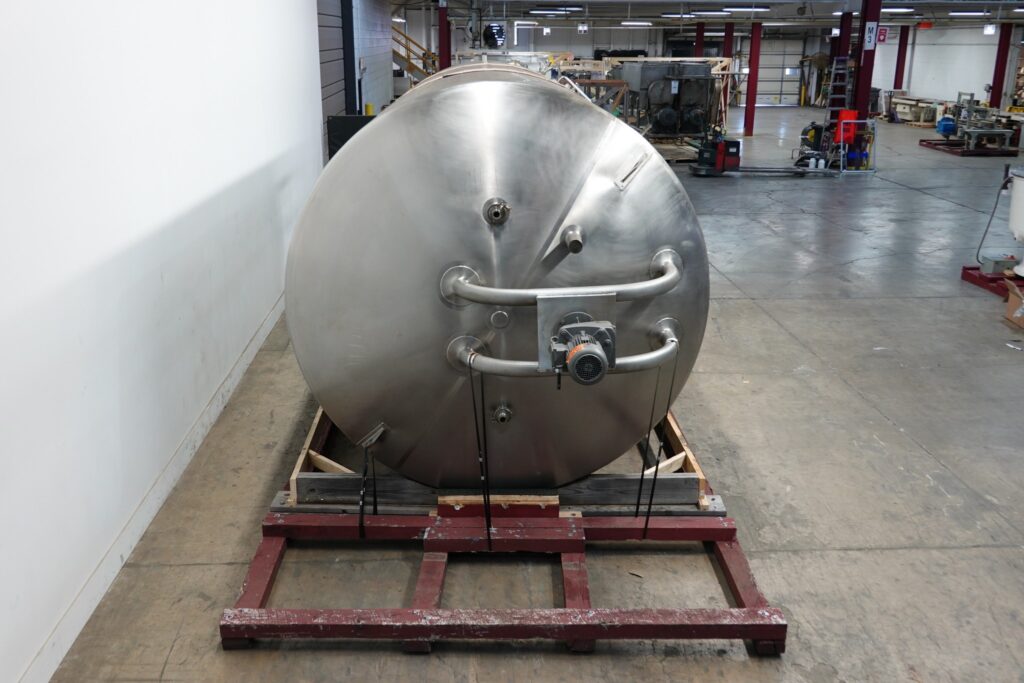

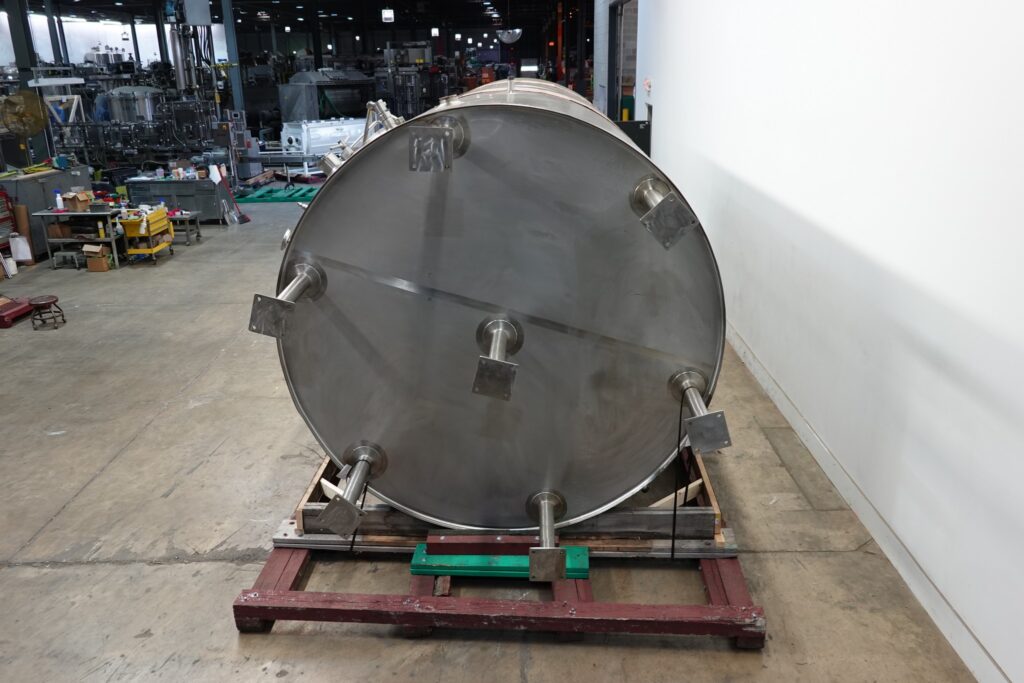

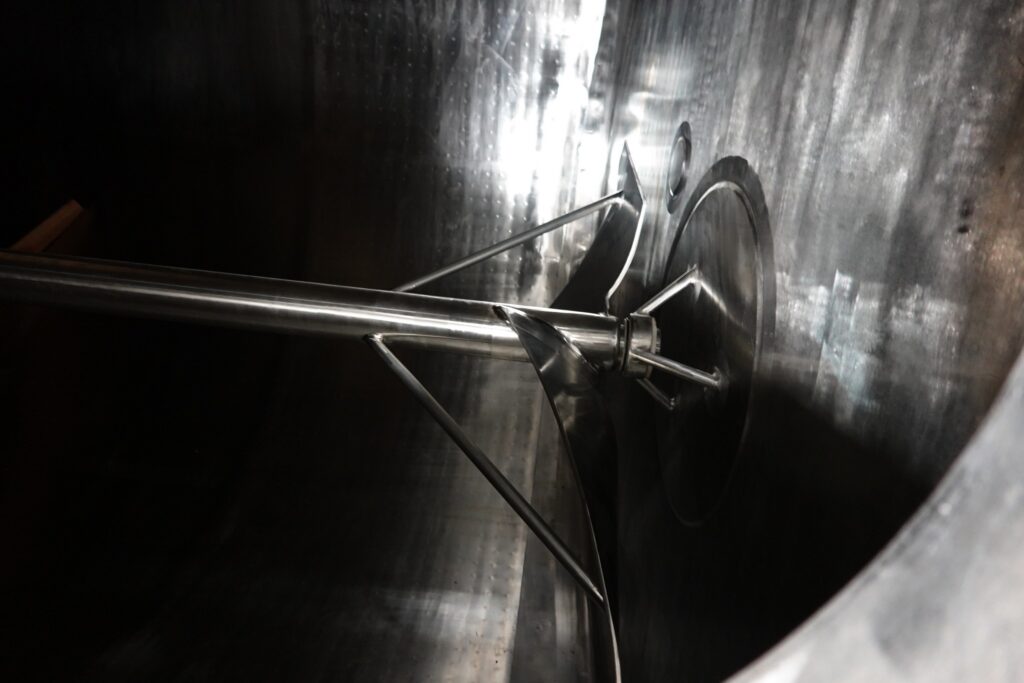

Back to All EquipmentFeldmeier, 6,000 gallon, stainless steel, ammonia jacketed mix tank. Product contact surfaces: 316L S/S. Vessel dimensions: 96" ID; 103" OD; 216" straight wall. Equipped with dome top, 5 Hp bridge mounted agitator 48" bottom sweep and mid mounted 32" (2) blade axial flow turbine thermowell, 20" diameter side bottom manway and sloped bottom with 4" OD / 3½" ID Tri-Clamp side discharge at 27" ground clearance. Mounted on (7) legs.
Top Ports: (2) 3½" OD / 3" ID Tri-Clamp
Flooded Ammonia Jacket:
MAWP: 150 PSI @ 200°F
MDMT: -20°F @ 150 PSI
Bottom Jacket: 46 ft² with 1-1/2" NPT Inlets /Outlets
Side Jacket: 54 ft² with 1-1/2" NPT Inlets / Outlets
OAD: 113" L x 105" W x 312" H
