Feldmeier Tank SS JKT EPC60048FS

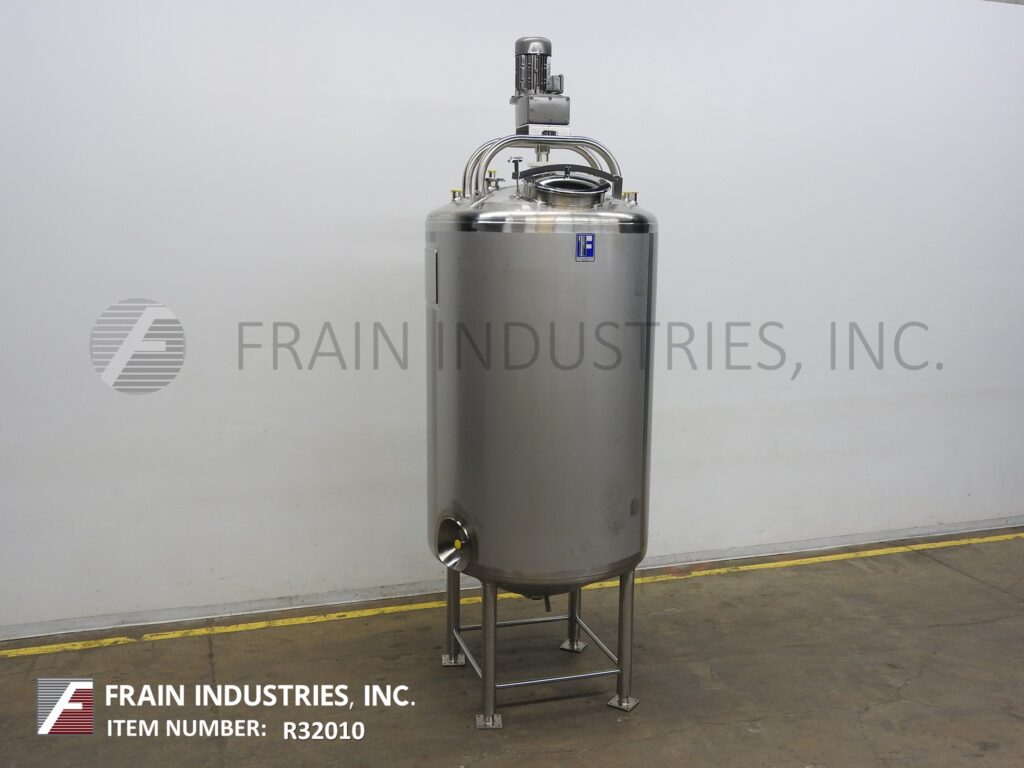

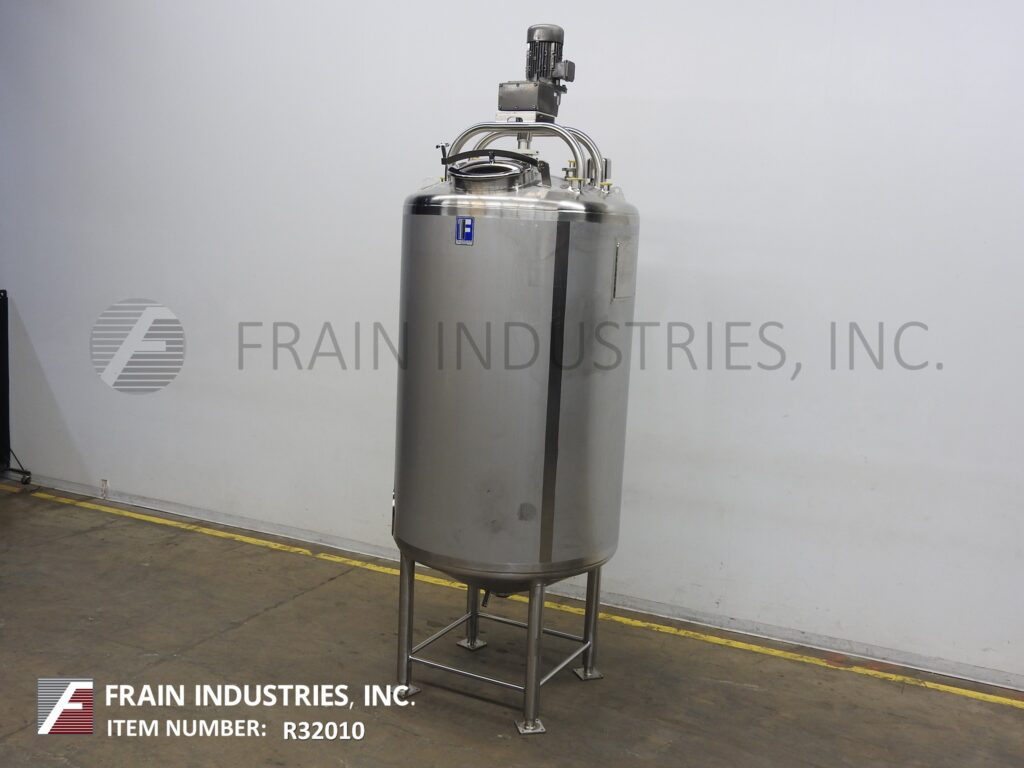

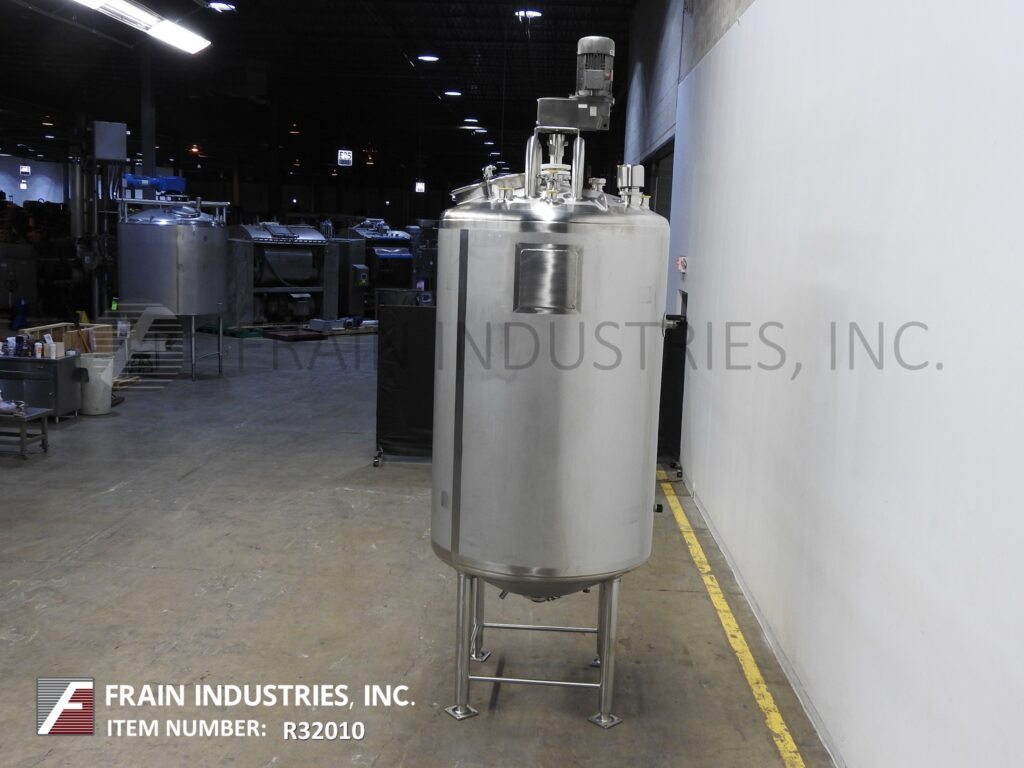

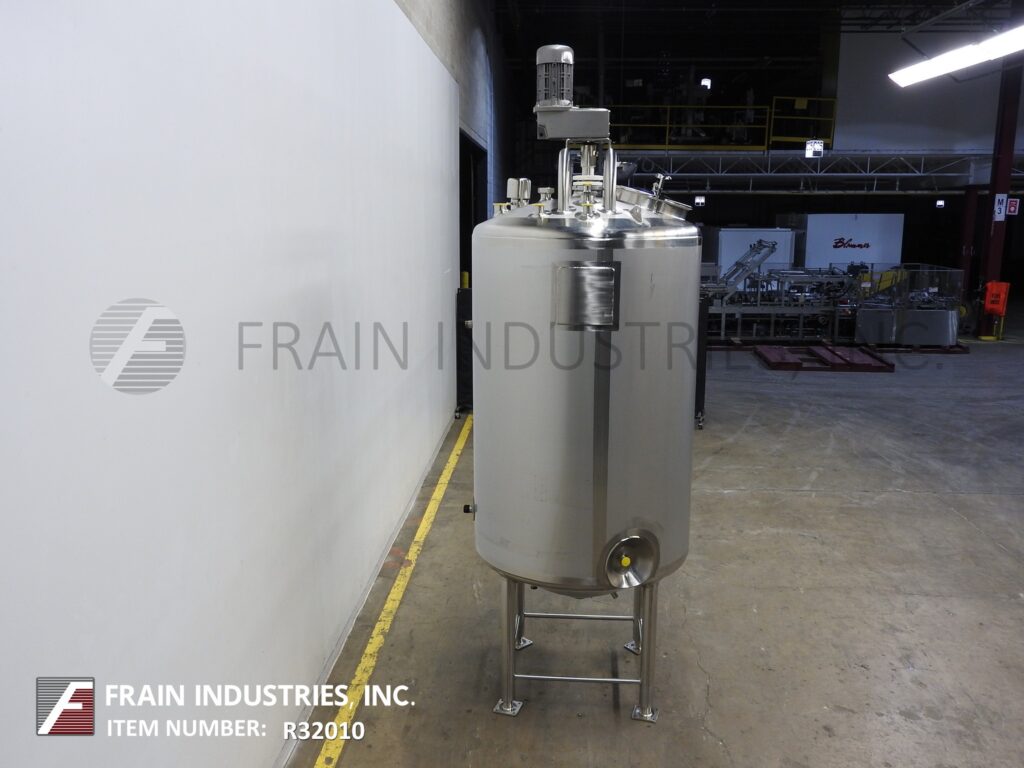

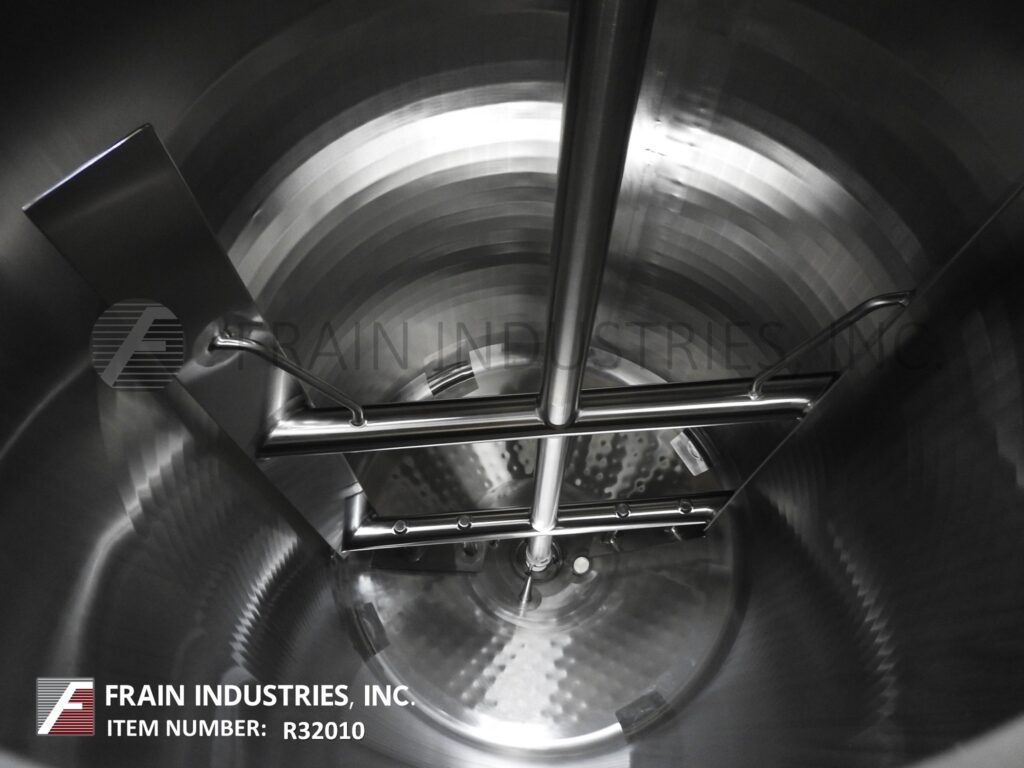

Back to All EquipmentFeldmeier, 600 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 48" ID x 80" straight wall. Equipped with dome top, 18" ID top manway, 5 Hp top mounted sweep agitator, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri Clamp fittings, (1) thermowell and 3½" OD / 3" ID tri-clamp center bottom discharge with 22" ground clearance.
Top Ports:
(2) 3½"OD / 3"ID Tri-Clamp
(3) 2½"OD / 2"ID Tri-Clamp
(1) 4" ID Open Vent
Jacket Ports Side / Bottom
(4) 1½" NPT
Jacket:
Nat’l Brd: 9480
MAWP: 100 PSI @ 300°F
MDMT: 20°F @ 100 PSI
OAD: 55"L x 50"W x 160"H
