Photo of Automated Food Systems Mixer Paste Horizontal 5 FT³
Thumbnail of Automated Food Systems Mixer Paste Horizontal 5 FT³ Thumbnail of Automated Food Systems Mixer Paste Horizontal 5 FT³ Thumbnail of Automated Food Systems Mixer Paste Horizontal 5 FT³ Thumbnail of Automated Food Systems Mixer Paste Horizontal 5 FT³

Automated Food Systems Mixer Paste Horizontal 5 FT³

Back to All Equipment
Get a Free Quote

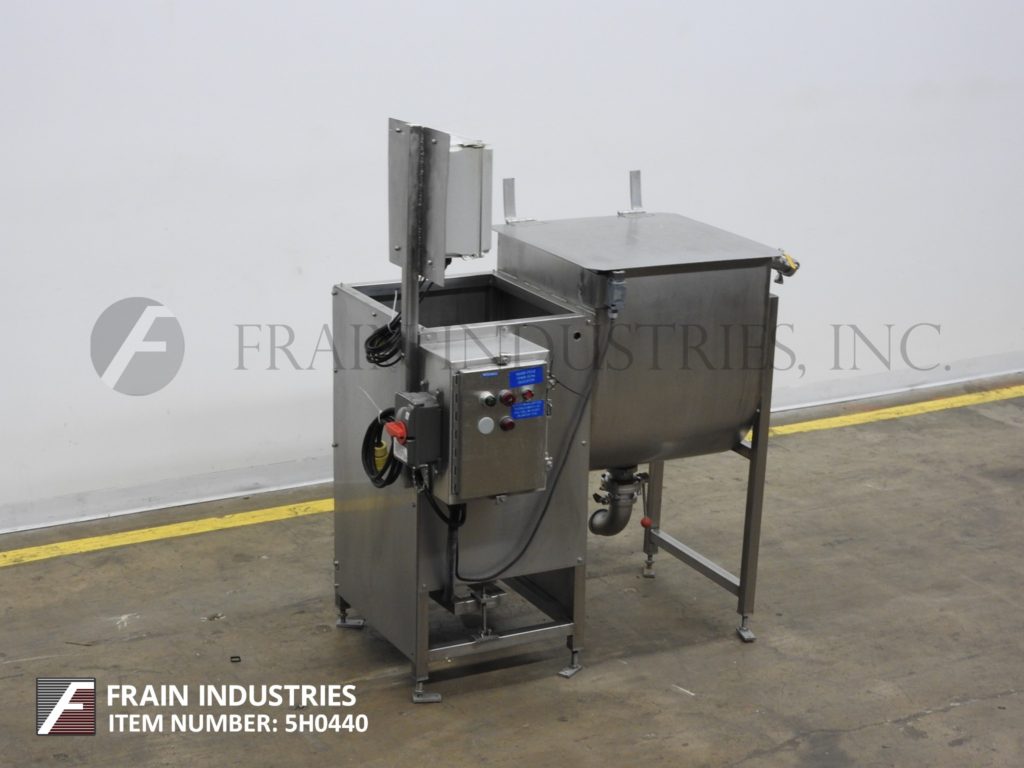

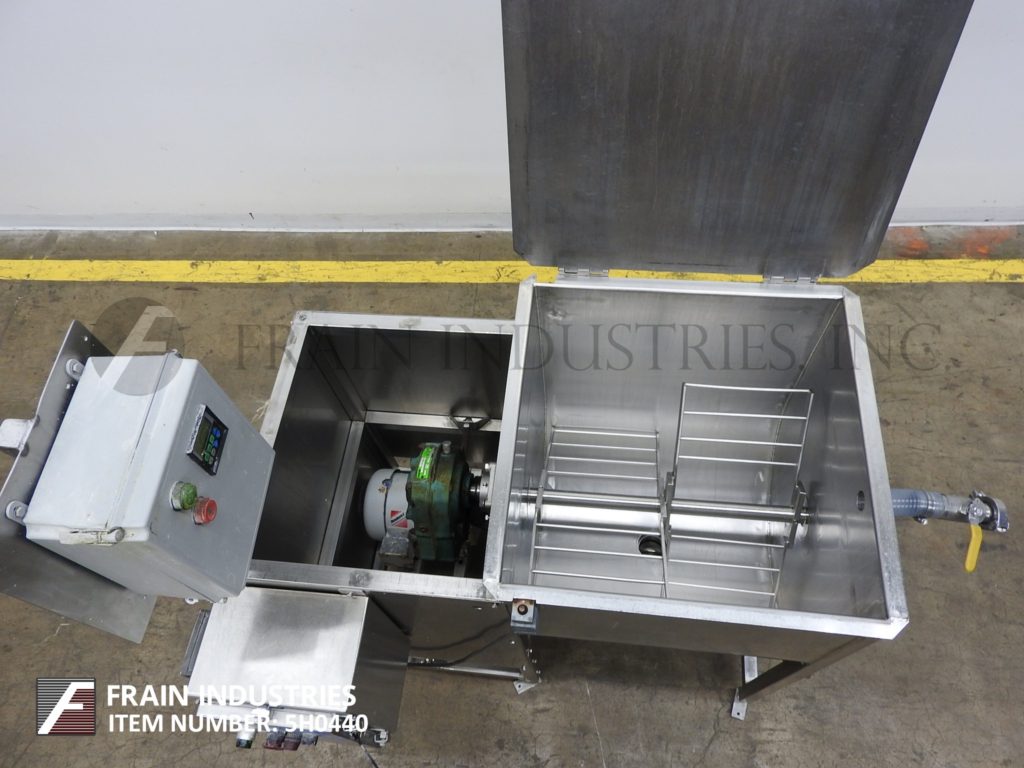

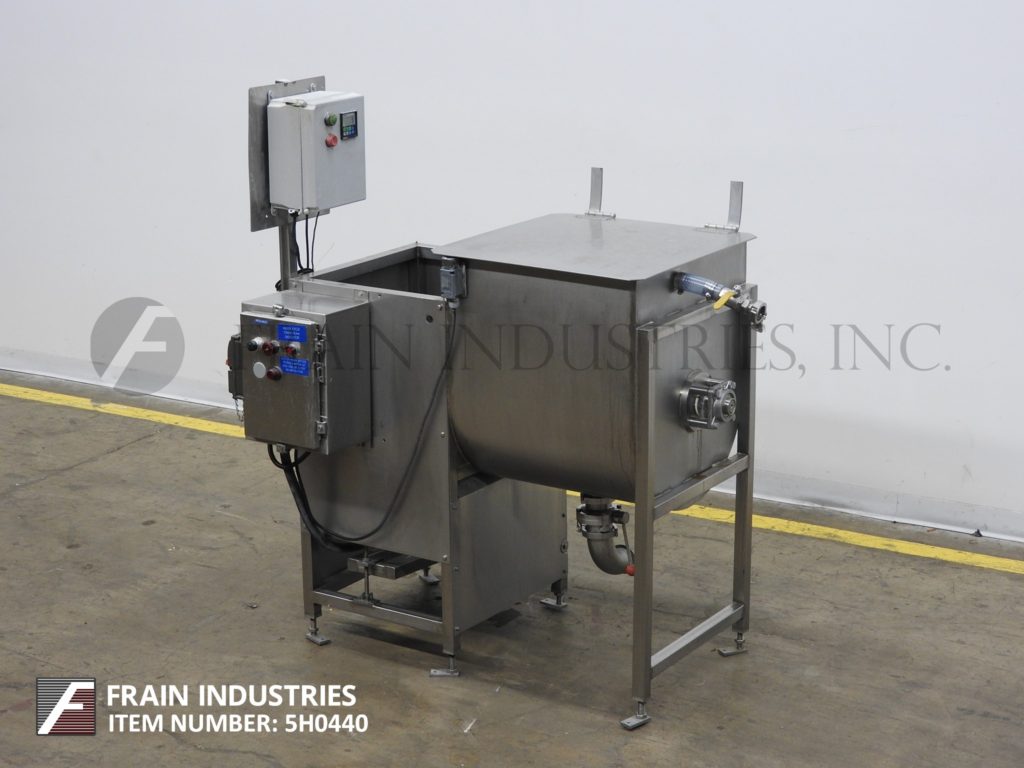

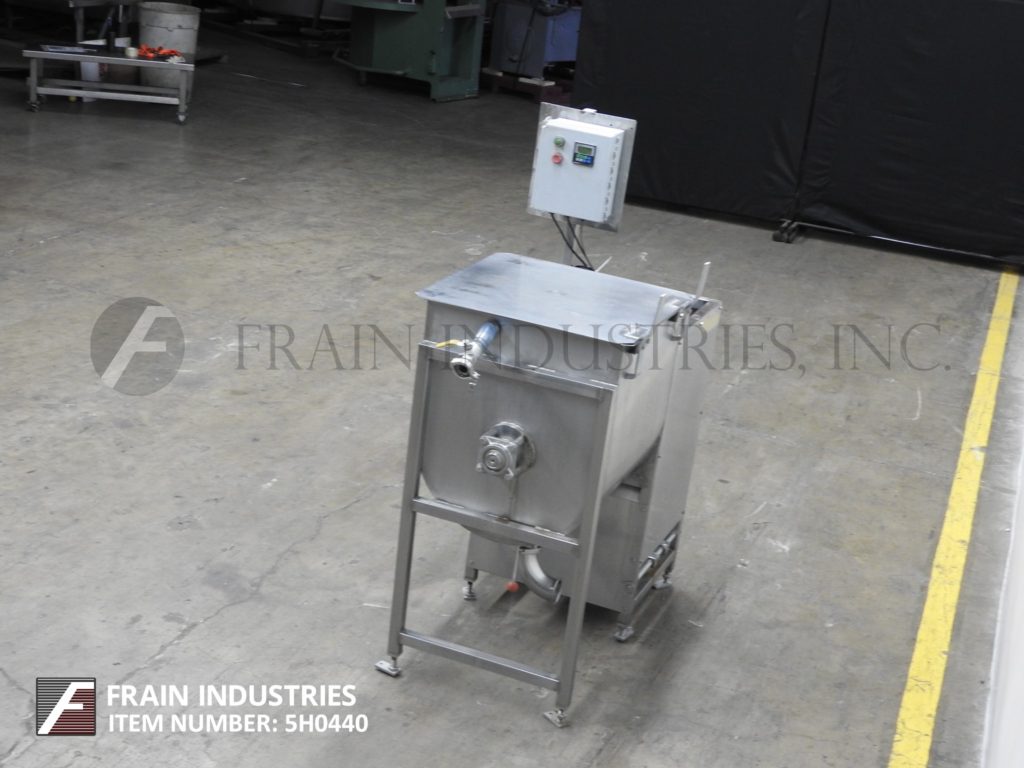

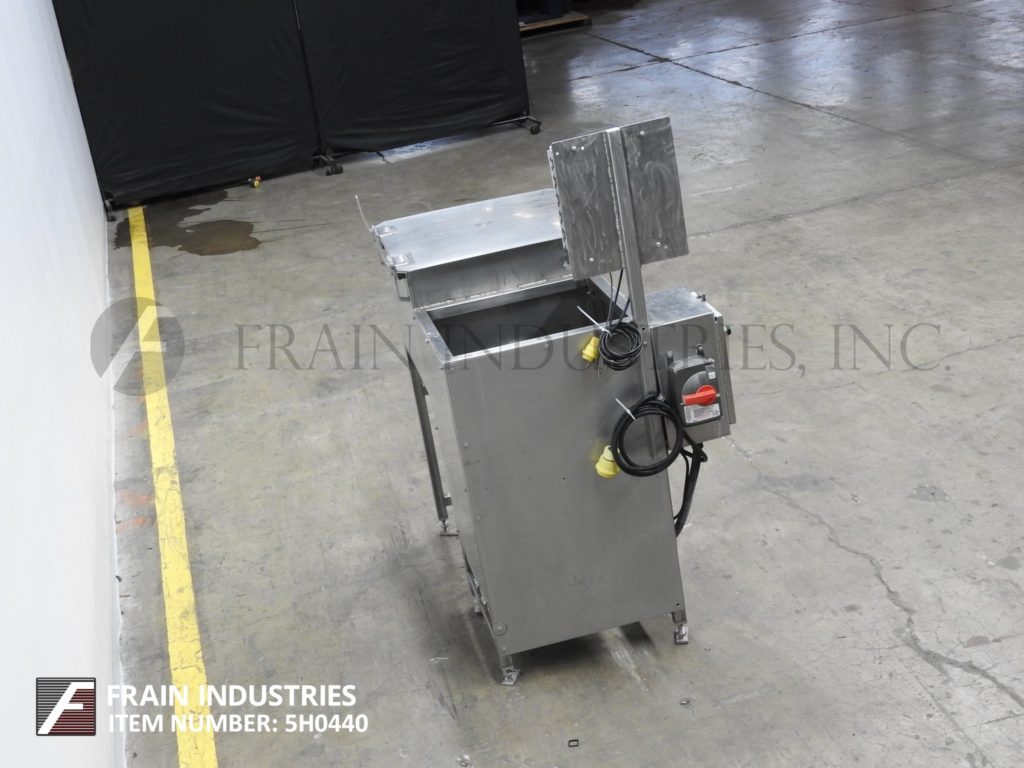

Automated Food Systems, 5 ft³, 304 stainless steel, paddle mixer with number of product per hour – depending on materials, application and machine configuration. Inner mixing chamber dimensions: 24" in Length; 24" in Width; 28" in Depth. Equipped with flip up cover, 1½" OD mixing shaft with (4) wire beater paddles, (2) 1½" OD charge ports, 3½"OD / 3" ID Tri-clamp style center bottom discharge with butterfly valve and 11" floor clearence. Powered by a 5 Hp. Control panel with an AB controller, push button start / stop and timer indicator. Mounted on a stainless steel frame base with leveling legs.

OAD: 55"L x 35"W x 71"H

The Frain Advantages

  • Complete Line Integration
  • Machinery Retrofit and Recondition
  • In-House Testing, Proof of Concept, Trial Runs
  • On-Site Installation and Training
  • Factory Acceptance Testing
  • 40+ Years In Business

630-629-9900

Call us to discuss your packaging or processing project with an experienced Frain Industries engineer

Related Mixers - Paste Mixing Equipment
