Lee Tank Processors 1500U9MS

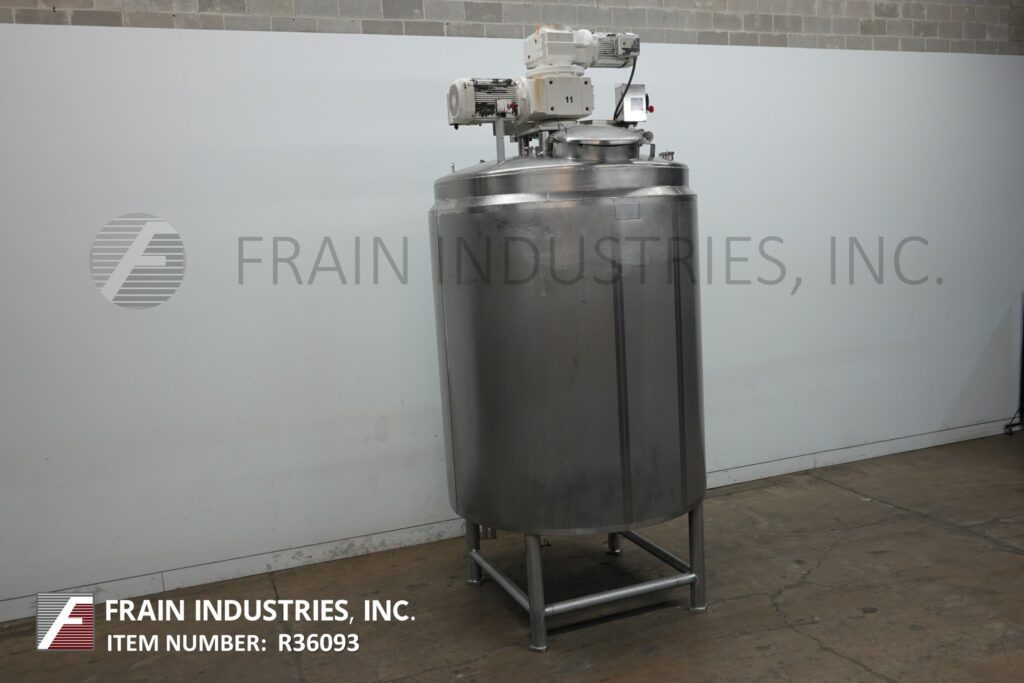

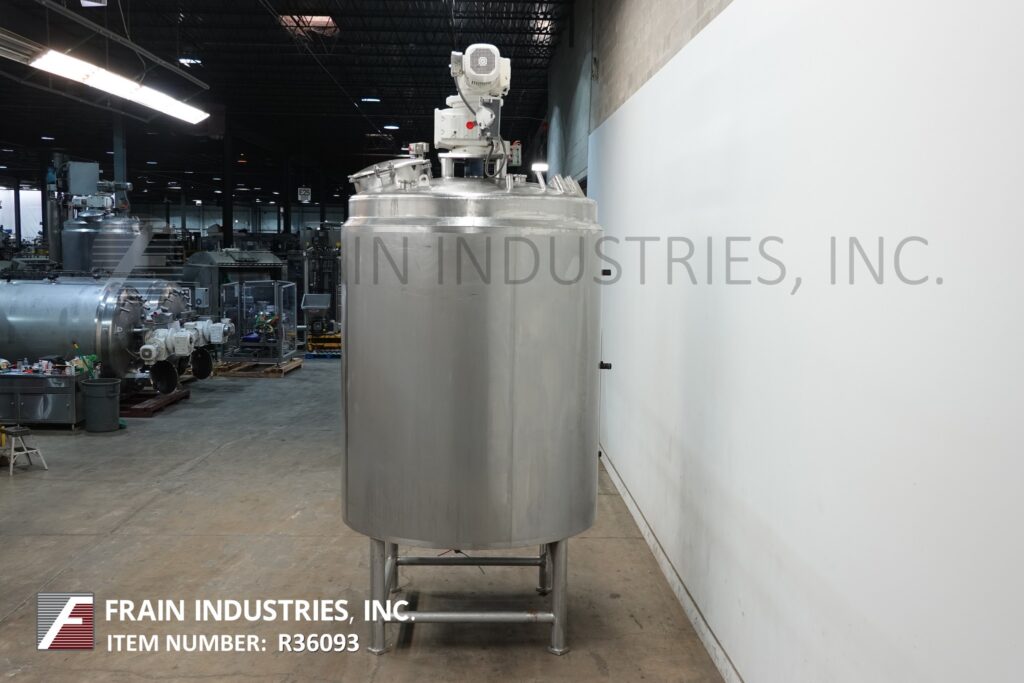

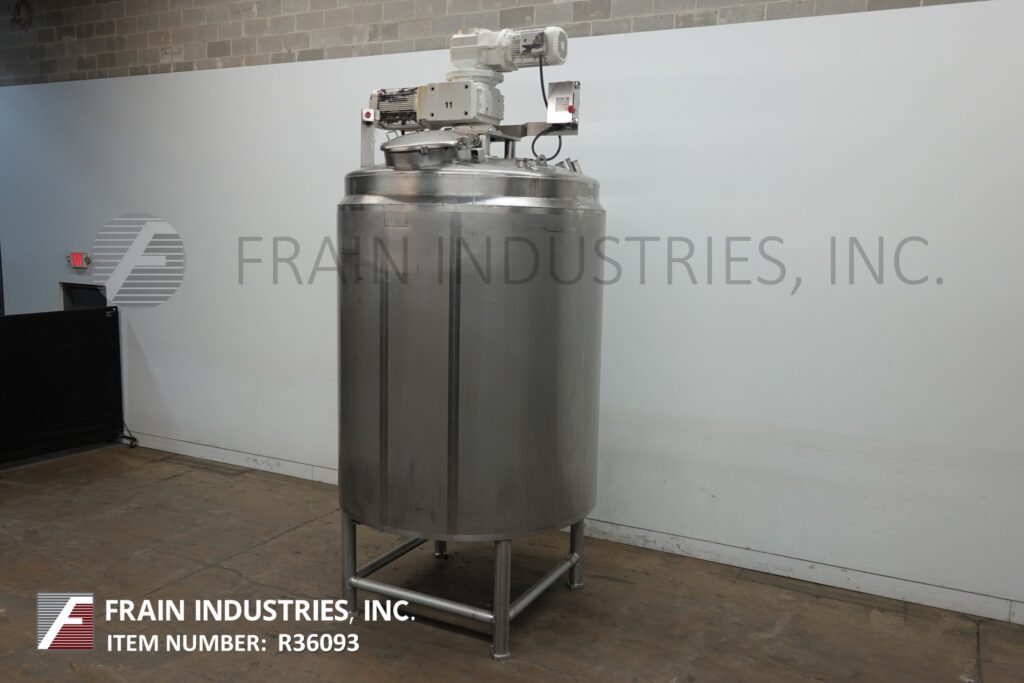

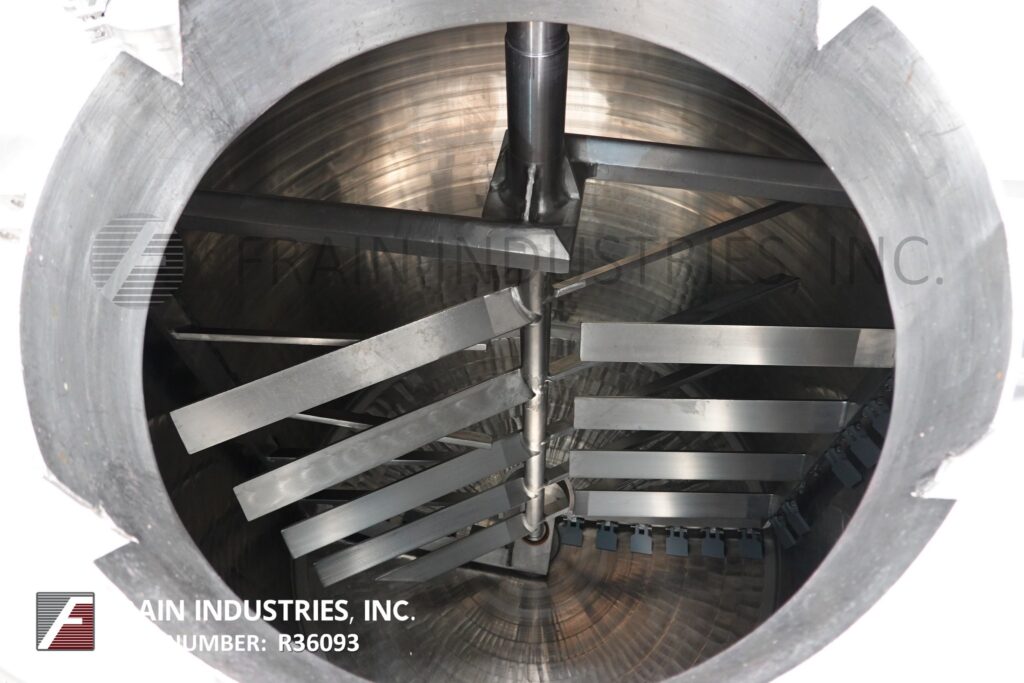

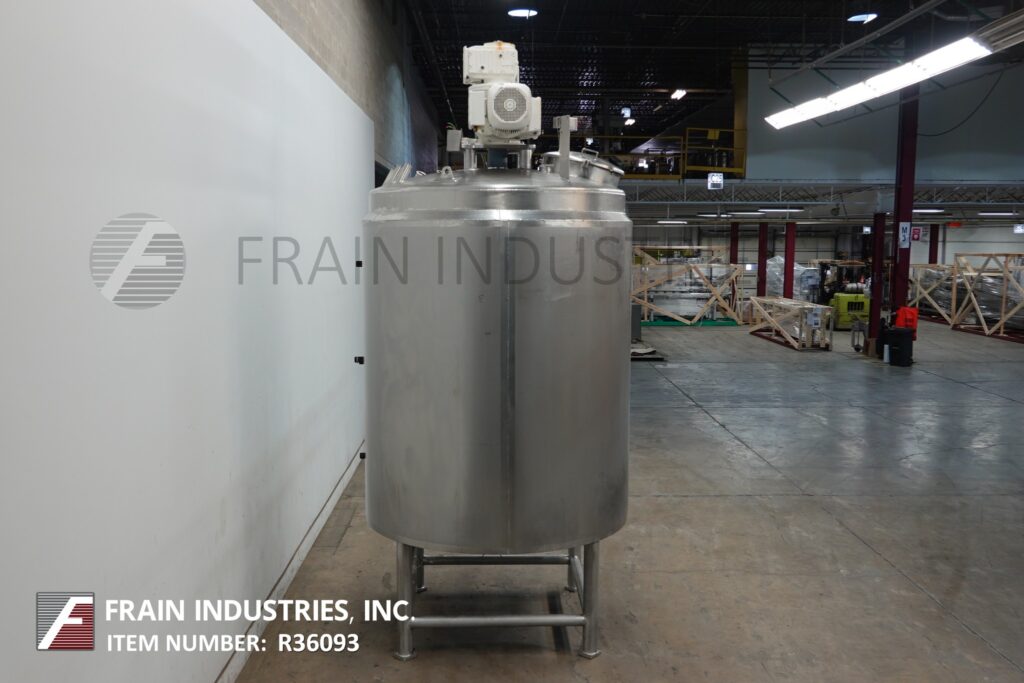

Back to All EquipmentLee, 1500 gallon capacity, 316 stainless steel jacketed and insulated process tank. Vessel dimensions: 78" diameter with 86" straight wall. Equipped with dome top, 24" OD flip top man way and top mounted 15 Hp / 10 hp double motion scrape surface agitation. Dish bottom has 4½" OD / 4" ID center bottom ball valve discharge with 27" ground clearence.
Nat’l Brd: 10673
MAWP: 125 PSI @ 353°F
MDMT: -20°F @ 125 PSI
Top Ports:
(2) 4½"OD / 4"ID Tri-Clamp
(5) 3½"OD / 3"ID Tri-Clamp
(3) 2½"OD / 2"ID Tri-Clamp
(2) 2"OD / 1½"ID Tri-Clamp
Jacket Ports:
(6) 1½" NPT
OAD: 90" L x 84" W x 185" H
