Feldmeier釜式反应器1500不锈钢u9ms Feldmeier Tank Reactor SS 1500U9MS Lee Tank Processors 1500U9MS

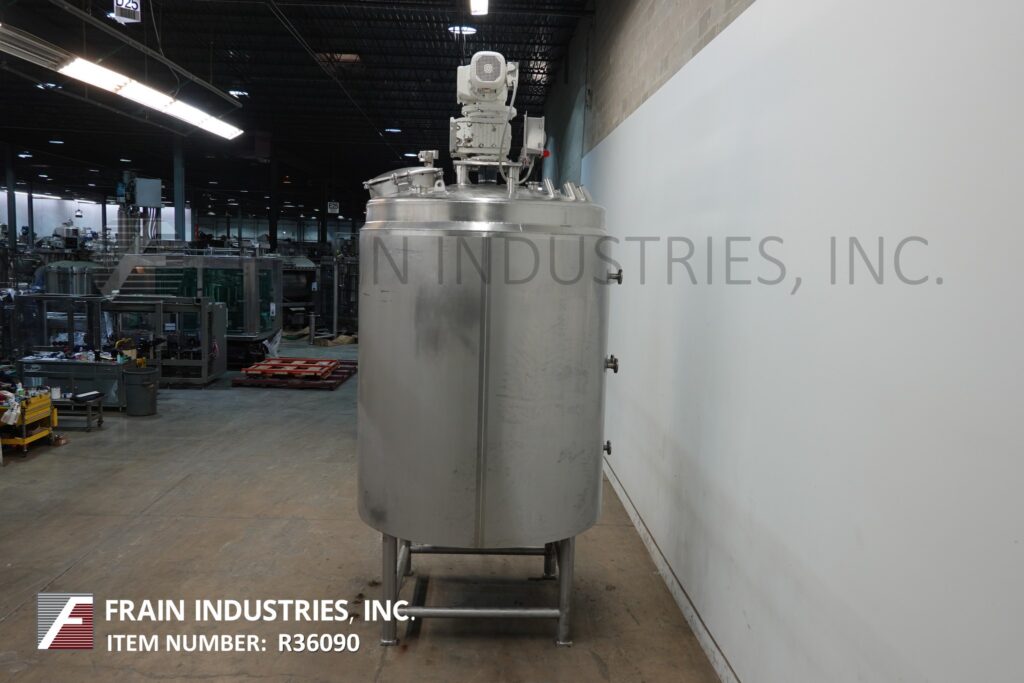

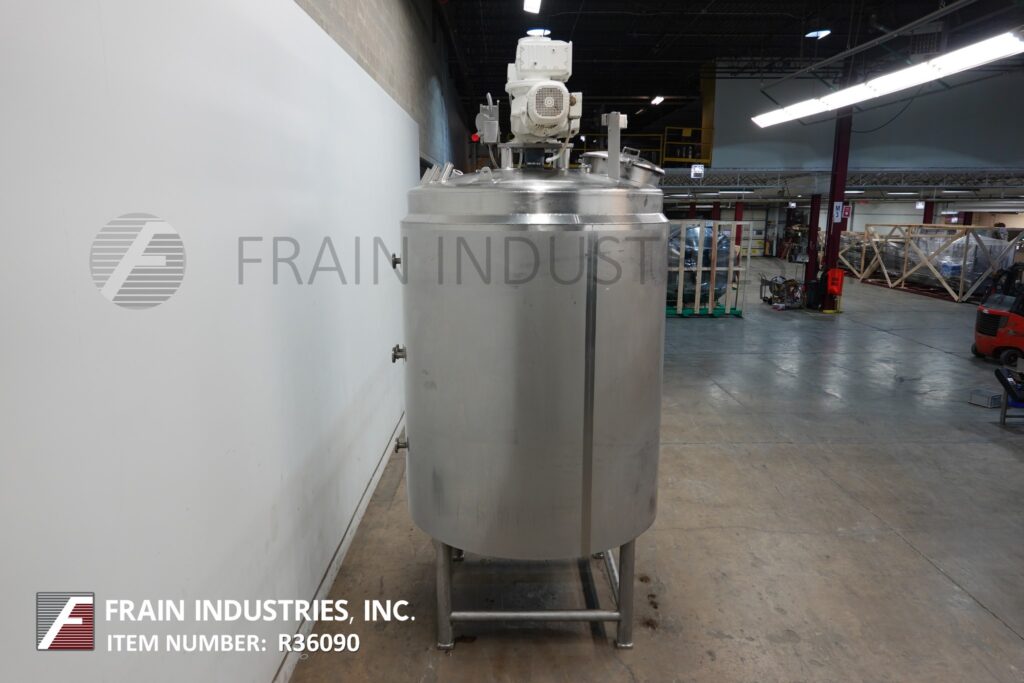

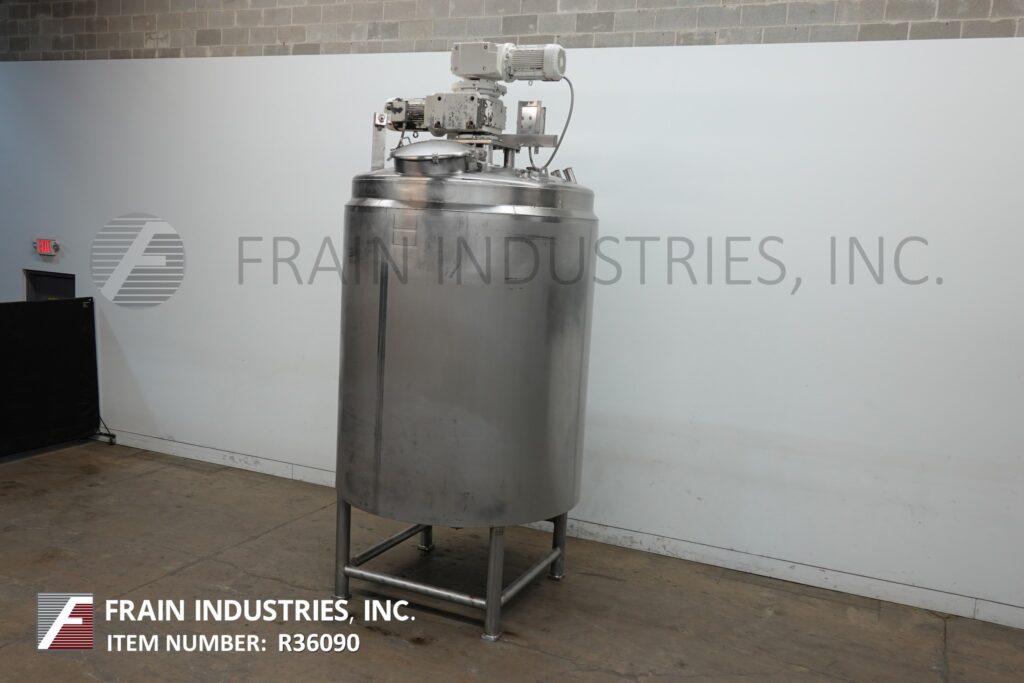

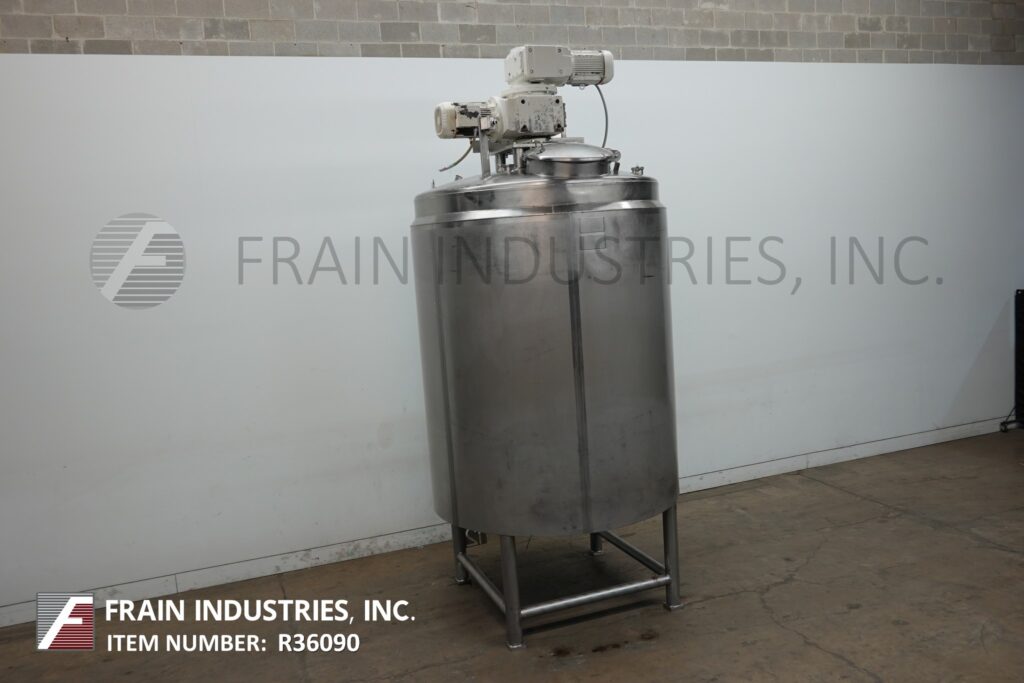

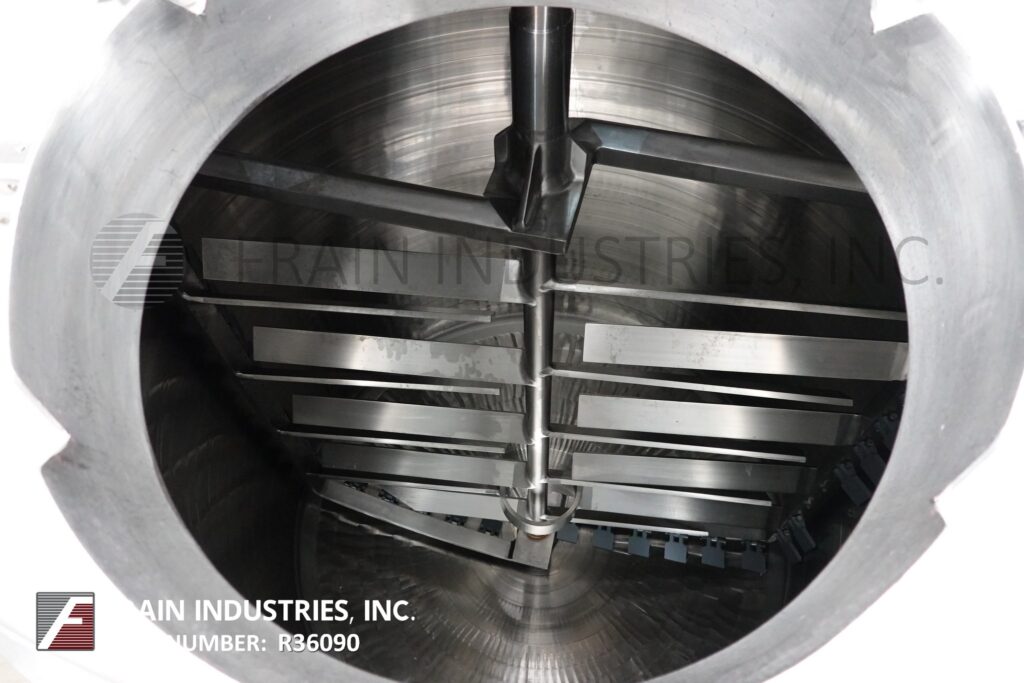

Back to All EquipmentFeldmeier, 120 gallon capacity, 316 stainless steel jacketed processing tank. Vessel dimensions: 34" diameter x 44" straight wall. Equipped with bolt down dome cover, 8" ID bolt down acces port with 2" diameter sight glass, CIP spray balls supplied by 2"OD / 1½"ID Tri-Clamp fittings, 3 HP top mounted scrape agitation and 3 HP top mounted three blade turbine. Dish bottom has 3½" OD / 3" ID bottom discharge with diaphram valve and 14" ground clearance.
Top Ports:
(5) 2½" / 2" Tri-Clamp
Jacket Ports:
(4) 1½" NPT
Vessel:
MAWP: 40 PSI / FV @ 350°F
MDMT: -20°F @ 40 PSI / FV
Jacket:
MAWP: 150 PSI / FV @ 350°F
MDMT: -20°F @ 150 PSI / FV
Nat’l Brd: 10422
OAD: 52"L x 40"W x 105"H
