MRM Elgin Filler Liquid Pos Disp RPF-4

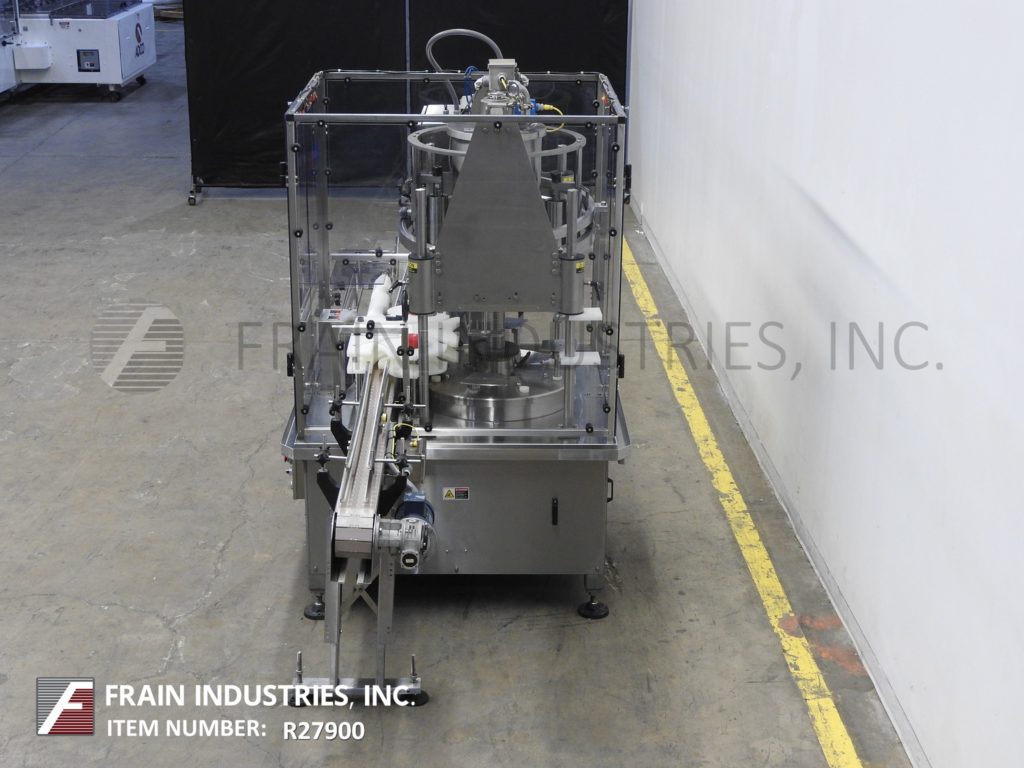

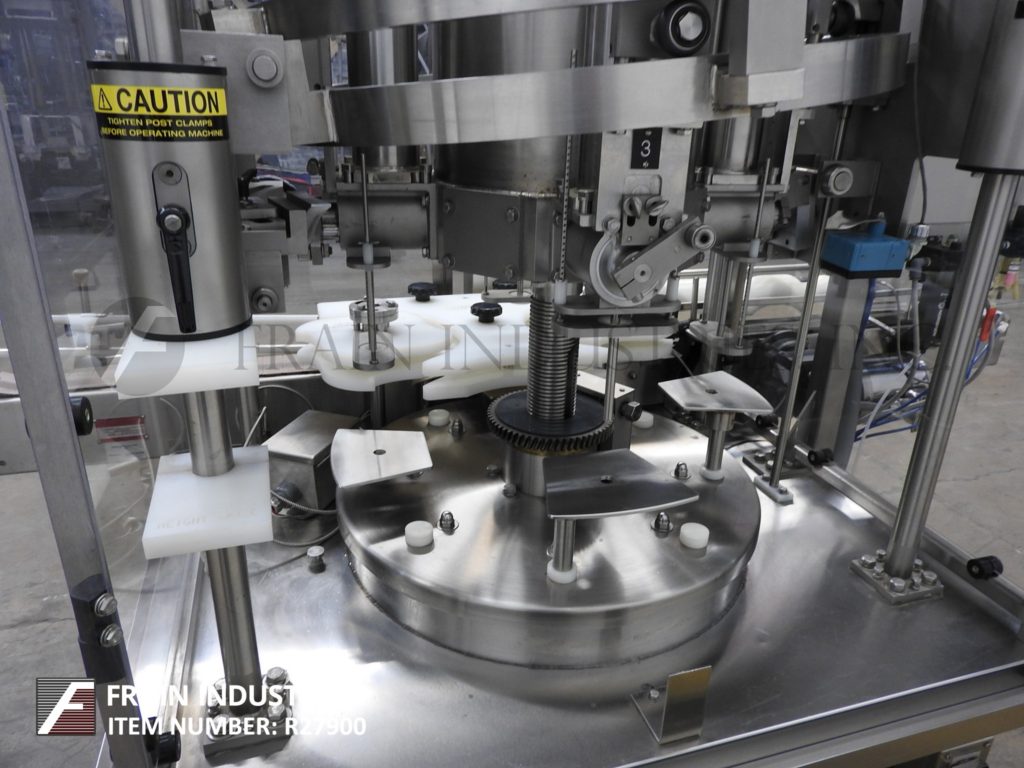

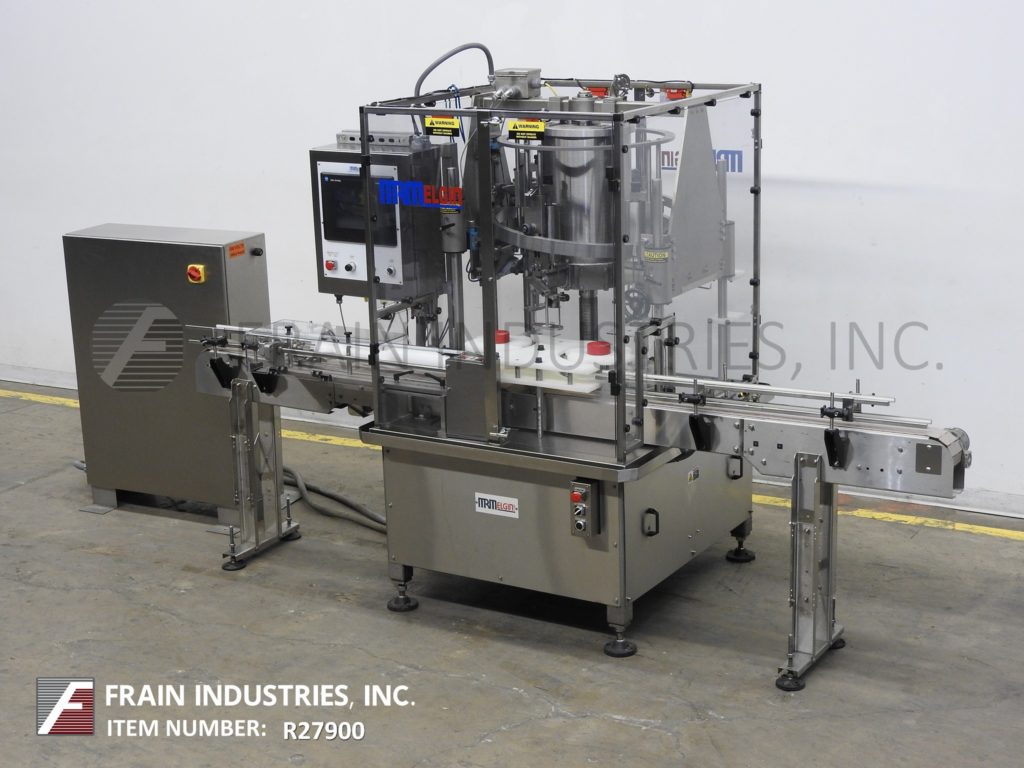

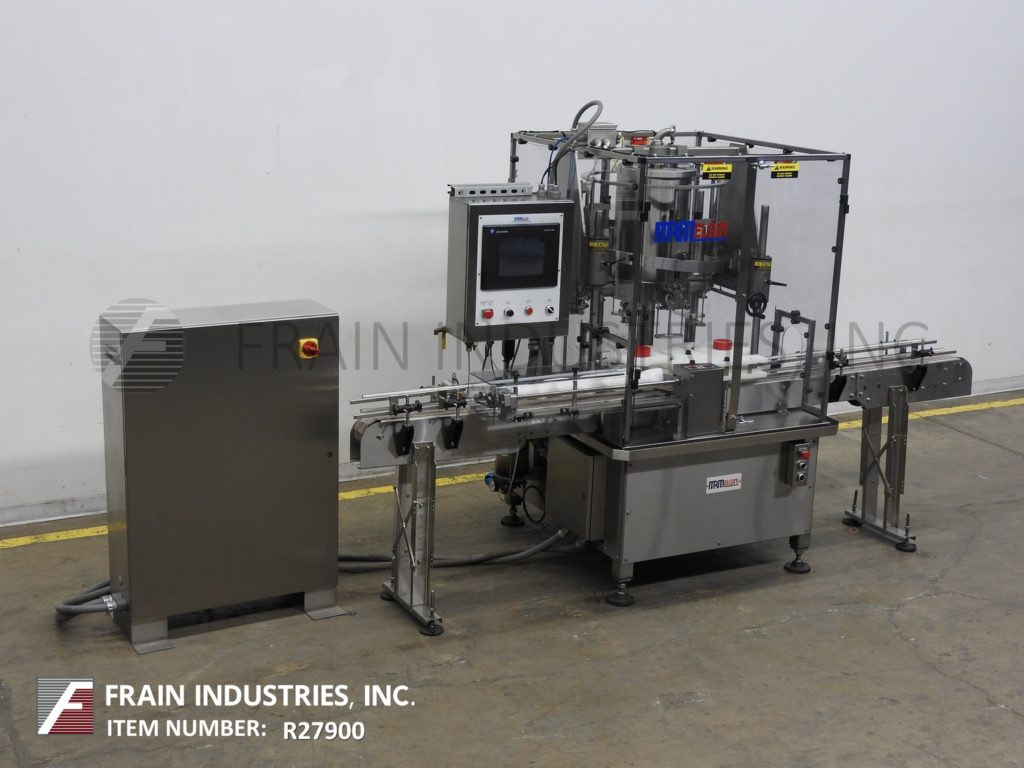

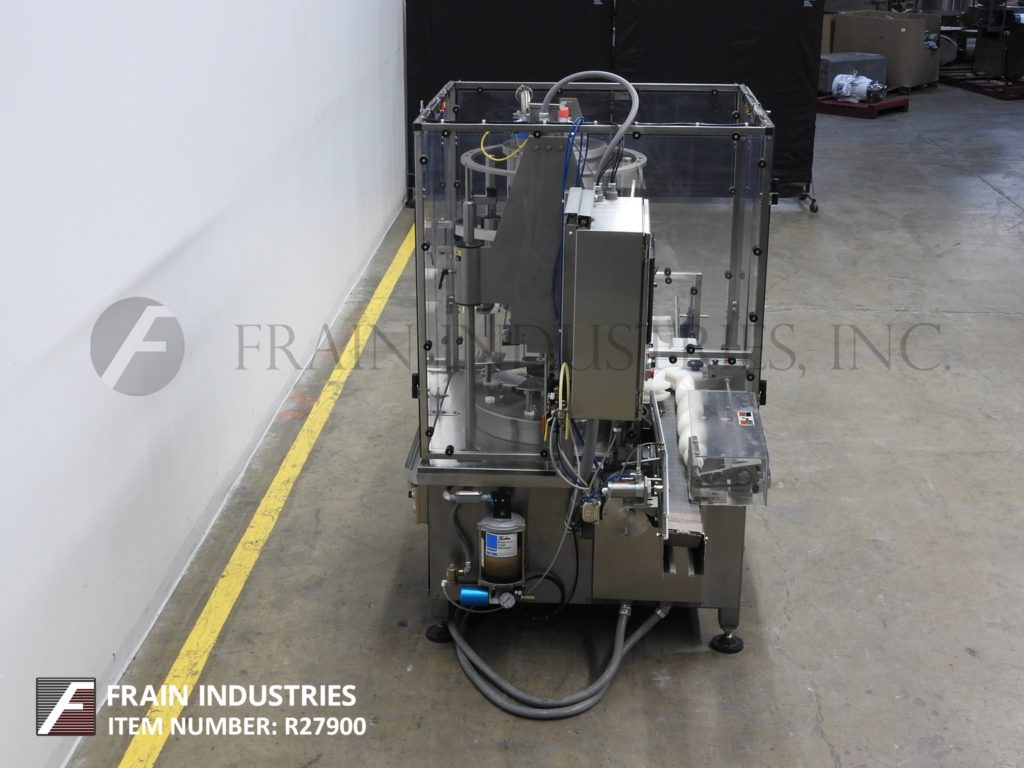

Back to All EquipmentMRM Elgin, Model RPF-4, automatic, continous motion, stainless steel, left to right, 4 head rotary piston filler rated from 10 to 60 containers per minute – depending on materials and application. Maximum container size: to 9 in Diameter; Height project dependent, all with proper change parts. Equipped with 80" long x 4-1/2" wide plastic Delran container conveyor, with worm screw to star wheel in feed / discharge. 24" OD turret, with (4) 7-1/2" x 5-1/2" container pedestals, (4) filling heads with 3" ID x 9" Long pistons and 3/8" OD x 5-3/4" long stainless steel nozzles set on 15" centers, bottom up fill, with no container / no fill and 48" x 48" stainless steel platform with drip trough, Control panel has A/B CPU and A/B panel view with power on / off switch and start, stop, e-stop push buttons. Mounted on stainless steel base frame with interlock safety guarding and leveling legs.
OAD: 108" L x 60" W x 80" H
