Precision Stainless Tank Reactor SS 200L

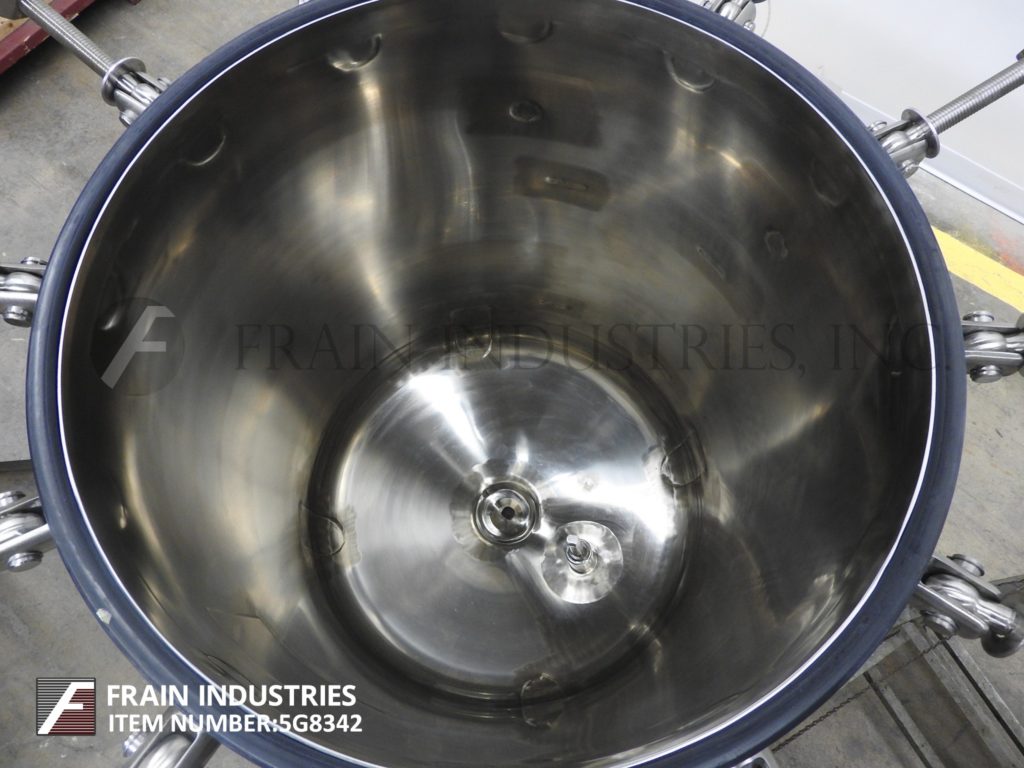

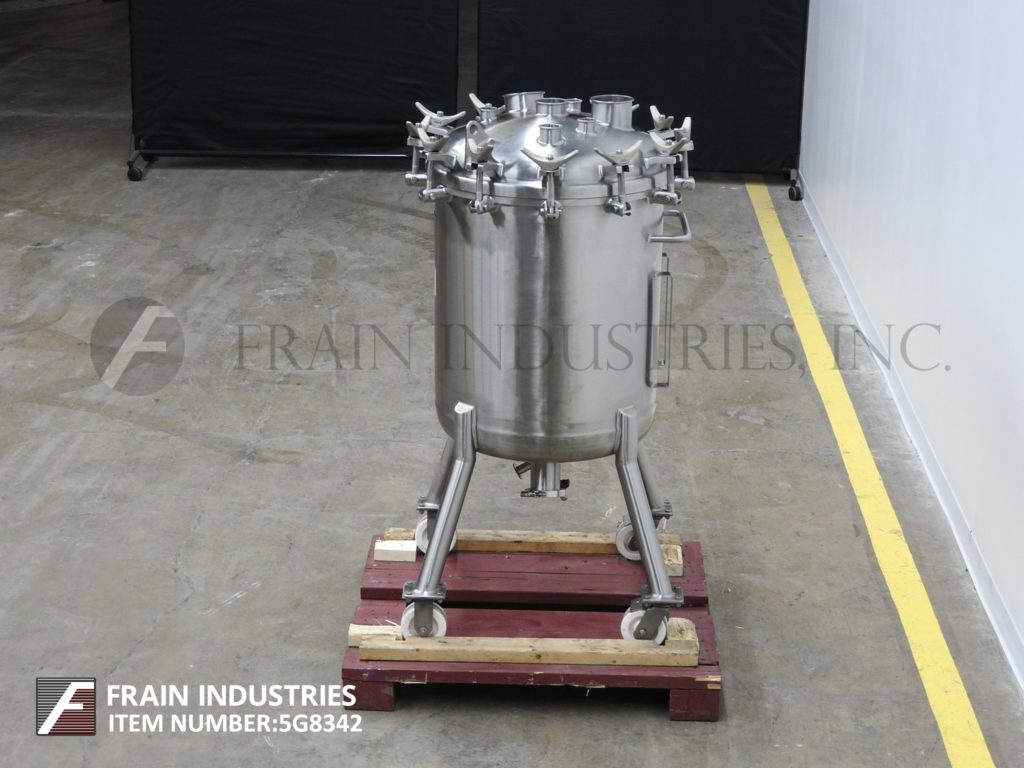

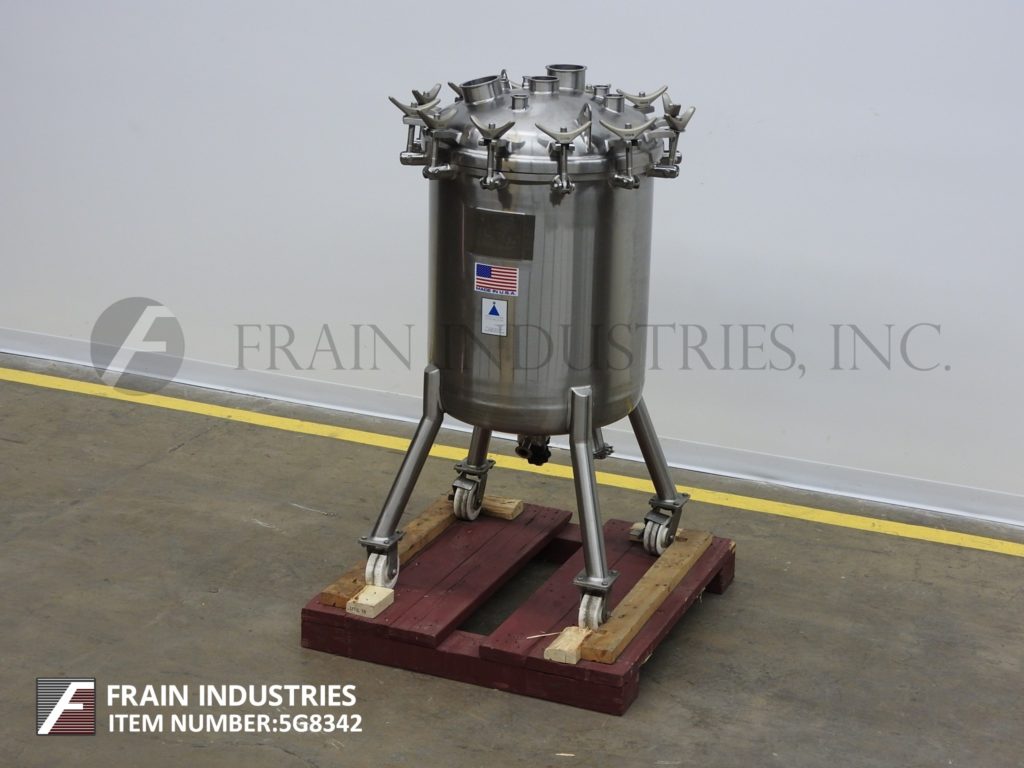

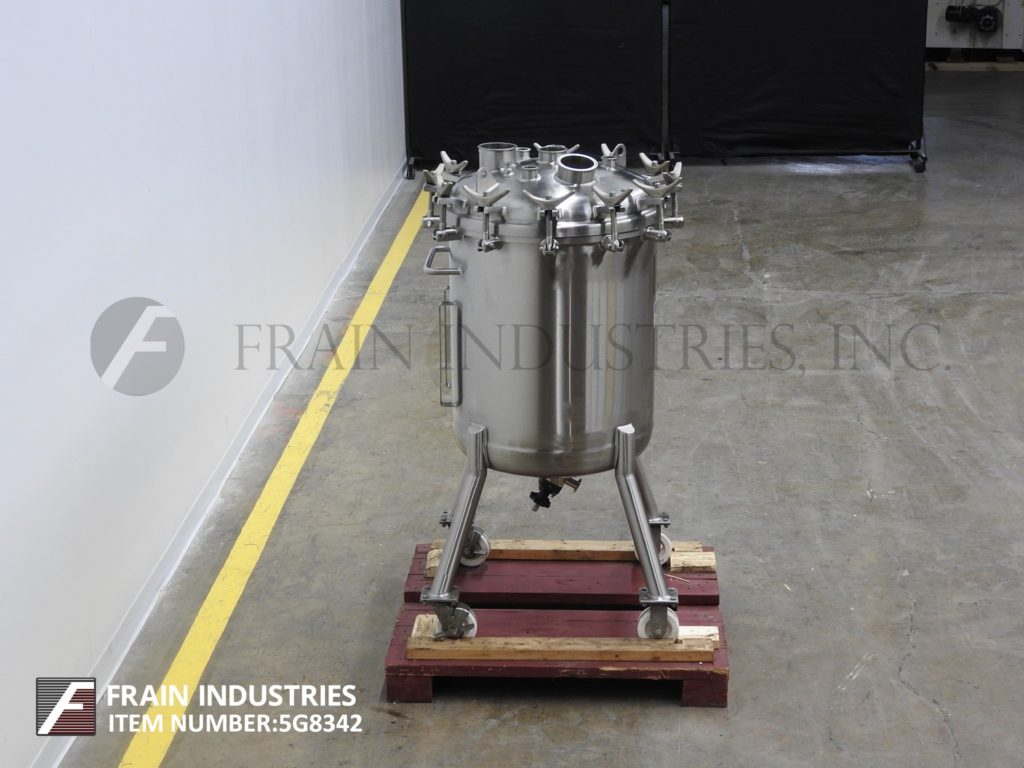

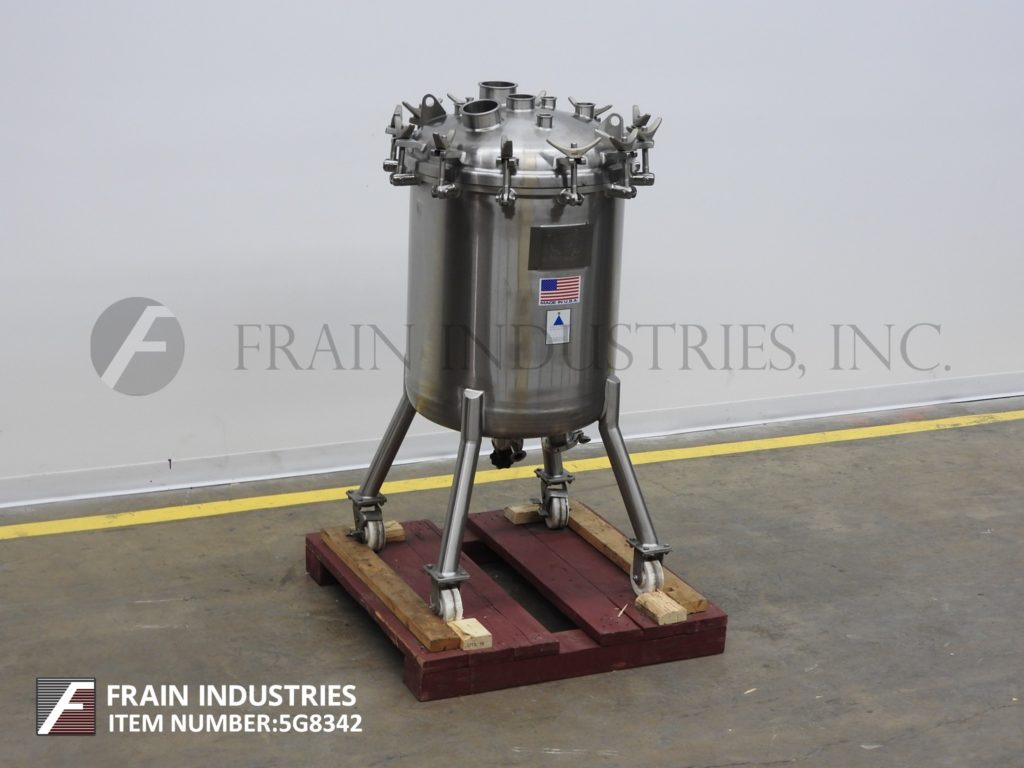

Back to All EquipmentPrecision Stainless, 200 liter capacity, 316L stainless steel vacuum process tank. Vessel dimensions: 25" diameter x 30" straight wall. Equipped with bolt down dome top, dish bottom, bottom magnetic prop agitation and bottom center 2" OD / 1" ID Tri-clamp style discharge with 14" ground clearance. Mounted on (4) tubular legs with locking casters.
Top Ports:
(2) 4¾"OD / 3¾"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp
(1) 1“OD /(3/8)”ID Tri-Clamp
MAWP: 40 PSI @ 250°F (Vessel)
MDMT: -20°F @ 40 PSI (Vessel)
Vac: 15 PSI (Vessel)
Nat’l Brd: 6646
OAD: 32"L x 32"W x 58"H
