Precision Stainless Tank Reactor SS 75 GAL

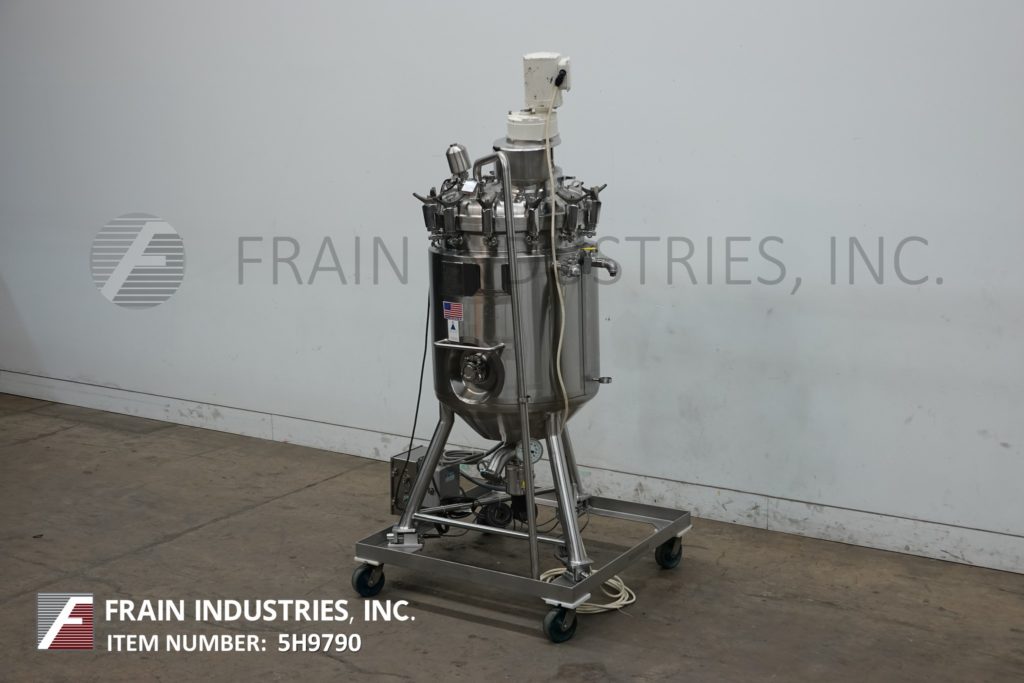

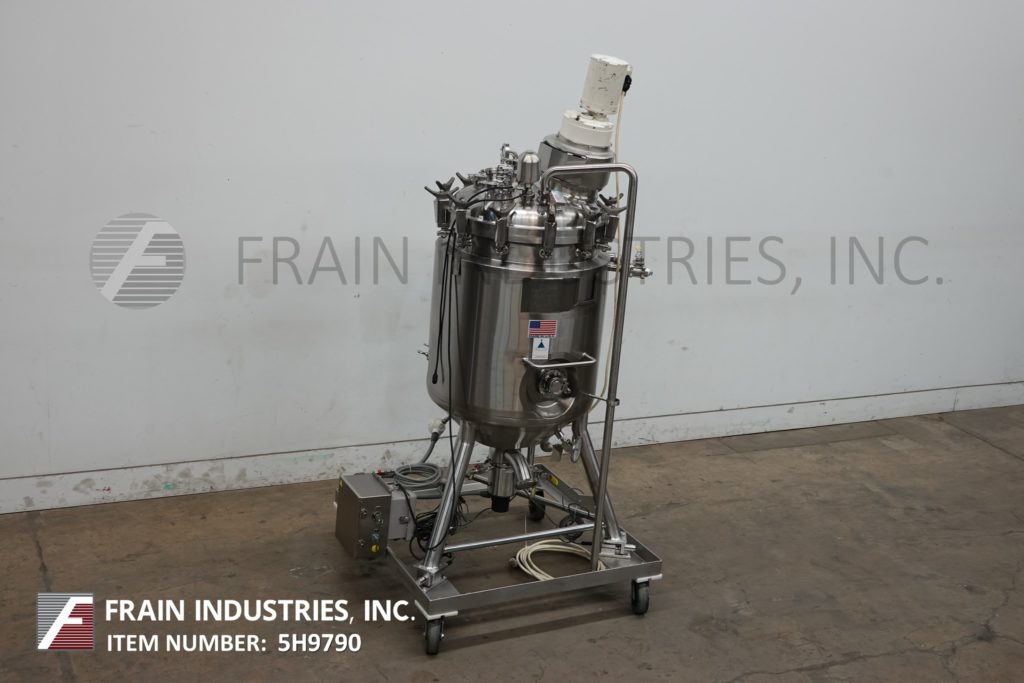

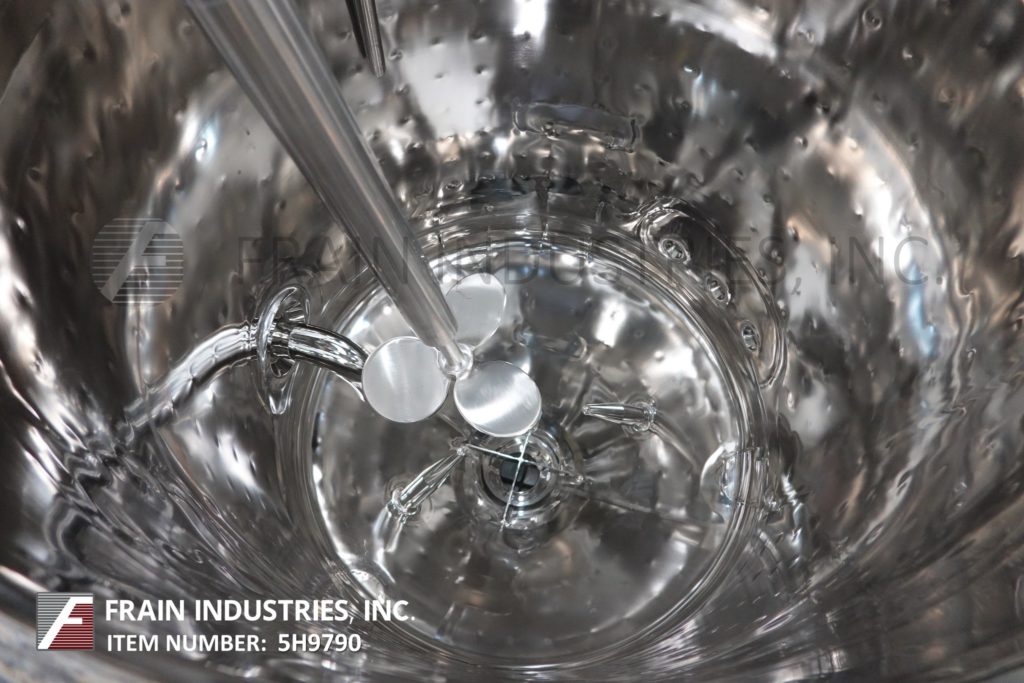

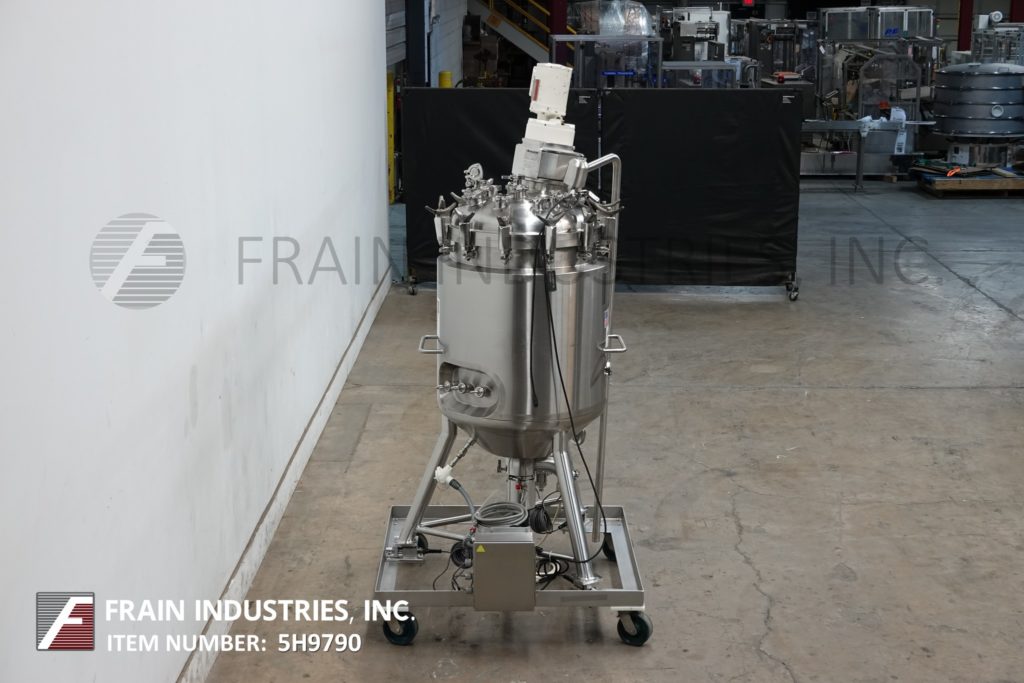

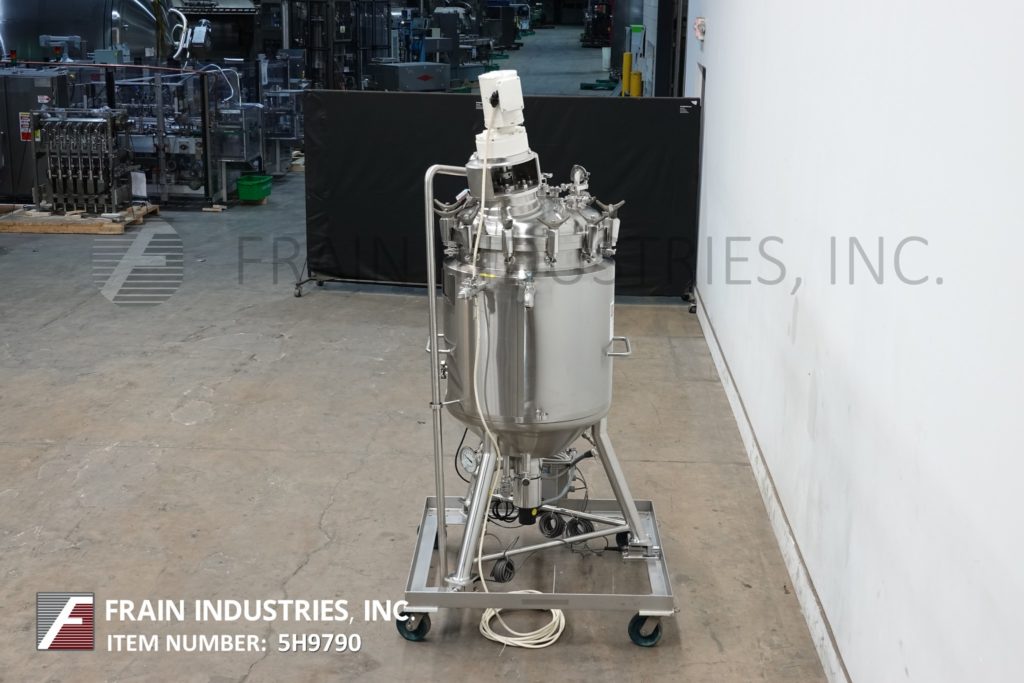

Back to All EquipmentPrecision Stainless, 75 gallon capacity, 316 stainless steel jacketed processing tank. Vessel dimensions: 26" diameter x 30" straight wall. Equipped with bolt down dome cover, CIP spray balls supplied by 2"OD / 1½"ID Tri-Clamp fittings, ½ HP top mounted prop agitation and thermowell. Dish bottom has 3½" OD / 3" ID bottom discharge with valve and 22" ground clearance.
Top Ports:
(1) 3½" / 3" Tri-Clamp
(2) 2½" / 2" Tri-Clamp
(6) 2" / 1½" Tri-Clamp
Jacket Ports:
(4) 1¼" NPT
Vessel:
MAWP: 100 PSI / FV @ 400°F
MDMT: -20°F @ 100 PSI / FV
Jacket:
MAWP: 150 PSI / FV @ 400°F
MDMT: -20°F @ 150 PSI / FV
Nat’l Brd: 7991
OAD: 54"L x 48"W x 99"H
