Walker Tank SS JKT PC-CB-SP

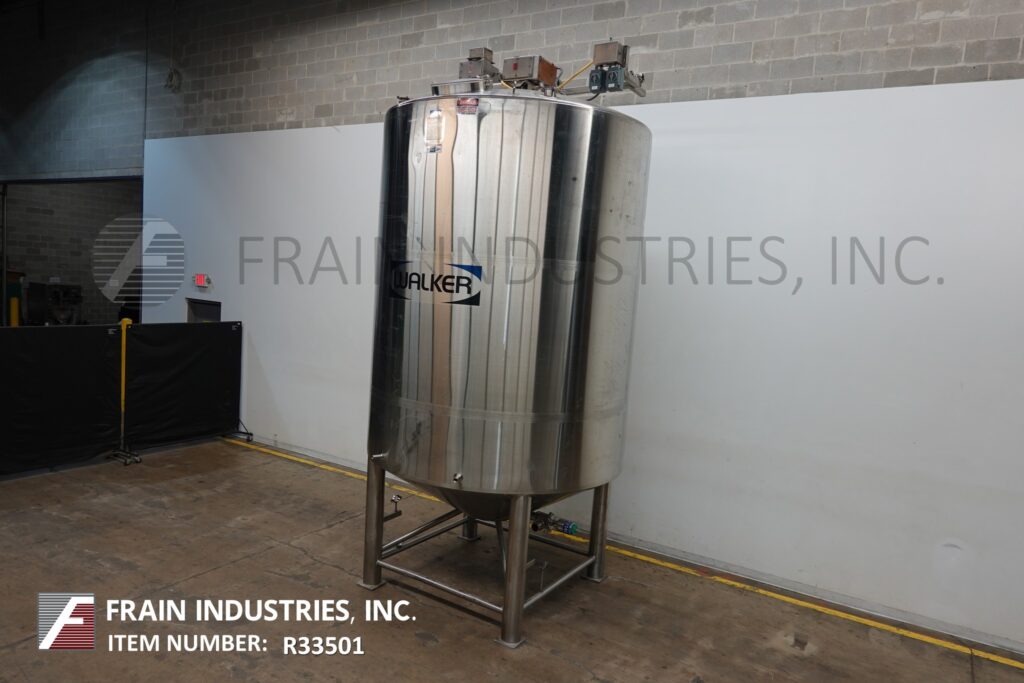

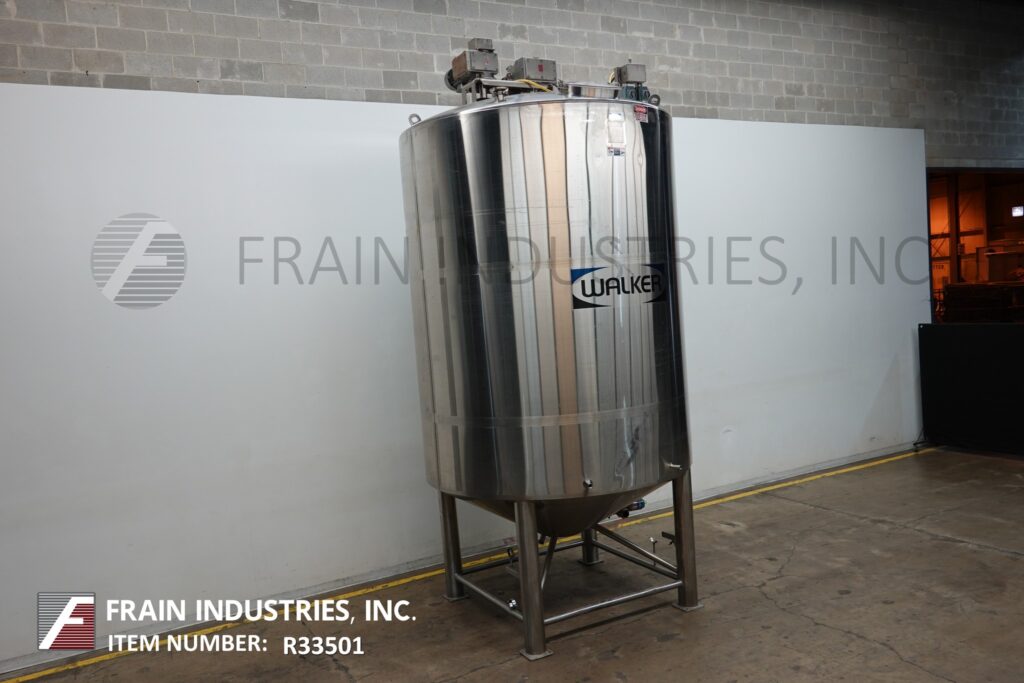

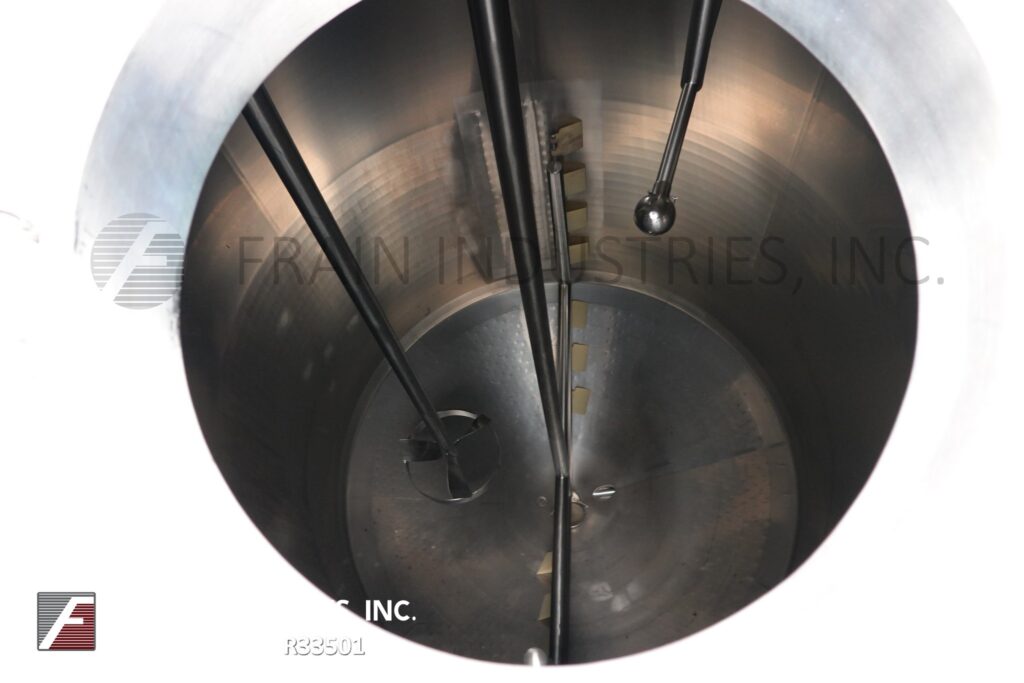

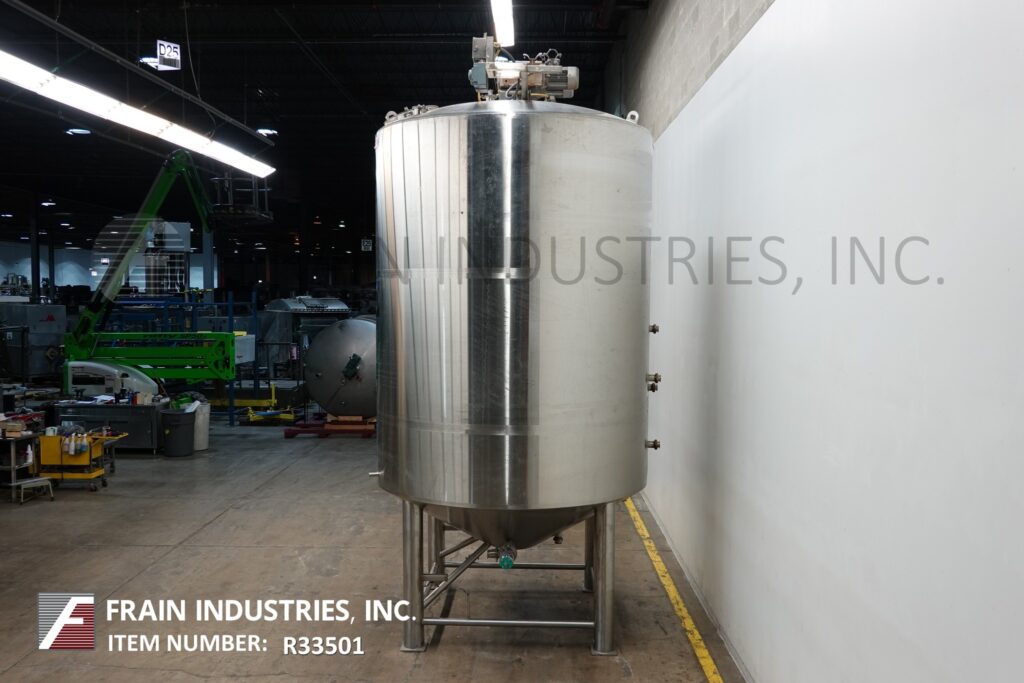

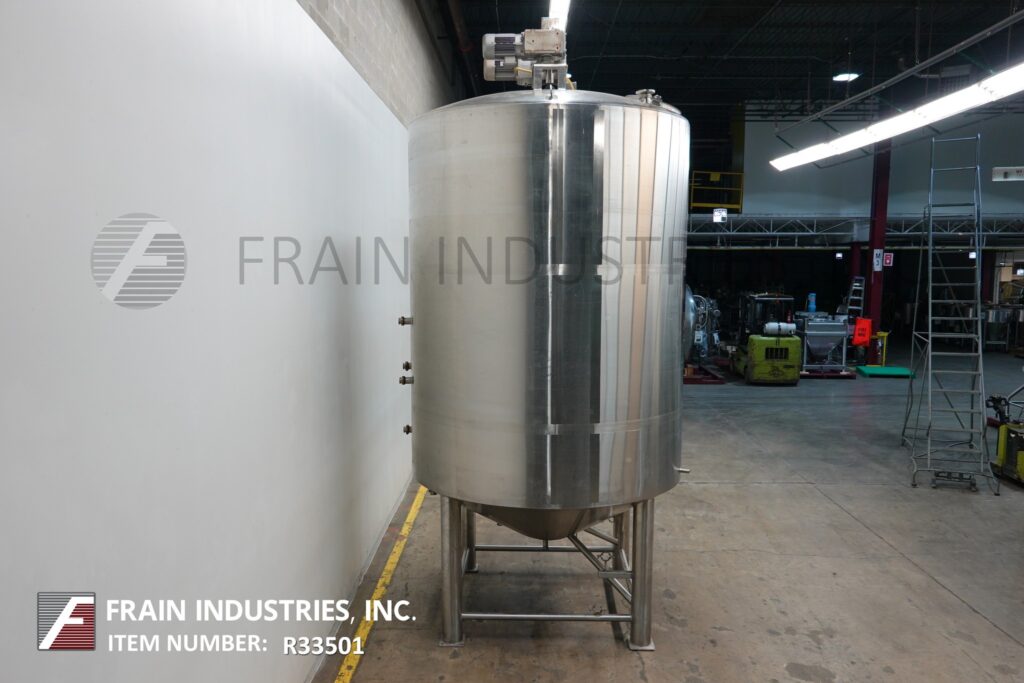

Back to All EquipmentWalker, Model PC-CB-SP, 3000 gallon capacity, 316 stainless steel jacketed and insulated process tank. Vessel dimensions: 90" diameter x 140" deep with a 115" straight wall. Equipped with a dome top with an 19" diameter top hinged man way, (2) CIP spray balls supplied by a 2"OD / 1½"ID Tri-clamp fitting, (2) thermowells, 5 Hp top mounted scrape agitator, 5 HP top mounted 18" diameter prop agitator and bottom 6"OD / 5"ID Tri-clamp discharge with 24" ground.
Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp
Jacket Ports:
(6) 2½“OD / 2"ID Tri-Clamp
MAWP: 100 PSI @ 300°F
MDMT: -20°F @ 100 PSI
OAD: 102"L x 98"W x 195"H
