Cam Machines

Cam Cartoner Auto Horiz. Glue (Auto) PMM

• Manufacturer:Cam
• Model Number:PMM
• Frain Number:5E9460

Automatic, intermittent motion, hot melt, horizontal cartoner capable of speeds from 10 to 40 cpm – speeds depending on materials and application. Carton size range: 1/2" to 3-1/2" in Length; 1/2" to 2-3/4" in Width; 2" to 8" in Depth. Equipped with a 144" long powered carton magazine feeding a reciprocating pick and place with blade style carton erector. 5-1/2" long x 2-1/4" wide x 1-1/4"high adjustable product buckets with no product no carton detection probe, set on 4.75" centers. Single arm product pusher, flap closers, Nordson two gun hot melt glue system A/B plc with swing arm controller and interlock safety guarding.

EMBOSS CODER available at addition cost

OAD: 137" L x 72" W x 84" H

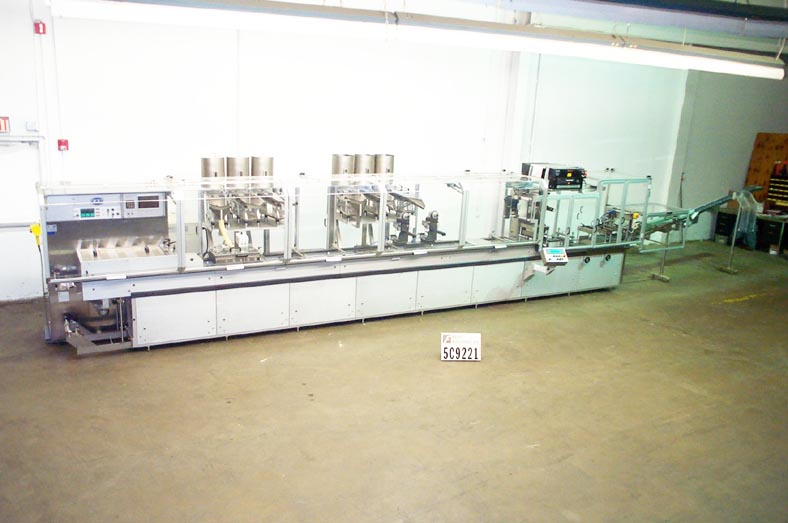

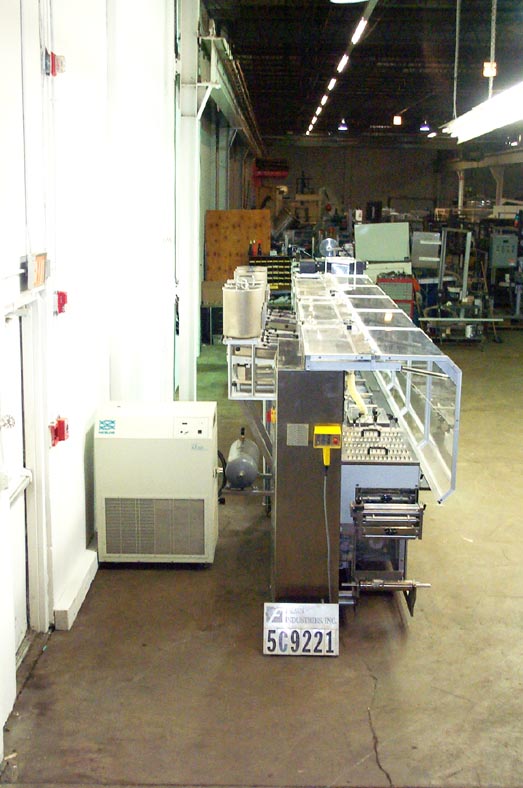

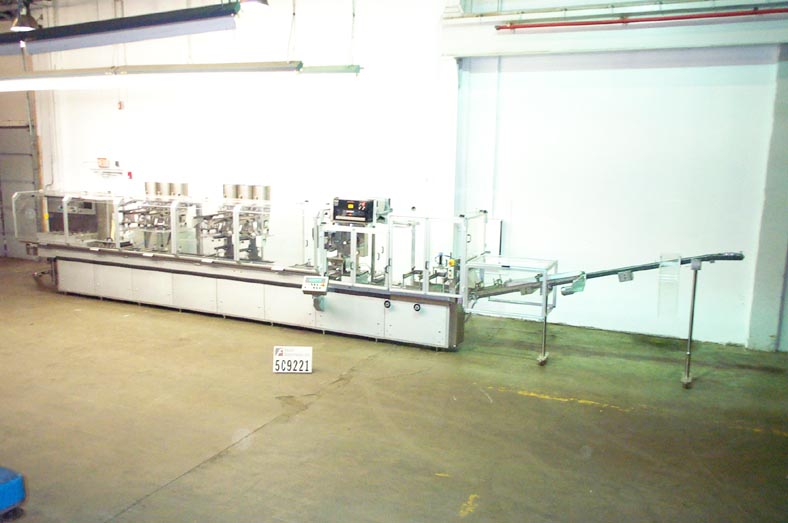

Cam Form & Fill Blister Pkg/Tablet M92ALL

• Manufacturer:Cam
• Model Number:M92ALL
• Frain Number:5C9221

Automatic Blister former rated to 40 Cycles per minute. Web width: 256mm Forming depth: 12mm Index:180mm. Film gauges from 150 – 400 micron. Gauges from 15 – 30mm. AB SLC 5/04 PLC Equipped with the following optional upgrades: Gotscho 12-10 platen printer, Nimax VD95P tele-camera inspection system. Extended bed to accommodate up to 6 feeders (3 brush box, three dedicated). electric machine pitch adjustment with display, base material splice table, 6 product pre-feed hoppers, lidding material splice detection with reject, lidding foil registration, intermittent motion vertical perforation for lengthwise, crosscut or both perforation, complete pvc/alu format turning device for coated/uncoated oblongs, discharge belt connection to cartoning machine.
Maximum roll diameter of 400mm on 70 – 76mm cores.
Top foil diameter rolls to 250mm on 70 – 76mm core.
OAD 33’L x 6’W x 6’H Tooling at additional cost subject to final samples.
