DCI Machines
DCI Machines In Stock

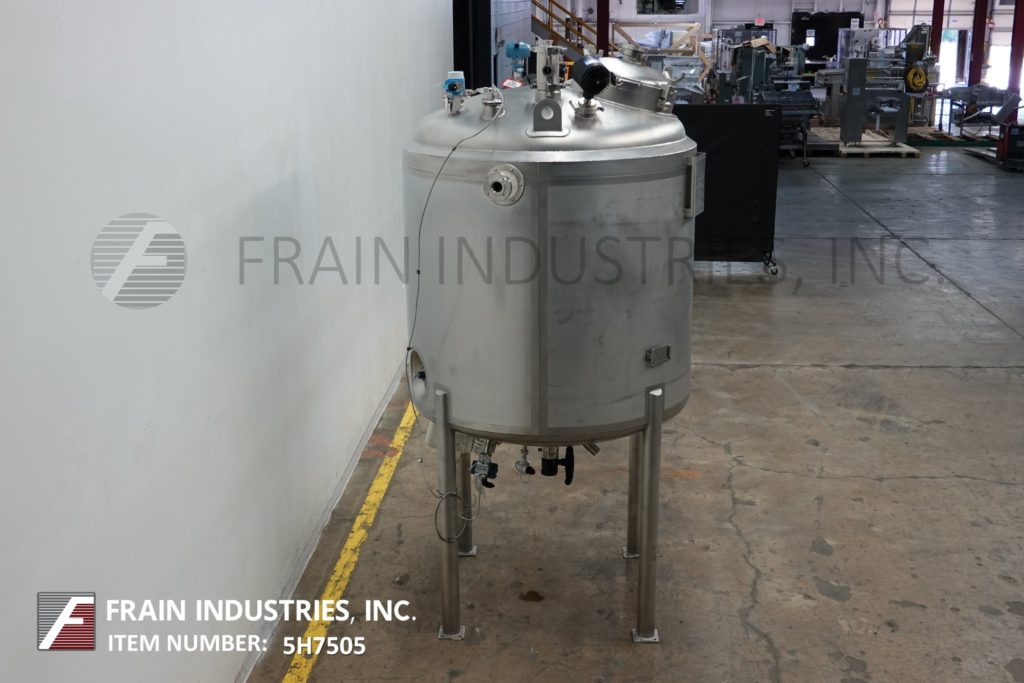

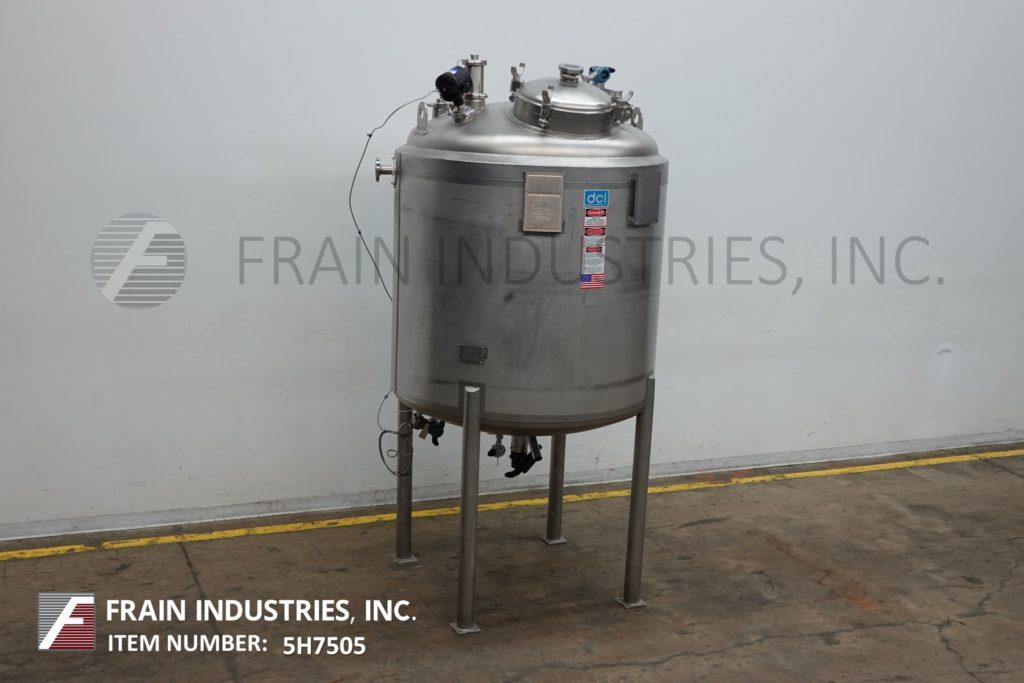

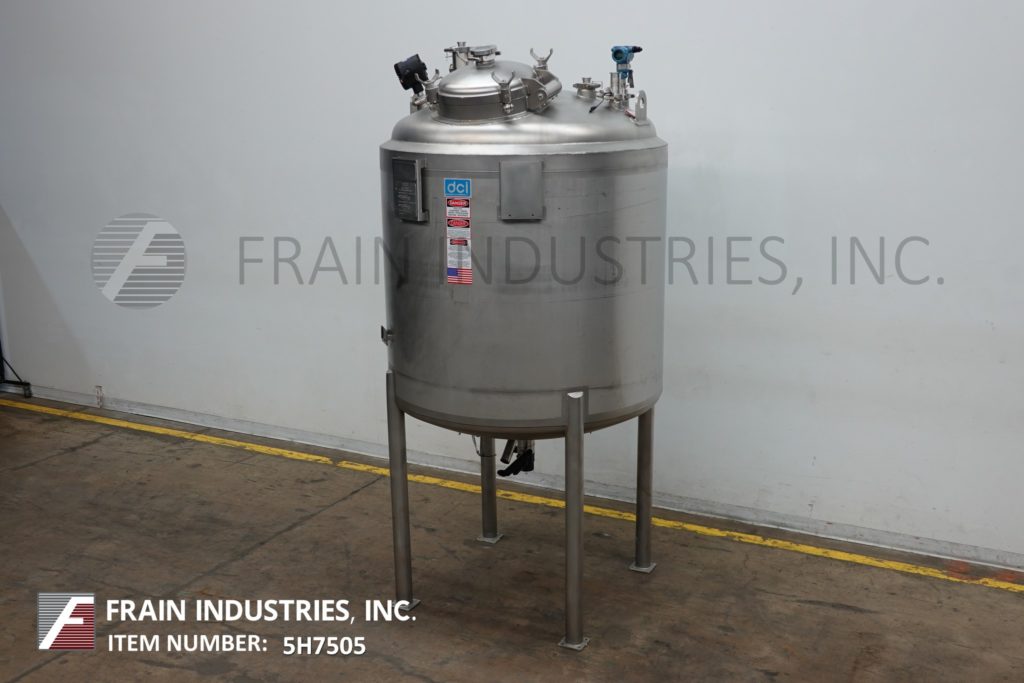

DCI Tank Processors DCI 1800
- Manufacturer:DCI
- Model Number:DCI 1800
- Frain Number:5H7505

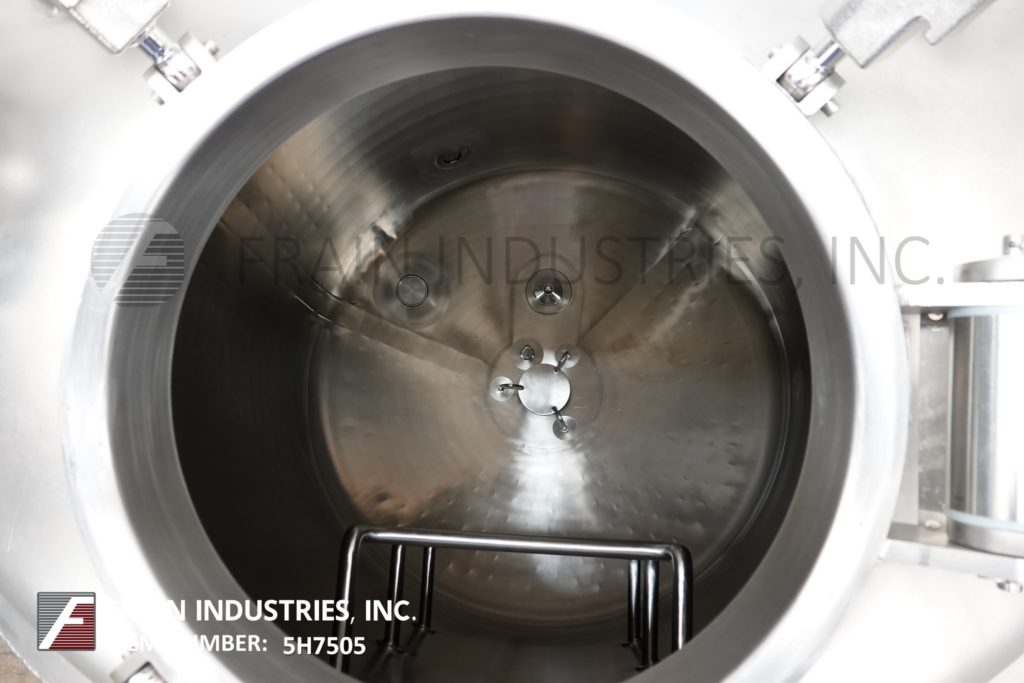

DCI, 1800 Liter, 316 stainless steel jacketed process / reactor tank. Vessel dimensions: 52" ID x 52" straight wall. Equipped with 18" diameter bolt down manway, (2) CIP spray balls supplied by 2½" OD / 2" ID Tri-Clamp fitting, (1) thermowell, (1) folush mounted sensor, (1) level sensor, 1½ Hp bottom mounted prop agitator and 1¾" ID bottom center discharge with 32" ground clearance.
Top Ports:
(2) 3½"OD / 3"ID Tri-Clamp
(4) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
Jacket Ports:
(2) 5"OD / 2" ID Flange
Vessel:
MAWP: 50 / -15 PSI @ 350°F
MDMT: -20°F @ 50 PSI
Jacket:
MAWP: 135 / -15 PSI @ 358°F
MDMT: – 20°F @ 140 PSI
Nat’l Brd: 4793
OAD: 60"L x 58"W x 108"H
Get a Free Quote Call:630-629-9900

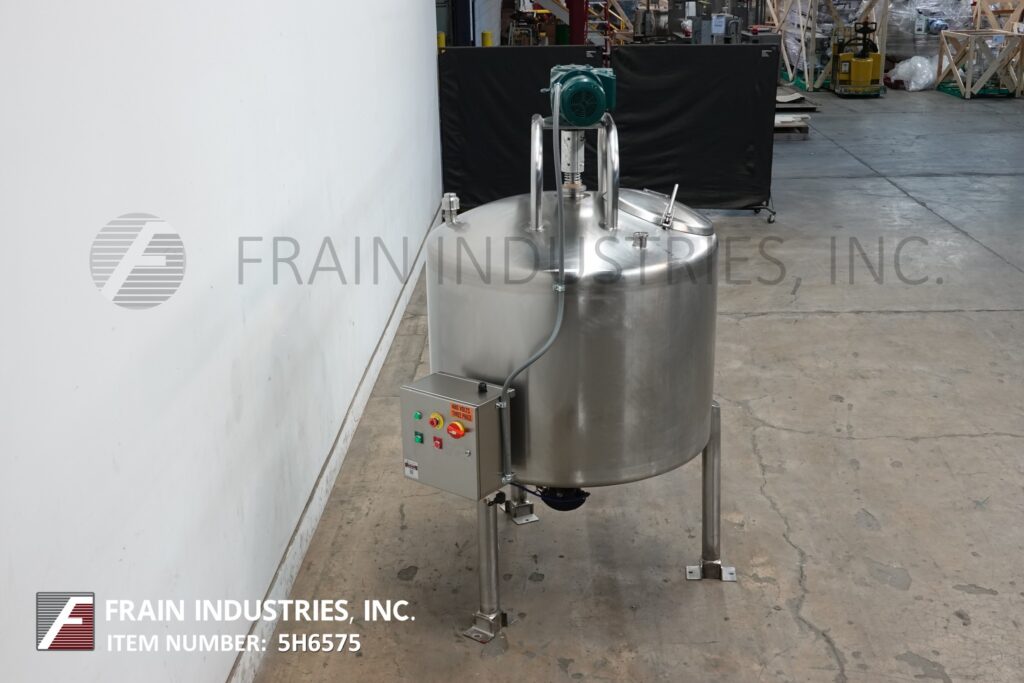

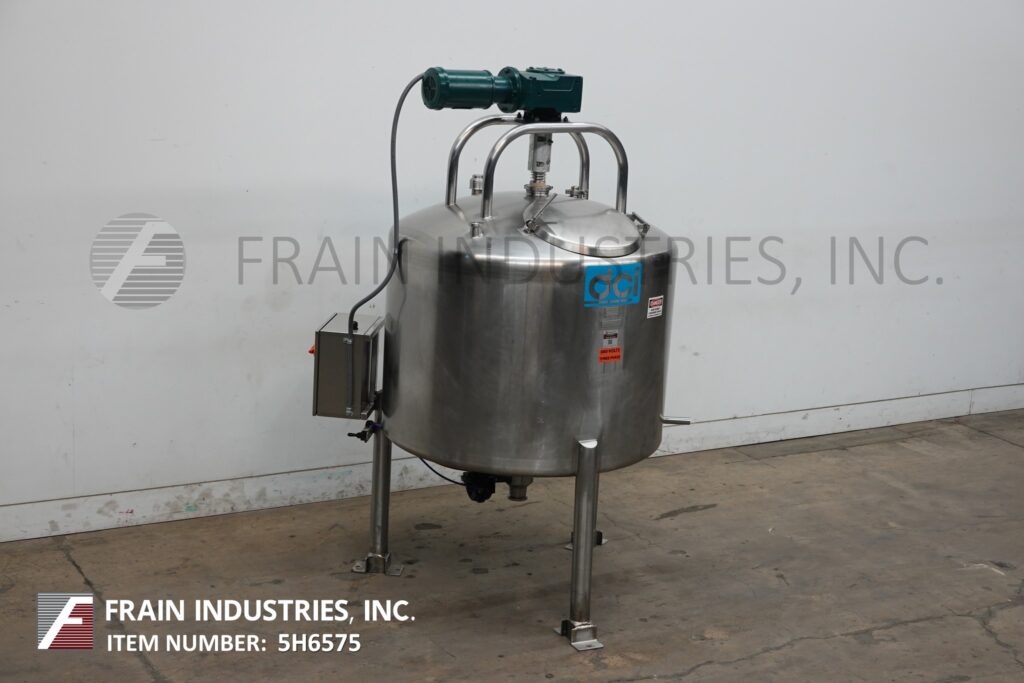

DCI Tank SS Single Wall 300GAL
- Manufacturer:DCI
- Model Number:300GAL
- Frain Number:5H6575

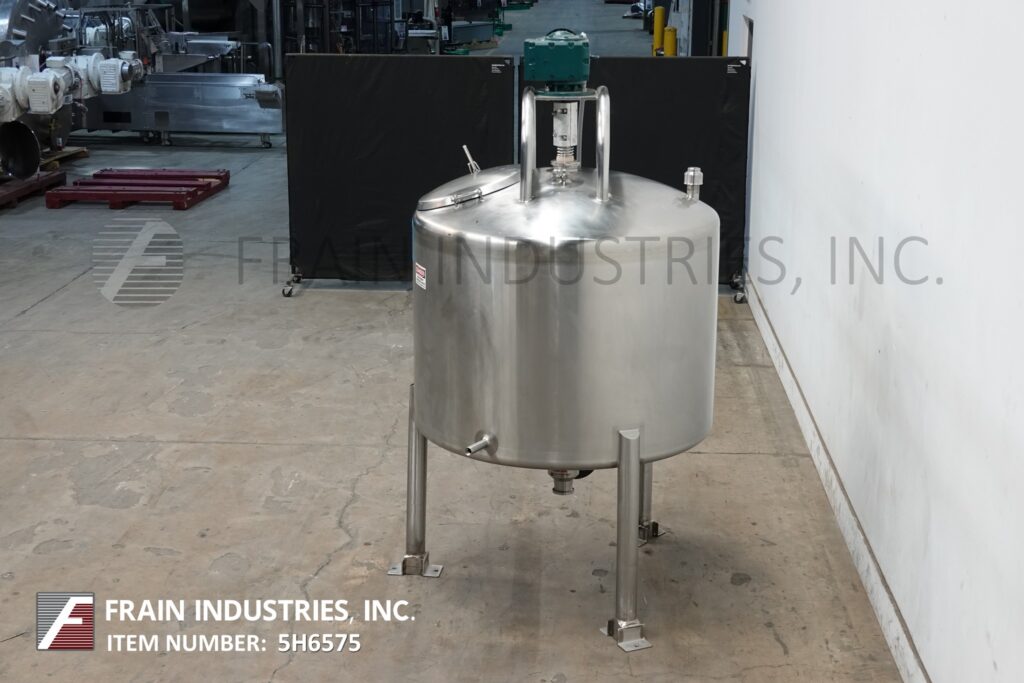

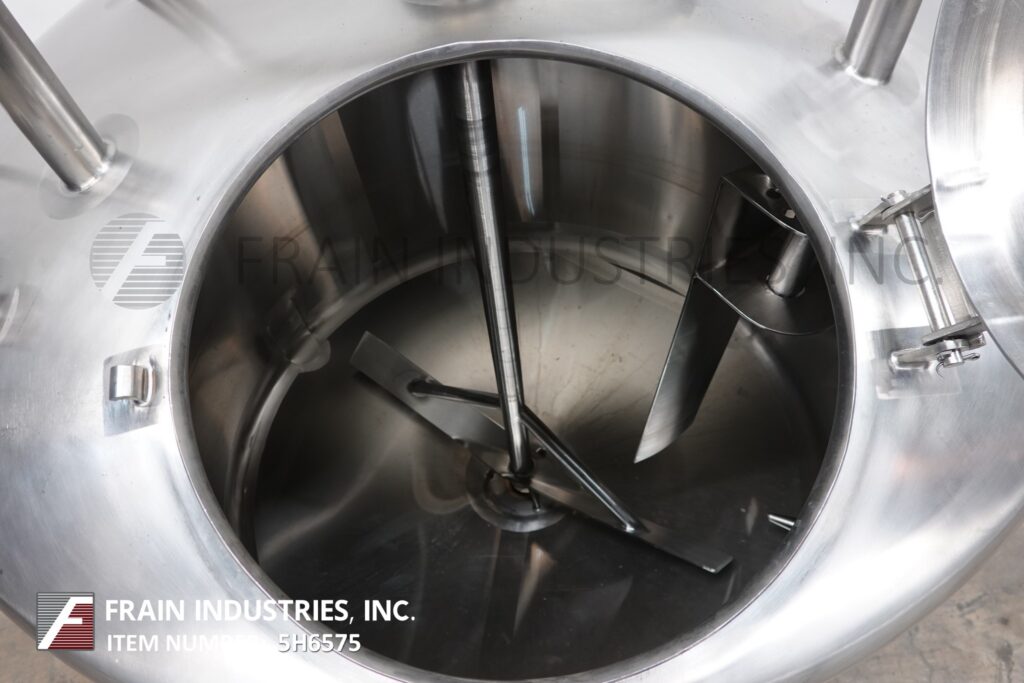

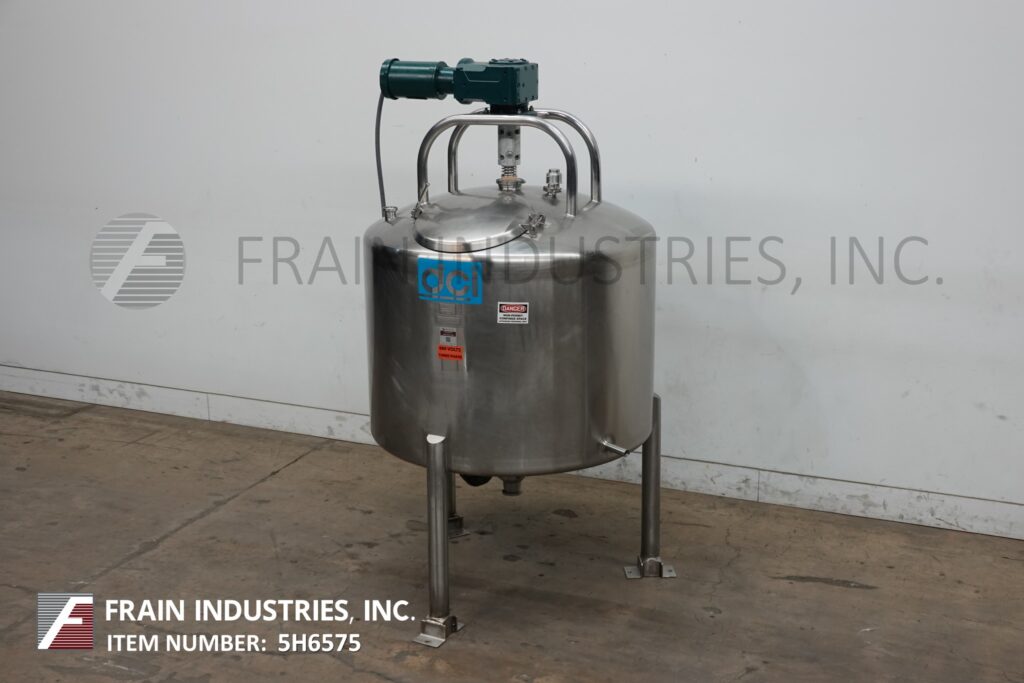

DCI, 300 gallon capacity, 304 stainless steel process tank. Vessel dimensions: 50" ID x 42" deep with a 36" straight wall. Equipped with dome top, dish bottom, 1½ Hp top mounted sweep agitator, 6" wide adjustable baffle, 18" ID top manway and bottom pneumatic valve has 4" OD / 3" ID I-Line style discharge with 17" ground clearance. Mounted on (3) leg frame.
Top Ports: (1) 2½"OD / 2"ID Tri-clamp
(1) 2"OD / 1½"ID Tri-clamp
(1) 2" diameter open vent
OAD: 52"L x 52"W x 98"H
Get a Free Quote Call:630-629-9900

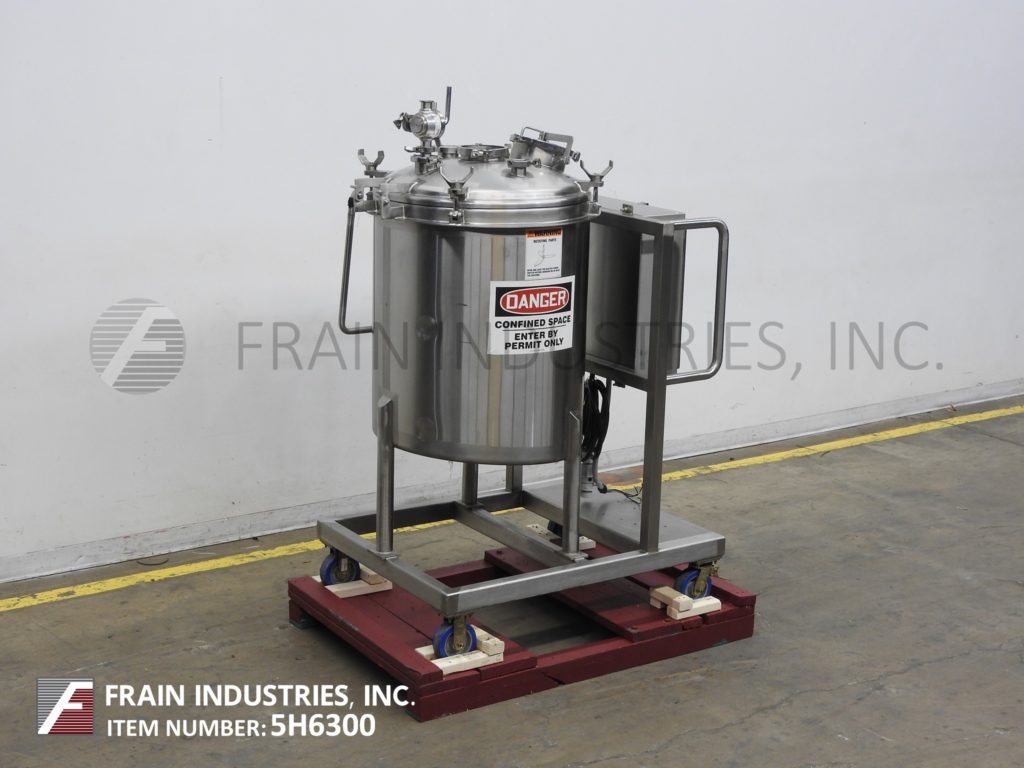

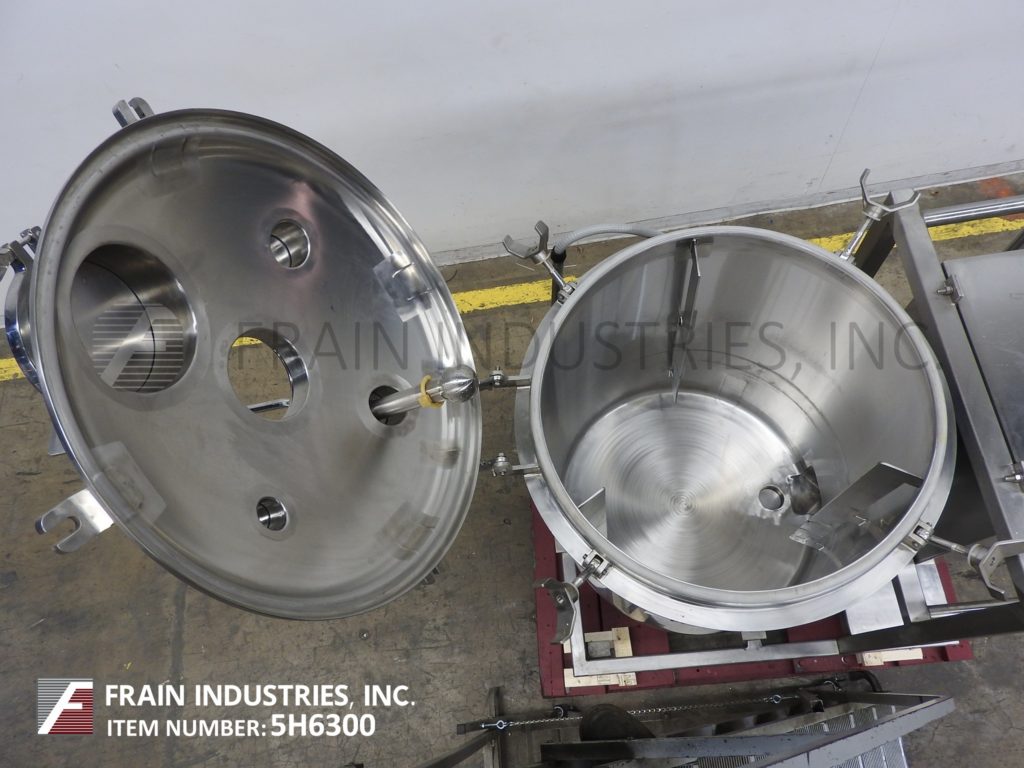

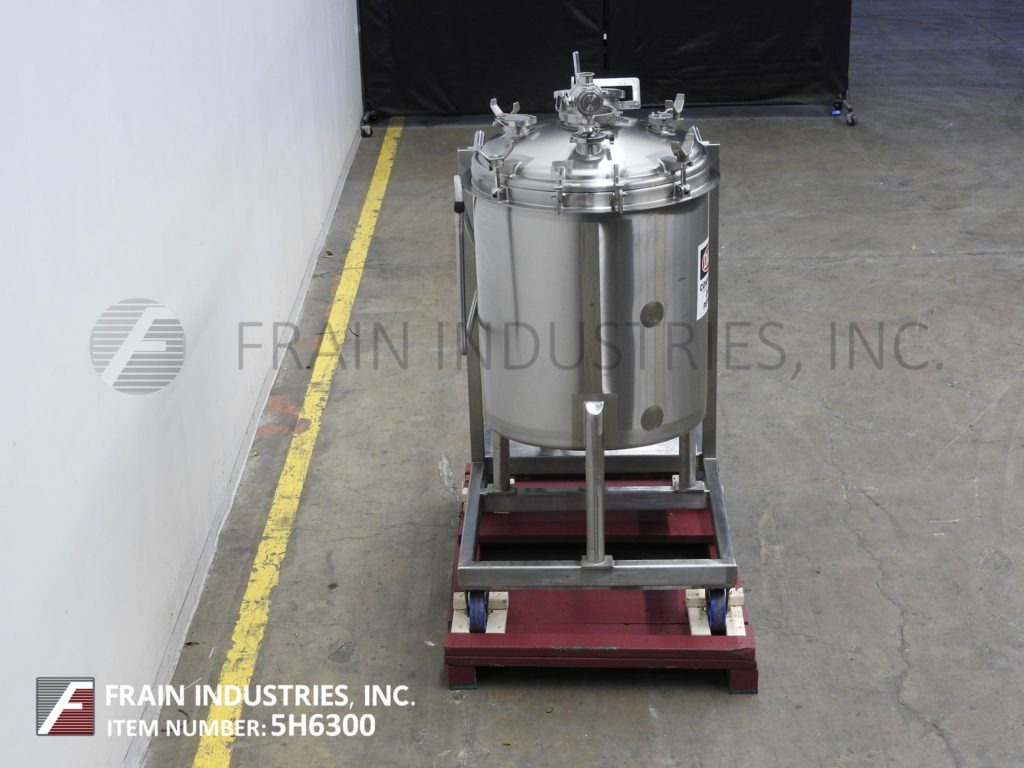

DCI Tank SS Single Wall 100 GAL
- Manufacturer:DCI
- Model Number:100 GAL
- Frain Number:5H6300

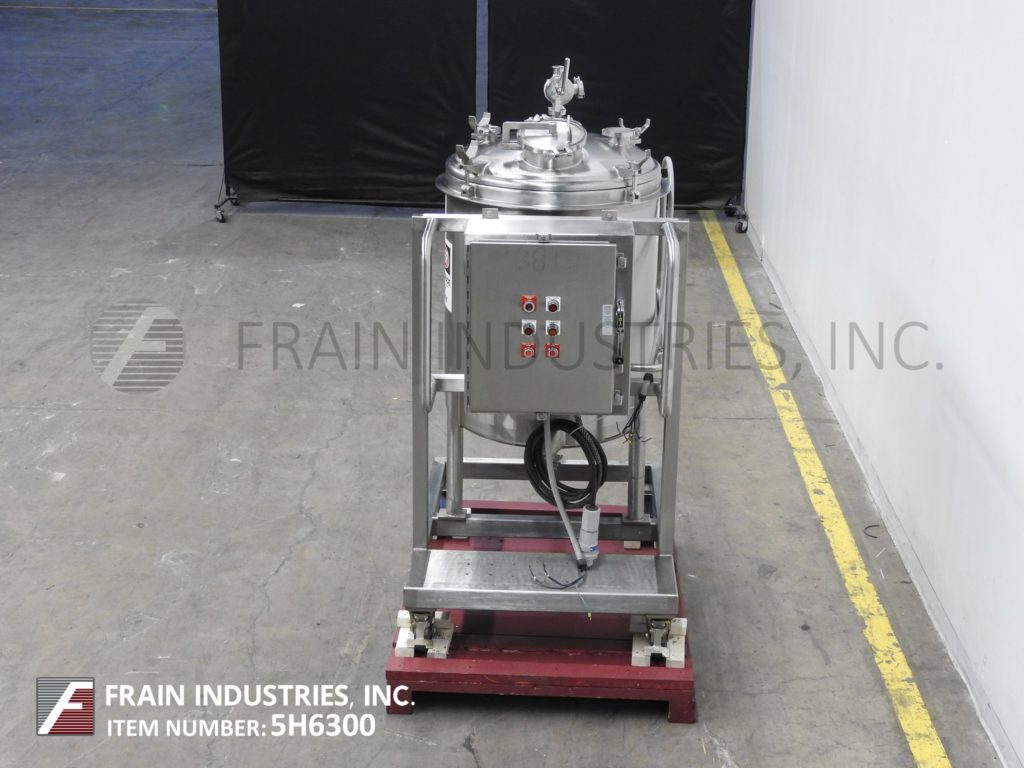

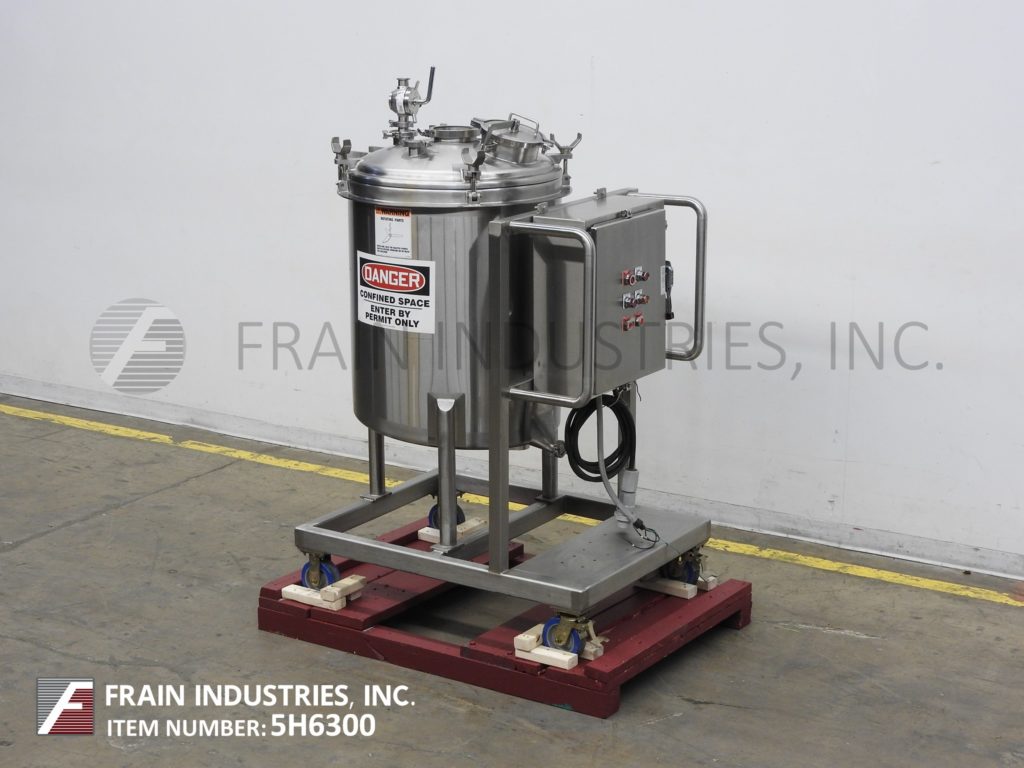

DCI 100gallon capacity, 304 stainless steel single wall tank. Vessel dimensions: 30" diameter x 32" deep. Equipped with dome bolt down cover and fixed interior baffles. Slant bottom has 2" OD / 1½" ID Tri-Clamp style bottom discharge with 22" ground clearance. Mounted on stainless steel base with casters.
Top Access:
(1) 8½"OD / 8"ID Tri-calmp
(1) 6½"OD / 6"ID Tri-calmp
(2) 3½"OD / 3"ID Tri-calmp
(1) 2½"OD / 2"ID Tri-calmp
Vessel MAWP: .75 / -.08 PSI @ 250°F
OAD: 48"L x 36"W x 75"H
Get a Free Quote Call:630-629-9900
DCI Tank Processors 2000GAL
- Manufacturer:DCI
- Model Number:2000GAL
- Frain Number:5G5397
DCI, 2000 gallon capacity, 3-A 304 stainless steel jacketed and insulated process tank. Vessel dimensions: 86" diameter x 86" straight wall. Equipped with 3 zone dimpled jacket, dome top, dish bottom, 3 Hp top mounted sweep agitator, CIP spray balls, 6" wide x 40" long baffle, 18½" diameter top man hole, bottom center pneumatic butterfly valve with 3½" OD / 3" ID tri-clamp style discharge with 20" ground clearance and 2½" threaded discharge with 20" ground clearance.
MAWP: 75 PSI @ 100°F
Jacket Ports: (1) 2" NPT
(1) 1½" NPT
(1) 1¼" drain
Top Ports: (1) 4¾"OD / 3¾"ID Tri-clamp
(1) 2"OD / ½"ID Tri-clamp
(1) 4" diameter open vent
MAWP: 75 PSI @ 100°F
OAD: 106"L x 95"W x 162"H
Get a Free Quote Call:630-629-9900

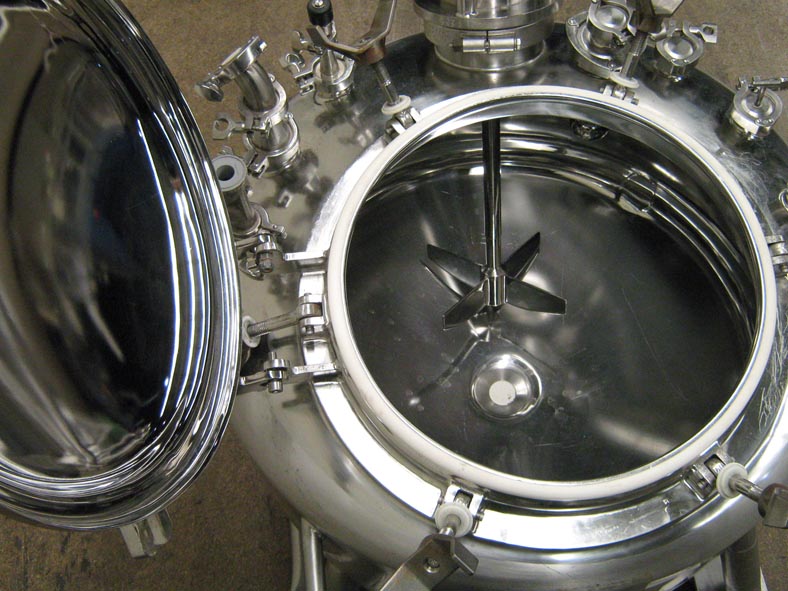

DCI Tank SS Single Wall 50 GAL
- Manufacturer:DCI
- Model Number:50 GAL
- Frain Number:5E8054

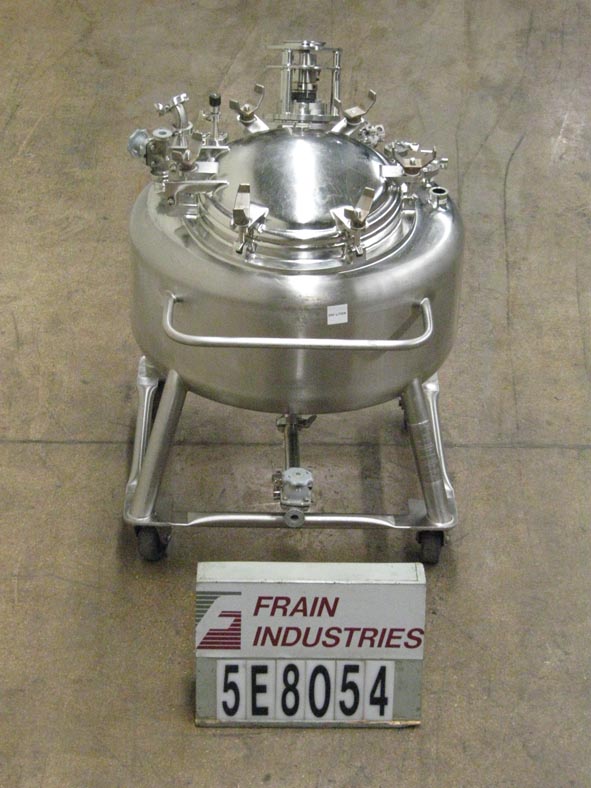

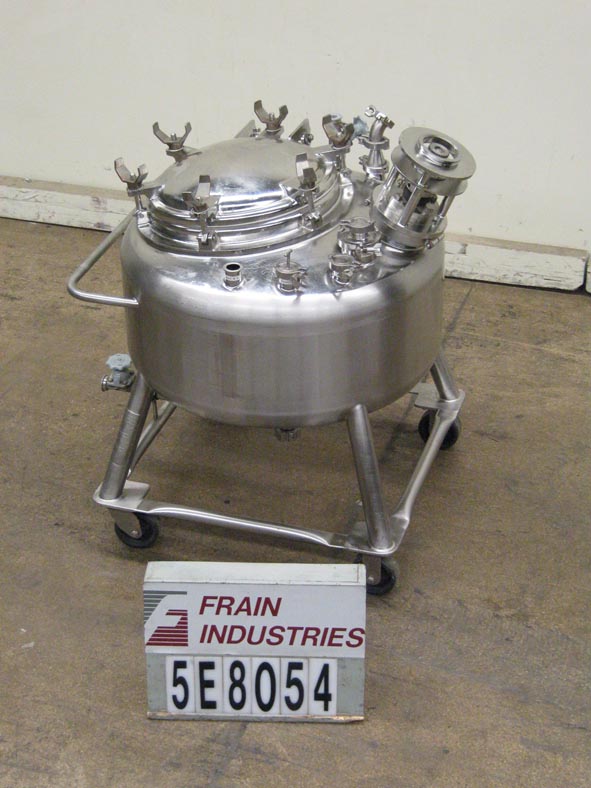

50 Gallon, 316L stainless steel, single wall mix tank. Equipped with 32" OD x 26" straight wall, dome top with 18" OD bolt down man way and top mounted prop style mixer, (2) 1-1/2" (4) 2" OD, (1) 2- 1/2" OD sanitary top ports. Dish bottom has 4" OD sanitary center bottom discharge with 12" floor clearance and is mounted on stainless steel base frame with casters. ASME "U" Stamped and National board rated.
MAWP 30/-15 psi @ 300 deg F
MDMT 30/-15 psi at -20 deg F
OAD: 38" L x 36" W x 47" H
Get a Free Quote Call:630-629-9900
DCI Tank Processors 800 GALLON
- Manufacturer:DCI
- Model Number:800 GALLON
- Frain Number:5F6756
DCI, 800 Gallon, side and bottom jacketed, insulated 304 stainless steel mixing tank. Vessel Dimensions: 76" Diameter; 44" Straight Wall. Jacket rating: 75 psi @ -20 to 150°F. Equipped with dome top, 19" flip-up / clamp down man way, two 4-1/2", two 3", two 2-1/2" OD top sanitary ports, center bridge mounted 3 Hp prop agitator, cone bottom, 6" OD center bottom discharge at 24" floor clearance and stainless steel side access ladder. Mounted on four stainless steel legs.
OAD: 92" L x 76" W x 113" H
Get a Free Quote Call:630-629-9900
