Gold Cup Machines

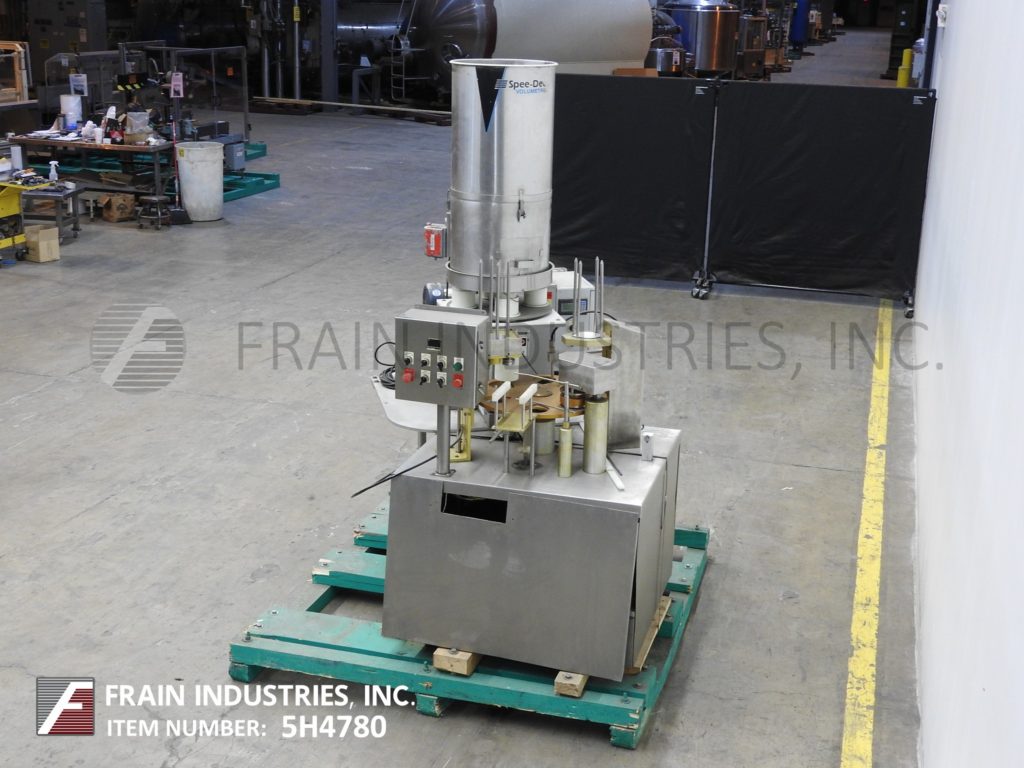

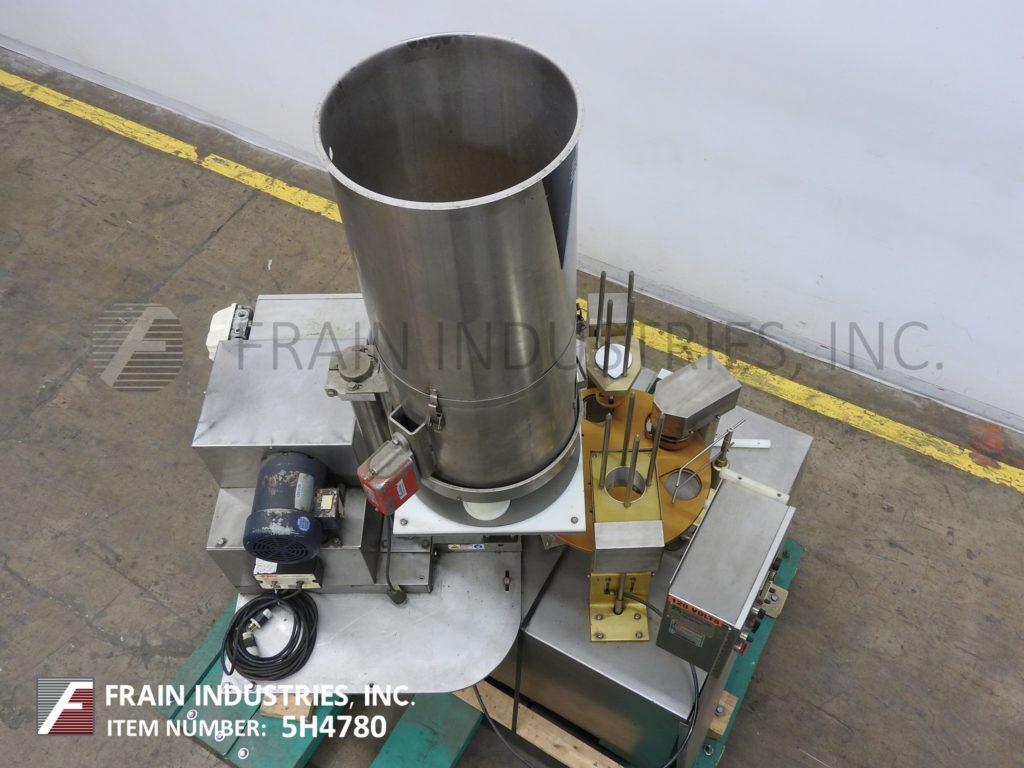

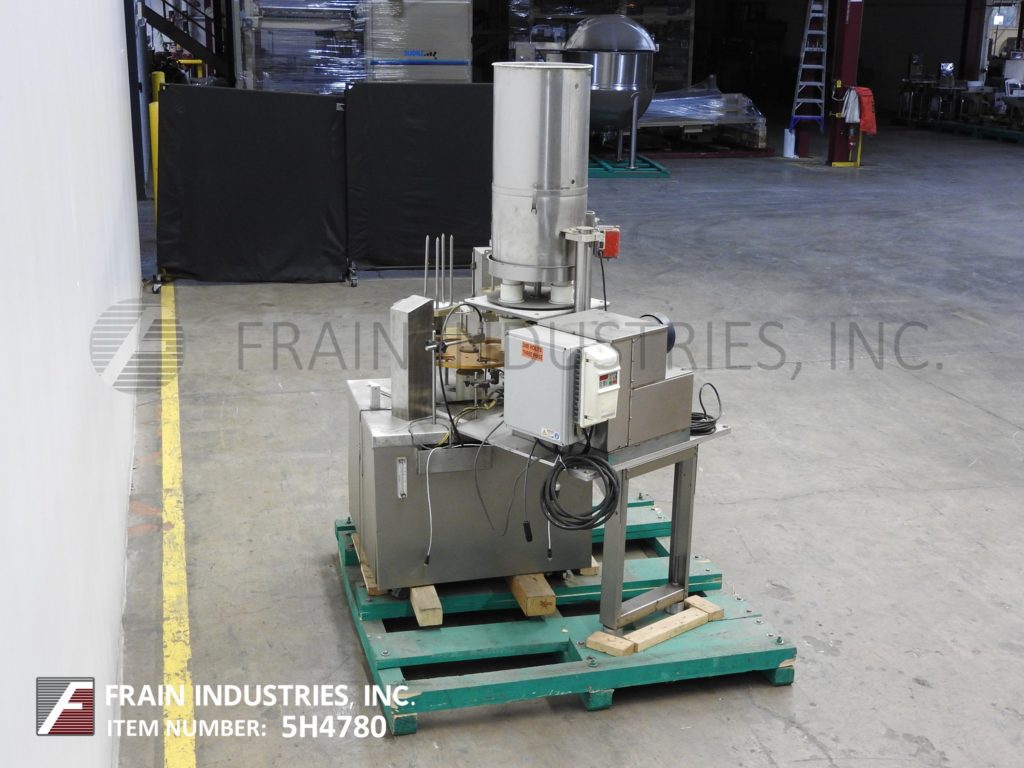

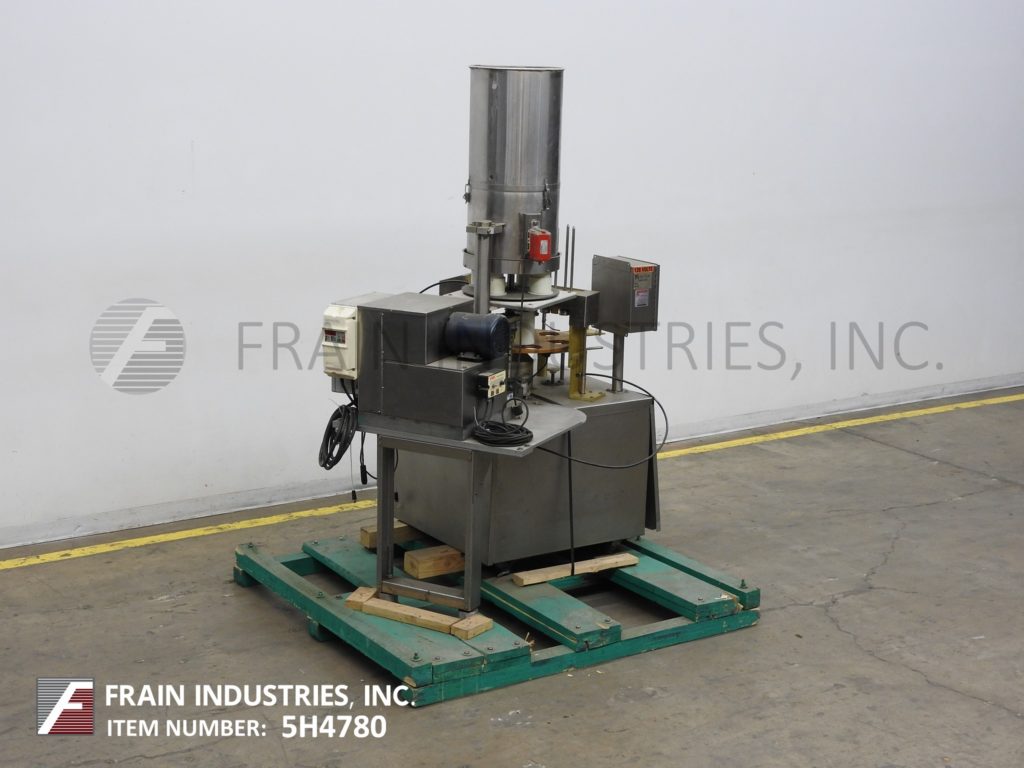

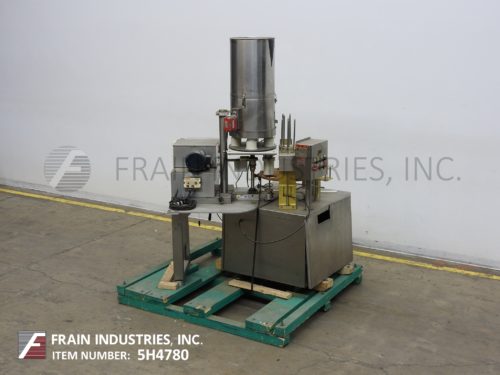

Gold Cup Filler Cup Rotary LCF-7

• Manufacturer:Gold Cup
• Model Number:LCF-7
• Frain Number:5H4780

Gold Cup, Model LCF-7, automatic, stainless steel intermittent motion, large cup, rotary cup filler and heat sealer. rated from 6 to 25 cups per minute – depending on materials, application, environment and machine configuration. Fill range: Fill range: 1/2 oz to 16 oz. Cup size up to: 5" Dia x 7-3/4" High, with proper change parts. Equipped with 21" OD rotary turn table with (6) cup pockets, screw cup denester, Spee Dee volumetric filler, pre-cut foil lid magazine with pic n place, pneumatic heat sealing head and sweep arm reject station. A/B controller with start, stop, jog, fill, vacuum, and heat, on / off switches and e-stop. Mounted on stainless steel base frame with casters.

OAD: 62"L x 58"W x 88"H

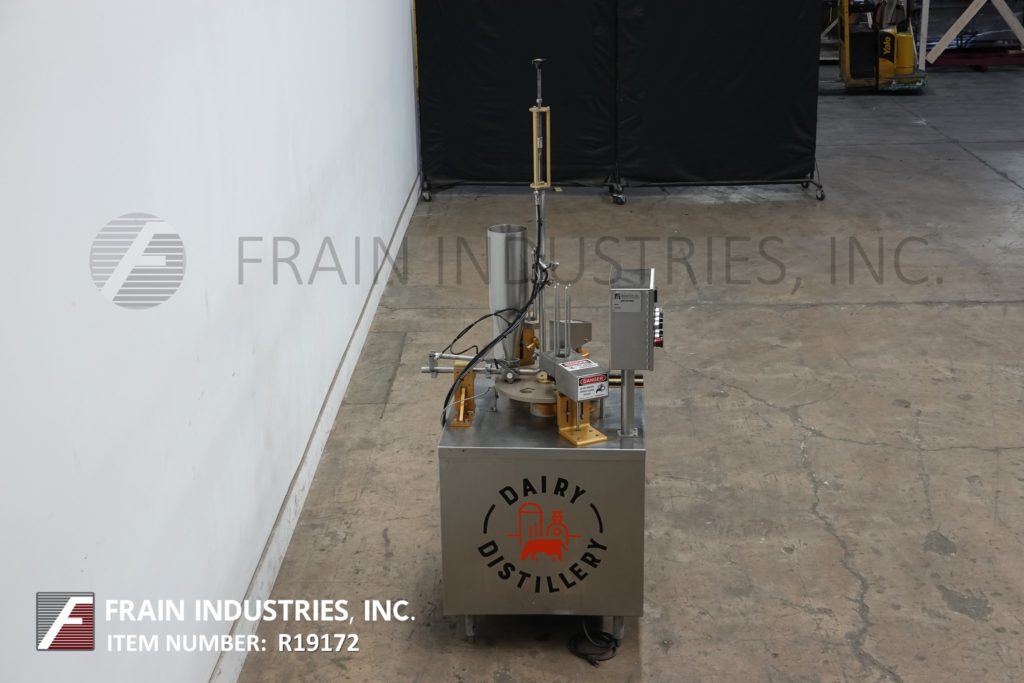

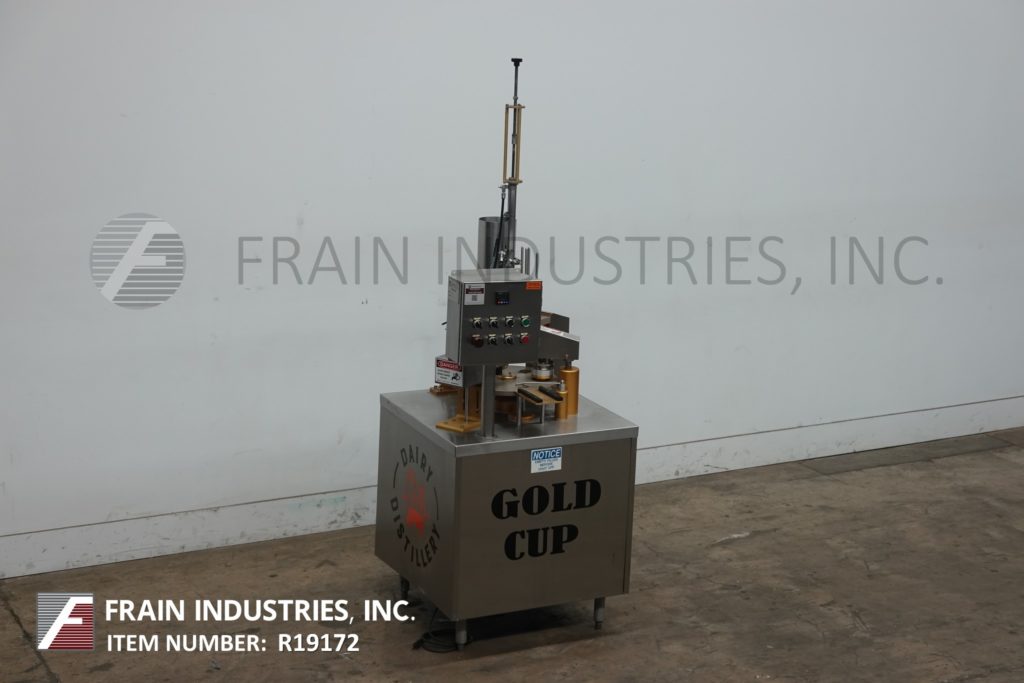

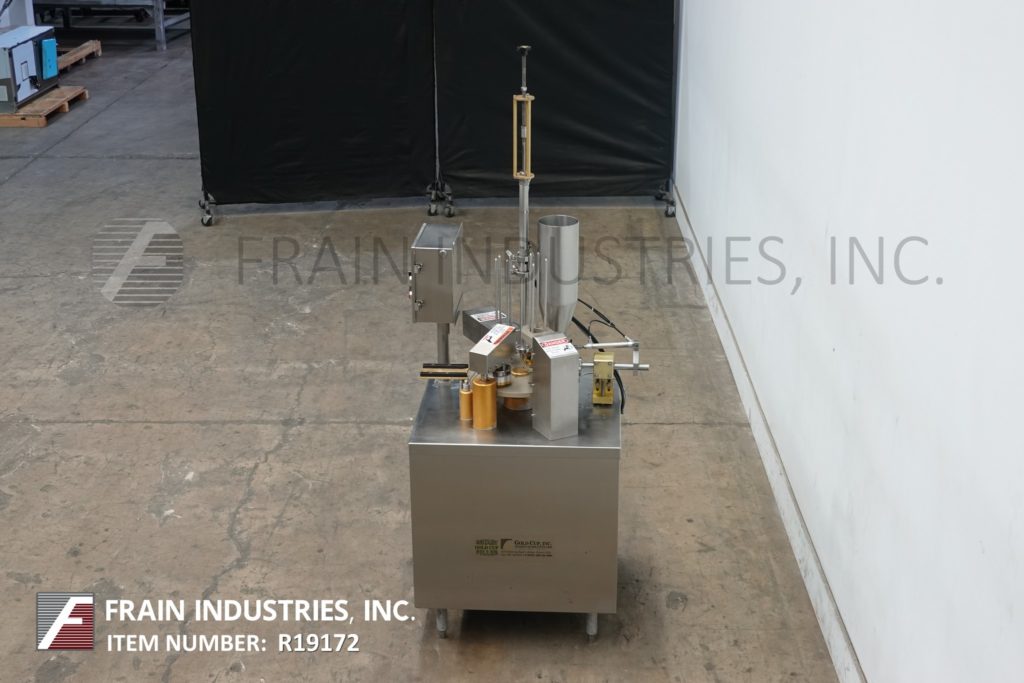

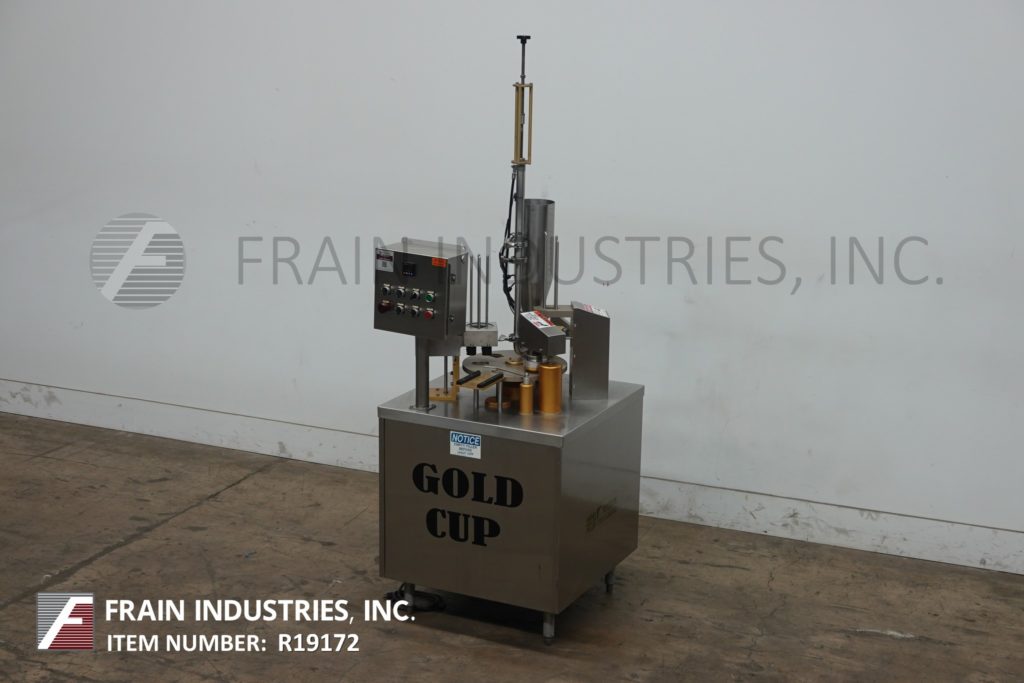

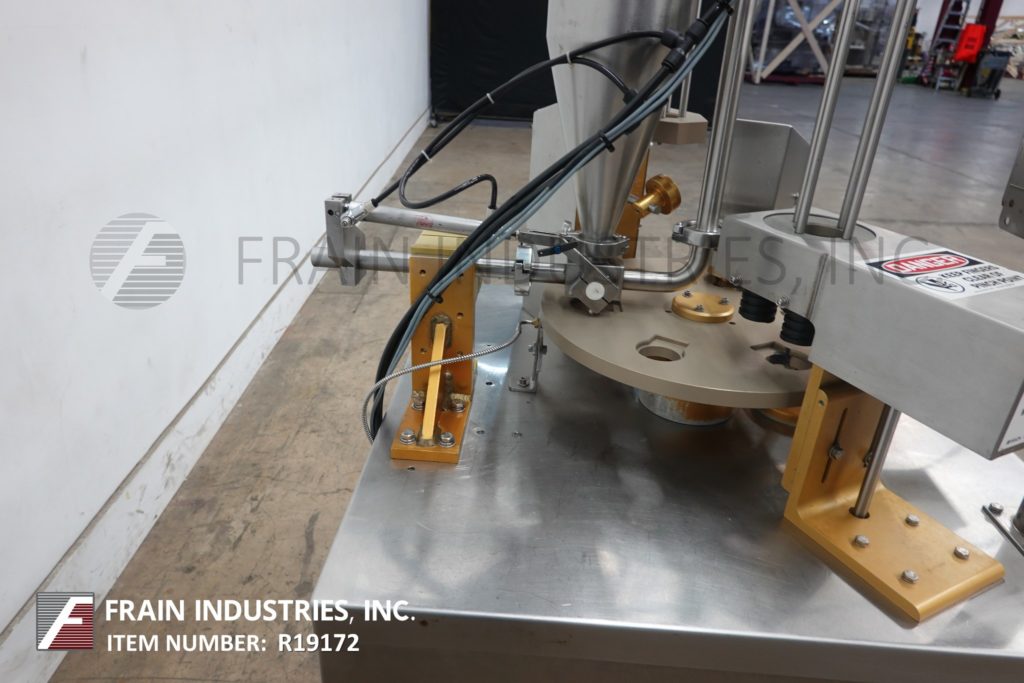

Gold Cup Filler Cup Rotary GC6-16

• Manufacturer:Gold Cup
• Model Number:GC6-16
• Frain Number:R19172

Gold Cup, Model GC6-16, stainless steel rotary cup filler / sealer. Fill range: 1/2 oz to 8 oz. Cup size: to 4" in Diameter; to 4-1/2" in Height. Equipped with cup denester, six pocket (16") rotary table, die-cut foil lid magazine with pic n place, heat sealing station and sweep arm reject. Controller with start, stop, jog, fill, vacuum, and heat, on / off switches and e-stop. Mounted on stainless steel base frame with casters. Speed dependant on materials, applcation and machine configuration. Change parts required to accommodate size range.

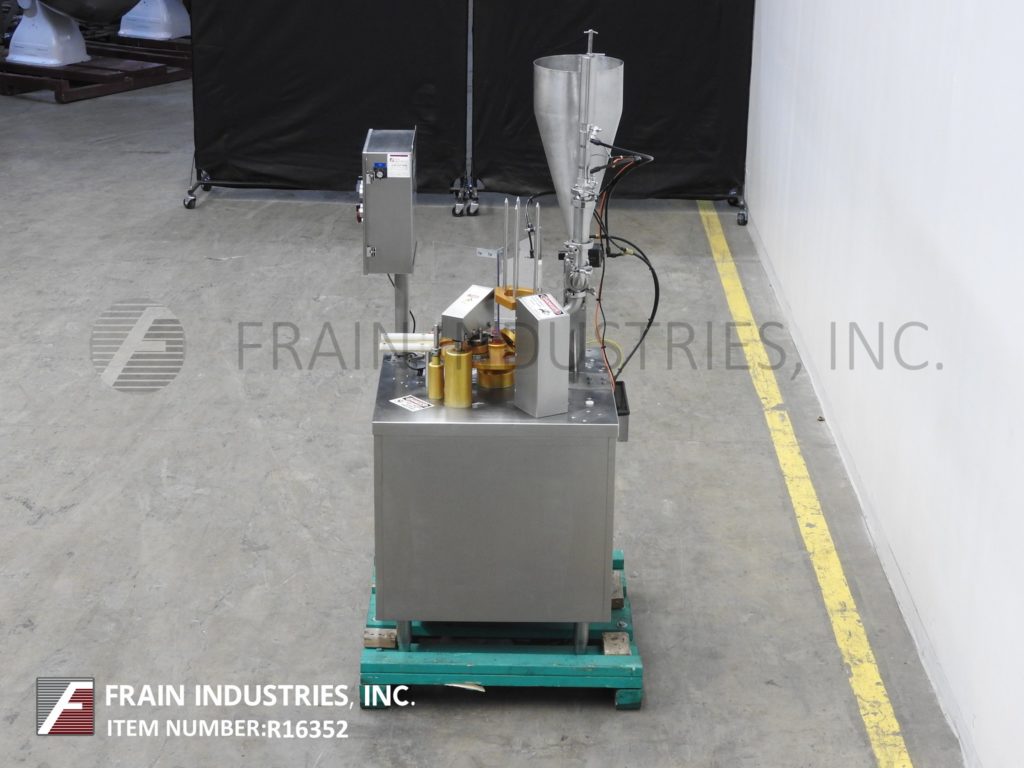

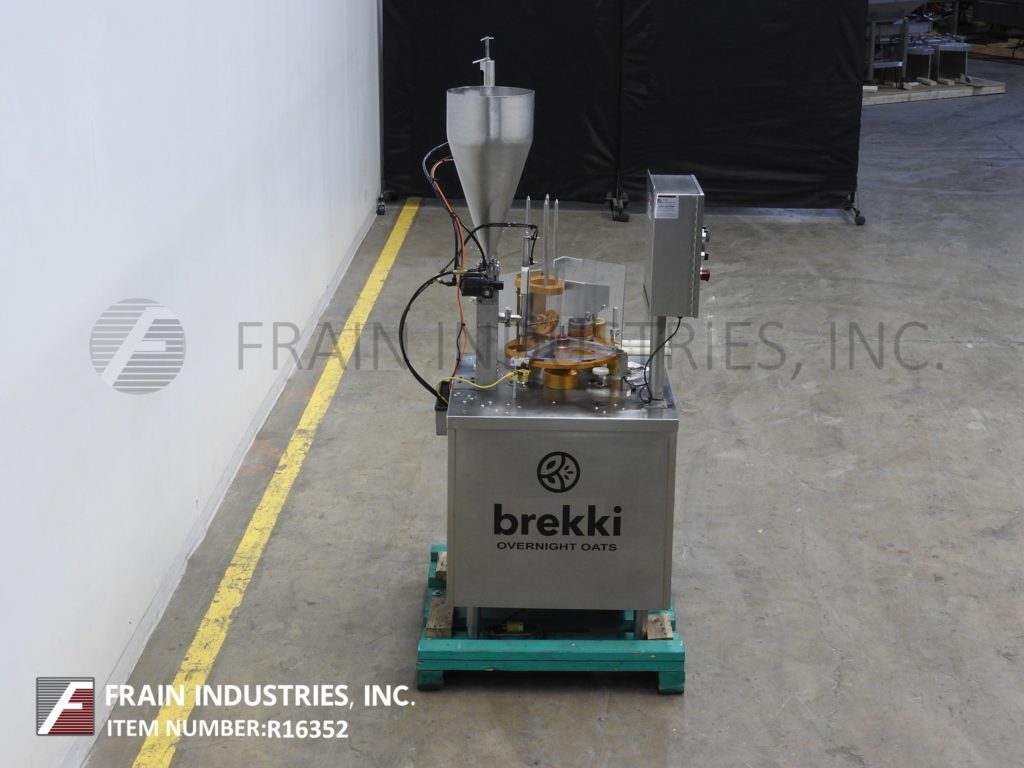

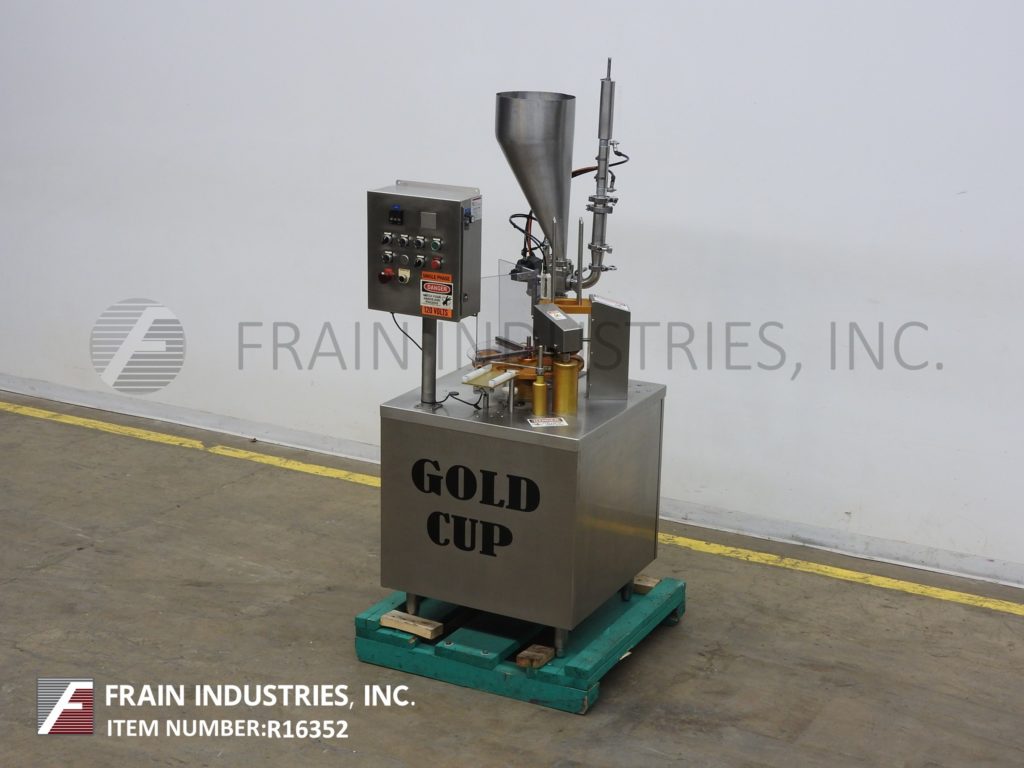

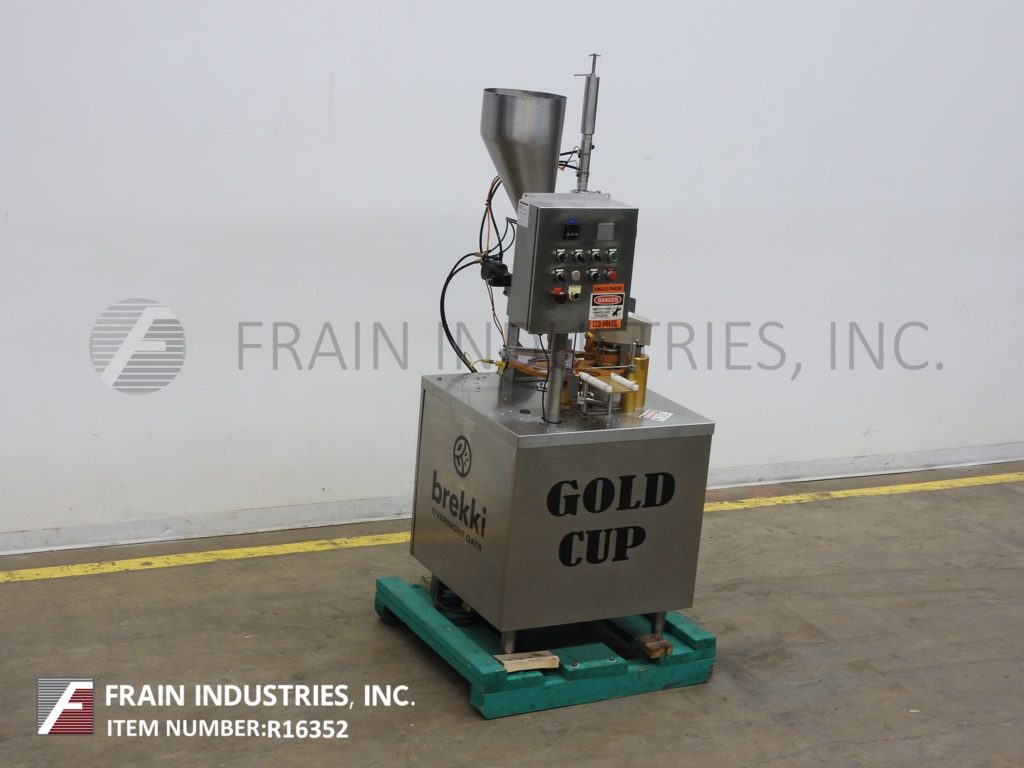

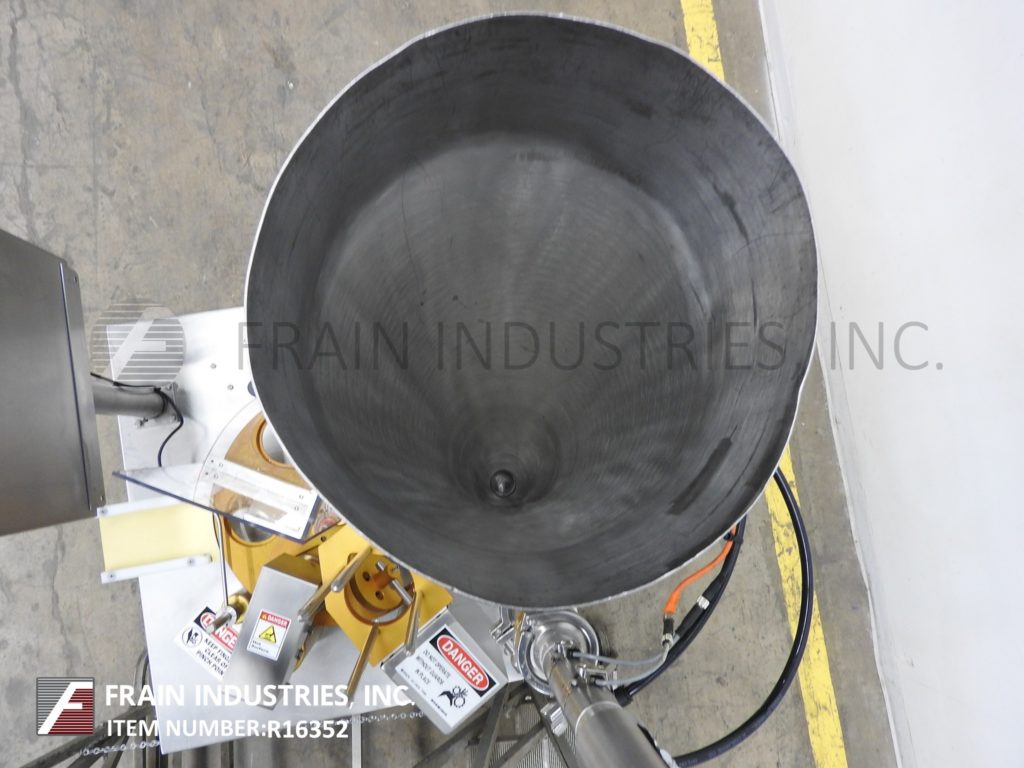

Gold Cup Filler Cup Rotary GFC-6

• Manufacturer:Gold Cup
• Model Number:GFC-6
• Frain Number:R16352

Gold Cup, Model GFC-6, automatic, stainless steel intermittent motion, rotary cup filler and heat sealer. rated from 6 to 25 cups per minute – depending on materials, application, environment and machine configuration. Fill range: Fill range: 1/2 oz to 8 oz. Cup size up to: 4" Dia x 4-1/2" High, with proper change parts. Equipped with 16" OD rotary turn table with (6) cup pockets, screw cup denester, pre-cut foil lid magazine with pic n place, pneumatic heat sealing head and sweep arm reject station. A/B controller with start, stop, jog, fill, vacuum, and heat, on / off switches and e-stop. Mounted on stainless steel base frame with casters.

OAD: 38" L x 34" W x 60" H With Hopper

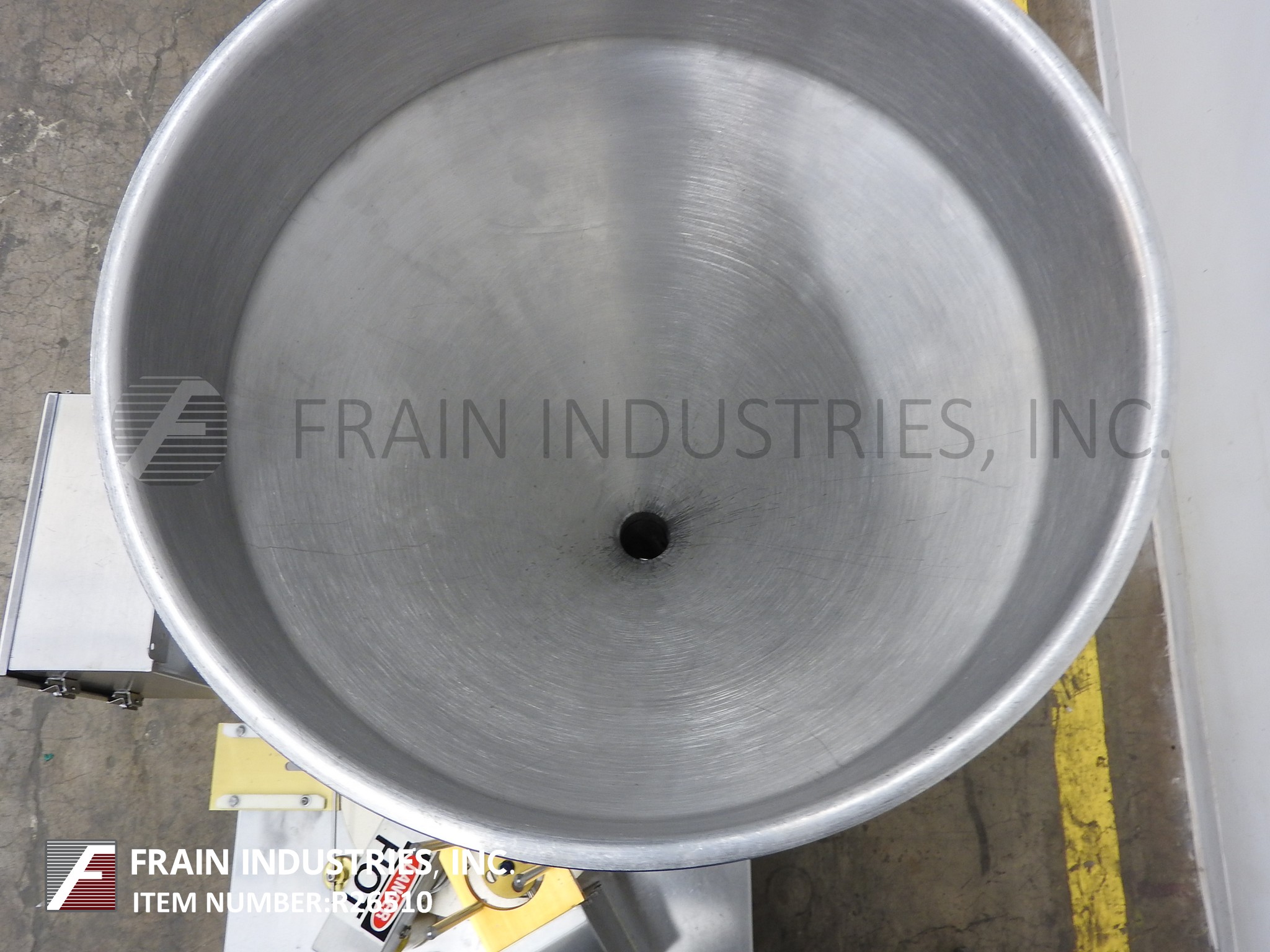

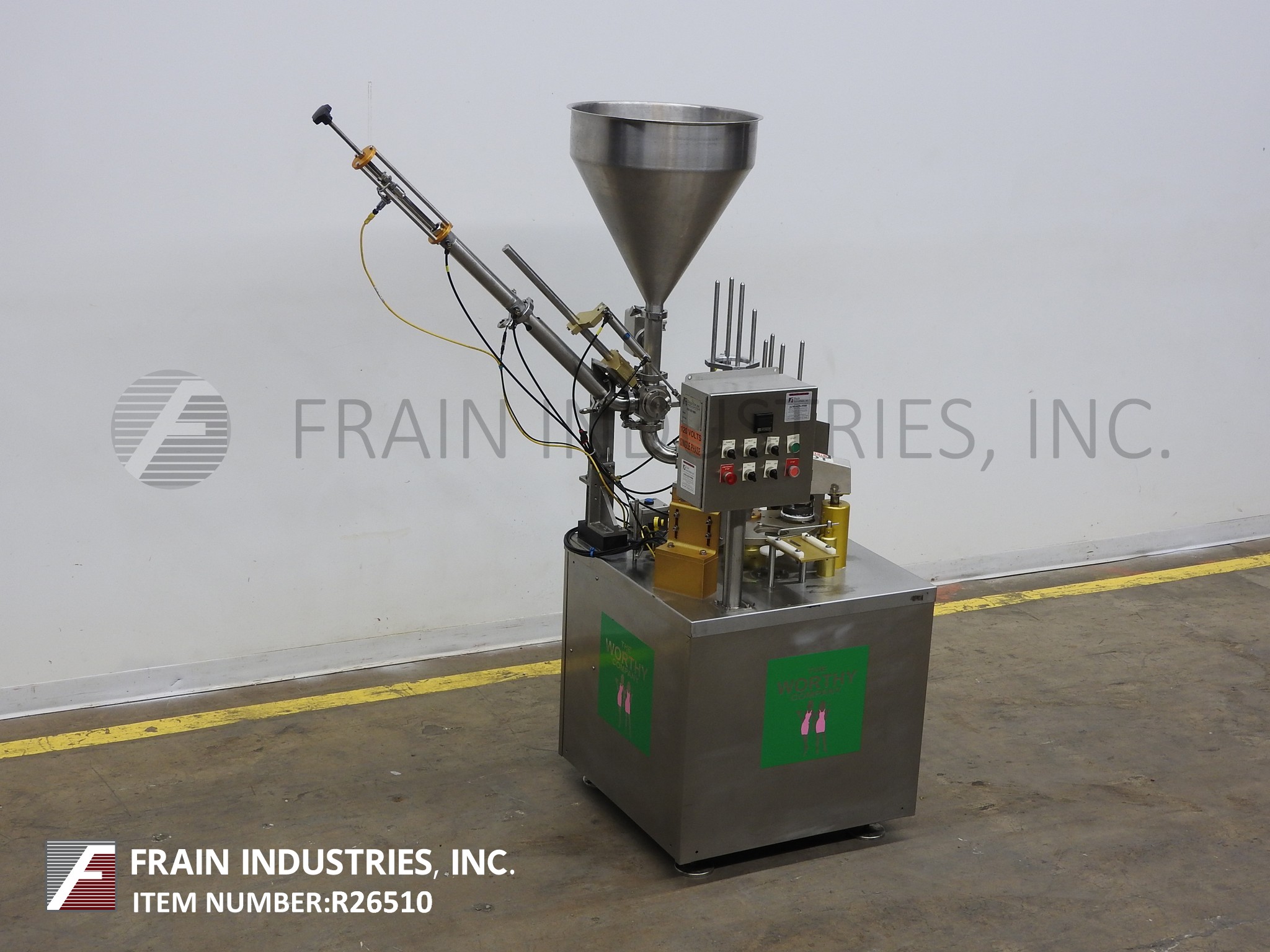

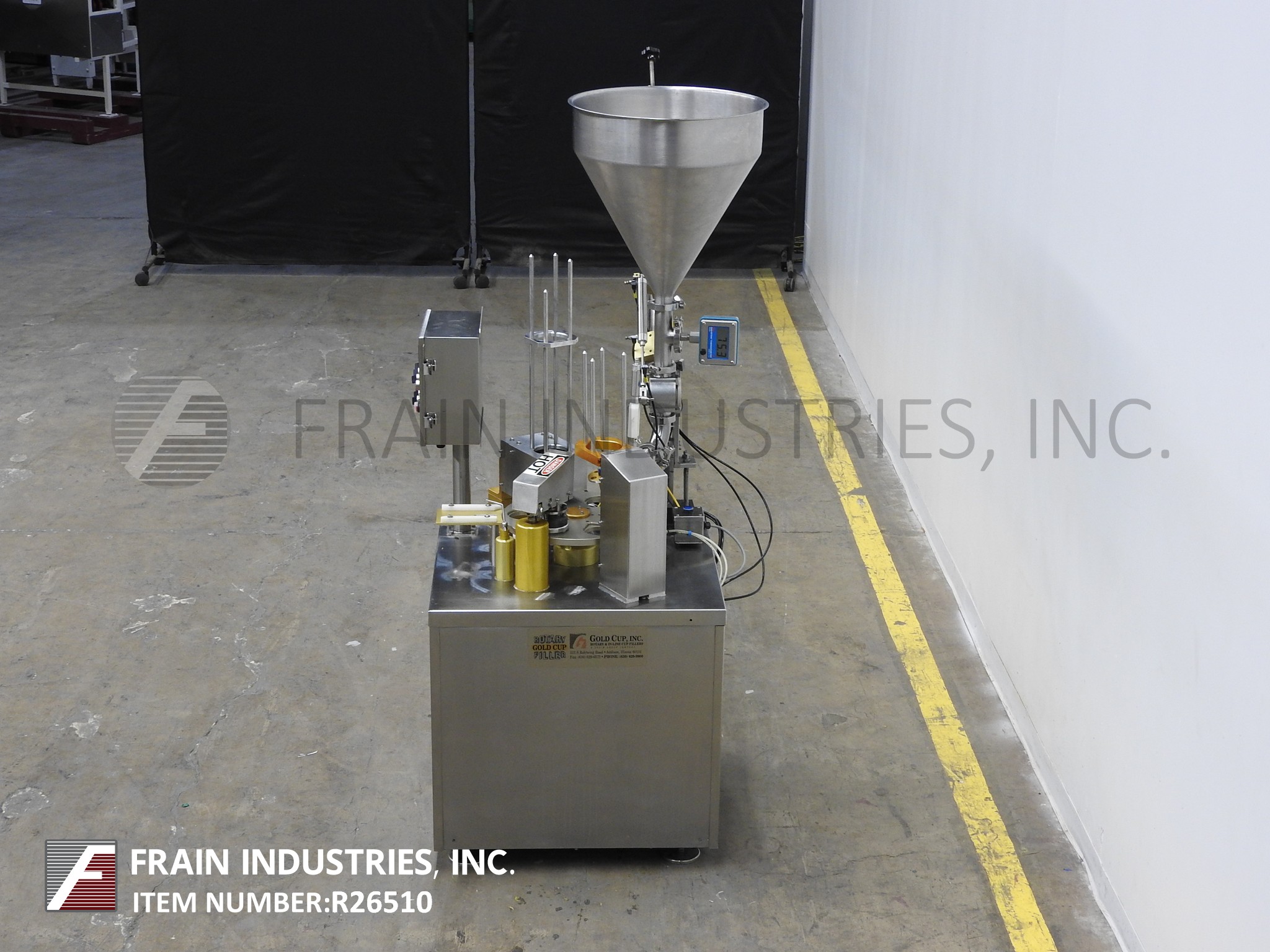

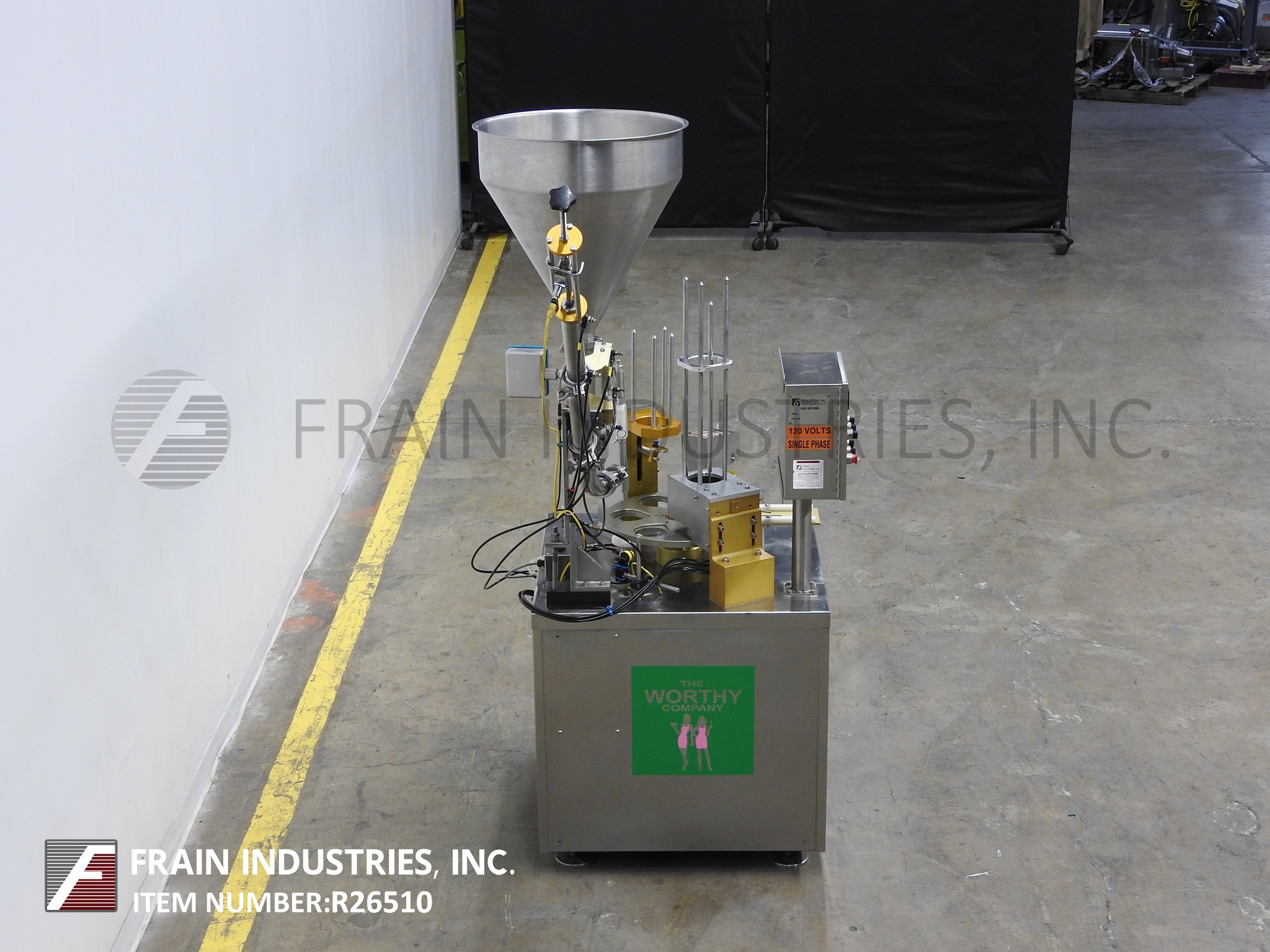

Gold Cup Filler Cup Rotary GC6-16

• Manufacturer:Gold Cup
• Model Number:GC6-16
• Frain Number:R26510

金盃,GC6-16模型,自动、不锈钢intermittent motion, rotary cup filler and heat sealer. rated from 6 to 25 cups per minute – depending on materials, application, environment and machine configuration. Fill range: Fill range: 1/2 oz to 8 oz. Cup size up to: 4" Dia x 4-1/2" High, with proper change parts. Equipped with 16" OD rotary turn table with (6) cup pockets, screw cup denester, pre-cut foil lid magazine with pic n place, pneumatic heat sealing head and sweep arm reject station. A/B controller with start, stop, jog, fill, vacuum, and heat, on / off switches temp heat seal controller, fill time counter and e-stop. Mounted on stainless steel base frame with casters.

OAD: 32" L x 32" W x 56" H without Hopper
32" L x 32" W x 79" H With Hopper

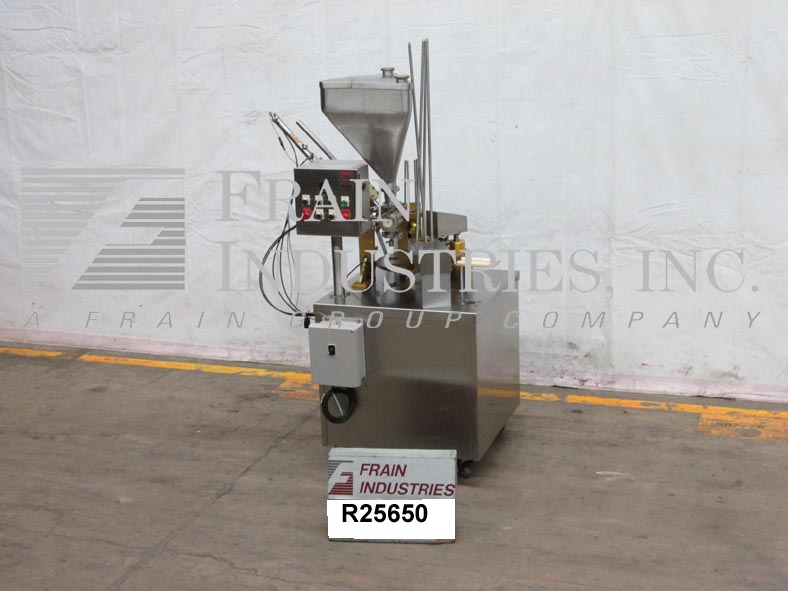

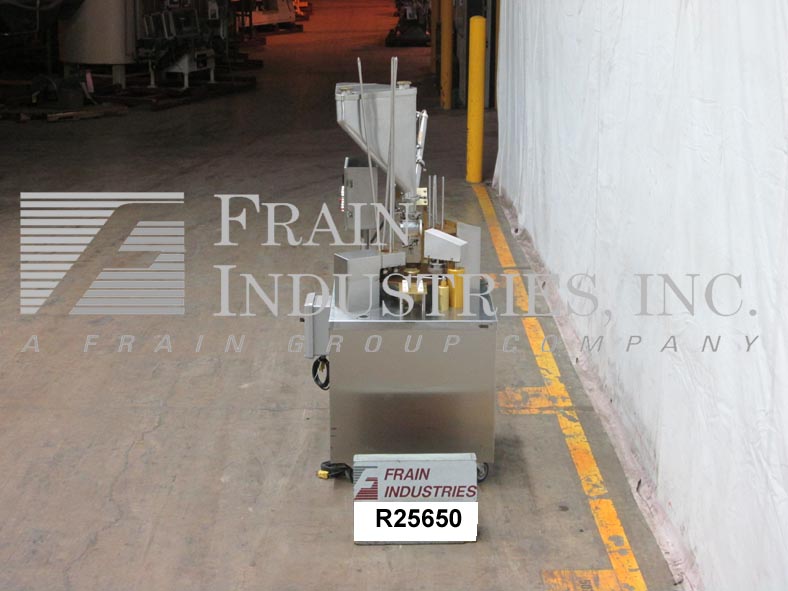

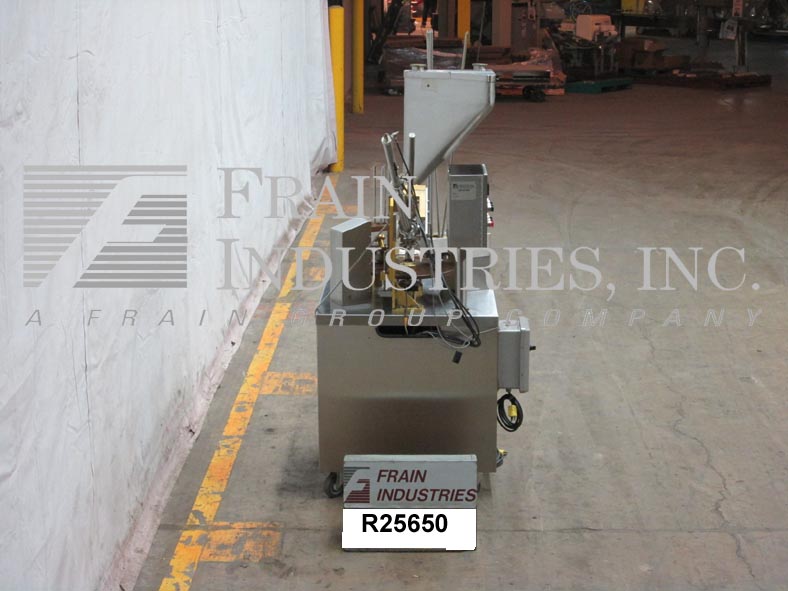

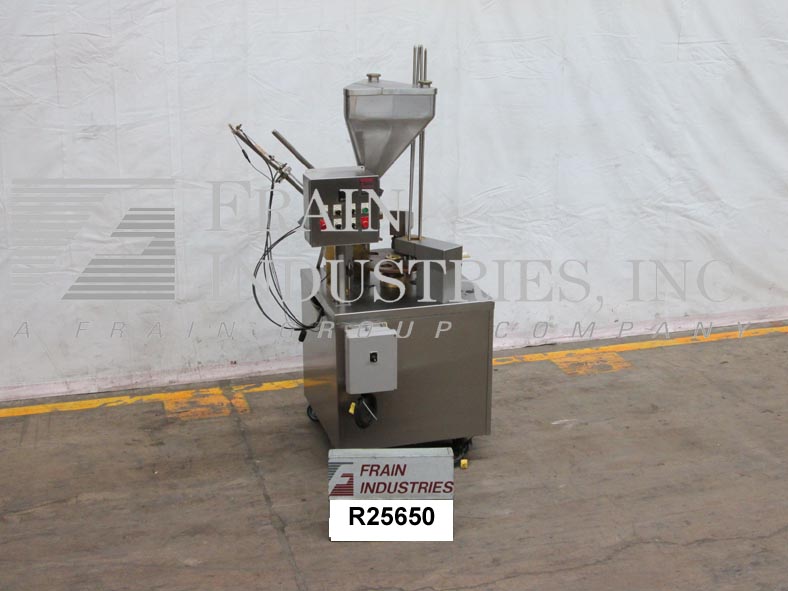

Gold Cup Filler Cup Rotary GFC-6

• Manufacturer:Gold Cup
• Model Number:GFC-6
• Frain Number:R25650

PART OF COMPLETE LINE

Gold Cup, Model GFC-6, automatic, intermittent motion, rotary cup filler, heat sealer rated from 5 to 30 cups per minute – depending on materials and application. Fill range: Fill range: 1/2 oz to 8 oz. with proper change parts. Cup size up to: 4" diameter x 4-1/2" high. Equipped with 5 gallon hopper, 16" OD rotary turn table, cup denester with 36" high cup magazine, positive displacement filler, pre-cut foil lid magazine with pic n place, pneumatic heat sealing head and sweep arm reject station. Control panel with start, stop, fill, vacuum and heat on / off switches on, off and jog / run controls with e-stop and mounted on stainless steel base with locking casters.

OAD: 45"L x 36"W x 80"H

Gold Cup Filler Cup Rotary GC6-16

• Manufacturer:Gold Cup
• Model Number:GC6-16
• Frain Number:R20274

金盃,GC6-16模型,自动、不锈钢intermittent motion, rotary cup filler and heat sealer. rated from 6 to 25 cups per minute – depending on materials, application, environment and machine configuration. Fill range: Fill range: 1/2 oz to 8 oz. Cup size up to: 4" Dia x 4-1/2" High, with proper change parts. Equipped with 16" OD rotary turn table with (6) cup pockets, screw cup denester, pre-cut foil lid magazine with pic n place, pneumatic heat sealing head and sweep arm reject station. A/B controller with start, stop, jog, fill, vacuum, and heat, on / off switches and e-stop. Mounted on stainless steel base frame with casters.

OAD: 32" L x 32" W x 56" H without Hopper

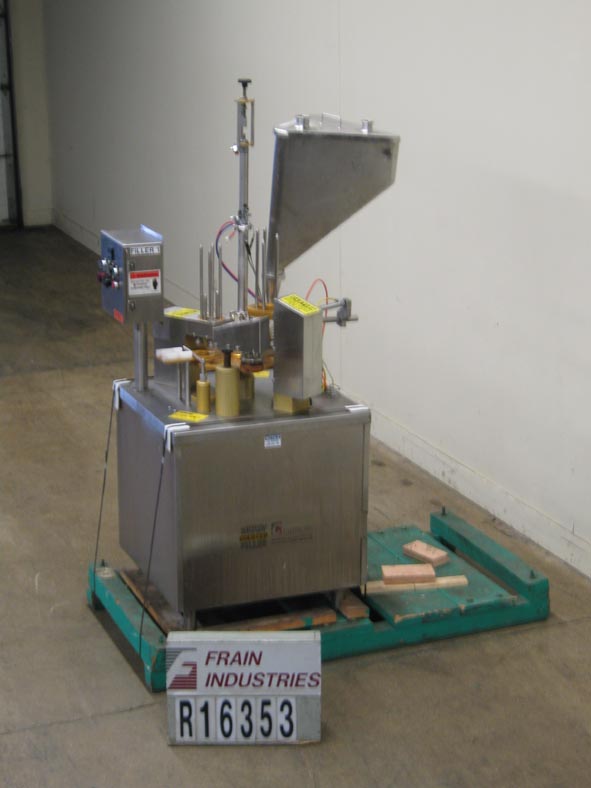

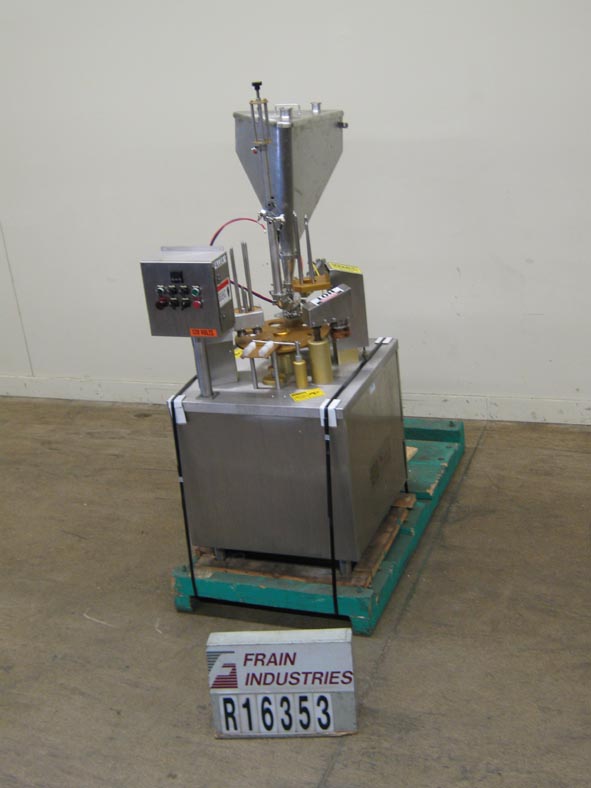

Gold Cup Filler Cup Rotary GC6

• Manufacturer:Gold Cup
• Model Number:GC6
• Frain Number:R16353

Automatic, stainless steel, rotary cup filler rated 10 to 30 cpm – depending on materials and application. Equipped with rotary table, cup denester, product hopper, piston fill station, die cut tamper-evident heat seal and sweep arm discharge station. Tooling required per application.

OAD:38"L x 34"W
