Klockner Hansel USA Crosio Machines

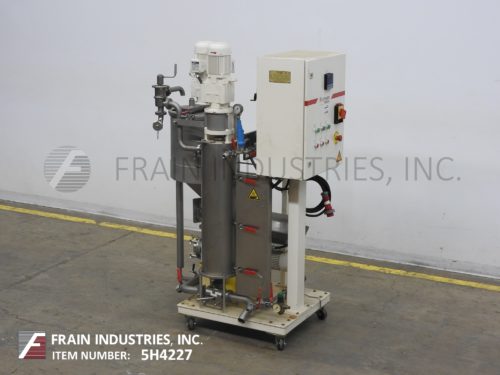

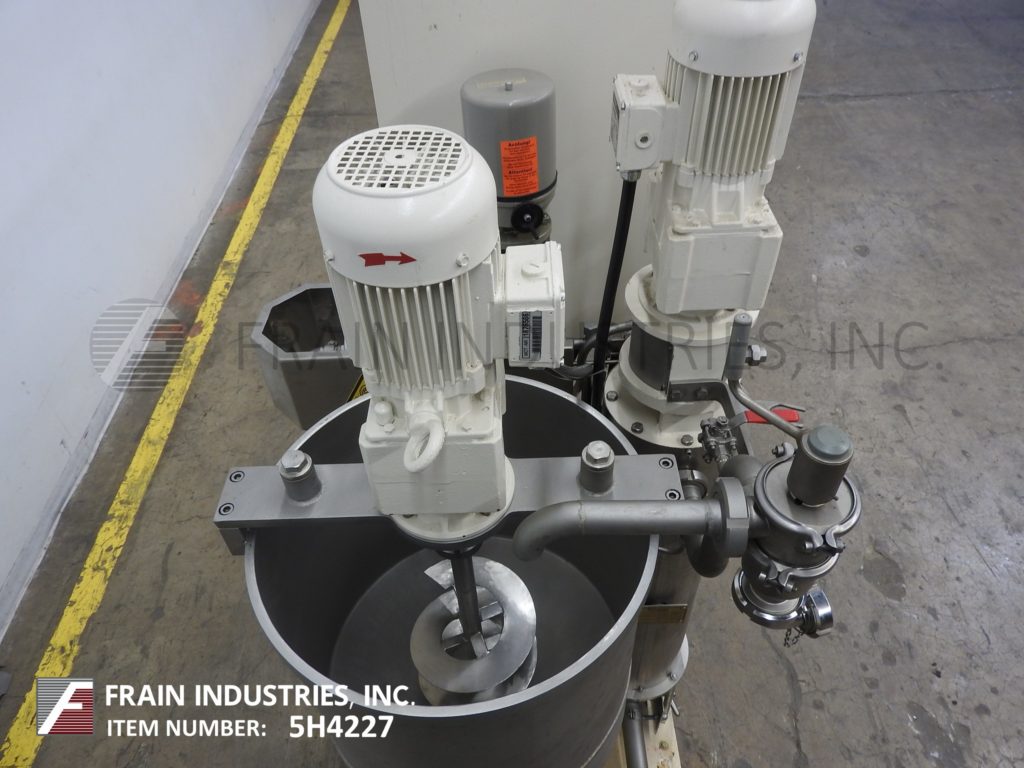

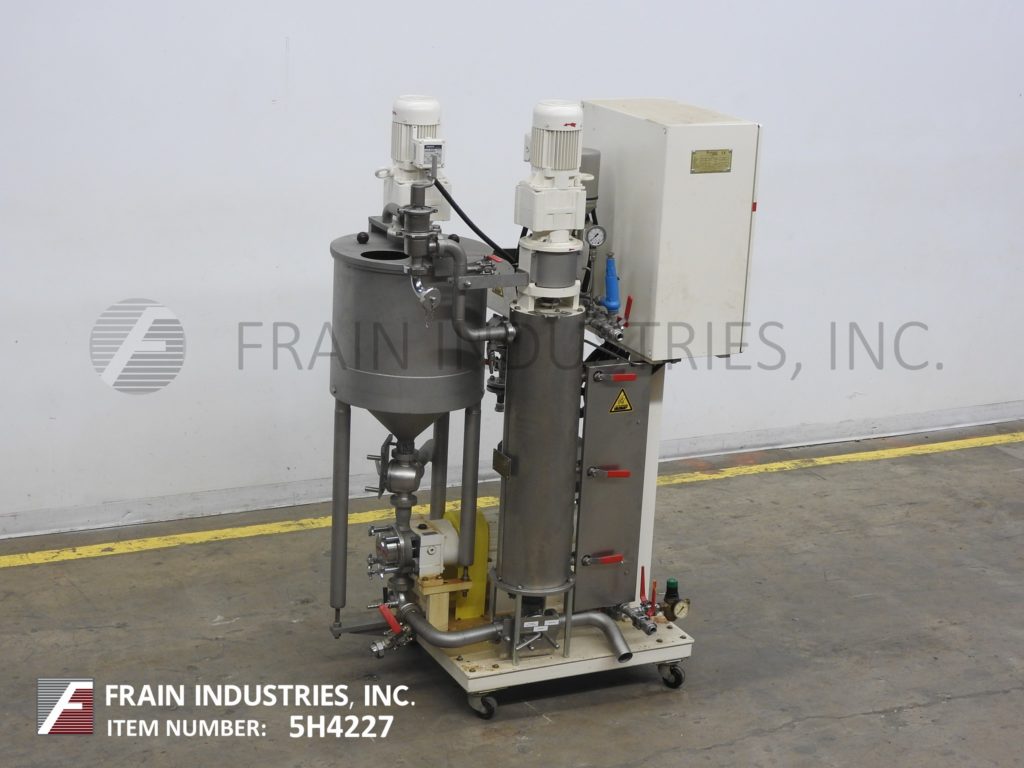

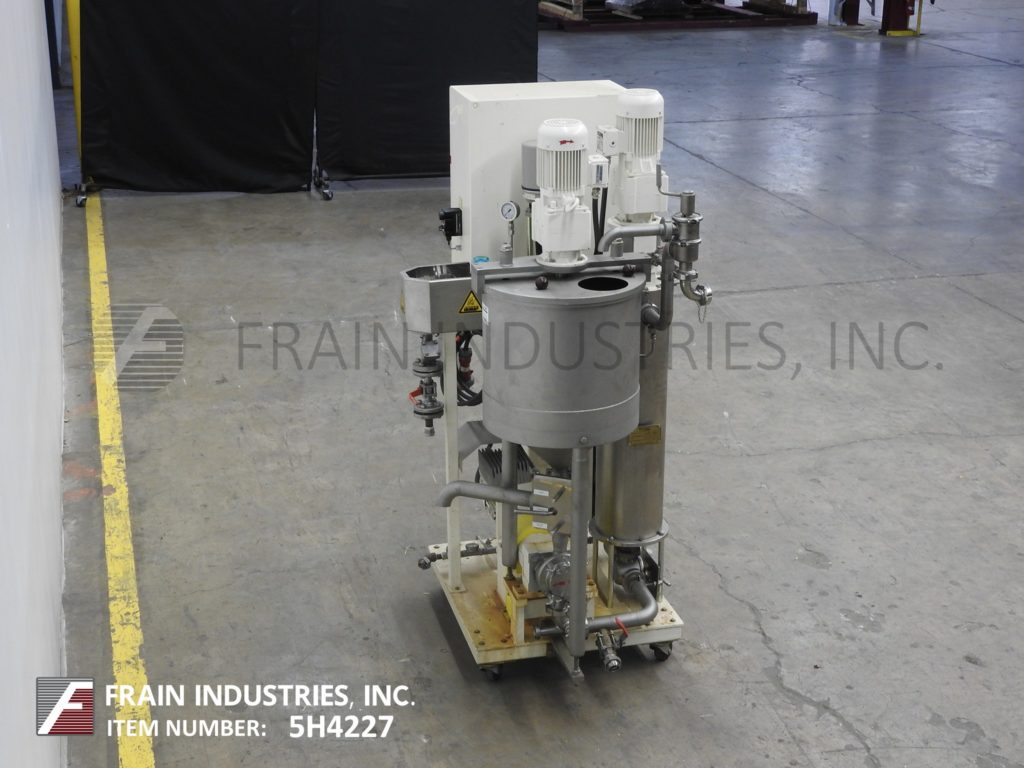

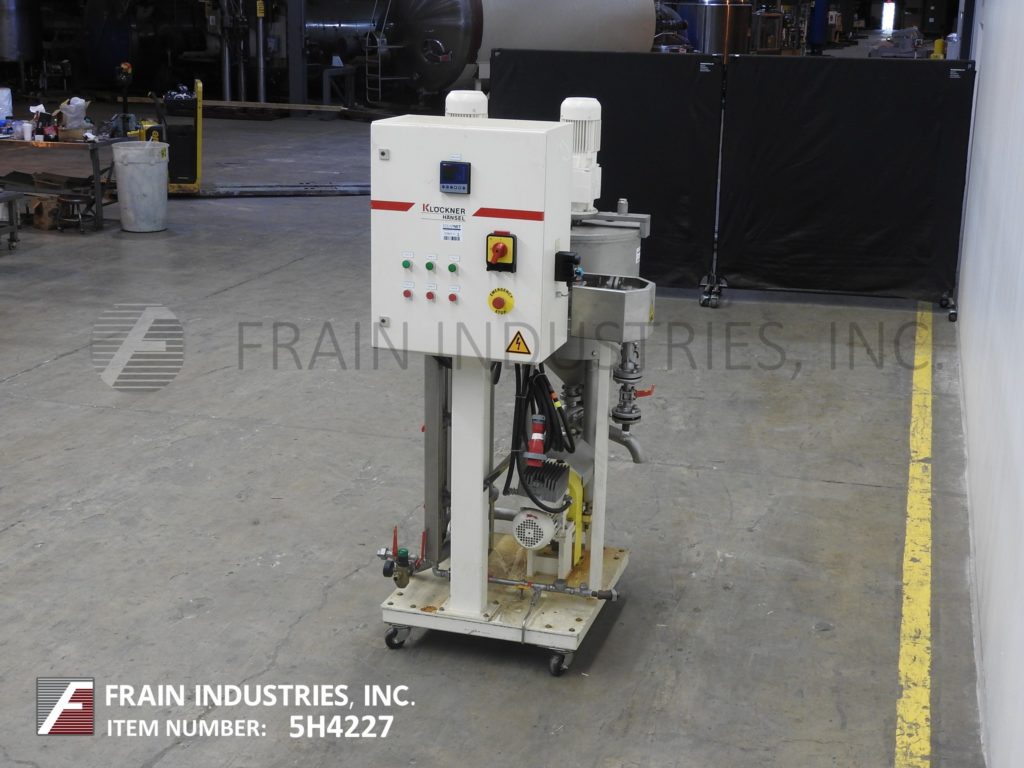

Klockner Hansel USA Crosio Mixer Liquid HSF

• Manufacturer:Klockner Hansel USA Crosio
• Model Number:HSF
• Frain Number:5H4227

Klockner Hansel, Model HSF, skid mounted mixing and cooking system. Equipped with a 20" diameter x 16" deep stainless steel single wall mixing tank with sprial agitation powered by a ¾ hp drive. Fristam, Model FKFNSH 25, positive displacement pump powered by a 1 hp drive and a scrape surface heat exchanger with a 4½ gallon capacity powered by a ½ hp drive. Control panel with push button start / stop and digital temperature controller.

MAWP: 30 PSI @ 132°C (269°F) [media]
MAWP: 43 PSI @ 100°C (212°F) [product]

OAD: 55"L x 40"W x 80"H

Klockner Hansel USA Crosio Candy Cookers GMHB

• Manufacturer:Klockner Hansel USA Crosio
• Model Number:GMHB
• Frain Number:5F3352

Klockner Hansel, 30 Gallon or 40 kg. batch size copper, single motion, vacuum kettle with amount of product per hour – depending on materials and application. Vessel dimensions: 24" in Diameter; 22" in Depth. MAWP: 80 psig @ 324° F. Vacuum rating: up to 30 Hg. Equipped with flip top cover, anchor style agitation, sight glass, swing out 24" diameter x 24" deep, vacuum bowl, 5 Hp Kinney vacuum system, jacket and vacuum pressure guage and hand tilt discharge. Control panel has push button controls with e-stop. The cooking / kettle facilitates the mixing, heating, and cooling of liquids and liquid-solid dispersions. Mounted on heavy duty frame.

OAD: 60" L x 48" W x 66" H

Klockner Hansel USA Crosio Candy Hard Candy 96A

• Manufacturer:Klockner Hansel USA Crosio
• Model Number:96A
• Frain Number:5F3353

Klockner Hansella Super Rostoplast 96A, high speed, rotary, seamless, hard candy die forming machine rated from 20 to 90 feet of sugar rope per minute with sizes and shapes – depending materials, application, die size and die arrangement. Equipped with 5-1/2" OD outer and 7-1/2" OD inner product rope feed rings driven and synchronised by the rotary die head into the die area to plunger forming the product. Has controller with run, stop and reset switch, die and die sizing heat control dials with e-stop. Operation: continuous production of seamless sweets, or tablets with or without centre filling and can be used as part of a complete production line or integrated into an existing line. Mounted on base frame with casters.

OAD: 40" L x 28" W x 55" H

Klockner Hansel USA Crosio Complete Line Candy ROTOMATE/STRADA

• Manufacturer:Klockner Hansel USA Crosio
• Model Number:ROTOMATE/STRADA
• Frain Number:5E4635A

Klockner Hansella, complete weighing, dissolving, rotary vacuum, cooking and forming system rated from 200 kg’s to 1000 kg’s of product per hour – depending on materials and application. Can be used for hard candy, hard candy with center fillings, soft caramels, jelly and chewy candy products. Line consists Rotomat continous roto cooking system which is a crystal free dissolving, pre cooking and vacuum cooking system for sugar water glucose slurry with continuous steam heat, holding tank and transfer pumps and a downstream Caramaster for the caramelisation process. Strada forming system for continuous production of formed sweets (unfilled, highly filled liquid) laminated for hard candy, chewy candy, toffee, eclairs production of unfilled up to highly filled quality candy with 15mm to 180mm per hour rope speeds, Consisting of batch roller with (6) stainless steel conical, ribbed rollers measuring 72" Long x 4" OD at base and 1-1/2" OD at tip and is used to shape product into 4 roller rope stringer system for precise centering of the filling mass within the sugar rope through the roller head of the rope sizing machine, to rope cutter and then to the cooling tunnel with chiller and air handling system. Mounted on heavy duty frames.
