Lodige USA Machines

Lodige USA Granulator High Shear L50

• Manufacturer:Lodige USA
• Model Number:L50
• Frain Number:R28770

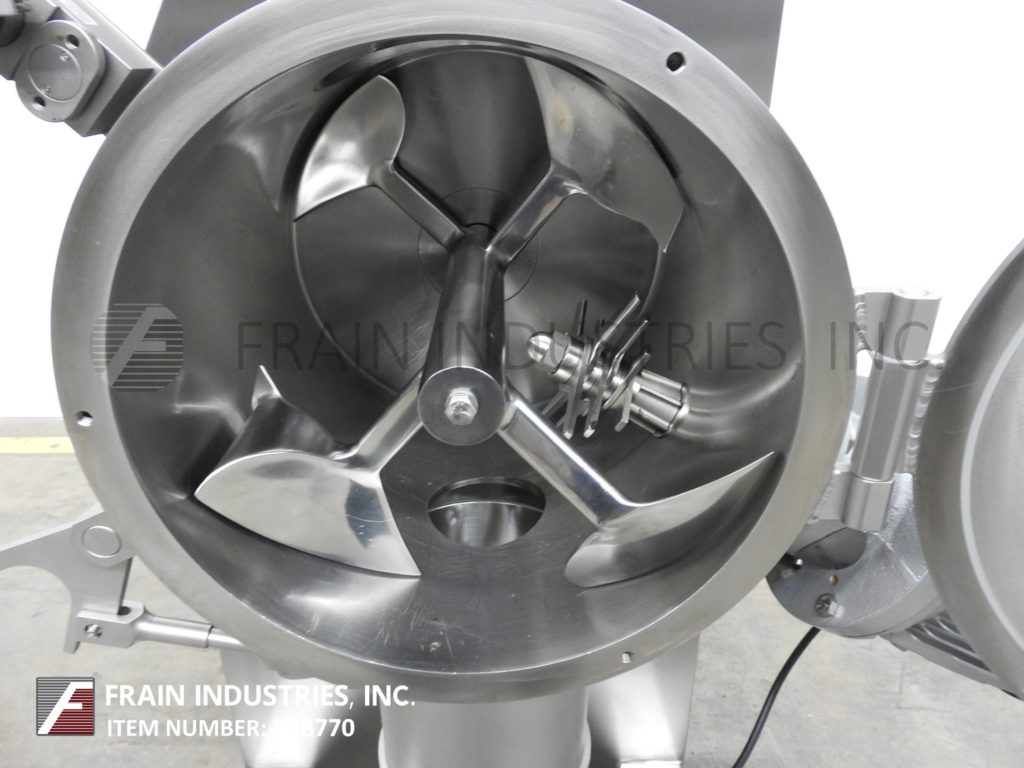

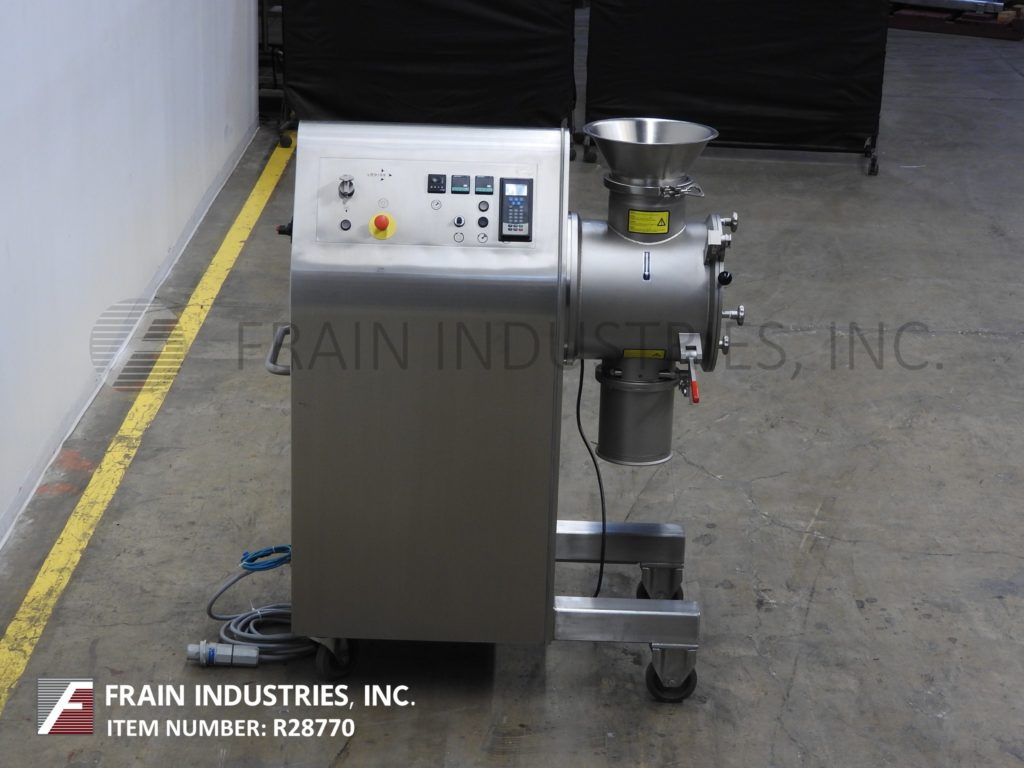

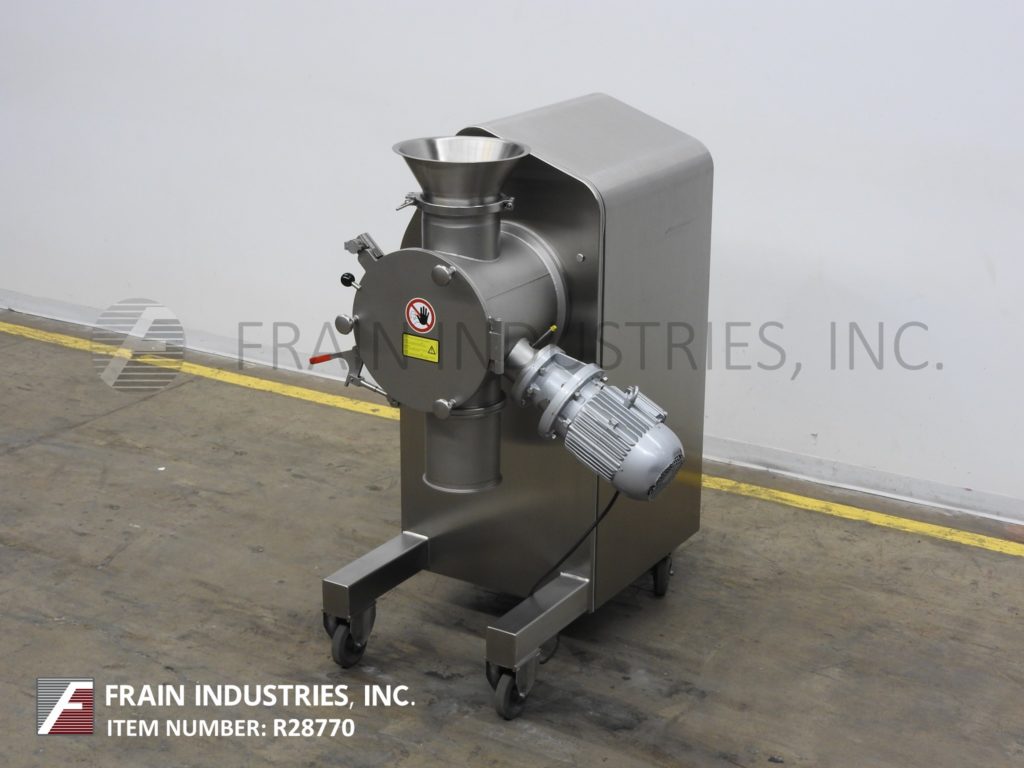

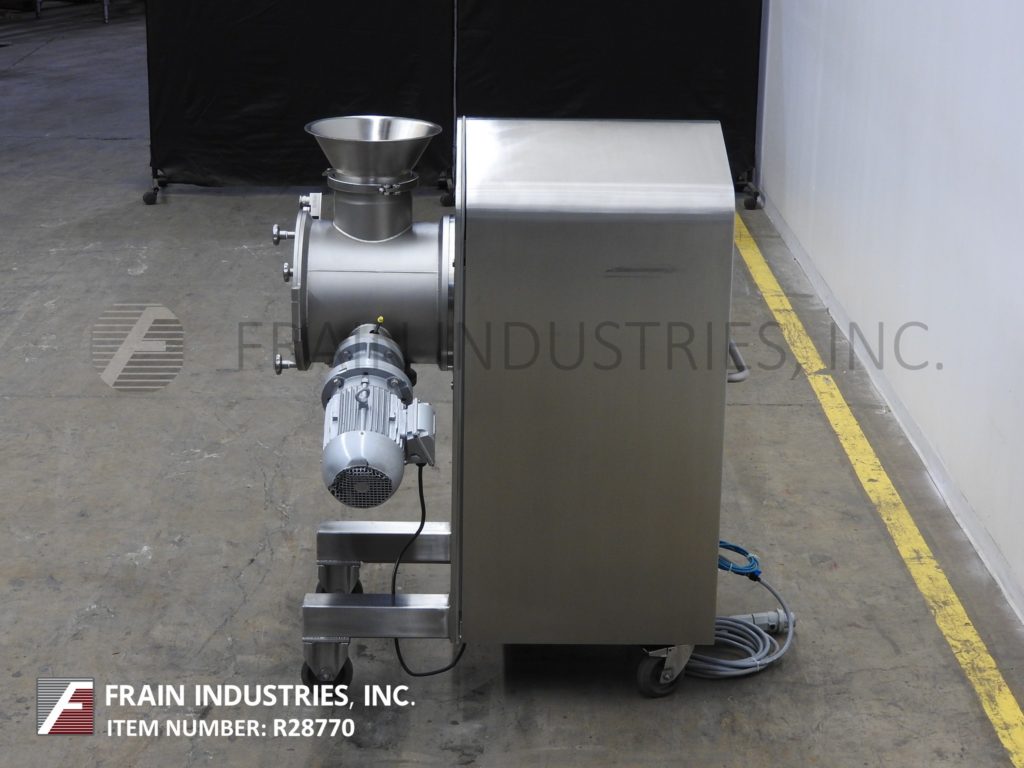

Lodige, Model L50, 50 Liter ( 1¾ ft³), 316 stainless steel mixer. Chamber dimensions: 15¾" diameter x 15¾" long. Equipped with (4) plows on 2" diameter shaft powered by a 5.3 Hp motor, 7" diameter (12) blade chopper with 5.3 Hp drive, front mounted bolt down access door, 13" diameter x 7" deep conical charge hopper and 9" OD / 8¼" ID Tri-clamp center bottom discharge with flush mounted flow valve and 25½" ground clearance. Control panel with push button start / stop and variable speed controls. Mounted on stainless steel frame with casters.

OAD: 54"L x 43"W x 65"H

Get a Free Quote Call:630-629-9900

Lodige USA Mixer Powder Plow FM130D

• Manufacturer:Lodige USA
• Model Number:FM130D
• Frain Number:5G9682

Lodige, Model FM-130D,130 litre total drum volume with 35 to 90 litre (1.2 ft³ to 3.2 ft³) working capacity ploughshare batch powder mixer with pounds of product per hour – depending on materials and application. Has 304 stainless steel contact parts. Chamber dimensions of: 19½" ID x 26½" Long with 12" x 20½" flip up, bolt down cover. Equipped with (4) bolt on mixing plows mounted on 3" OD shaft powered by 5.3 Hp motor to belt drive with safety cover. 6¼" x 4¾" center bottom flush valve discharge chute with 31" ground clearance and push button controls. Mounted on heavy duty base frame.

OAD: 54" L x 40" W x 63" H

Get a Free Quote Call:630-629-9900
