Feldmeier Tank Reactor SS 40 GALLON

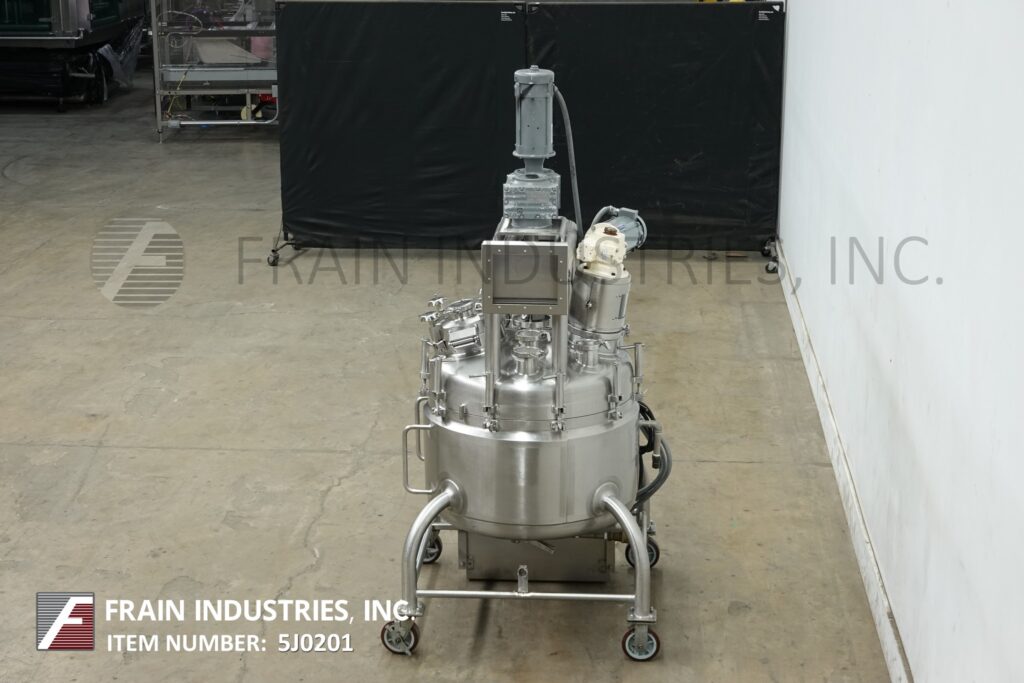

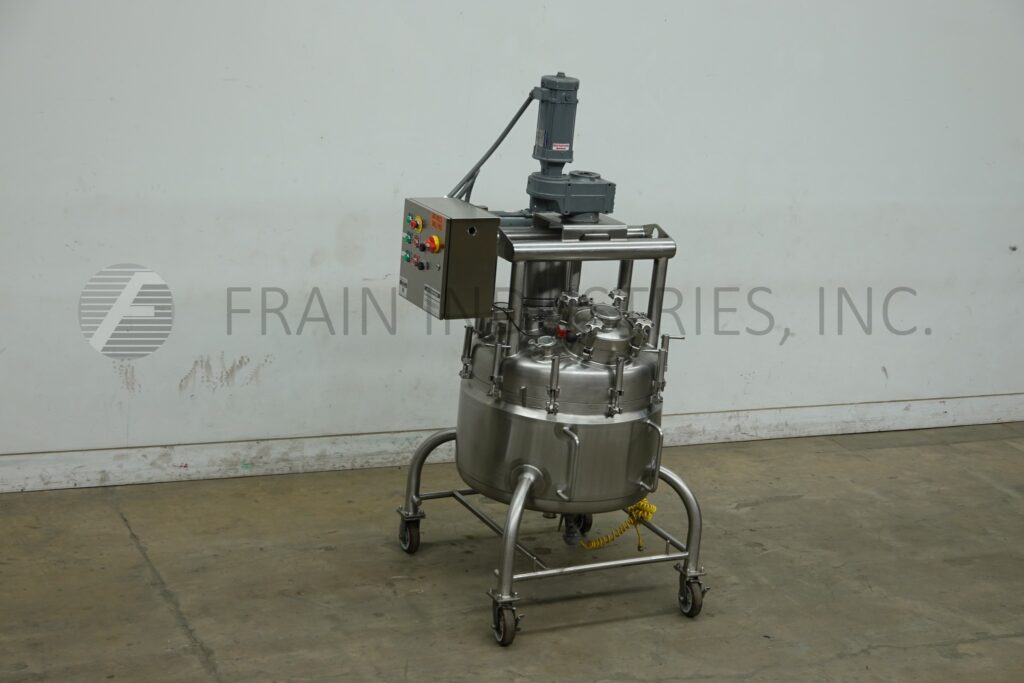

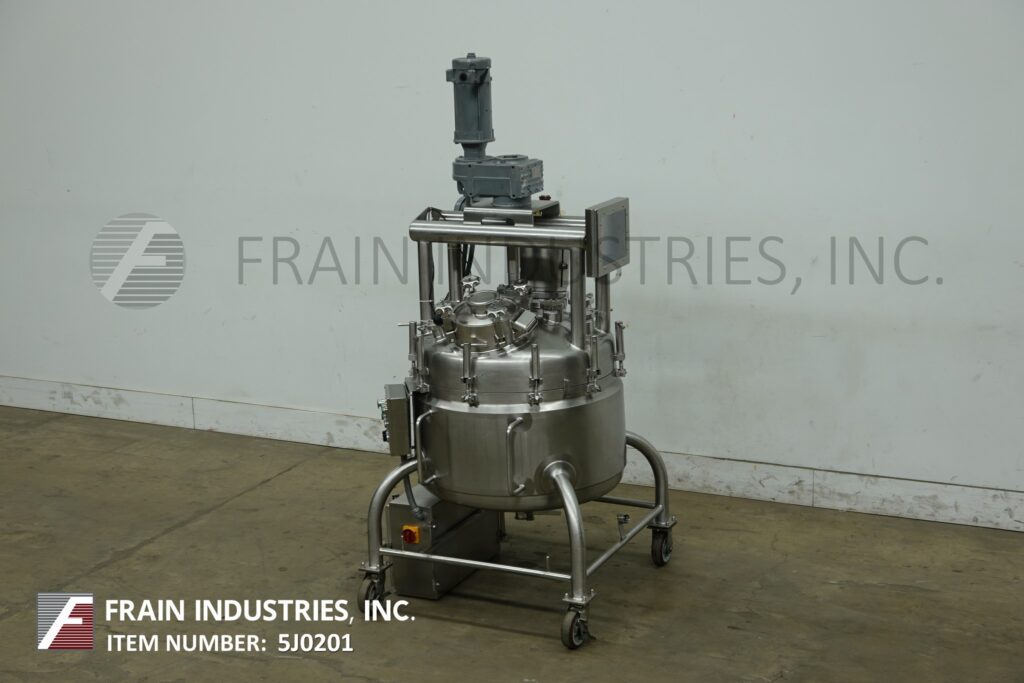

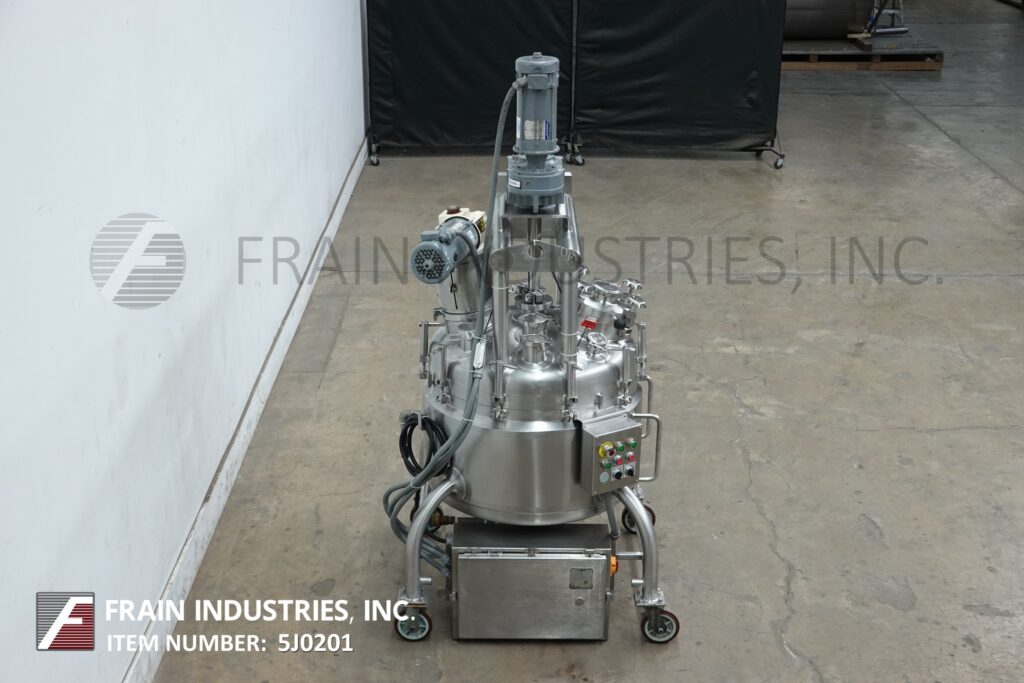

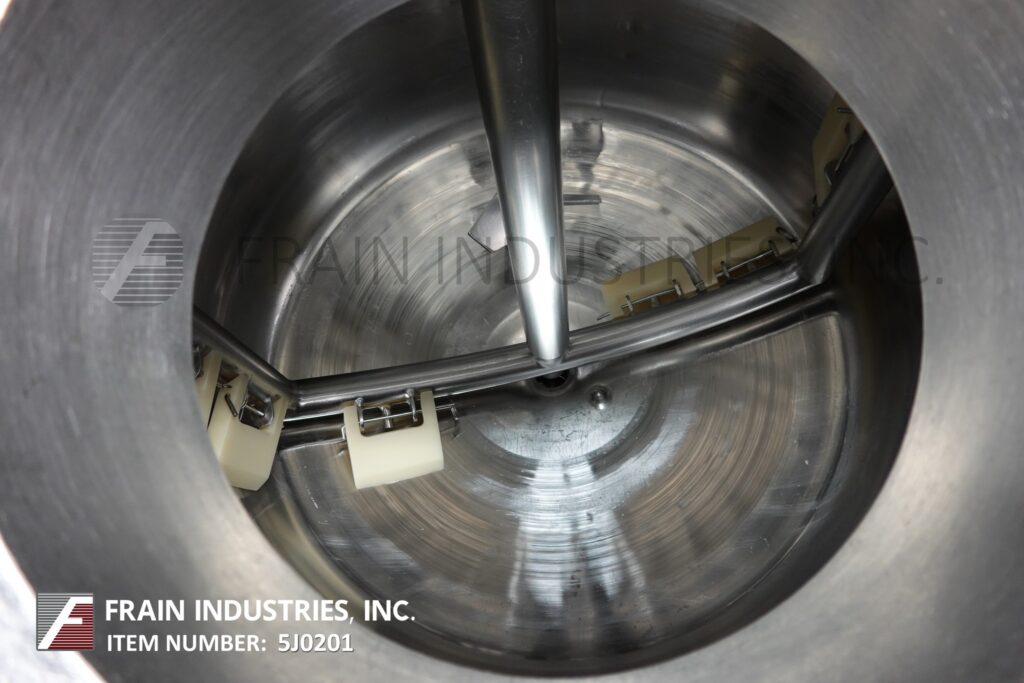

Back to All EquipmentFeldmeier, 40 gallon capacity, 316 stainless steel jacketed processing tank. Vessel dimensions: 30" diameter x 20" straight wall. Equipped with bolt down dome cover, 10" diameter bolt down access cover, thermo well, 1 HP top mounted scrape agitation and 1 HP top mounted prop agitation. Dish bottom has 2½" OD / 2" ID bottom discharge with butterfly valve and 12" ground clearance. Control panel with push button start / stop and variable speed controls.
Top Ports:
(6) 3½" / 3" Tri-Clamp
(1) 2½" / 2" Tri-Clamp
Jacket Ports:
(2) ¾" NPT
Vessel:
MAWP: 30 PSI / FV @ 361°F
MDMT: -20°F @ 30 PSI / FV
Jacket:
MAWP: 140 PSI @ 361°F
MDMT: -20°F @ 140PSI
Nat’l Brd: 5504
OAD: 41"L x 40"W x 88"H
