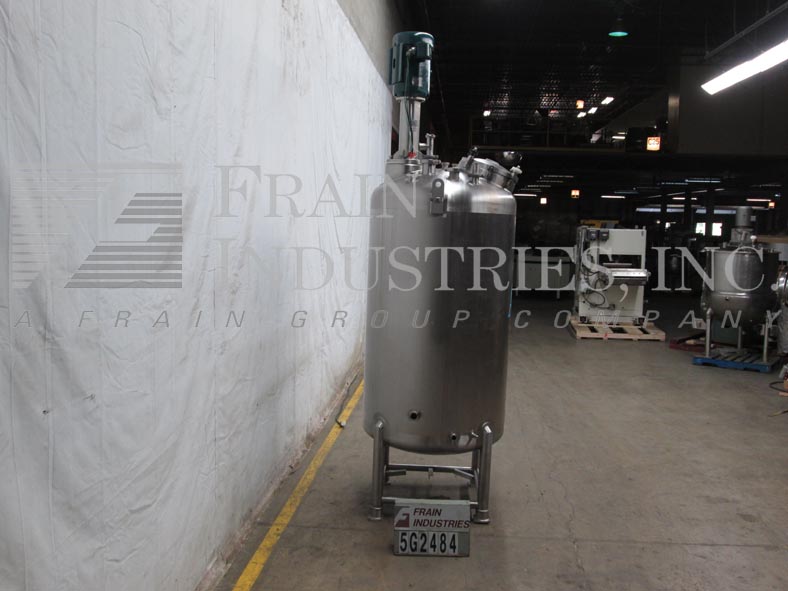

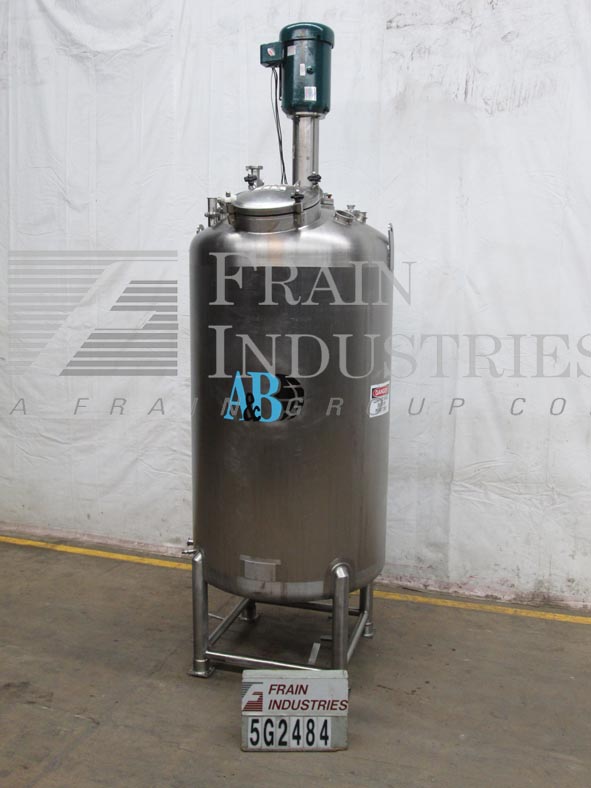

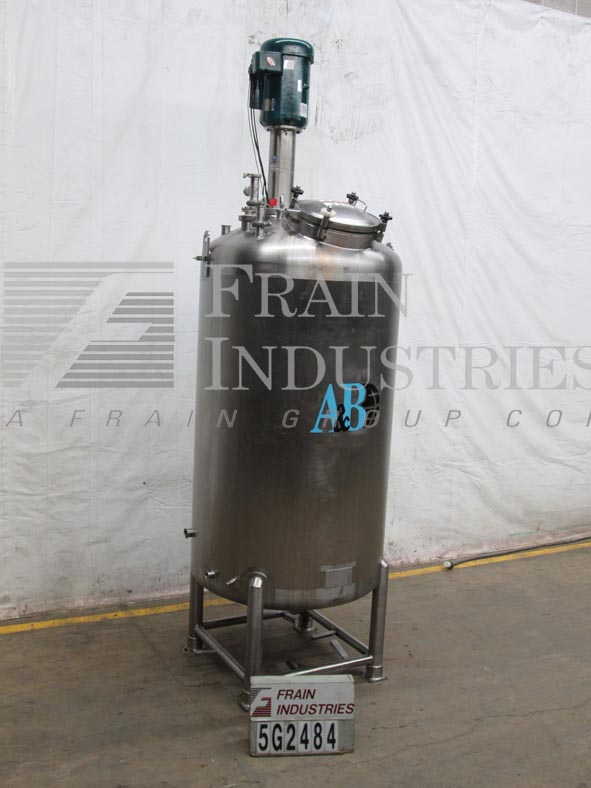

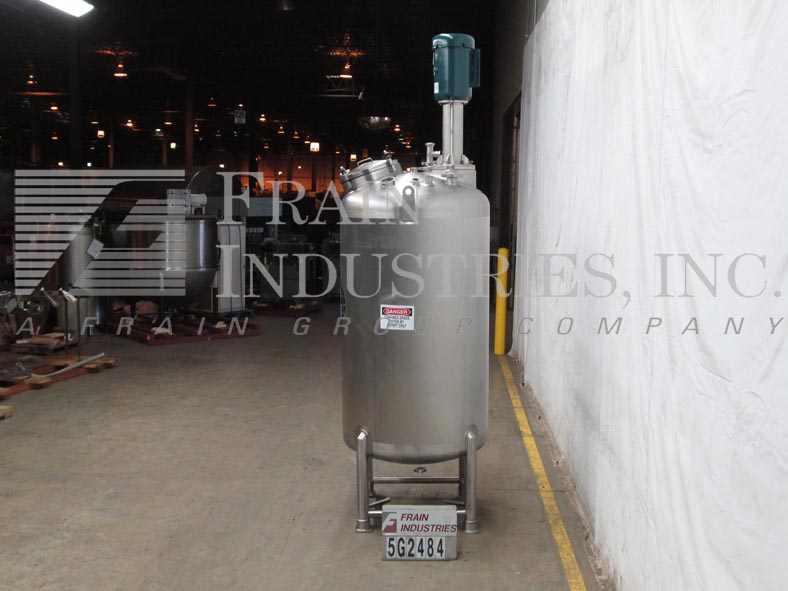

A & B Process Systems Tank SS Single Wall 450 GALLON

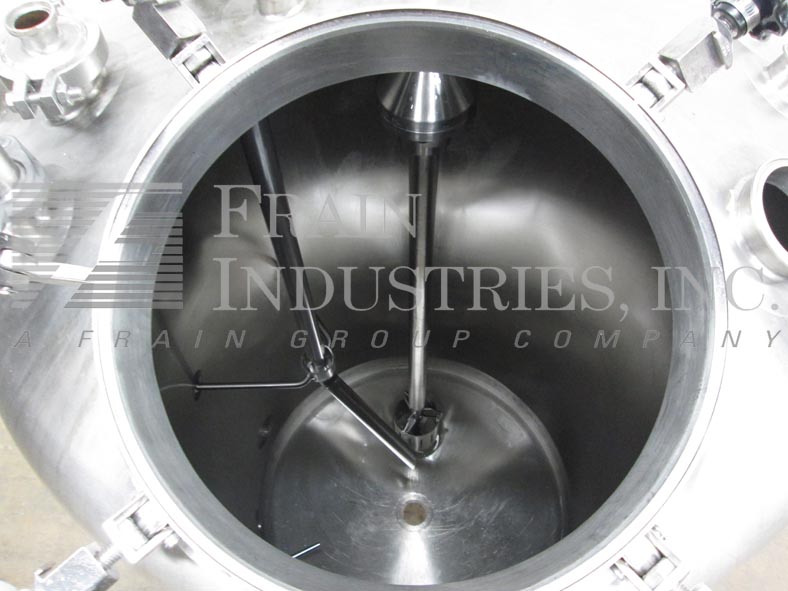

Back to All EquipmentA & B Process Systems, 450 Gallon, 316 stainless steel, vacuum rated tank. Vessel dimensions: 46" diameter and 75" Straight Wall. High shear agitator is driven by a 20 HP motor. Dome top contains (1) 18" man way with bolt down seal tight lid. (2) 2"ID/1.25"OD CIP spray balls, (5) 2.5"OD/2"ID sanitary fittings, (1) 4.75"OD/4"ID sanitary fitting and (1) 2.75"OD/1.75"ID port. Tanks sidewall has (1) 2.5"OD/2"ID sanitary fitting, (1) 2"OD/1.5"ID sanitary fitting and (1) 3/4" threaded inlet. Dish bottom has (1) 4"OD/3.5"ID center outlet with 20" ground clearance. Unit is mounted on (4) stainless steel legs.
Optional vacuum pump available for an additional cost.
OAD: 54"L x 54"w x 150"H
