Fitzpatrick磨坊520

回所有设备

• 制造者 :菲茨帕特里克
• 模型 :520
• 类别 :厂商
• 子类 :奇尔索纳

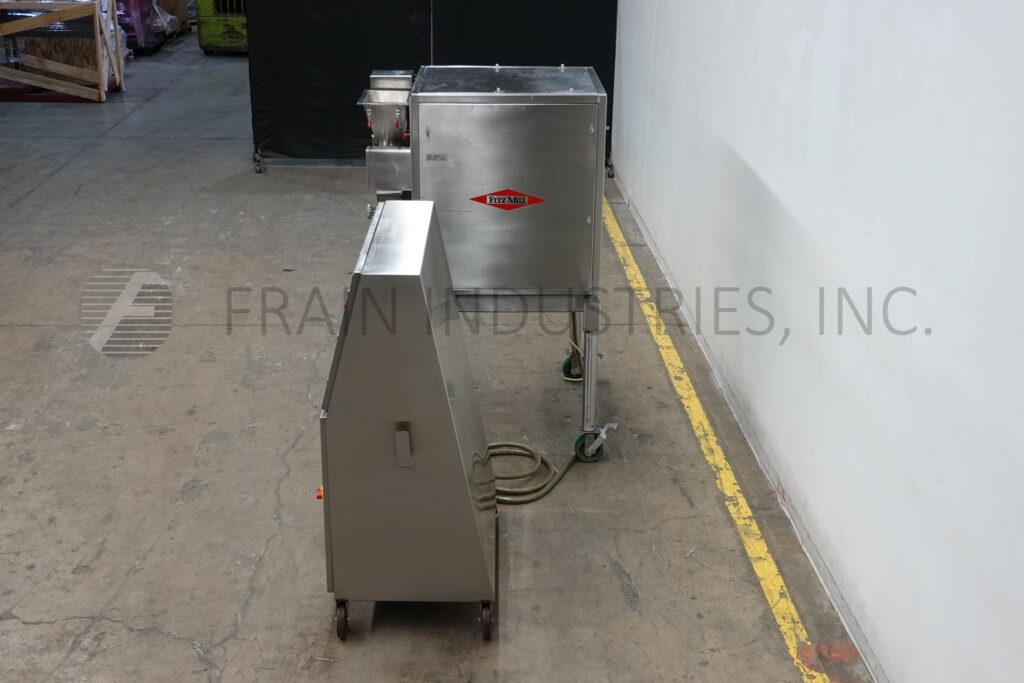

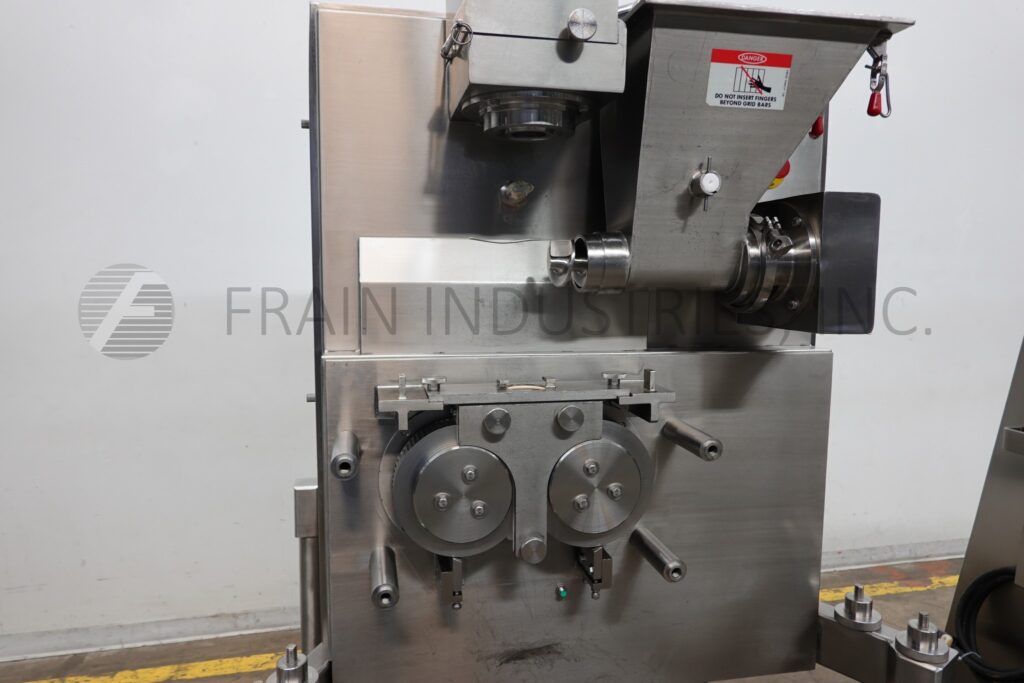

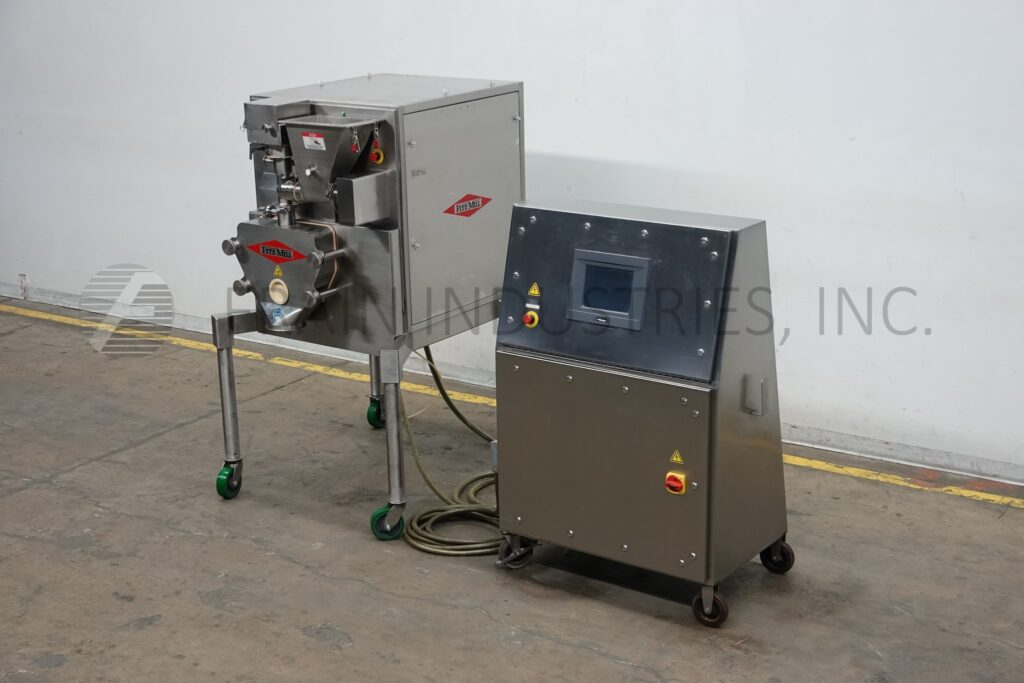

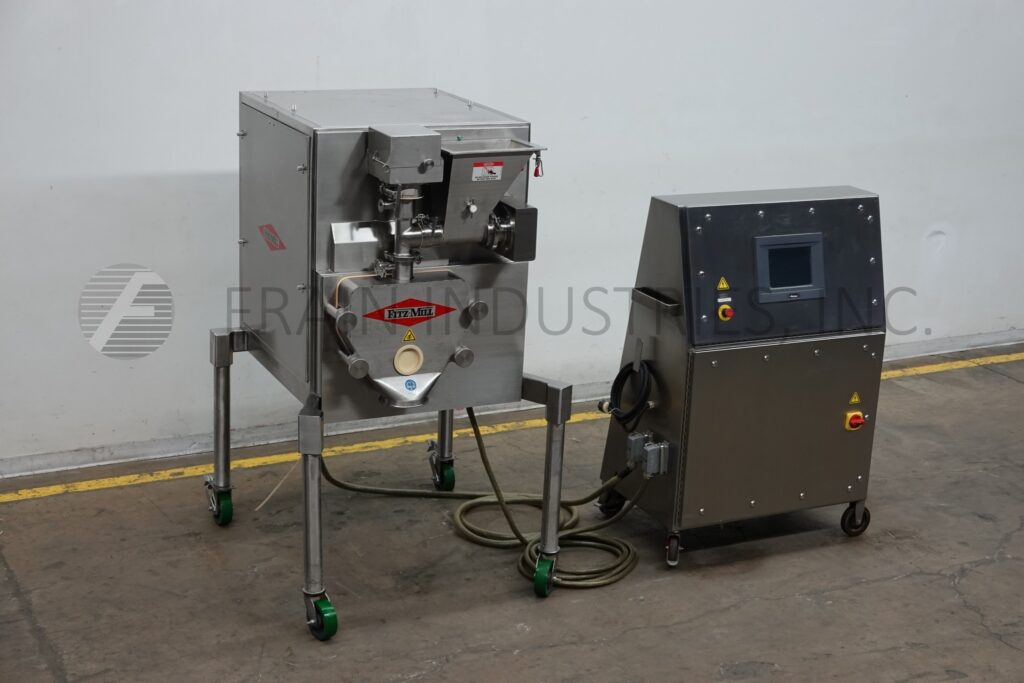

Fitzpatrick模型IR520316试压机或小流压机,评为每小时150公斤产品-视材料、应用、机器配置和环境运行而定Equipped with (2) screw feed design and has 13" long x 9" wide x 10" deep ID stainless steel product hopper with rotary assit feeder to 3" OD x 12" Long horizontal screw that eliminates vacuum dearation to 2" OD x 18" Long vertical pre-compression screw that compresses product for more uniformity prior to feeding into the 5cm x 20cm or 2" wide x 8" OD groved product compaction rollers with roller force of 26.3 KN/CM and roll gap of 1mm to 6mm and has a capacity of 150 Kg an hour and powered by 5 Hp motor drive with noise level rating of 75 DB.远程控制板有A/B控制器 Parker视图板控件A/B变速控制器e-stop爬上(4)不锈钢大腿

OAD:48Lx45Wx70H滚动压缩机
48'Lx32'Wx60'H控制板
