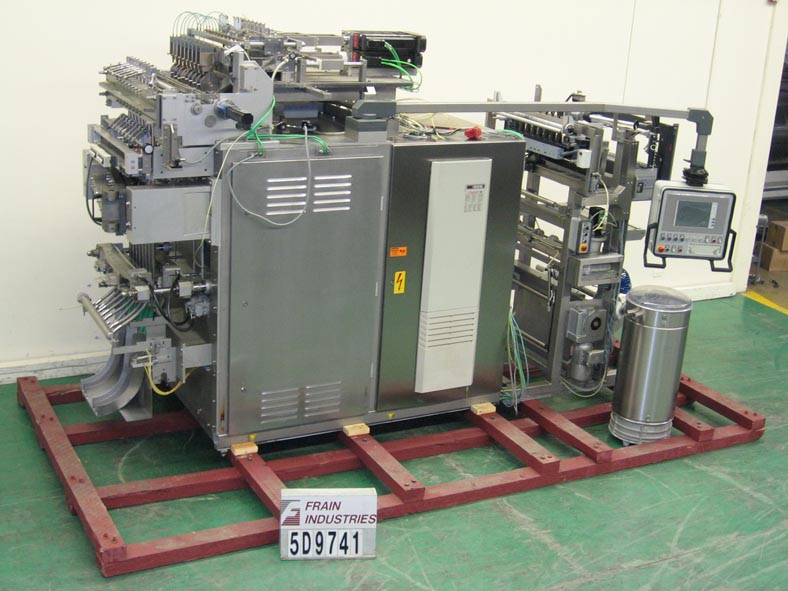

Hassia USA Form & Fill Liquid/Paste SVL20/30 Stick Pak, 8 up, Liquid fill, 60 cpm
Back to All EquipmentHassia USA, Model SVL20/30, automatic, 8-up vertical, stainless steel, wash down, liquid stick pack form, fill and seal machine rated from 15 to 60 cycles per minute with number of product – depending on materials and application. Pouch size up to 38mm in Width; 225mm in Length with 152mm diameter core. Equipped with Medtronic date coding system and film registration, currently set with (1) 1" diameter forming tubes, (4) 6" long horizontal hot knife seal jaws (1 for each 2 forming tubes) and (8) 9-1/2" long vertical lap seal jaws, with secondary vertical strip seals in lap seal for additional strength. Control panel has PLC controller with swing arm controls, servo drives, metering pumps, CIP system and is capable of doing a hot fill up to 190 Deg F. Last running yogurt sticks, (29ml – 66ml) fills, (38mm x 145mm) and (38mm x 220mm) size pouch sticks, with 800mm maximum pouch material diameter reel.
OAD: 180" L x 60" W x 108" H
