Pans, Revolving System 36"

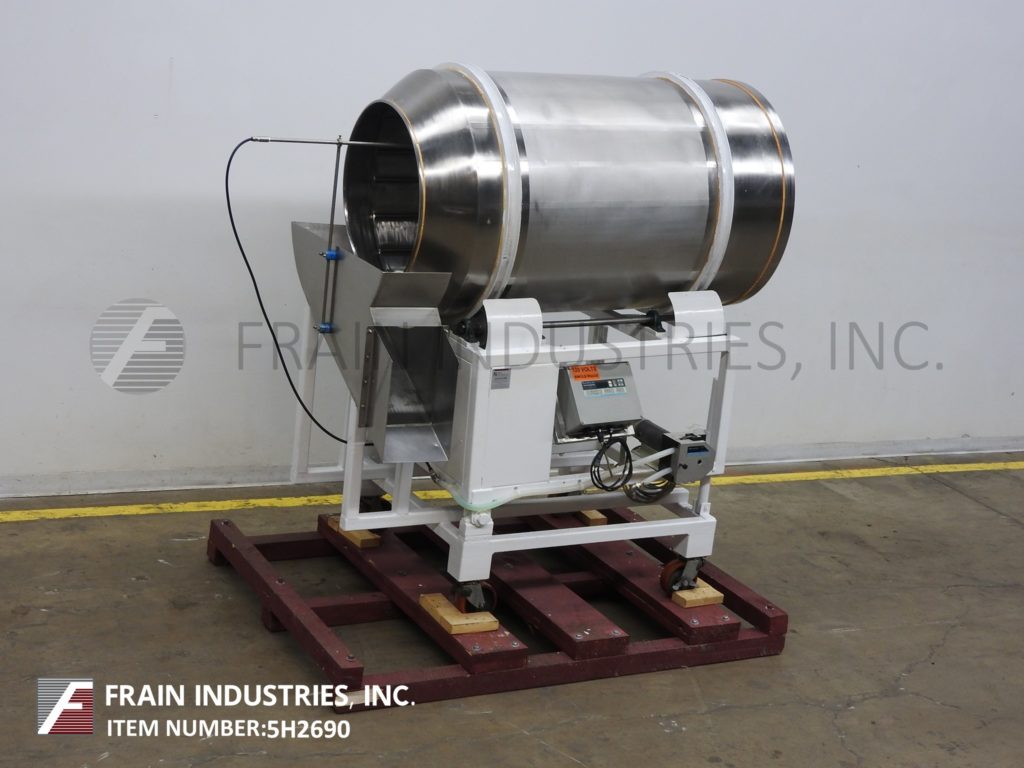

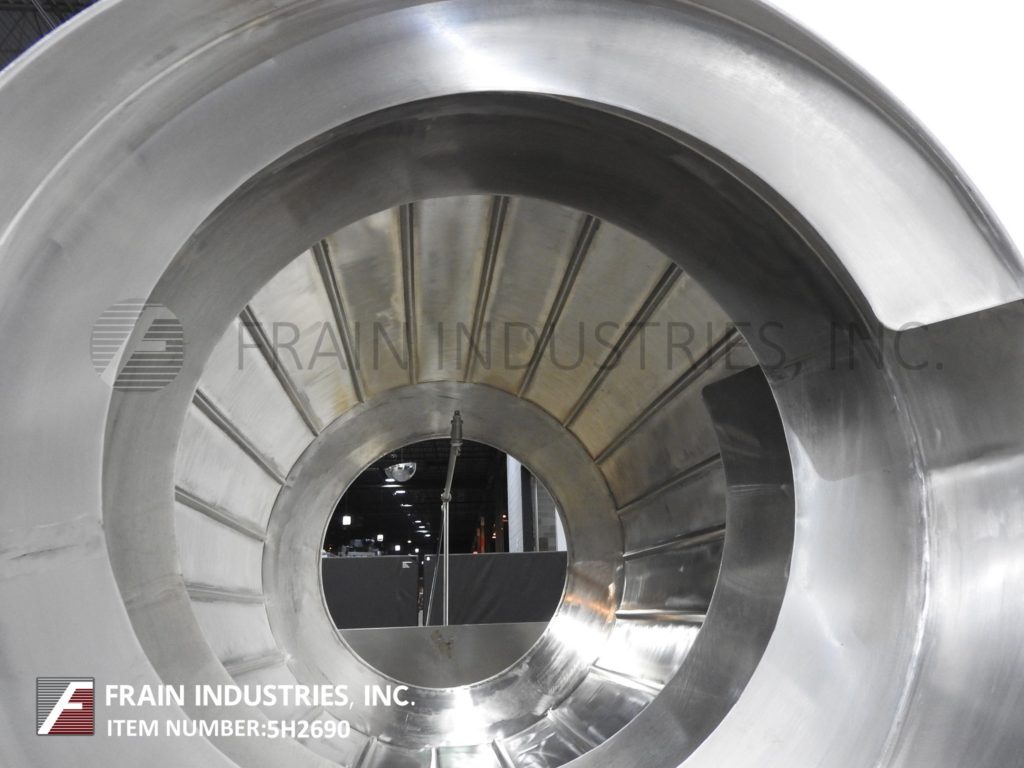

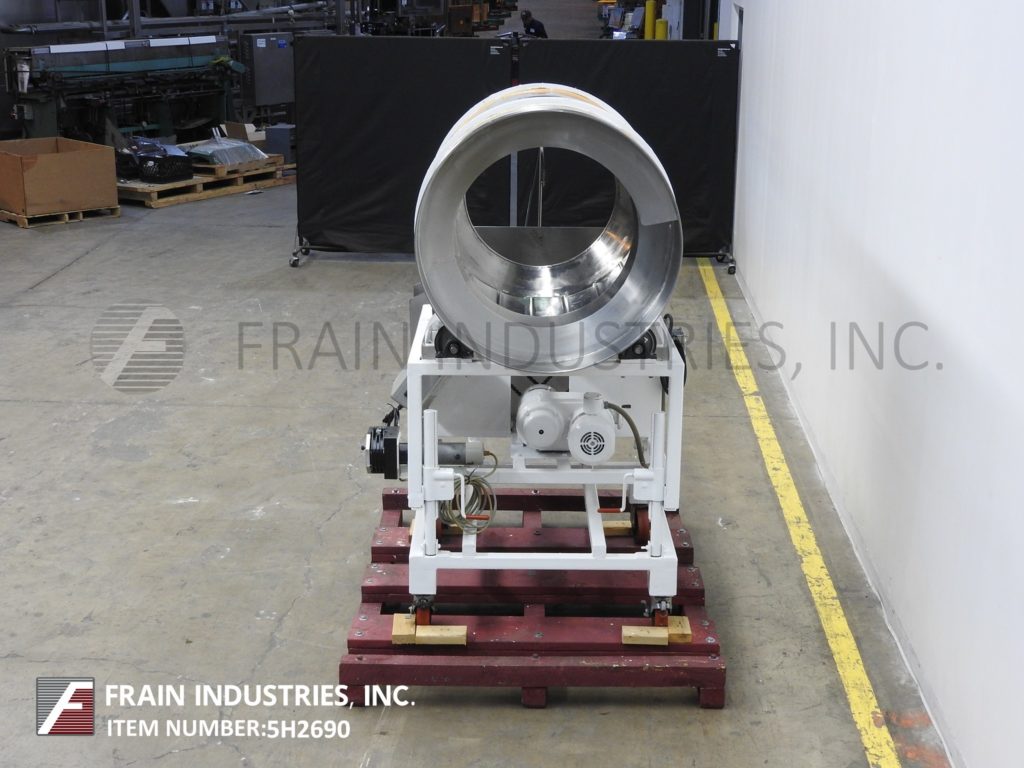

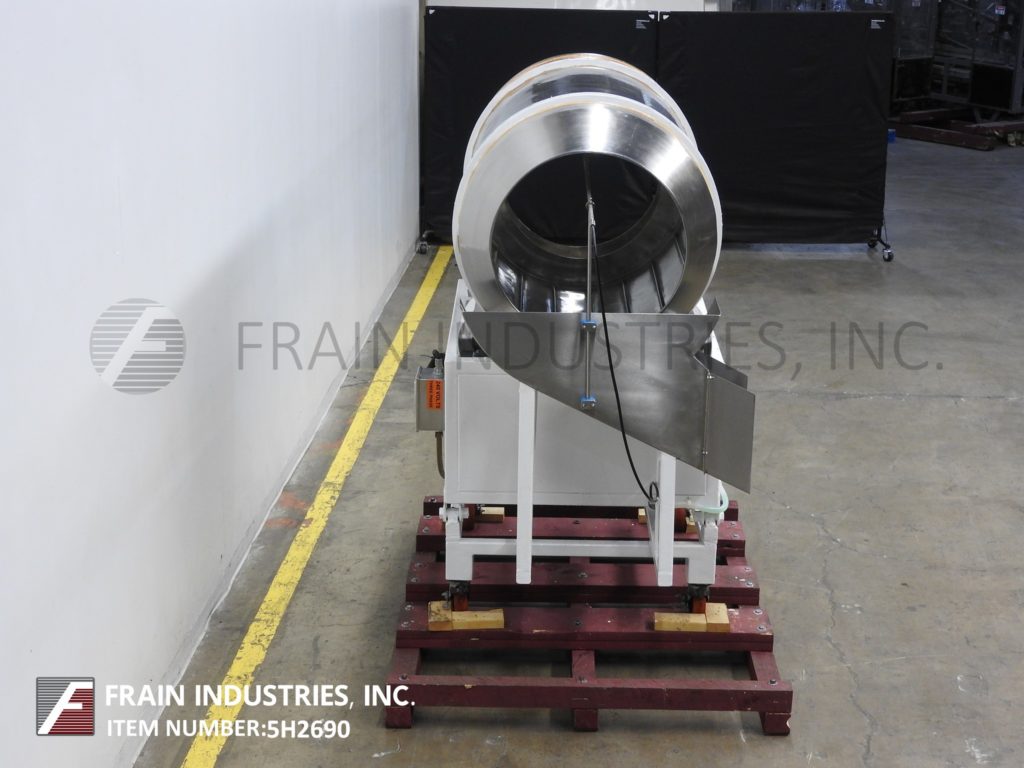

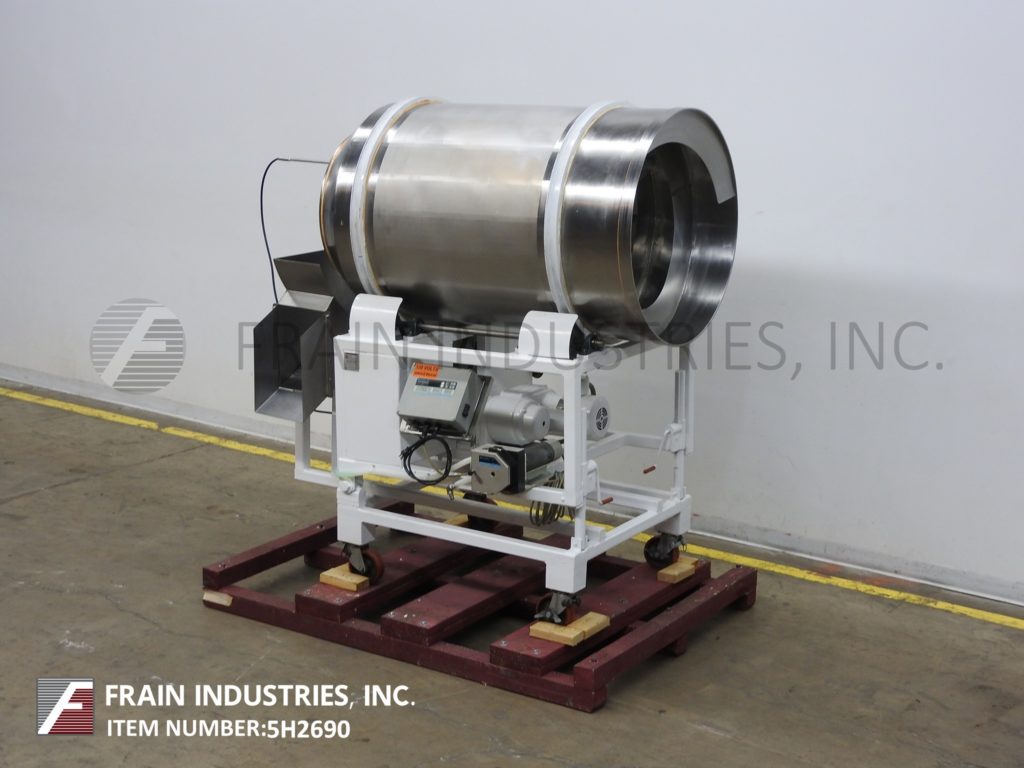

Back to All EquipmentSoft Flight, 36" Diameter, stainless steel, continuous motion coating drum system. Rates of product – depending on materials, application and machine configuration. Equipped with a 36" diameter by 60" long coating drum with (20) ½" wide fixed interior soft flight baffles and screw baffle discharge into a 10" wide chute with 27" ground clearance. Drum powered by a ¾ hp drive with variable speed gearbox and push button start / stop controls. System includes a Masterflex, Model 77600-62, parastaltic pump with a touchpad controller and single spray nozzle. Mounted on a base frame with locking casters.
OAD: 67"L x 52"W x 80"H
