Texwrap Shrink Flow Thru STP914VS

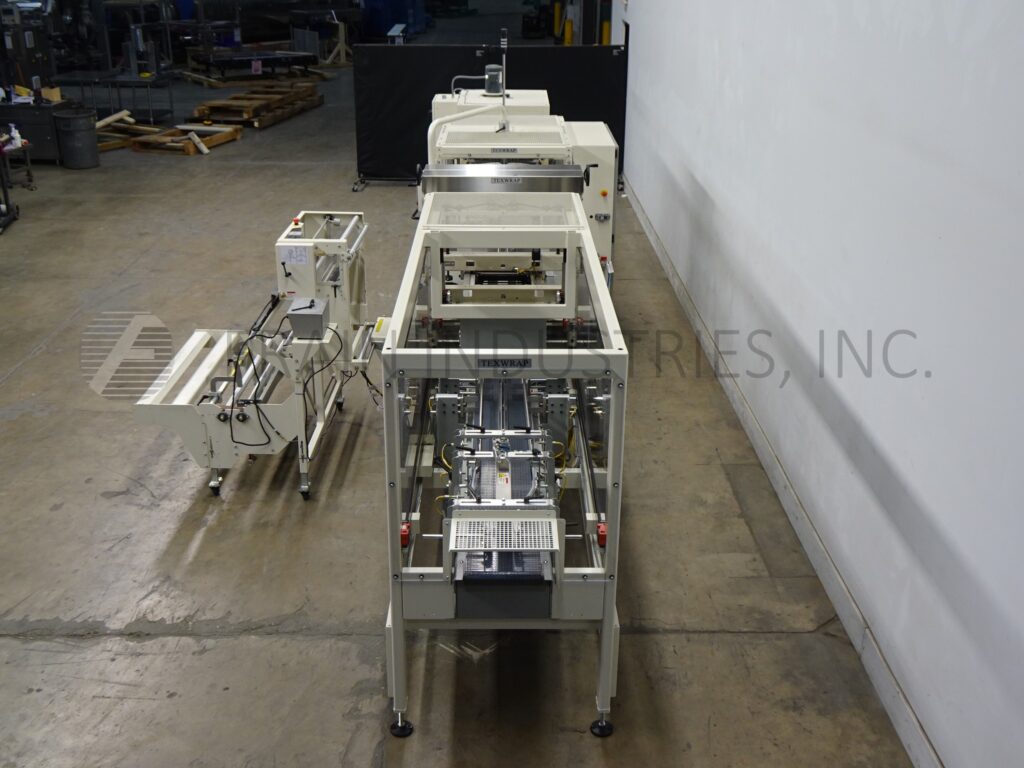

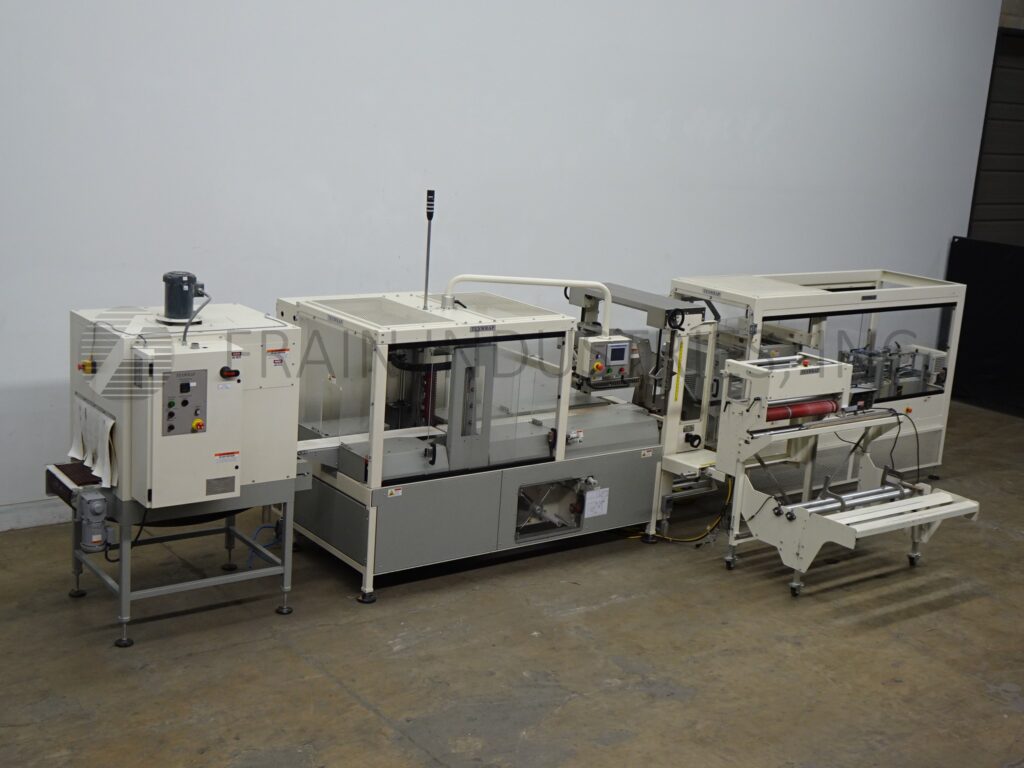

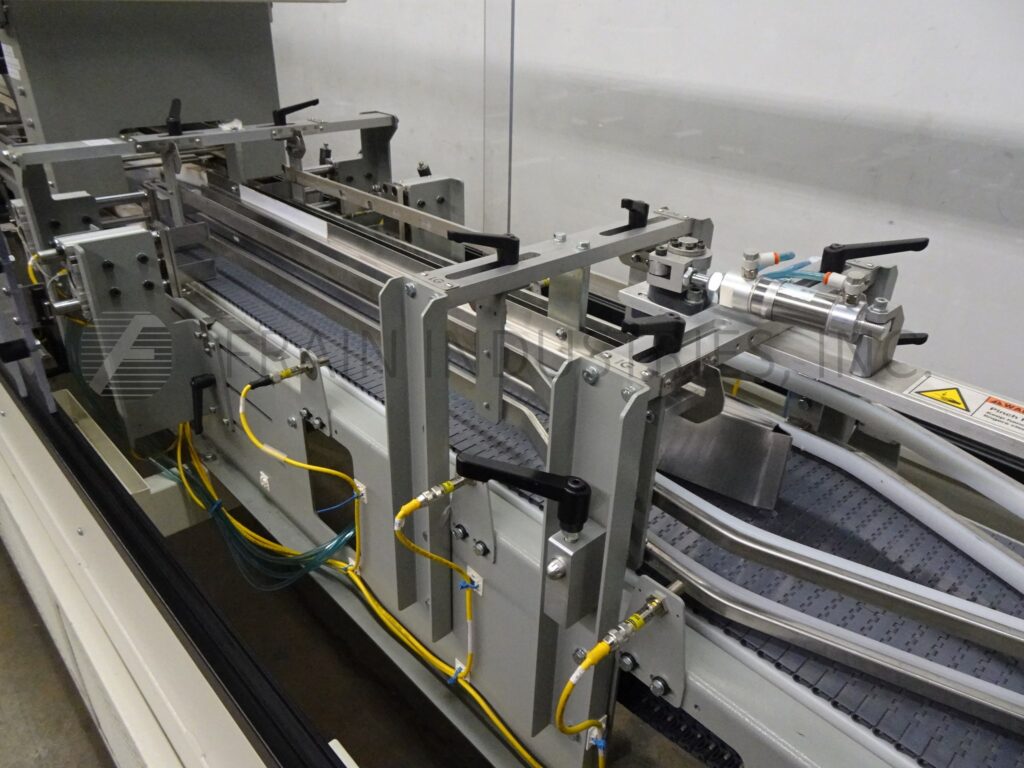

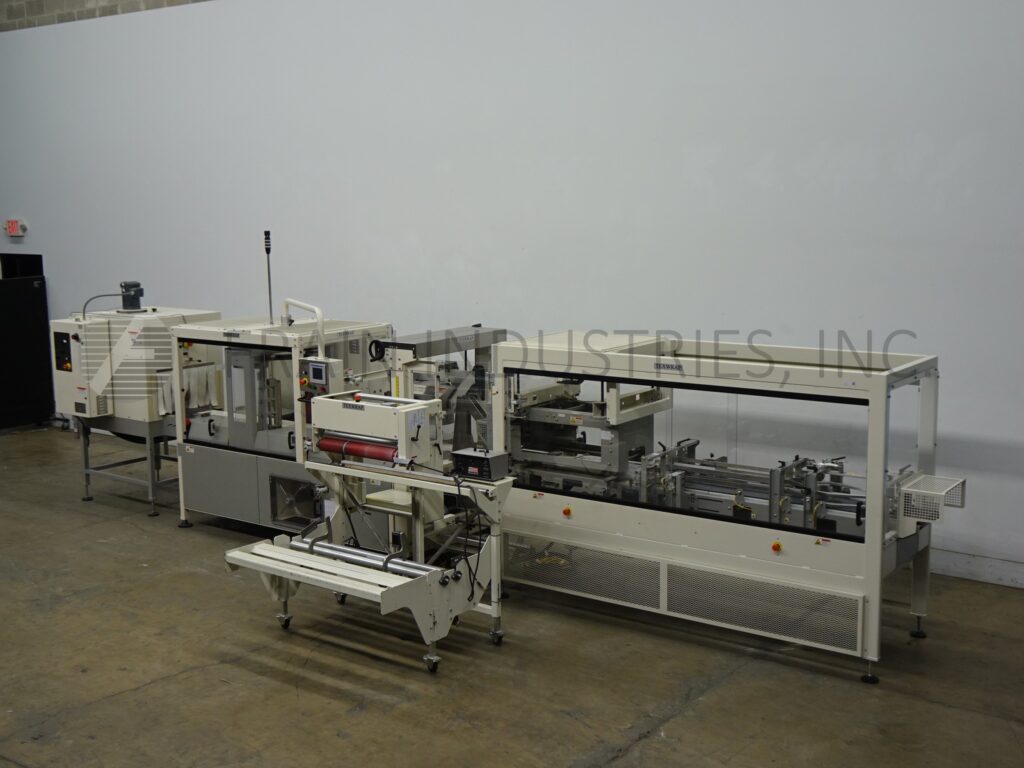

Back to All EquipmentTexwrap, Model STP-914VSTTSR-039102, Automatic, vertical shrink seal system with Model STP shrink tunnel. Rated 10 to 70 cycles per minute with number of product – depending on materials, application and machine configuration. Equipped with 106" long x 12" wide plastic in feed conveyor and overhead servo driven flight bar transfer set on 10" centers, 72" long x 7½" wide vacuum conveyor section with 20" long overhead horizontal heat sealer to vertical sealer with 16" high servo driven seal jaws and 45" long x 7½" discharge conveyor. Film specifications: center fold film 6" to 24" in Width; to 15" in diameter. Mounted on heavy duty frame.

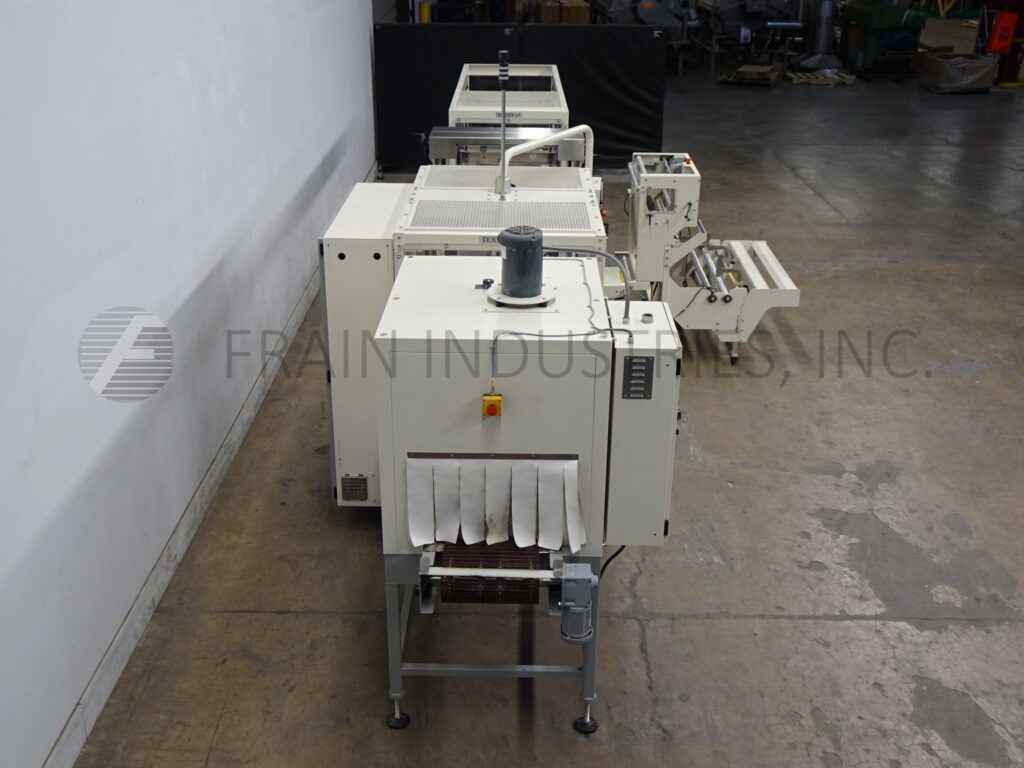

Texwrap Model STP Single zone shrink tunnel. Total aperture: 12" in Height; 14" in Width; 48" in tunnel Length. With 15" wide x 52" long conveyor and top mounted blower. Controls for temperature, conveyor speed and variable velocity air flow. Mounted on heavy duty frame.
OAD: 268" L x 126" W x 90" H Sealer
OAD: 48" L x 42" W x 72" H Tunnel
