Stainless Steel Tank Machines

C E Howard Tank SS Single Wall 1300GAL

• Manufacturer:C E Howard
• Model Number:1300年加
• Frain Number:5G2557

C E Howard 1300 gallon 316 stainless steel, single wall tank. Vessel dimmetions 78" diameter x 65" straight wall. Dome top equipped with 18" man way, (7) 3.5"OD 2.75"ID tri-clamp sanitary fittings and (1) 2.75"ID open vent. Bottom of the sidewall has (1) 7.5"OD 3"ID 4 bolt pattern flange with 4" centers. Dish bottom has (1) 11"OD 6"ID eight bolt pattern flange with 3.5" centers and 18" ground clearance. Mounted on (4) stainless steel legs.

OAD: 83"L x 79"W x 102"H

Highland Tank Processors 1600 GALLON

• Manufacturer:Highland
• Model Number:1600 GALLON
• Frain Number:5G0298

Highland Model 1600 gallon, 304 stainless steel 1/2 dimple jacketed, mixing tank. 64" OD x 120" straight wall, dome top with 16" OD manway with flip top bolt down cover, top mounted Lightnin paddle style air agitator, (3) 3-1/2" OD sanitary and (1) 2" ID threaded top ports. 1/2 dimpled side jacketed rated at 50psi @ 400 Deg F, (4) 1" OD sanitray jacket in / outlet ports and (1) 2" ID side threaded side port. Cone bottom, has sanitary 5" OD center bottom discharge with ball cock valve and 6" floor clearance (1) 2" OD sanitary port with temperature probe and mounted on (4) leg hip socket legs.

OAD: 67" L x 67" W x 213" H

Highland Tank Processors 1600 GALLON

• Manufacturer:Highland
• Model Number:1600 GALLON
• Frain Number:5G0297

Highland Model 1600 gallon, 304 stainless steel 1/2 dimple jacketed, mixing tank. 64" OD x 120" straight wall, dome top with 16" OD manway with flip top bolt down cover, top mounted Lightnin paddle style air agitator, (3) 3-1/2" OD sanitary and (1) 2" ID threaded top ports. 1/2 dimpled side jacketed rated at 50psi @ 400 Deg F, (4) 1" OD sanitray jacket in / outlet ports and (1) 2" ID side threaded side port. Cone bottom, has sanitary 5" OD center bottom discharge with ball cock valve and 6" floor clearance (1) 2" OD sanitary port with temperature probe and mounted on (4) leg hip socket legs.

OAD: 67" L x 67" W x 213" H

Mueller Tank SS Single Wall 800 GALLON

• Manufacturer:Mueller
• Model Number:800 GALLON
• Frain Number:5G0281

Mueller, 800 Gallon, 316 Stainless Steel, single wall mixing tank. Vessel dimensions: 60" Diameter; 68" Straight Wall. Equipped with a dome top bridge mounted 2 hp paddle agitator, 25 hp saw tooth high shear mixer, 18" diameter manway, 6" top inlet with removable cap, level sensor, dish bottom, and a 3" OD Tri-Clover center bottom discharge with shut off valve and 20" of ground clearance. Mounted on stainless steel legs.

OAD: 62" L x 62" W x 152" H

A & B Process Systems Tank SS Single Wall 450 GALLON

• Manufacturer:A & B Process Systems
• Model Number:450 GALLON
• Frain Number:5 g2484

A & B Process Systems, 450 Gallon, 316 stainless steel, vacuum rated tank. Vessel dimensions: 46" diameter and 75" Straight Wall. High shear agitator is driven by a 20 HP motor. Dome top contains (1) 18" man way with bolt down seal tight lid. (2) 2"ID/1.25"OD CIP spray balls, (5) 2.5"OD/2"ID sanitary fittings, (1) 4.75"OD/4"ID sanitary fitting and (1) 2.75"OD/1.75"ID port. Tanks sidewall has (1) 2.5"OD/2"ID sanitary fitting, (1) 2"OD/1.5"ID sanitary fitting and (1) 3/4" threaded inlet. Dish bottom has (1) 4"OD/3.5"ID center outlet with 20" ground clearance. Unit is mounted on (4) stainless steel legs.

Optional vacuum pump available for an additional cost.

OAD: 54"L x 54"w x 150"H

Feldmeier Tank SS Single Wall 1200 GALLON

• Manufacturer:Feldmeier
• Model Number:1200 GALLON
• Frain Number:5G2477

Feldmeier, 1200 gallon, 316 stainless steel, single wall mixing tank. Vessel dimensions: 70" straight wall; 72" diameter. Sweep style agitation. Dome top equipped with an 18" clamp down man way and various ports (see below). Dish bottom equipped with 3" Female I-Line (2.870" ID) discharge with 21" ground clearance. Mounted on four stainless steel legs.
Top connections:
Three, 2" Female I-Line (1.870" ID)
One, 3" Female I-Line (2.870" ID)
One, 6" Female I-Line (5.782" ID)
One, 4" Sanitary Vent (No Fitting)

Side (near top) connection:
One 3" Female I-Line (2.870" ID)

OAD: 73"L x 73"W x 140"H

Tank SS Single Wall 1400 GALLON

• Model Number:1400 GALLON
• Frain Number:5G0202

1400加仑、304不锈钢、单墙,混合ing tank with floating debris removal system. Vessel dimensions: 72" in Diameter; 84" Straight Wall. Equipped with center bridge mounted floating debris removal agitation system, dual flip top covers, 6" diameter top side inlet port, cone bottom, 2" threaded side bottom discharge, 4" threaded center bottom discharge with PVC shut off valve and 24" floor clearance. Mounted on stainless steel frame.

OAD: 96" L x 96" W x 168" H

Cherry Burrell Tank SS Single Wall 1200 GAL

• Manufacturer:Cherry Burrell
• Model Number:1200 GAL
• Frain Number:5F9691

Cherry Burell Model,1200 gallon, 304 stainless steel, single wall storage tank. Vessel Dimmensions: 70" ID x 72" straight wall. Equipped with open top and bridge mounted dual paddle agitation with 6" wide x 15" long paddles on 60" long x 2" wide shaft. Dish bottom with 2-1/4" OD threaded end bottom discharge port with 9" floor clearance. Mounted on (4) legs.

OAD: 80" L x 80" W x 120" H

Cherry Burrell Tank SS Single Wall SSP

• Manufacturer:Cherry Burrell
• Model Number:SSP
• Frain Number:5F9672

樱桃Burrell模型SSP, 1500加仑,单层壁304 stainless steel mix tank. 84" ID x 68" Straight wall, Equipped with dome top, 18" manway, bridge mounted sweep agitation and stationary baffle . Three 2-3/4" sanitary top ports and one 3-1/2" top port. Slant bottom with skirt, has 2-3/4" OD threaded side bottom discharge and two 1′ OD threaded side ports. Mounted on three legs.

OAD: 89" L x 86" W x 127" H

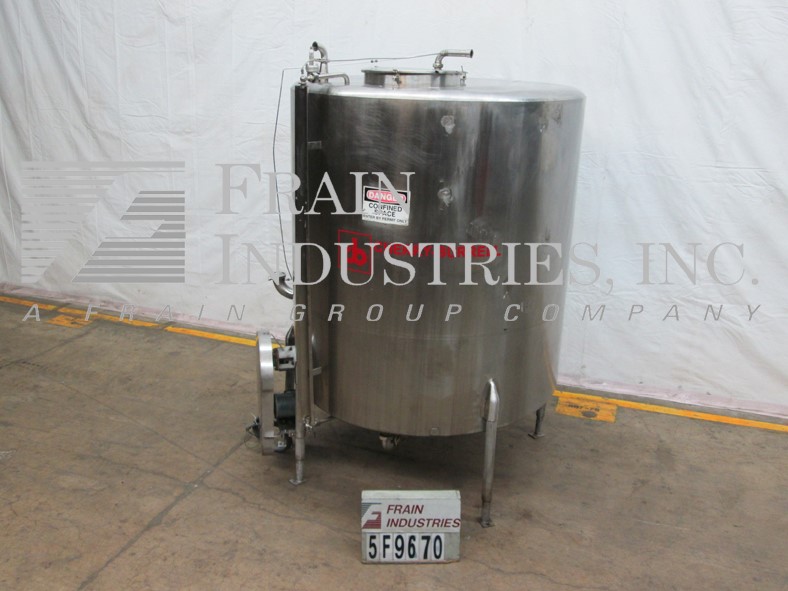

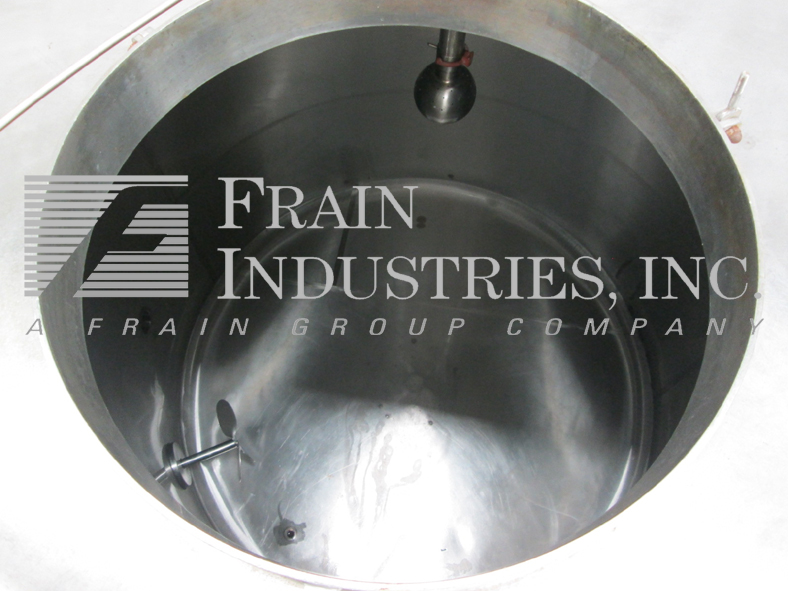

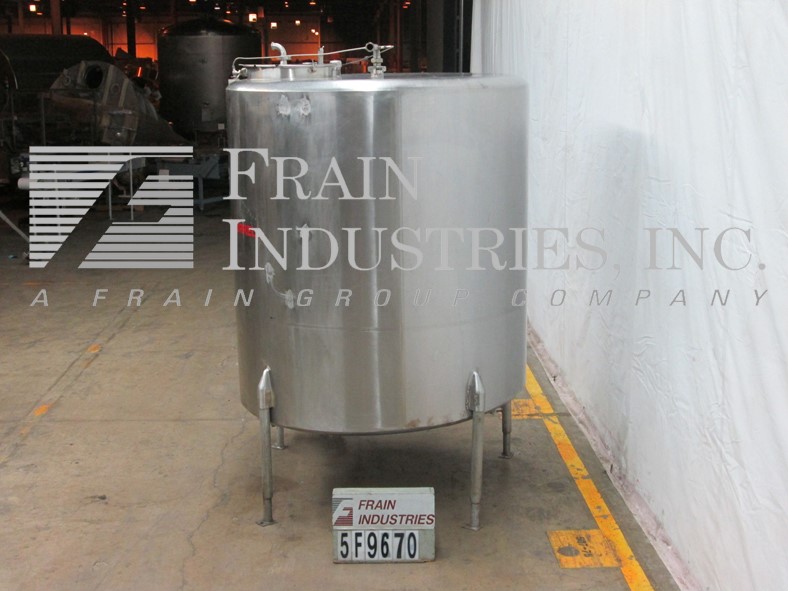

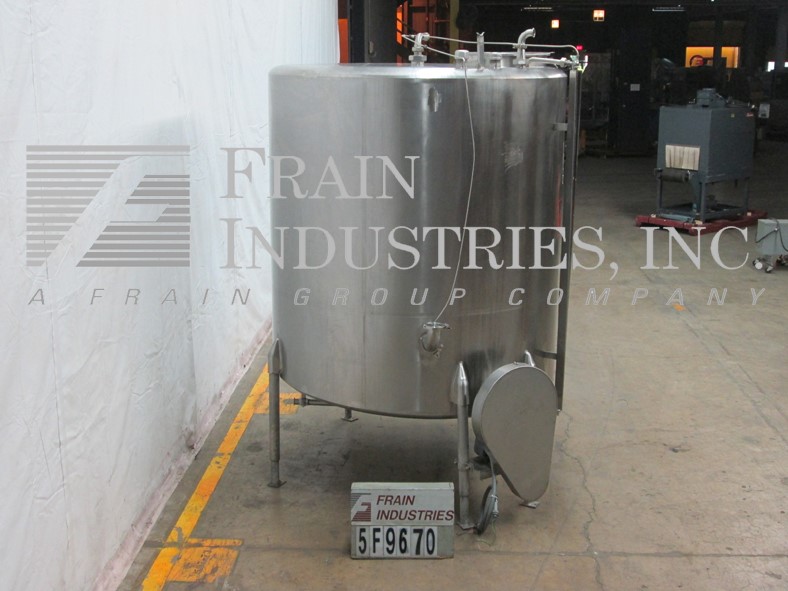

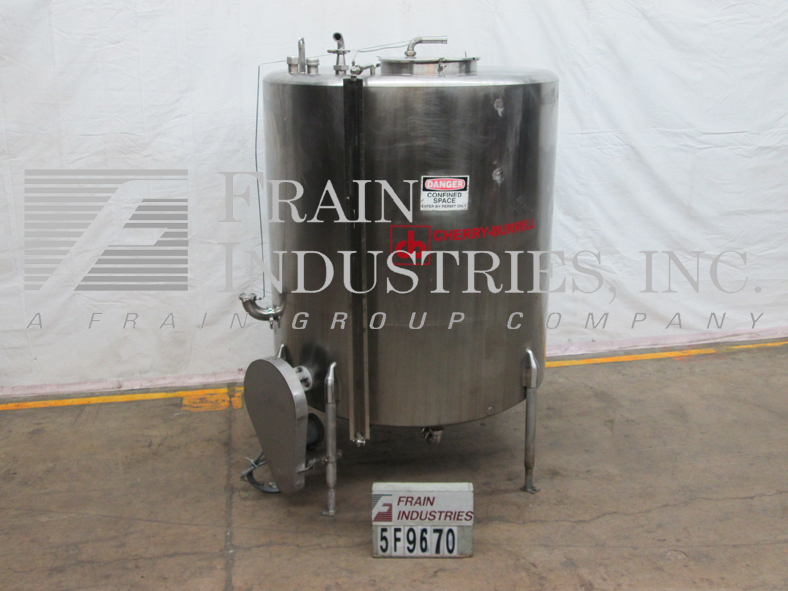

Cherry Burrell Tank SS Single Wall 1200 GALLON

• Manufacturer:Cherry Burrell
• Model Number:1200 GALLON
• Frain Number:5F9670

Cherry Burell Model,1200 Gallon, 304 stainless steel, single wall mixing tank. Vessel dimensions: 70" in Diameter; 70" Straight Wall. Equipped with flat top and CIP attachment with side bottom prop style agitator. Slant bottom has 2-1/2" OD sanitary discharge, with 21" floor clearence and is Mounted on (4) stainless steel leg base frame.

OAD: 84" L x 72" W x 96" H

Tank SS JKT 1400 MC PX

• Model Number:1400 MC PX
• Frain Number:5E8600

1400 gallon, horizontal, 304 S/S, low pressure water jacketed cooling tank. Has a 168" L x 48" W x 42" D inner dimension product chamber, with four 32" L x 48" W flip up covers, one has two 7" OD openings, with a top mounted paddle style agitator, and three 1-1/2" top ports, full jacket has two 1" OD side bottom cold water jacket ports with shut off valves. Slant bottom has 2" OD side bottom discharge with Tri-Clover valve and 9" floor clearance, is mounted on eight S/S legs, and the rectangle construction gives maximum capacity in small floor area

OAD: 180" L x 54" W x 69" H

Tolan Tank Reactor SS 100 GAL

• Manufacturer:Tolan
• Model Number:100 GAL
• Frain Number:5E8453

Tolan, 100 gallon, 316 stainless steel, full steam jacketed reactor. 32" ID x 36" deep product bowl, has bolt down flip up cover with (2) 4" OD, site glass ports, (1) 6" OD flanged port with removable feed tube, and (3) 2" OD sanitary top ports. Full jacket with full internal vacuum has a shell rating of MAWP 30 psi @ 300 deg f, and MDMT -20 deg f @ 30 psi, and a jacket rating of MAWP 100 psi @ 300 deg f and MDMT -20 deg f @ 100 psi with (2) 1 1/2" ID jacket ports. Dish bottom has 3" OD sanitary center bottom discharge with 16" floor clearance, 1" OD threaded temperature probe port and mounted on (4) leg stainless steel base frame with side handles and casters.

OAD: 40" L x 40" W x 72" H
