SkinettaMachines

Triangle Filler Powder Auger FILM TEQ 3030 Triangle Filler Powder Auger FILM TEQ 3030 Skinetta Shrink Bundler FILM TEQ 3030

• Manufacturer:Skinetta
• Model Number:FILM TEQ 3030
• Frain Number:5H9051

Triangle Model RFC48/10, 10 pocket, continuous motion, stainless steel filler. Rated from 30 to 120 containers per minute – depending on materials, application and machine configuration. Equipped with open top, (10) pockets set on 15" centers with 13" long x 8" wide x 13" deep funneled product hoppers, 190" long x 8" wide container conveyor with worm screw to star wheel in feed and discharge and safety guarding. Control panel has AB controller with touch screen HMI.

OAD: 195"L x 96"W x 78"H

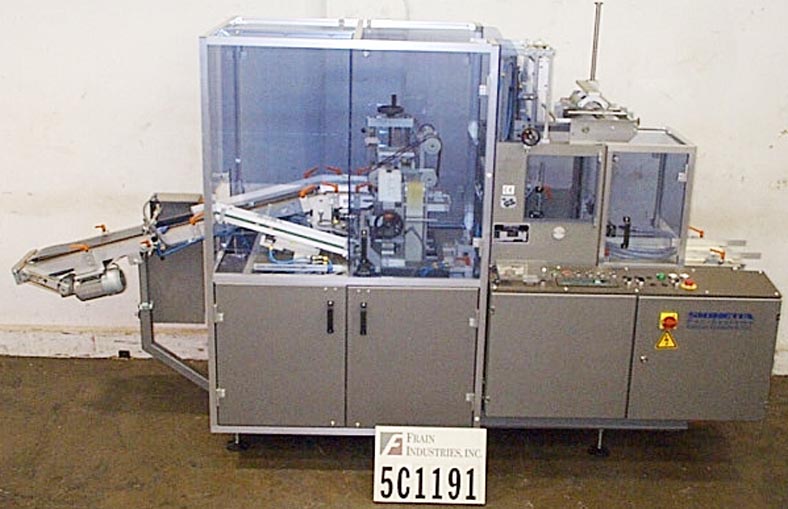

SkinettaShrink Bundler ASK300

• Manufacturer:Skinetta
• Model Number:ASK300
• Frain Number:5C1191

SkinettaASK300, Automatically stacks and stretch wraps groups of product (blisters, cartons, ect.) at a rate of 10 to 32 cycles per minute – depending on materials and application. Product size range: 50mm to 200mm; 75mm to 200mm; stack to 11"H . Equipped with Seiko gauges and optional leaflet inserter.
Capable of using PE, PP, and PVC films.

OAD=132"L x 48"W x 76"H

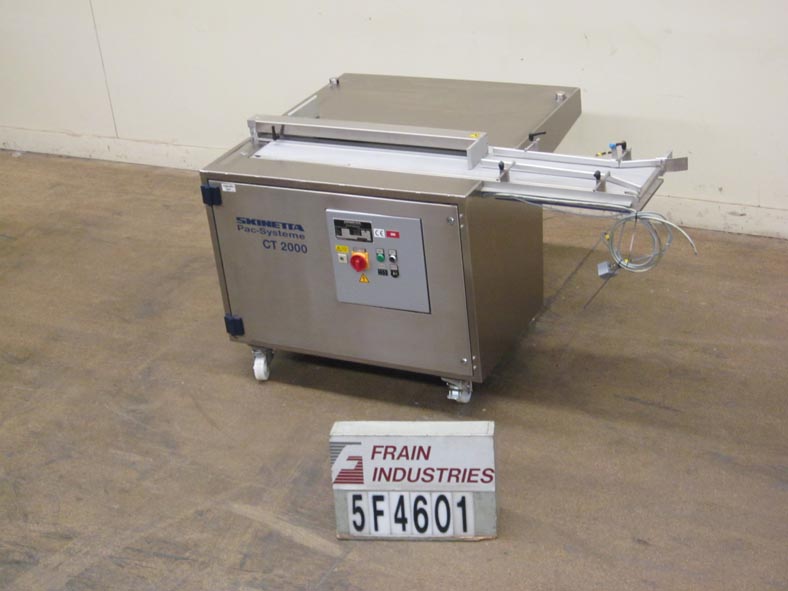

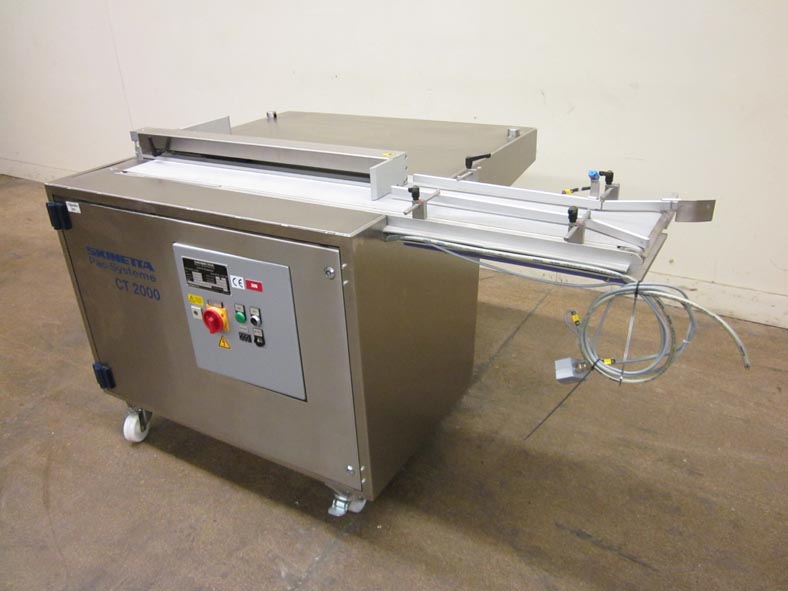

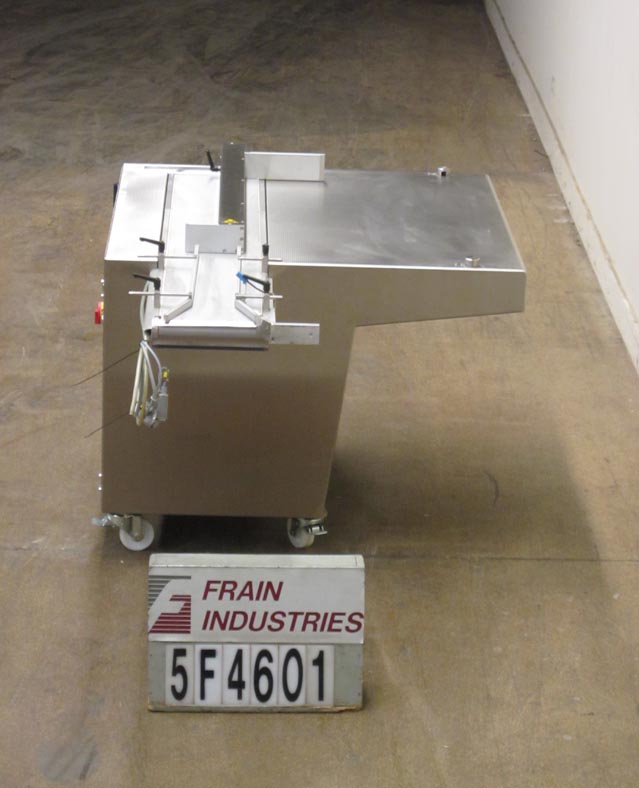

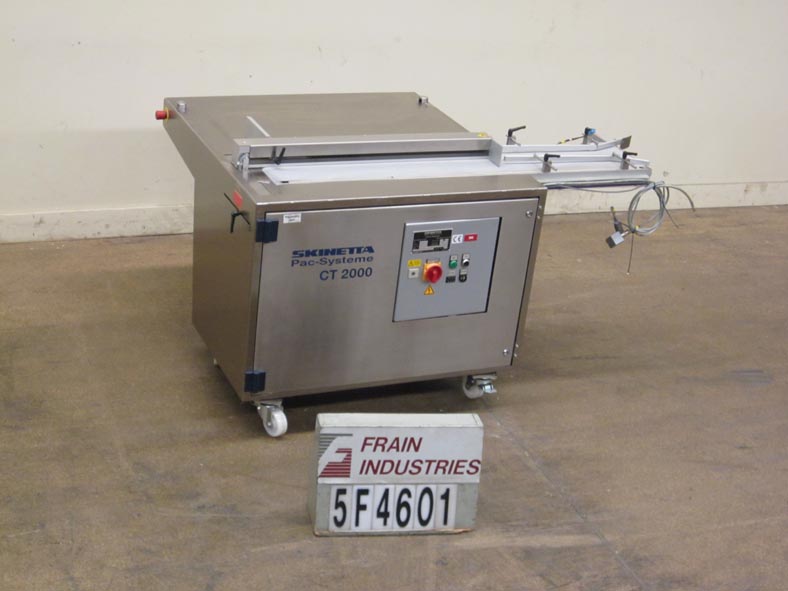

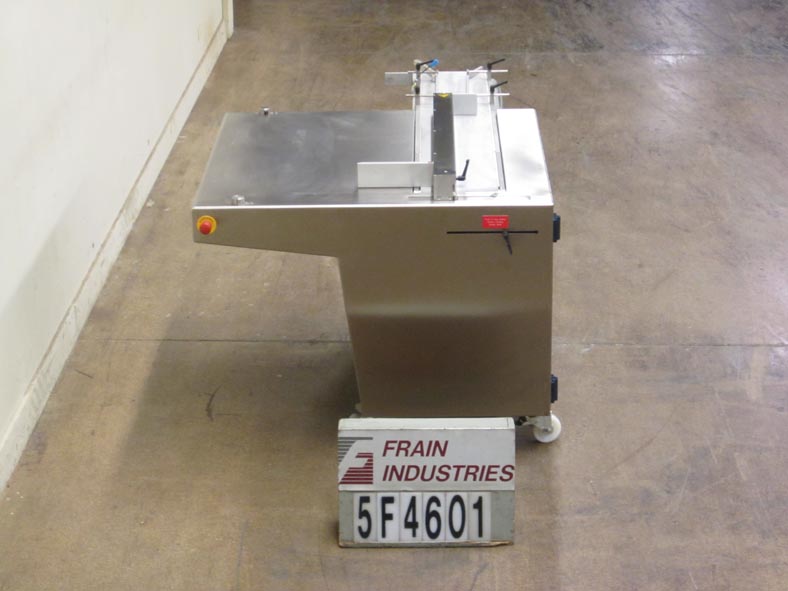

SkinettaConveyor Infeed CT2000

• Manufacturer:Skinetta
• Model Number:CT2000
• Frain Number:5F4601

SkinettaModel CT2000, automatic, single lane, single arm ram collation table that collects product from previous machine and prepares them for further processing with speeds and number of product – depending on previous machine, materials and application. Equipped with 60" long x 10" wide stainless steel mesh product conveyor, 43" long single arm product ram with 43" long x 28" wide stainless steel accumlation table and 36" in feed / discharge height. Stainless steel cabinet has PLC controller with machine and conveyor start / stop buttons with e-stop.

OAD: 64" L x 45" W x 40" H

SkinettaShrink Bundler ASK450

• Manufacturer:Skinetta
• Model Number:ASK450
• Frain Number:5G8190

Skinetta, Model ASK 450, automatic, intermittent motion, shrink bundler and tunnel. Rated from 5 to 30 cycles per minute – depending on materials, application, pack pattern and machine configuration. Product size range: 1" to 10" in Length; 1" to 12" in Width; up to 10" in Height. Equipped with a 10" wide x 96" long, one to two lane, in feed conveyor with an adjustable collation area up to 10" wide x 12" long and right angle pneumatic transfer arm. Bundler has top and bottom film rolls for an up to 17" wide web, top film perforation wheel, 18" wide heat seal jaws and product top hold down pad to hold bundle while being sealed. Integrated shrink tunnel with 12" High x 17" Wide x 30" Long heat chamber, with 60" long x 17" wide live roller conveyor and cooling fan. Control panel has an AB PLC with an AB PanelView Plus 600 display screen with touch pad controls, push button start / stop and digital temperature controllers for seal and tunnel.

OAD: 133"L x 120"W x 84"H

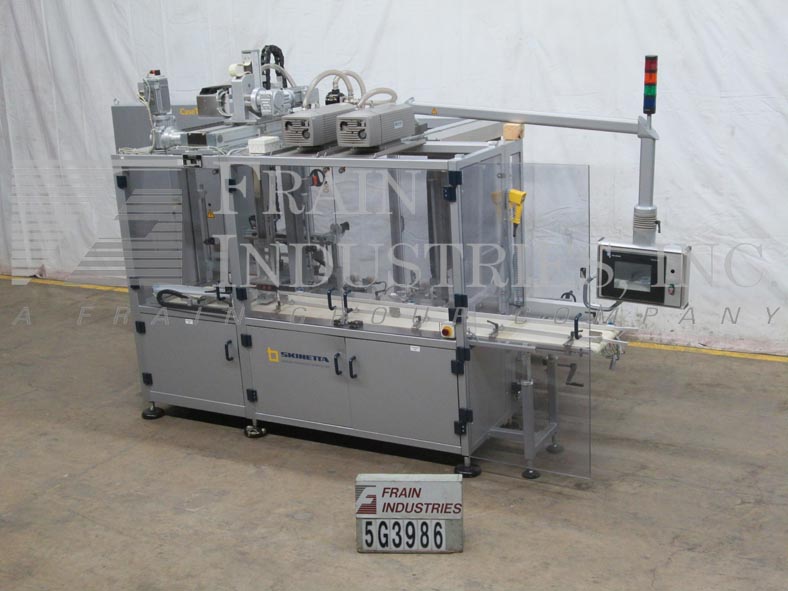

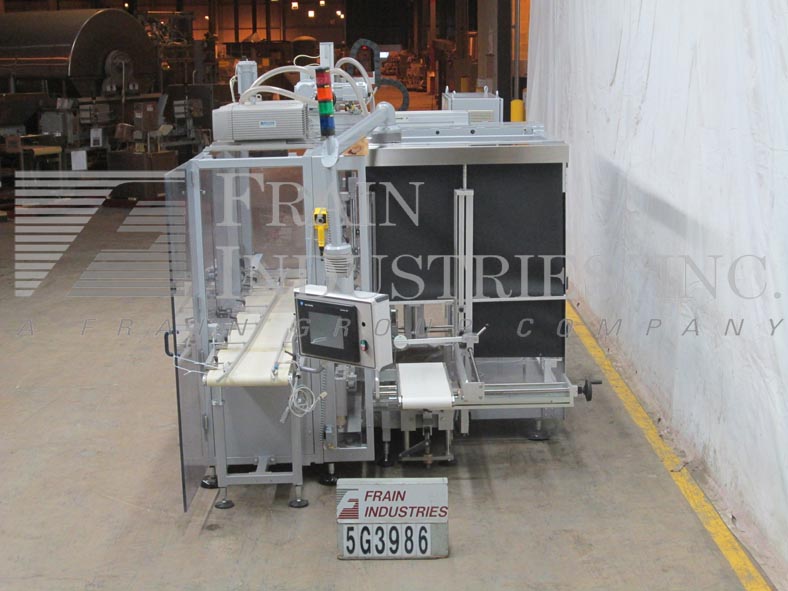

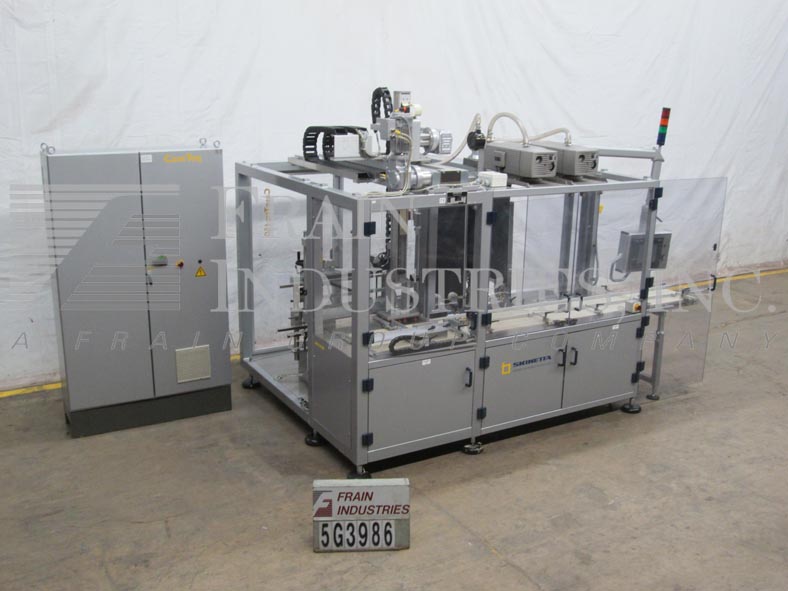

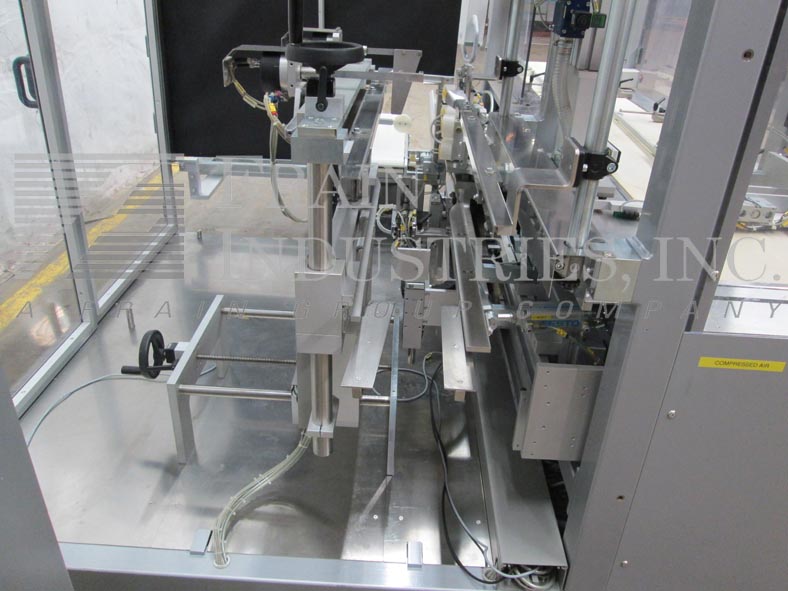

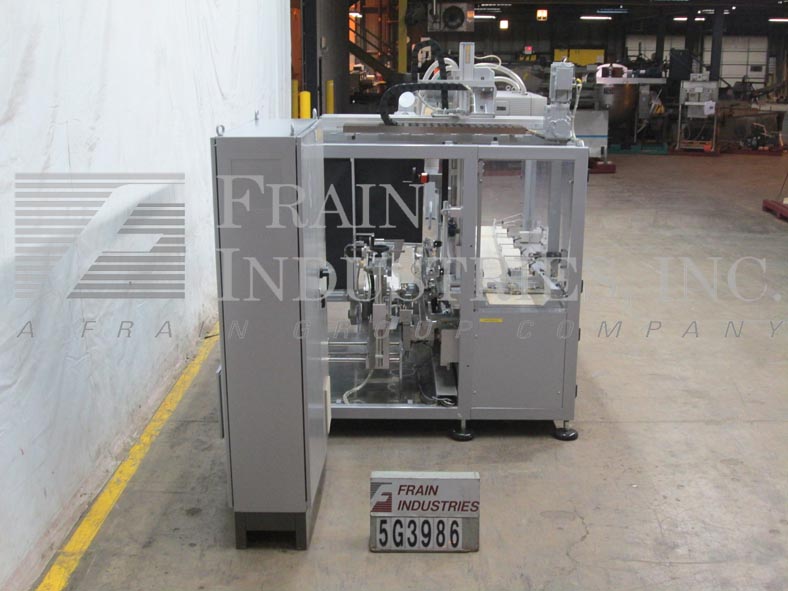

SkinettaCase Packer Erector/sealer CASETEQ150

• Manufacturer:Skinetta
• Model Number:CASETEQ150
• Frain Number:5G3986

Skinetta, Model CASETEQ150, fully automatic case erector and packer. Capable of speeds from 5 to 14 cpm – depending on materials, application environment and machine configuration. Case size range : 5.9" – 23.6" long x 3.93" – 15.75" wide x 4.72" – 15.75" high. Equipped with a 16" wide x 120" long product infeed belt conveyor, 10¼" wide x 108" long carton magazine, (6) suction cup blank case pic-n-place and erector, accumulates product and loads case. Include lexan guarding and an AB Panelview 1000 touch screen display.

OAD: 128"L x 586" W x 96" H

SkinettaShrink Bundler ASK600

• Manufacturer:Skinetta
• Model Number:ASK600
• Frain Number:5F8990

SkinettaModel ASK600, automatic, intermittent motion, shrink bundler and tunnel rated from 10 to 30 cycles per minute with number of packages – depending on materials, application and pack pattern. Product size range: 3" to 12.6" in Length; 3" to 12.6" in Width; up to 11" in Height. Equipped with 96" long x 12" wide right angle in feed conveyor with bump wheel spacer into (2) product lanes, single head product ram thru bundler with 12" wide heat seal jaws. A product top hold down pad after product is pushed through sealing jaws to hold shrink wrapped product while being sealed. Integrated shrink tunnel with 12" High x 26" Wide x 36" Long heat chamber, with 80" long x 12" wide discharge conveyor. Control panel has Allen Bradley PLC with start, stop. jog, conveyor, tunnel and heater controls with e-stop. Top and bottom film rolls accepts up to 27.2" wide film up to 13" diameter with twin integrated film splicing stations and 17.6" maximum pull stroke length.

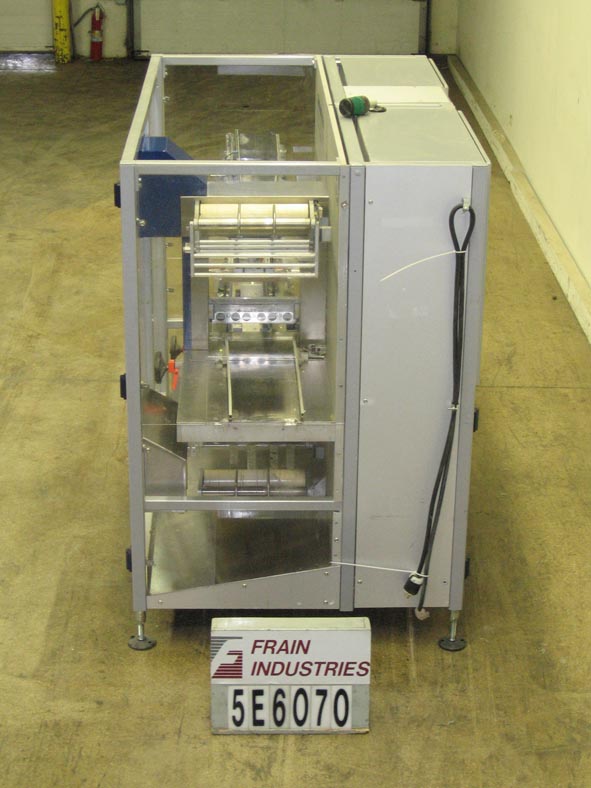

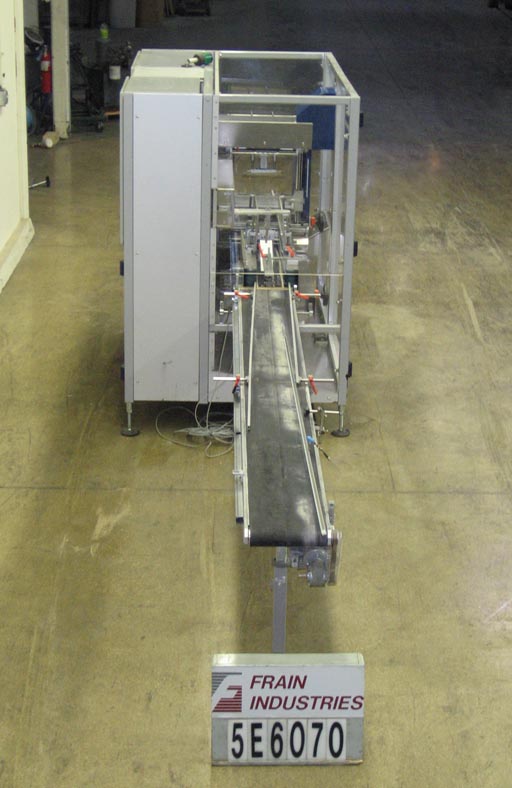

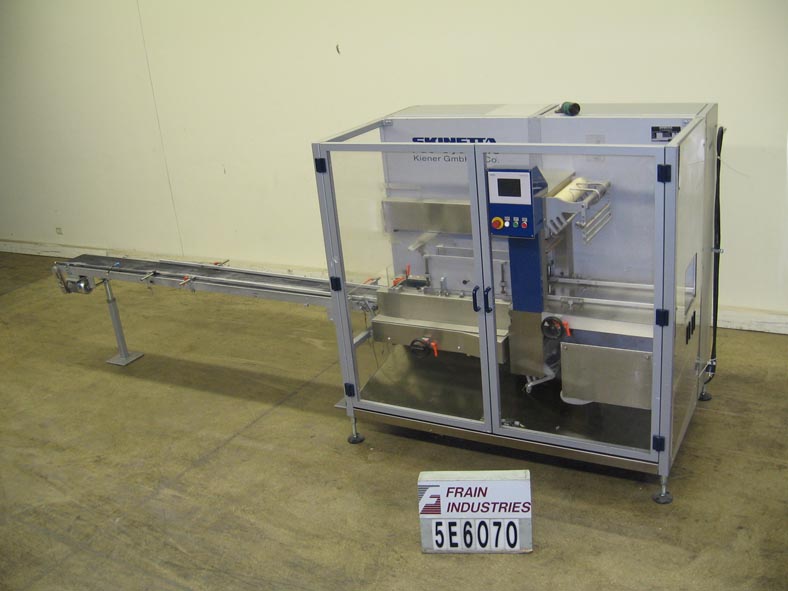

SkinettaShrink Bundler ASK3000

• Manufacturer:Skinetta
• Model Number:ASK3000
• Frain Number:5E6070

SkinettaModel ASK3000, Automatic, inline, intermittent motion, single lane stretch / shrink bundler capable at speeds from 10 to 32 cycles per minute with number of product – depending on materials and application. Product size range: 2.4" to 20" in Length; 1.6" to 13.2" in Width; 5/8 to 6.8" in Height. Equipped with 10′ long x 10-1/4" wide in feed conveyor, single arm product ram, side product assist belts, top product hold down, 12" wide seal jaw and interlocking safety guarding. Accepts film widths up to 12.8". 32" In feed height. Mounted on (4) leg frame.

OAD: 192" L x 54" W x 72" H
