Admix Mixer Liquid Triblender FF425

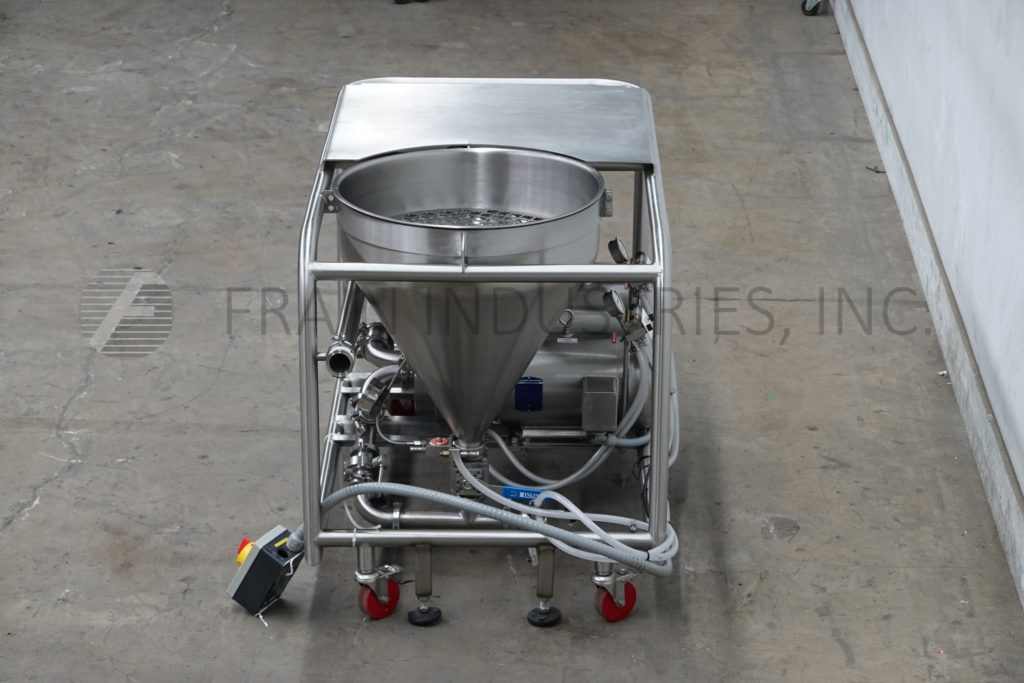

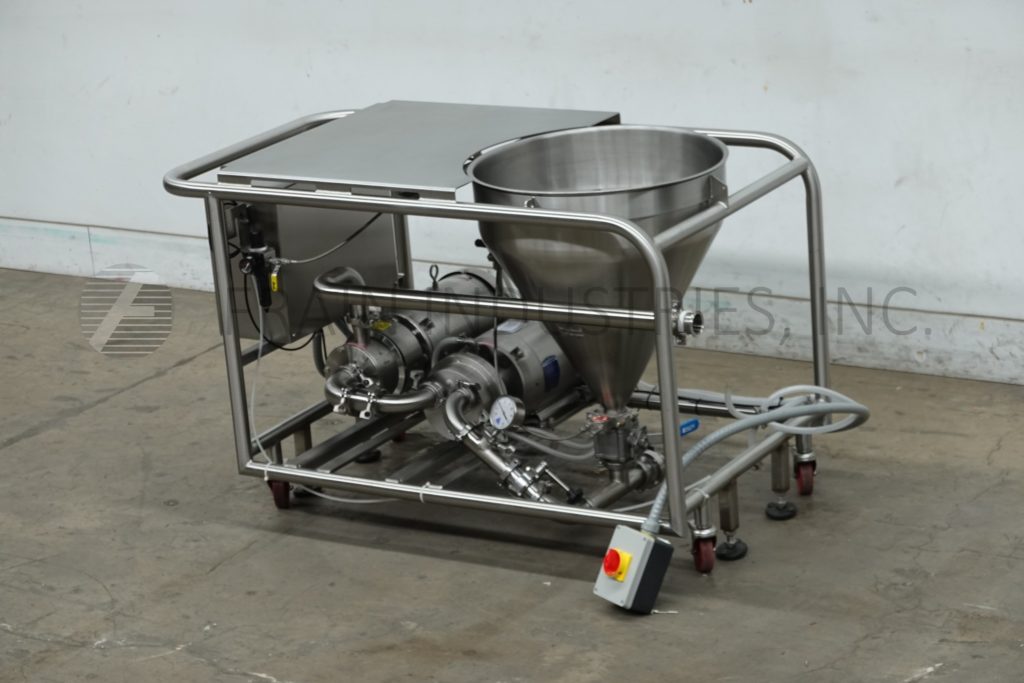

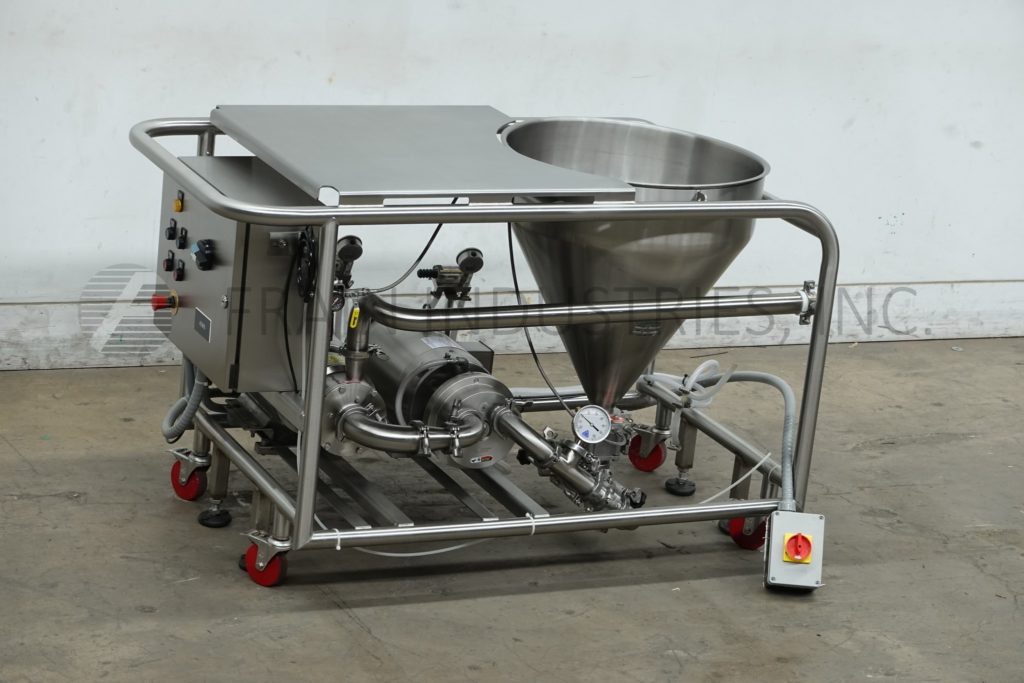

Back to All EquipmentAdmix, Model FF-425, 316 Stainless steel, in-line, integrated mixing system, incorporates SPX Model 2065LR pump with Model Dynashear DS-425 high shear mixer / emulsifier – rated to 65 gpm. Equipped with 25" OD x 26" deep (25 gl) stainless steel conical dry product hopper with safety grid.

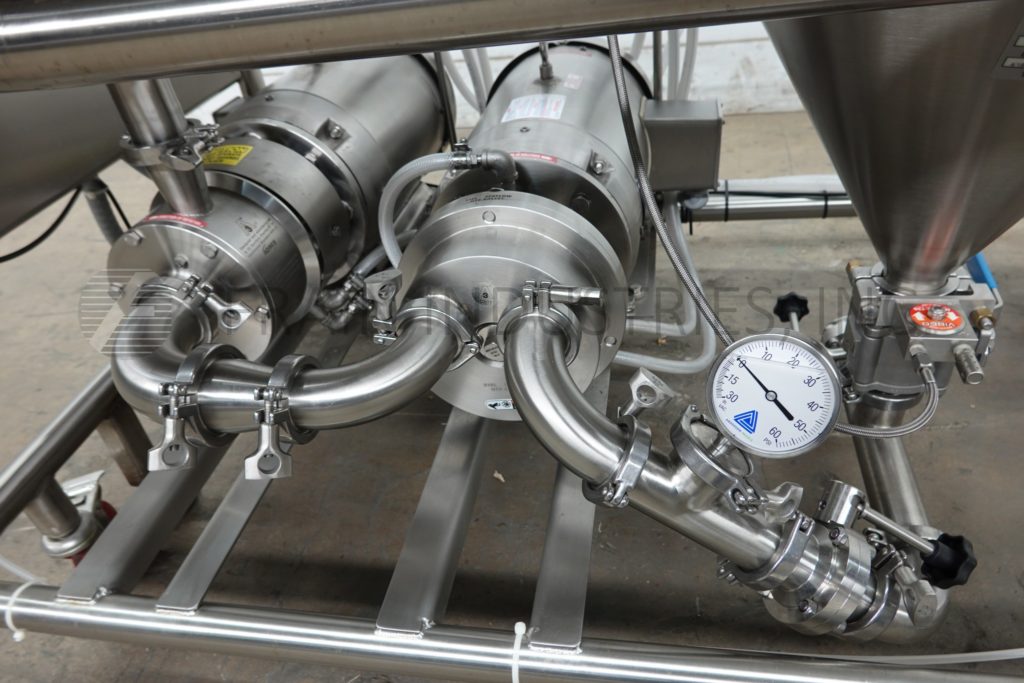

SPX 2065LR liquid ring pump with 2½" OD / 2" ID front ports, 6½" impeller and 7½ Hp drive.

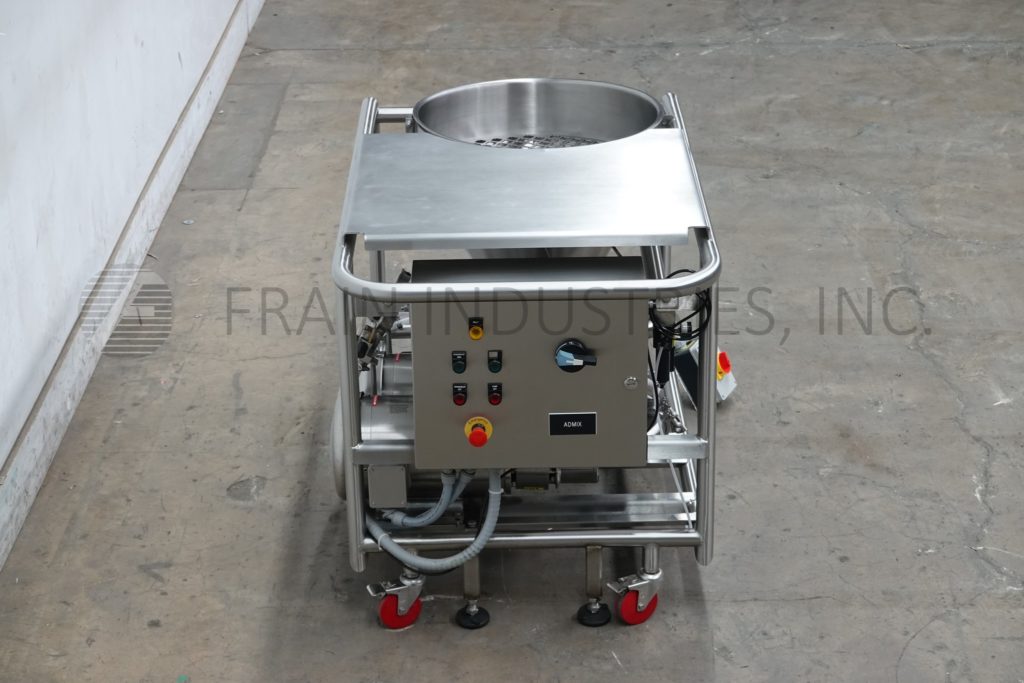

Model DS-425 high shear mixer with 2½" OD / 2" ID sanitary ports, 2" OD rotor / stator mixing head and 7½ Hp motor drive. Control panel has pump and blender start / stop and e-stop. Mounted on stainless steel frame with casters.
Pounds of dry product per minute dependent on materials and application.
Examples:
Granulated (sugar / salt) up to 200 lbs. / minute
Xanthan up to 15 lbs. / minute
OAD: 60" L x 36" W x 37" H
