APV Crepaco Tank Processors 3000 GAL

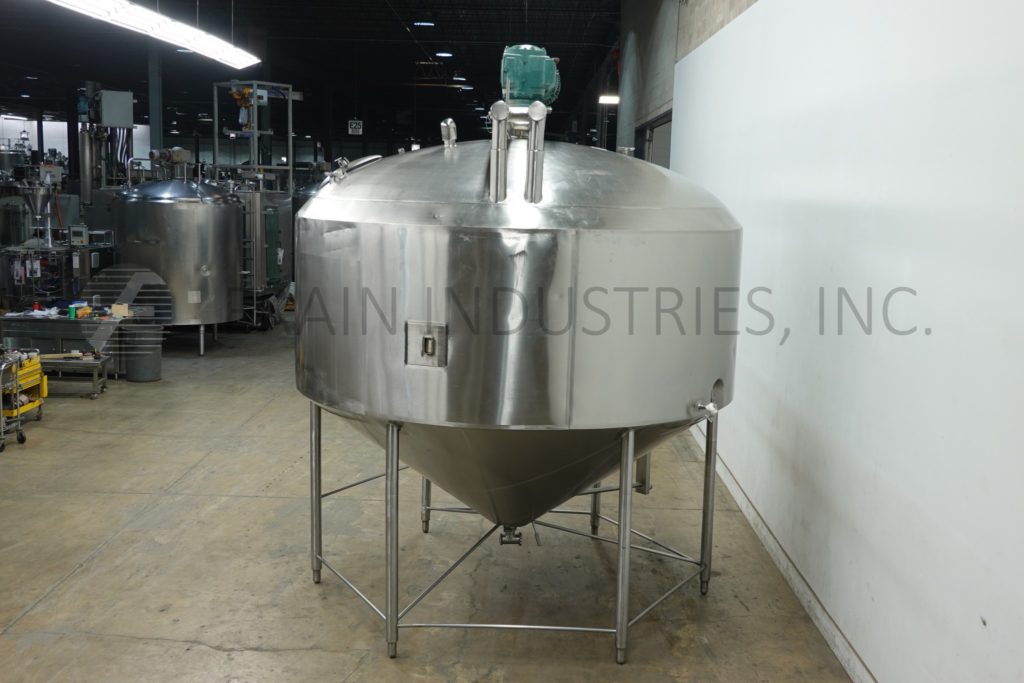

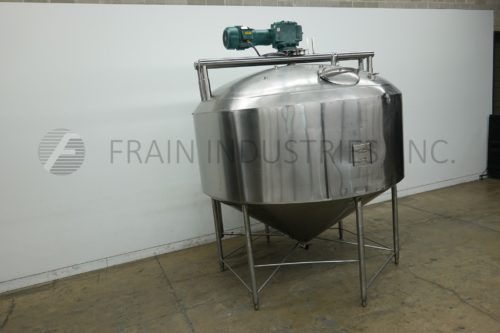

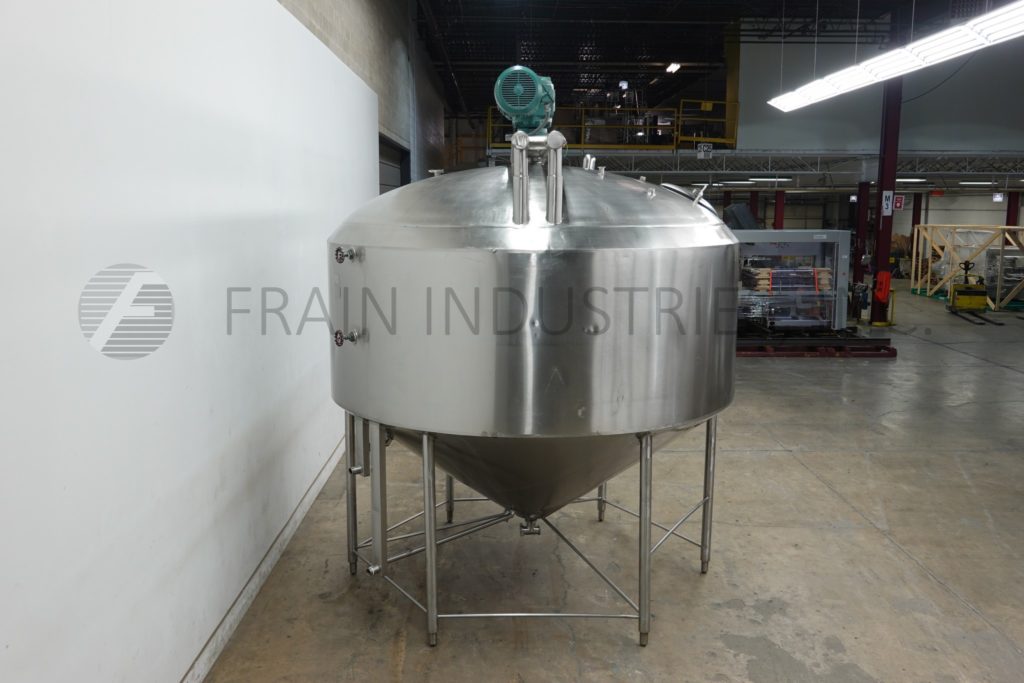

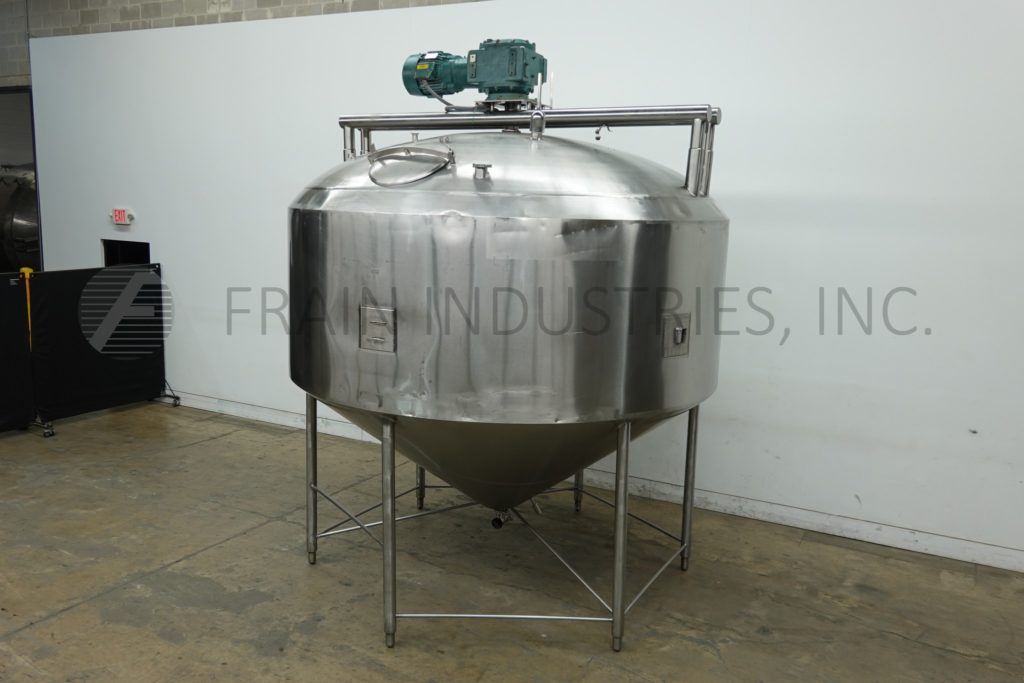

Back to All EquipmentAPV, 3,000 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 120" diameter x 96" deep with a 53" straight wall and cone bottom. Equipped with a 18" diameter man way with flip bolt down cover, (2) CIP spray balls supplied by a 3½"OD / 3" ID Tri-clamp fitting, 5 / 10 Hp top mounted sweep agitator and 3½" OD / 3" ID Tri-clamp style bottom discharge with 12" ground clearance. Mounted on (5) tube legs.
Top Ports:
(2) 2½" OD / 2" ID Tri-clamp
(1) 3½" OD / 3" ID Tri-clamp
Jacket Ports:
(2) 2" NPT
MAWP: 75 PSI @ 400°F
OAD: 128"L x 130"W x 160"H
