DCI Tank SS JKT 3000 GAL

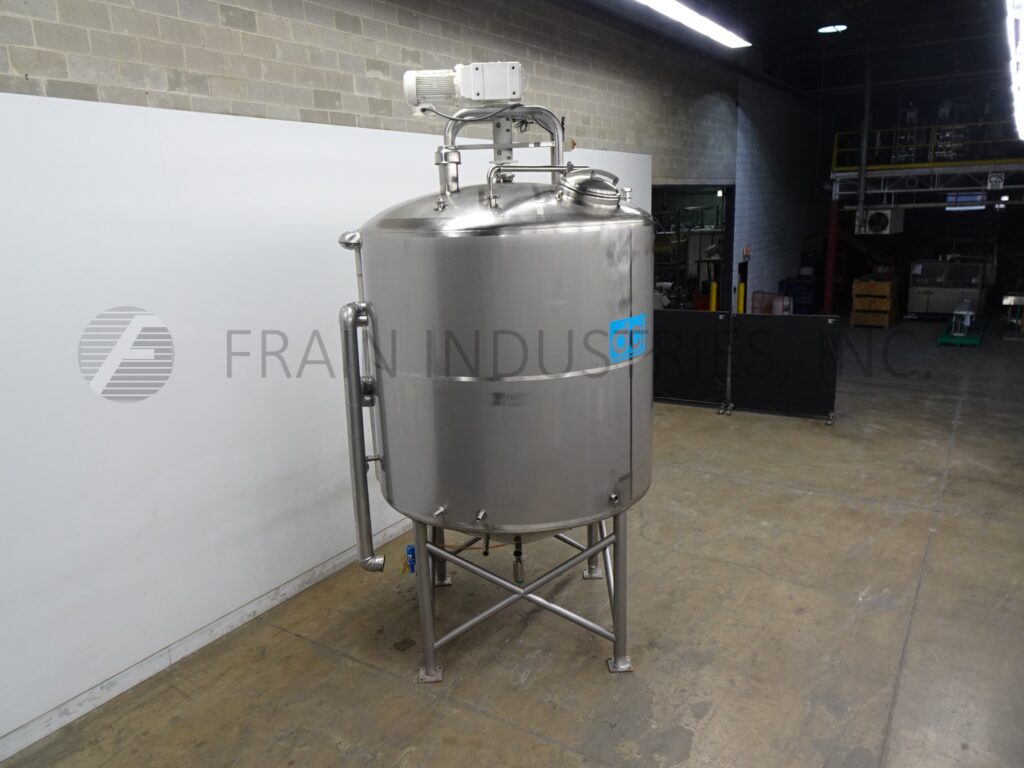

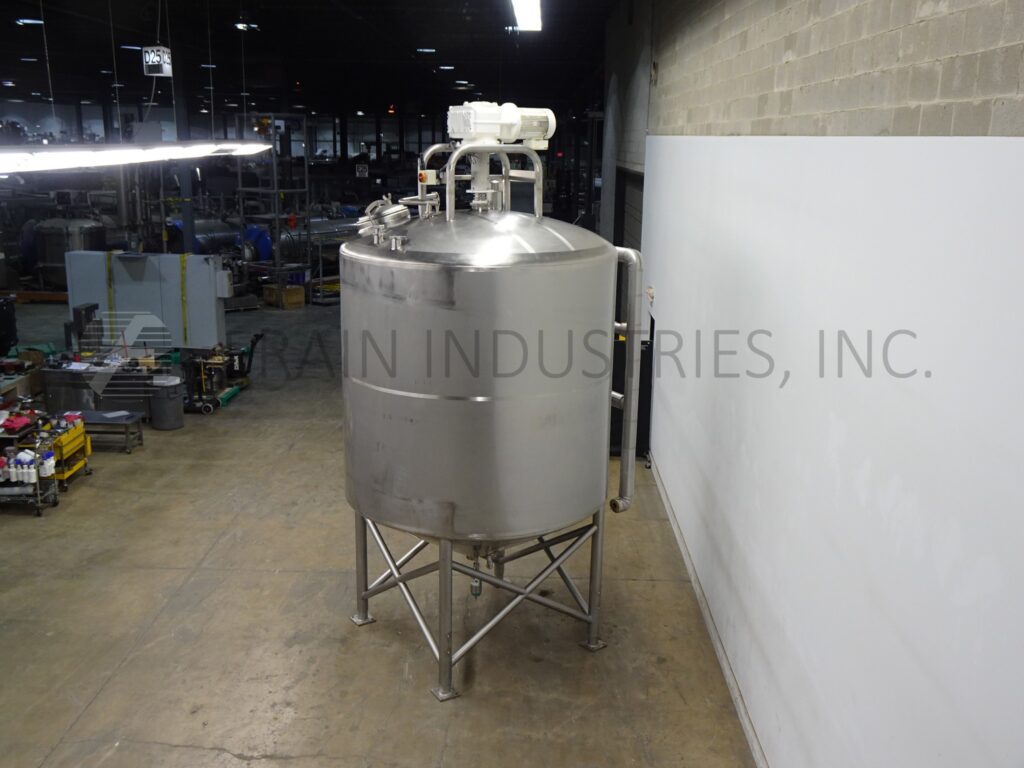

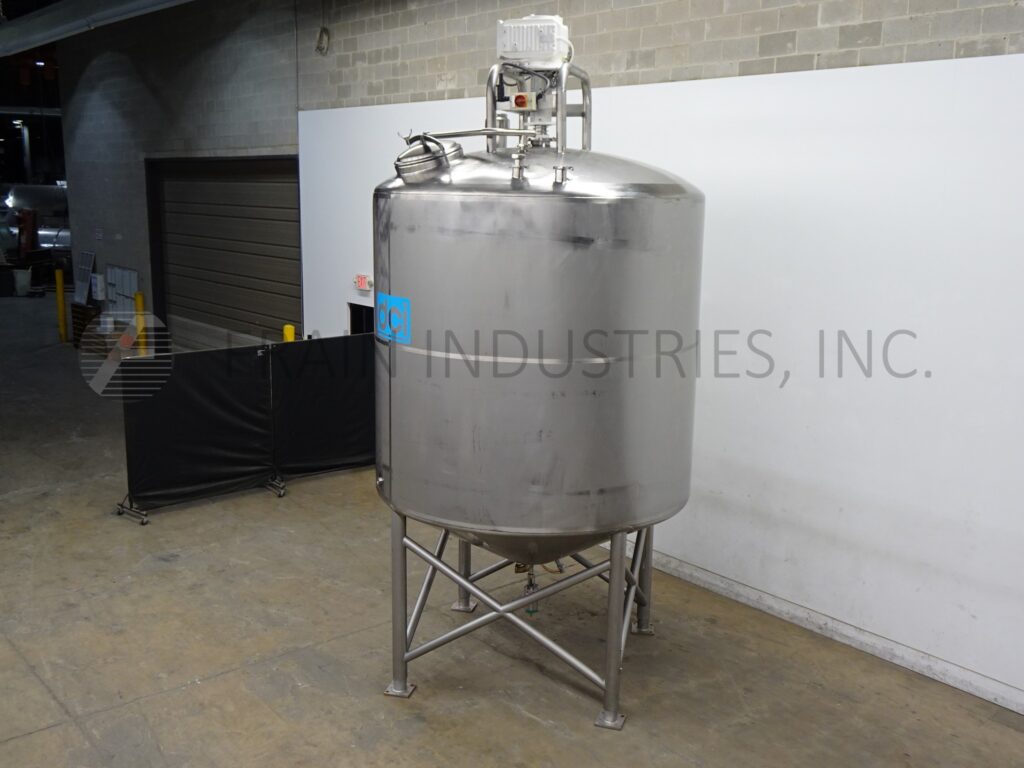

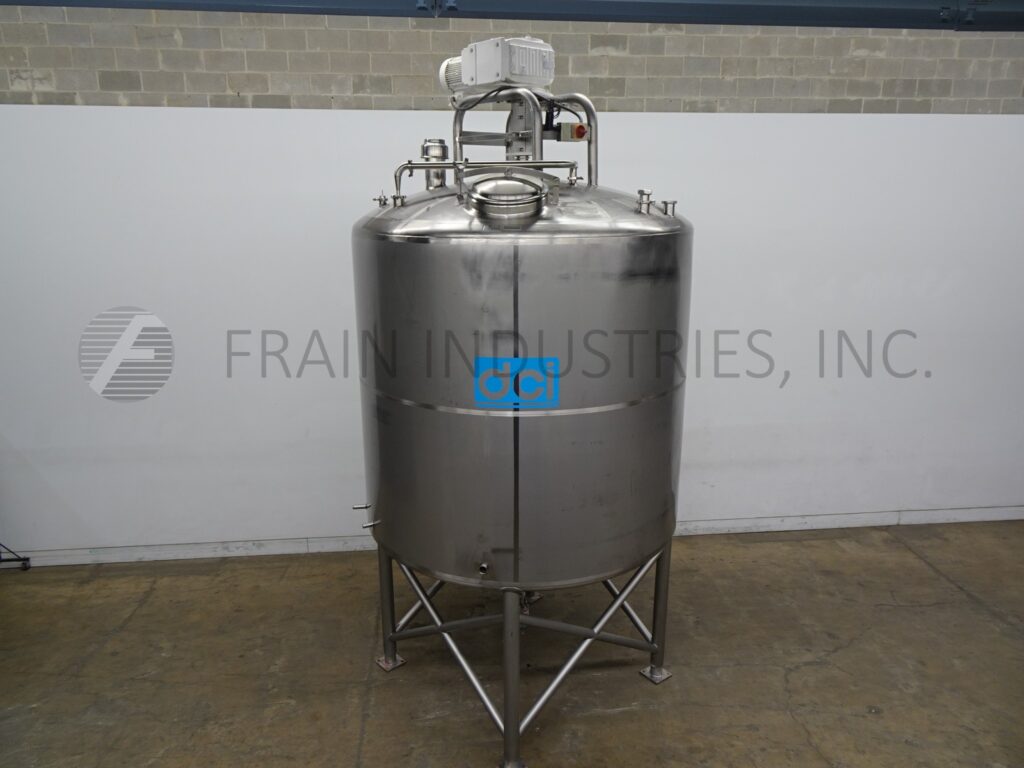

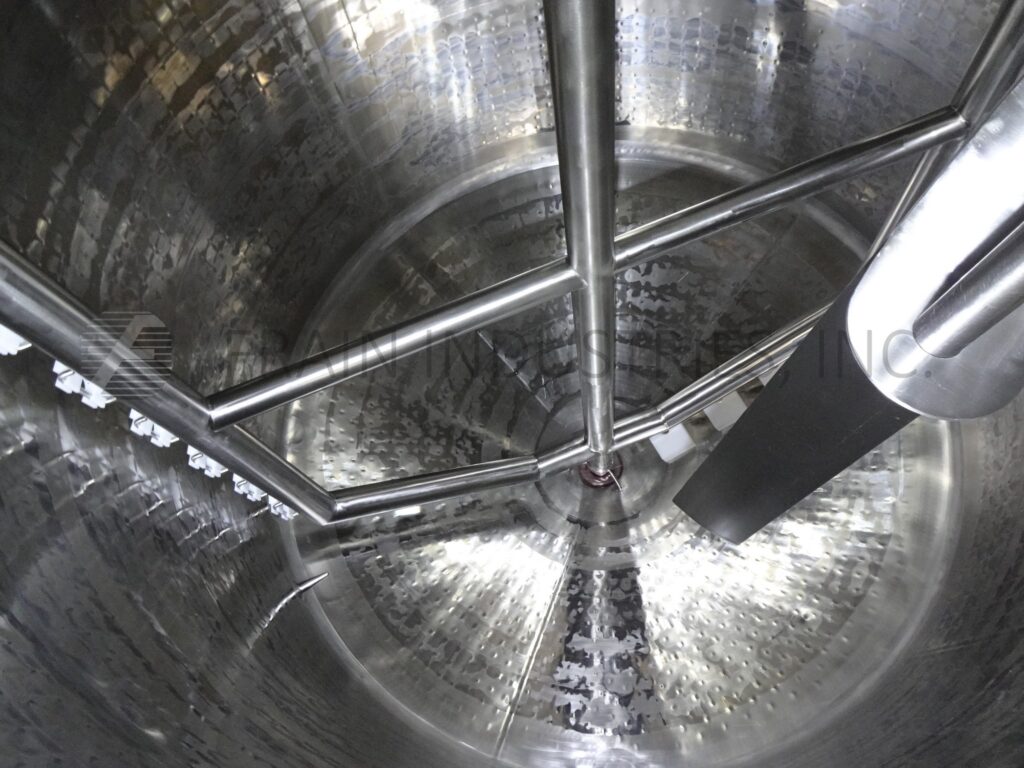

Back to All EquipmentDCI, 3,000 gallon capacity, 316L stainless steel jacketed process tank. Vessel dimensions: 96" diameter, 120" deep, 89" straight wall, Equipped with a 18" top manway with flip-up cover and top mounted 5/10 HP scrape agitation, thermo well, (2) CIP T-Spray Balls supplied by a 2½" OD / 2" ID Tri-Clamp fitting and single CIP Spray Ball supplied by a 3½" OD / 3" ID Tri-Clamp fitting. Cone bottom has 3½" OD / 3" ID bottom discharge with 29" ground clearence.
Jacket
MAWP: 100 PSI @ 300°F
MDMT: -20°F @ 150 PSI
Vessel
MAWP: 0 PSI @ 100°F
MDMT: -20°F @ 0 PSI
Top Ports:
(2) 2½"OD / 2"ID Tri-Clamp
(3) 3½"OD / 3"ID Tri-Clamp
Side Ports:
(2) 2½"OD / 2"ID Tri-Clamp
Jacket Ports:
(8) 1½" NPT
OAD: 120" L x 105" W x 206" H
