Glatt Dryer Fluid Bed GPCG1

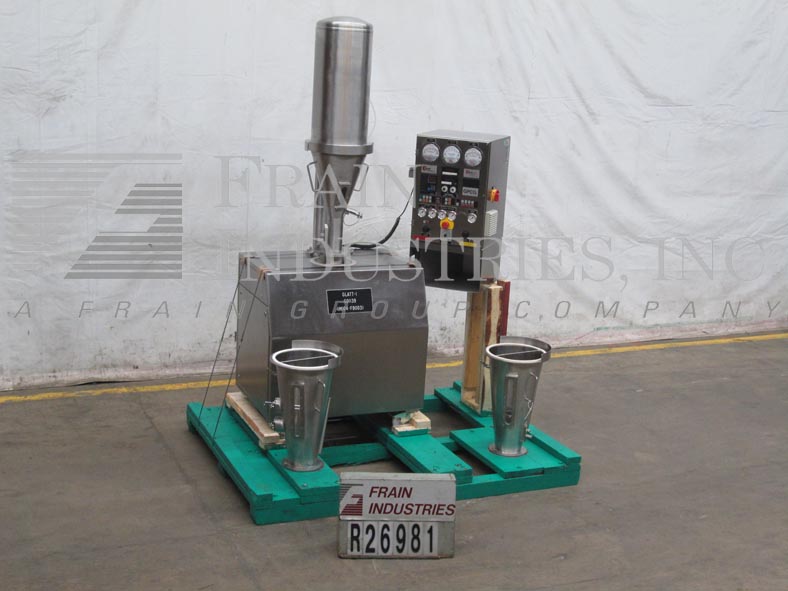

Back to All EquipmentGlatt Model GPCG1, modular, lab size batch fluid bed dryer capable of drying, agglomerating, fine particle and tablet coating with batch sizes from 0.3 to 5 kilograms – depending on materials and application.
12" OD x 24" long top section
12" OD x 21" long conical mixing / drying / spraying section with 1" OD side spray port and 1" wide x 4" long sight port
Bottom spray (Wurster) rates of 0 to 100 ml per minute
Process air temp adjustable between ambient and 120 Deg C
Control panel with air velocity and exhaust gauges inlet and exhaust air temp controllers, supply air, operating, spray nozzle and purge air gauges with exhaust air flap speed dial.
Model: GPCG 1
Fan Capacity: 2.2 kW
RPM: 3400
Voltage: 3 x 220v
Control Voltage: 220v
Cycles: 60Hz
Compressed Air Pressure: 6 Bar
OAD: 36" L x 24" W x 85" H Dryer
16" L x 16" W x 38" H Control Cabinet
