自动胶机

Jones Cartoner Auto Horiz. Glue (Auto) BFC

• Manufacturer:Jones
• Model Number:BFC
• Frain Number:5F6764

Jones, Model BFC, automatic, horizontal, continuous, motion, hot melt glue cartoner. Rated from 50 to 160 cartons per minute – depending on materials and application. Carton range of: 5" to 9" in Length; 1½’ to 3½" in Width; 8" to 12" in Depth. Equipped with 10" wide x 145" long 3 lane product in feed conveyor, 10" wide x 24" long product indexing conveyor to overhead drop in buckets on 6" centers, 300" long in-feed bucket conveyor with 15½" long x 5½" wide x 1½" deep buckets on 12" centers, 163" long x adjustable width up to 15" wide (2) belt powered carton magazine, 72" long cam loading section and 6" wide x 54" long discharge conveyor belt. Start, stop and E-stop push button controls with an AB VersaView display panel, no product / no carton, hot melt glue system and barrier guarding.

OAD: 800" L x 98" W x 95" H

Kliklock Cartoner Auto Horiz. Glue (Auto) ADVANTAGE

• Manufacturer:Kliklock
• Model Number:ADVANTAGE
• Frain Number:5 g3192

Kliklock Model ADVANTAGE, automatic, continuous motion, horizontal, hot melt glue cartoner rated from 40 to 150 cartons per minute – depending on materials and application. 4 chain adjustable unit set on 12" centers, with 2-1/2" wide x 3" high lugs. Carton size range: 2-3/8" to10-1/2" in Length; 3/4" to 3-1/2" in Width 4-3/8" to 10-3/4" in Depth. Equipped with 136" long x 10" wide hand load product in feed conveyor with 6" long x 2" high x 10" deep fixed product pockets, 36" long blank carton magazine, (2) head rotary pic-n-place, no-product / no-carton, barrel cam loader and Nordson hot melt glue system with compression section. Control Panel has A/B PLC with touch pad contoller and read out with machine, vacuum, jog / run on / off switches start, e-stop buttons and Siko gauges. Mounted on base frame with interlock flip up safety guarding.

OAD: 289" L x 85" W x 74" H

Thiele Cartoner Auto Horiz. Glue (Auto) 60

• Manufacturer:Thiele
• Model Number:60
• Frain Number:5G5385

Thiele, Model 60SCM, automatic, continuous motion stainless steel, horizontal, hot melt glue cartoner. Rated from 30 to 120 cartons per minute – depending on materials and application. Carton Size Range: 1" to 9" in Length; ½" to 4" in Width; 6" to 9" in Depth. Equipped with 108" long product bucket in feed conveyor with 10" long x 6" wide x 3" deep buckets, 78" long blank carton magazine, 2-head rotary pic and place, 144" long 4 chain adjustable carrier system set on 15" centers, 32" long barrel cam loading section, 48" long compression section, interlocking Lexan safety guarding, push button control panel with A/B dataliner, Electro Cam PLS, and 40" long Eagle belt discharge conveyor with open flap detection and rejection. Mounted on height adjustable legs.

Coder available for an additional charge.

OAD: 350" L x 75" W x 70" H

Global Packaging Machinery Co Cartoner Auto Horiz. Glue (Auto) 140

• Manufacturer:Global Packaging Machinery Co
• Model Number:140
• Frain Number:5G4011

Global Packaging, Model 140, continuous motion, horizontal hot melt cartoner. Rated from 40 to 240 cartons per minute – depending on materials and application. Carton size range: 2" to 10" in Length; ½" to 5½" in Width; 3½" to 12" in Depth. Equipped with 70" long x 8" wide 3 zone metering infeed conveyor, 4 chains adjustable, fixed bucket in feed with 5" long x 2" wide x 12" deep product buckets on 12" centers, 63" long x 11" wide 2 belt powered magazine, 2 head rotary pic n place, automatic barrel cam loader, Nordson hot melt glue system, dual 26" long x 1½" high side belt compression section and (2) 24" long x 1" wide belt discharge conveyor and features an A/B PLC controller and vacuum system. Control panel with push button start, stop, jog.

OAD: 350" L x 90" W x 70" H

Adco Cartoner Auto Horiz. Glue (Auto) 15DBC105-EC

• Manufacturer:Adco
• Model Number:15DBC105-EC
• Frain Number:R26670

Adco, Model 15D105BC-125EC, automatic, continuous motion, horizontal, hot melt glue cartoner rated from 25 to 125 cartons per minute – depending on materials and application. Equipped with 4 chains adjustable unit set on 12" centers, with 2-1/2" wide x 3" high lugs. Carton size range: 1" to 9-1/2" in Length; ¾" to 4" in Width 5" to 12" in Depth. Equipped with 15′ long x 12" wide bucket in feed conveyor with 8" long x 12" deep x 3-1/2" high adjustable product buckets. 80" long powered 3 belt blank carton magazine, 2 head rotary pic-n-place, no-product / no-carton, top carton hold down, barrel cam loader, Nordson hot melt glue system, Seko gauges for quick product change-overs, vacuum pump system, statis light. Control Panel has relay logic controls with touch pad controller and digital display with machine, on / off controls, vacuum, glue, jog / run on / off switches, start, stop, and e-stop buttons with speed control dial. Mounted on heavy duty base frame with safety guarding and locking caster.

OAD: 384" L x 89" W x 99" H

Superior Cartoner Auto Horiz. Glue (Auto) 200

• Manufacturer:Superior
• Model Number:200
• Frain Number:5G0690

优越的200型、自动、连续运动,horizontal glue cartoner rated from 50 to 300 cartons per minute – depending on materials and application. Carton size range: 1.5" to 10" in Length; 3/4" to 7" in Width; 6" to 12" in Depth. Equipped with 4 chains adjustable currently set on 12" centers has 4" high lugs, and 72" long powered blank carton magazine, 4 suction cup pic n place, overhead product confiner. 25′ long x 13" wide product in feed conveyor and automatic barrel cam loader. Control panel has Allen Bradley PLC with jog / run and air, push button start and e-stop controls. Mounted on frame with Lexan interlock guarding and height adjustable self leveling legs.

OAD: 420" L x 96" W x 80" H

Langen Cartoner Auto Horiz. Glue (Auto) B1-AL

• Manufacturer:Langen
• Model Number:B1-AL
• Frain Number:5G2955

Langen Model B1-AL, automatic, continous motion, horizontal, hot melt glue cartoner rated from 40 to 120 cartons per minute – depending on materials and application. 4 chains adjustable set on 18" centers with 1½" high lugs. Carton size range: 1¾" to 14" in Length x 3/8" to 6" in Width x 3¼" to 14" in Depth. Equipped with 3 belt product feed and metering conveyor, to 32" long x 12" wide in feed conveyor with top product pushers, to 252" long bucket conveyor with 15" long x 15" wide x 2" deep adjustable product buckets and automatic barrel cam loader. 96" long 2 chain powered blank carton magazine, 2 head rotary pic-n-place, with over head carton squaring conveyor and Nordson hot melt glue system and Seko gauges. Remote control panel, has A/B CPU, touch pad controller with panel view and on cartoner controller with jog / run, vacuum, glue, carton feed, vari speed controls, with start / stop / e-stop controls. Mounted on frame with interlocking safety guarding.

OAD: 236" L x 72" W x 75" H Cartoner
252" L x 59" W x 73" H Barrel Cam Loader
38" L x 14" W x 36" H TTL (3) belt Conveyor
60" L x 16" W x 72" H Control Cabinet

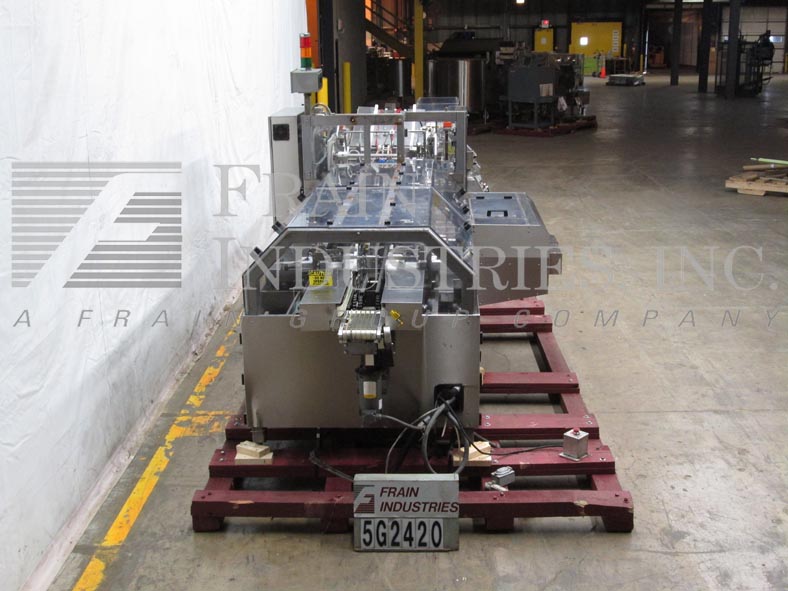

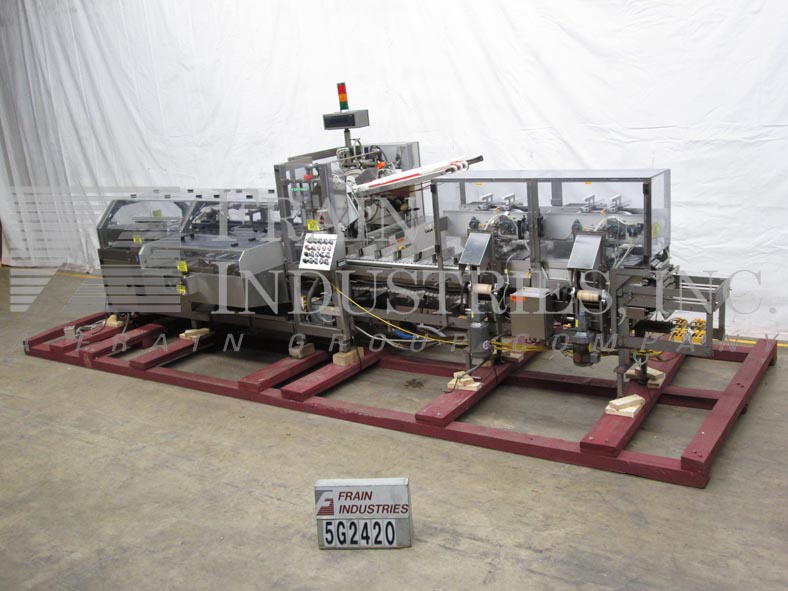

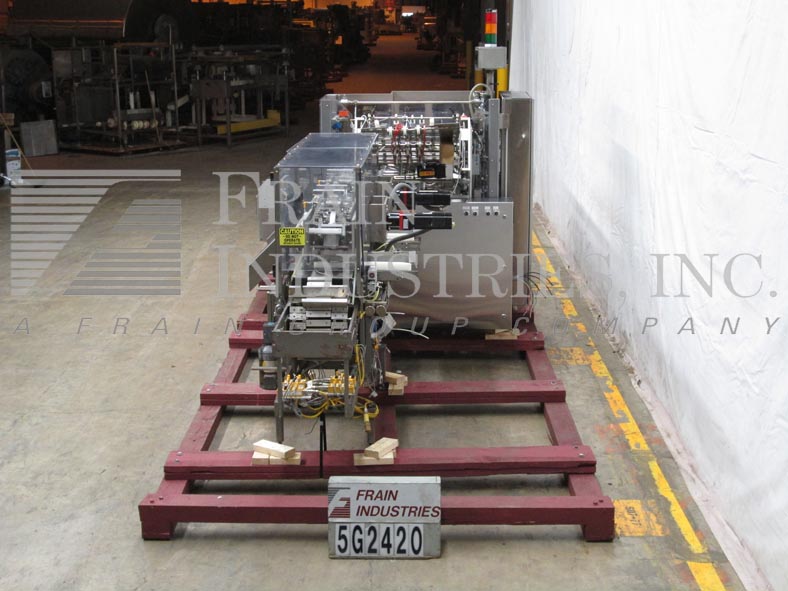

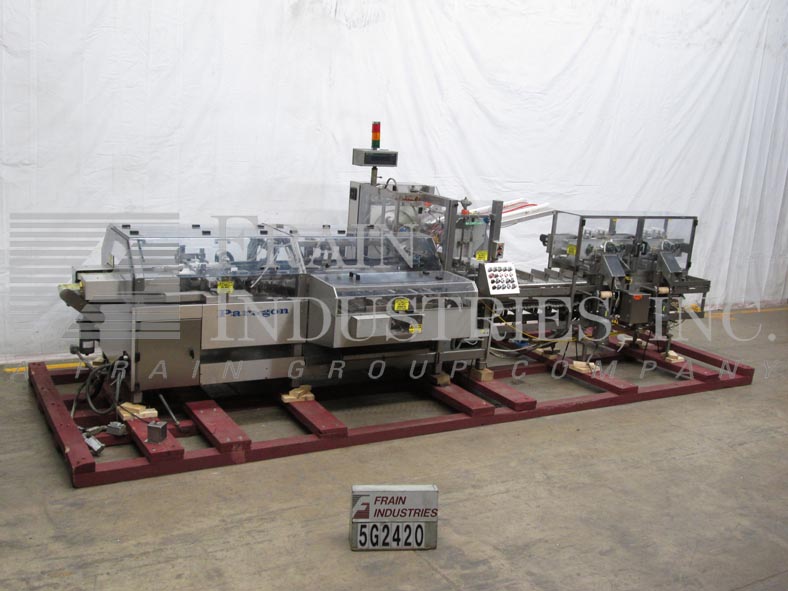

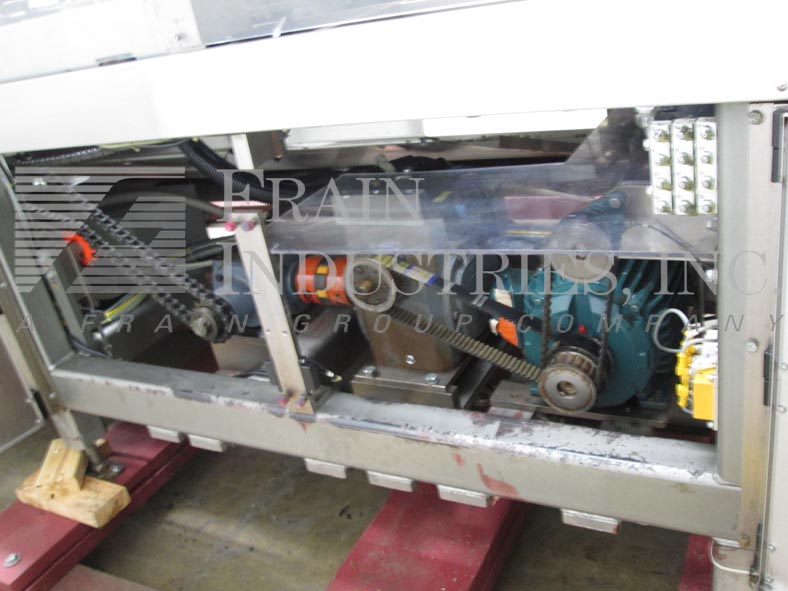

MGS Cartoner Auto Horiz. Glue (Auto) HCM 750

• Manufacturer:MGS
• Model Number:HCM 750
• Frain Number:5G2420

MGS Model Paragon 750, automatic, continuous motion, servo driven, stainless steel, horizontal hot melt glue cartoner rated from 50 to 250 cartons per minute – depending on materials and application. Carton size range: 2" to 5-1/2" in Length; 3/4" to 4-1/2" in Width; 5" to 11" in Depth. Equipped with 182" long product in feed conveyor with 6" long x 3" high x 8" deep fixed product buckets, 4 chains adjustable unit set on 7-1/2" centers, with 1-1/2" wide x 2" high lugs, overhead product confiner, 48" long powered blank carton magazine, (2) head rotary pic n place, barrel cam loader, no product / no carton, flap closers Nordson (2) hot melt glue system with 27" long x 2" wide dual product compression belts. Control panel has A/B CPU controller with panel view, manual, jog, run, vacuum, pic-n-place, conveyor speed controllers, with push button start and e-stop, statis light bar. Mounted on base frame with with flip up interlock safety guarding.

OAD: 262" L x 84" W x 73" H

Multipack Cartoner Auto Horiz. Glue (Auto) FRB500

• Manufacturer:Multipack
• Model Number:FRB500
• Frain Number:5E9751

自动、间歇运动水平,热的我lt glue trayer / cartoner rated from 20 to 50 per minute – speeds depending on materials and application. Currently set on 5-1/2" centers with 2" high lugs, Carton size range: 1 to 4-1/2" in Length x 3/4" to 12" in Width x 3/4" to 9" in Depth with proper change parts. Equipped with 40" long x 12" wide product in feed conveyor, dual 48" long x 4-1/2" high side product transfer belts, product collator, with single arm ram loader. 40" long x 17" wide x 13" high powered blank carton magazine, with 2 suction cup recipicating pick n place, top carton hold-down. 1 suction cup recipicating coupon inserter with 80" long x 3" wide magazine. Datalogic LS4100 Lazer Scanner, Nordson 3500V (5) gun hot melt glue system, 30" long x 7" wide roller discharge chute with air ram. Control panel, PMC 80 touch pad controller with LCD display, A/B 900 panel view, PLC interlocking safety guarding and mounted on stainless steel base.

OAD: 192" L x 80" W x 80" H

Cam Cartoner Auto Horiz. Glue (Auto) PMM

• Manufacturer:Cam
• Model Number:PMM
• Frain Number:5E9460

Automatic, intermittent motion, hot melt, horizontal cartoner capable of speeds from 10 to 40 cpm – speeds depending on materials and application. Carton size range: 1/2" to 3-1/2" in Length; 1/2" to 2-3/4" in Width; 2" to 8" in Depth. Equipped with a 144" long powered carton magazine feeding a reciprocating pick and place with blade style carton erector. 5-1/2" long x 2-1/4" wide x 1-1/4"high adjustable product buckets with no product no carton detection probe, set on 4.75" centers. Single arm product pusher, flap closers, Nordson two gun hot melt glue system A/B plc with swing arm controller and interlock safety guarding.

EMBOSS CODER available at addition cost

OAD: 137" L x 72" W x 84" H

ClybournCartoner Auto Horiz. Glue (Auto) HWPC2

• Manufacturer:Clybourn
• Model Number:HWPC2
• Frain Number:5E7877

Automatic, continuous motion, hot melt glue cartoner rated from 80 to 200 cartons per minute – speeds depending on materials and application. Equipped with 2 chains fixed set on 8" centers, 152" long fixed product bucket infeed conveyor with 2-3/4" long x 2" wide x 10" deep product buckets, 36" long x 18" wide 2 chain auto blank carton magazine (4) head rotary pic-n-place, automatic barrel cam loader, Control panel, with GE Fanuc controller, start / stop, no product / no carton sensor, low blank sensor, e-stop, and interlocking saftey guarding.

OAD: 231" L x 72" W x 75" H

PMI Cartoner Auto Horiz. Glue (Auto) M07000800

• Manufacturer:PMI
• Model Number:M07000800
• Frain Number:5E7794

Automatic, continuous motion, horizontal, hot melt cartoner rated from 40 to 120 cartons per minute – speeds depending on materials and application. Carton size range: 1" to 10" in Length x 1" to 3-1/2" in Width x 3" to 10" in Depth. Equipped with (3) chains adjustable set on 12" centers, 75" long x 12" wide (2) belt auto blank carton magazine, (2) head rotary pic-n-place, automatic barrel cam loader, with top hold down, Nordson hot melt glue system, dual 18" long x 1-1/2" high side belt product compression and discharge conveyor. Control panel, with A/B PCU and Electro cam PLS 5000, start / stop, no product / no carton sensor, low blank sensor, H/M, speed controls, e-stop, and interlocking saftey guarding

OAD: 316" L x 69" W x 72" H
