Mill Machines

Used Mill Equipment

有很多不同的名称,用于describe particle size reduction: milling, grinding, granulating, comminuting, etc. Milling systems can size reduce wet or dry powders. Their are variable speed drives that permit low speed screening and high speed impacting with one milling system. A typical milling system consists of an inlet chamber with a rotor screen and an outlet. The particle size depends upon the speed of the rotor, rotor type, screen hole size and the feed rate of the product. High shear granulation turns powders into dense granules for tableting or coating. Powders are added to a mixing bowl. A large impeller spins the powders into a vortex. A chopper tool shears the granules and removes the air. The granulated product is dried in the mixing bowl or fluid bed dryer.
Contact Us

Related Categories

Mill Equipment In Stock

Ika-Works Mill Colloid MHD2000/10

Photo of Ika-Works Mill Colloid MHD2000/10
Thumbnail of Ika-Works Mill Colloid MHD2000/10 Thumbnail of Ika-Works Mill Colloid MHD2000/10 Thumbnail of Ika-Works Mill Colloid MHD2000/10 Thumbnail of Ika-Works Mill Colloid MHD2000/10

Ika-Works Mill Colloid MHD2000/10

  • Manufacturer:Ika-Works
  • Model Number:MHD2000/10
  • Frain Number:5H4593

Ika-Works模型磁流体动力2000/10,连续液体/ solids, mixing, homogenizing and dispersing system capable of handling up to 80% solid concentrations and is rated to 1,500 litres of liquids and 2,900 lbs of powders / granulates per hour – depending on materials and application. All 316L stainless steel wetted parts, 1/2 Hp top mounted motor drive with Sunco stainless steel, clean lock, solids rotary dosing valve to 7" OD / 5-1/2" ID x 19-1/2" long product mixing chamber with 3" OD top solids inlet, 2-1/2" OD liquid inlet, 2-1/2 OD final homogenized, dispersal outlet and 2-1/2" OD flow meter port, has inner feed auger, mixing paddles and rotor / stator system, with 20 Hp main motor drive. Control panel has A/B CPU with A/B vari-speed controllers, and Stahl touch pad controller with readout and e-stop also liquid flow controls and pressure gauges. Mounted on a stainless steel tubular base frame with casters.
(2) 36 gpm, sanitary PD pumps with 1-1/2" OD sanitary in/outlets, gear reducers and stainless steel cart with casters.

OAD: 95" L x 42" W x 72" H Mixing System
60" L x 24" W x 44" H Pump System

Get a Free Quote Call:630-629-9900

Fitzmill Mill Hammer DAS06

Photo of Fitzmill Mill Hammer DAS06
Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06

Fitzmill Mill Hammer DAS06

  • Manufacturer:Fitzmill
  • Model Number:DAS06
  • Frain Number:R30008

Fitzmill Model DAS06, 316 S/S, pan fed hammer mill with pounds of product per hour – depending on materials and application. Equipped with 26" long x 20" wide stainless steel feed pan, with 6" x 11" feed throat, with 6" x 11" feed throught and 16 fixed stainless steel reversible blunt / knife blades with a discharge height of 36". Control panel with reset, start and stop push button controls. Mounted on a (4) leg base frame with casters.

OAD: 52" L x 30" W x 66" H

Get a Free Quote Call:630-629-9900

Quadro Mill Hammer 194S

Photo of Quadro Mill Hammer 194S
Thumbnail of Quadro Mill Hammer 194S Thumbnail of Quadro Mill Hammer 194S Thumbnail of Quadro Mill Hammer 194S Thumbnail of Quadro Mill Hammer 194S

Quadro Mill Hammer 194S

  • Manufacturer:Quadro
  • Model Number:194S
  • Frain Number:R29070

Quadro Model 194S, 316 stainless steel particle size reduction Comil. Equipped with 14" diameter x 12" dep stainless steel product hopper, 6" diameter feed throat, 8" diameter screen and 10" diameter discharge port with 36" ground clearance. Variable speed. Rated from 1,800 to 4,000 lbs of product per hour – depending on materials, machine configuration and application.

OAD: 42"L x 30"W x 64"H

Get a Free Quote Call:630-629-9900

Fitzmill Mill Hammer JT

Photo of Fitzmill Mill Hammer JT

Fitzmill Mill Hammer JT

  • Manufacturer:Fitzmill
  • Model Number:JT
  • Frain Number:R26109

Fitzpatrick, Model JT, 316 stainless steel homoloid mill. with production rates per minute – depending on materials and application. Equipped with 12" ID x 3" deep 304 stainless steel feed pan with 2.75" ID product port, (12) swinging knife impact blades with screen area of 2" wide x 16" long and 8" long x 2" wide bottom product discharge with 36” ground clearance. Start, stop and reset button controls and mounted on a base with locking casters.

OAD: 44"L x 34"W x 53"H

Get a Free Quote Call:630-629-9900

Fitzmill Mill Hammer DAS06

Photo of Fitzmill Mill Hammer DAS06
Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06

Fitzmill Mill Hammer DAS06

  • Manufacturer:Fitzmill
  • Model Number:DAS06
  • Frain Number:R29370

Fitzmill, Model DAS06, stainless steel hammer mill. with pounds of product per hour – depending on materials, application and machine configuration. Equipped with a 9" wide x 52" long x 5" deep vibratory feed pan and (16) fixed knife blades powered by 10 Hp motor drive. Product discharges onto a 16" wide inclined take away conveyor with 1" high cleats set on 12" centers and a 49" discharge height. Control panel with push button start / stop and variable speed touch pad.

OAD: 182"L x 45"W x 85"H

Get a Free Quote Call:630-629-9900

Quadro Mill Hammer 197

Photo of Quadro Mill Hammer 197
Thumbnail of Quadro Mill Hammer 197 Thumbnail of Quadro Mill Hammer 197 Thumbnail of Quadro Mill Hammer 197 Thumbnail of Quadro Mill Hammer 197 Thumbnail of Quadro Mill Hammer 197

Quadro Mill Hammer 197

  • Manufacturer:Quadro
  • Model Number:197
  • Frain Number:R29071

Quadro Model 197, 316 stainless steel particle size reduction Comil. Rated from 360 to 800 lbs of product per hour – depending on materials and application. Equipped with 10" diameter x 6" deep stainless steel product hopper, 3" diameter feed throat, 5" diameter screen and 6" diameter discharge port with 13" ground clearance. Mounted on stainless steel (4) leg base frame with variable speed control.

OAD: 28"L x 13"W x 32"H

Get a Free Quote Call:630-629-9900

Fitzmill Mill Hammer DAS06

Photo of Fitzmill Mill Hammer DAS06
Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06 Thumbnail of Fitzmill Mill Hammer DAS06

Fitzmill Mill Hammer DAS06

  • Manufacturer:Fitzmill
  • Model Number:DAS06
  • Frain Number:5H2890

Fitzmill, Model DAS06, stainless steel hammer mill. with pounds of product per hour – depending on materials and application. Equipped with 12" long x 12" wide x 12" deep (½ ft³) product hopper, 4" diameter feed screw with 2" centers powered by ¾ HP drive and (26) 4" long x 3" wide fixed knife blades powered by a 15 hp drive. Product discharge is 9½”L x 6” W with 31" of ground clearance. Mounted on (4) leg painted frame base.

OAD: 55"L x 40"W x 62"H

Get a Free Quote Call:630-629-9900

Morehouse Cowles Mill Ball & Pebble 10-25PX

Photo of Morehouse Cowles Mill Ball & Pebble 10-25PX

Morehouse Cowles Mill Ball & Pebble 10-25PX

Morehouse Cowles Model 10-25P, single vessel pressure media mill, single pass, rated from 35 to 225 gallons per hour – depending on materials, application and machine configuration. Equipped with 12" OD x 40" long grinding chamber with 1-1/2" ID threaded top port and 1-1/2" ID threaded bottom port, chamber contains (12) parallel 10" OD agitator disks mounted on a high speed shaft and when the shaft is spinning high energy is produced by the disks to the media and when product is added the motion of the disks and grinding media produce high impact force that uniformly deagglomerates product to any specified size or finish. Full water jacket used as needed to keep product warm or cold per application is rated at 50 psi, 9" OD diaphragm pump moves product through the grinding chamber, enters the bottom and is ground by the media as it rises through the chamber and exits through the 8" OD top hat screen. Driven by top mounted 30 Hp (4) V-belt motor drive, with start, stop, e-stop push button controls pressure / temperature gauges.
Gross Volume:15 gallons
Typical Media Load: 55-60% of Total Gross Volume
Media required per application.

OAD: 58" L x 36" W x 90" H

Get a Free Quote Call:630-629-9900

Fitzmill Mill Hammer JT

Photo of Fitzmill Mill Hammer JT
Thumbnail of Fitzmill Mill Hammer JT Thumbnail of Fitzmill Mill Hammer JT Thumbnail of Fitzmill Mill Hammer JT Thumbnail of Fitzmill Mill Hammer JT

Fitzmill Mill Hammer JT

  • Manufacturer:Fitzmill
  • Model Number:JT
  • Frain Number:R28902

Fitzpatrick, Model JT, stainless steel homoloid mill. with production rates per minute – depending on materials, application and machine configuration. Equipped with 15" diameter x 10" deep feed hopper with 3" diameter feed throat, (15) fixed knife blades and 10" long x 6" wide bottom product discharge with 21” ground clearance. Push button start / stop controls. Mounted on stainless steel base frame with casters.

OAD: 42"L x 37"W x 47"H

Get a Free Quote Call:630-629-9900

Fitzmill Mill Hammer DKAS012

Photo of Fitzmill Mill Hammer DKAS012
Thumbnail of Fitzmill Mill Hammer DKAS012 Thumbnail of Fitzmill Mill Hammer DKAS012 Thumbnail of Fitzmill Mill Hammer DKAS012 Thumbnail of Fitzmill Mill Hammer DKAS012

Fitzmill Mill Hammer DKAS012

  • Manufacturer:Fitzmill
  • Model Number:DKAS012
  • Frain Number:5H2670

与stainles Fitzmill、模型DKAS012锤式粉碎机s steel contact parts. Production rates per hour – depending on materials, application and machine configuration. Equipped with an 8" diameter charge port and (32) 1½" wide by 3" long fixed knife blades powered by a 15 hp drive. 11"OD / 8"ID flanged product discharge with 12” floor clearance. Mounted on a (4) leg painted base frame. Used to grind, de-lump, pulverize and process wet / dry products.

OAD: 45"L x 36"W x 55"H

Get a Free Quote Call:630-629-9900

Hosokawa Mill Hammer 3MP

Photo of Hosokawa Mill Hammer 3MP
Thumbnail of Hosokawa Mill Hammer 3MP Thumbnail of Hosokawa Mill Hammer 3MP Thumbnail of Hosokawa Mill Hammer 3MP Thumbnail of Hosokawa Mill Hammer 3MP

Hosokawa Mill Hammer 3MP

  • Manufacturer:Hosokawa
  • Model Number:3MP
  • Frain Number:5H0301

Mikro Pulverizer, Model 3MP, hammer mill with carbon steel contact parts. Production rates per hour – depending on materials, application and machine configuration. Equipped with a 13" x 4" feed throat, (3) 2" diameter feed augers powered by a ¾ HP drive and (16) 13" wide swinging impact hammers powered by a 50 HP drive. Reduced product is collected in a 35" diameter x 32" deep conical hopper with a 12" diameter flanged discharge. Mounted on heavy duty (6) leg base frame.

OAD: 70"L x 40"W x 64"H

Get a Free Quote Call:630-629-9900

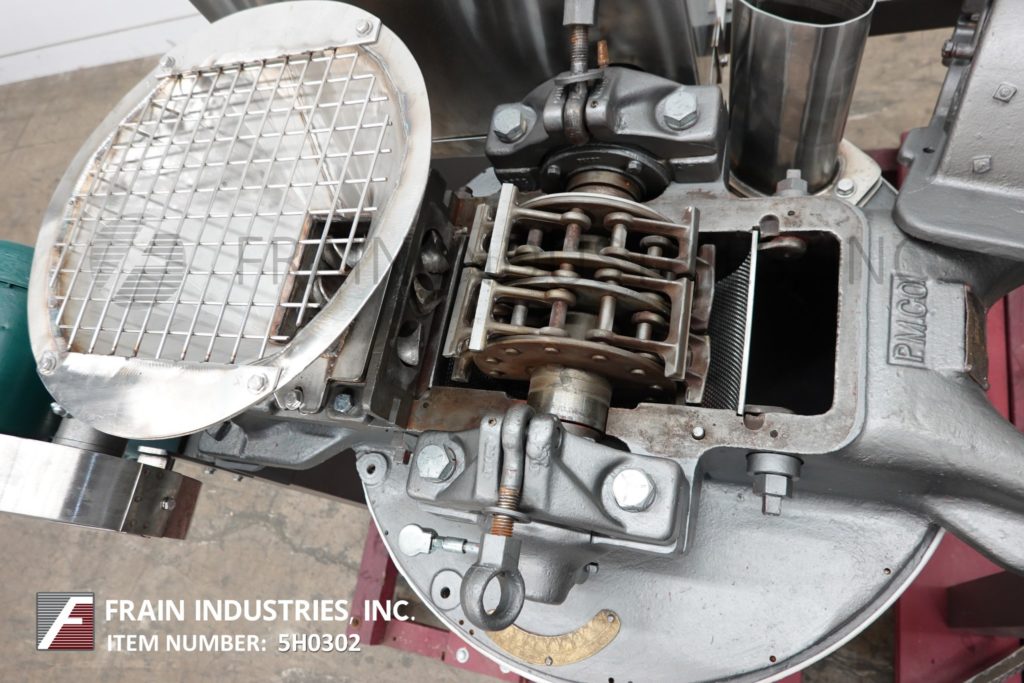

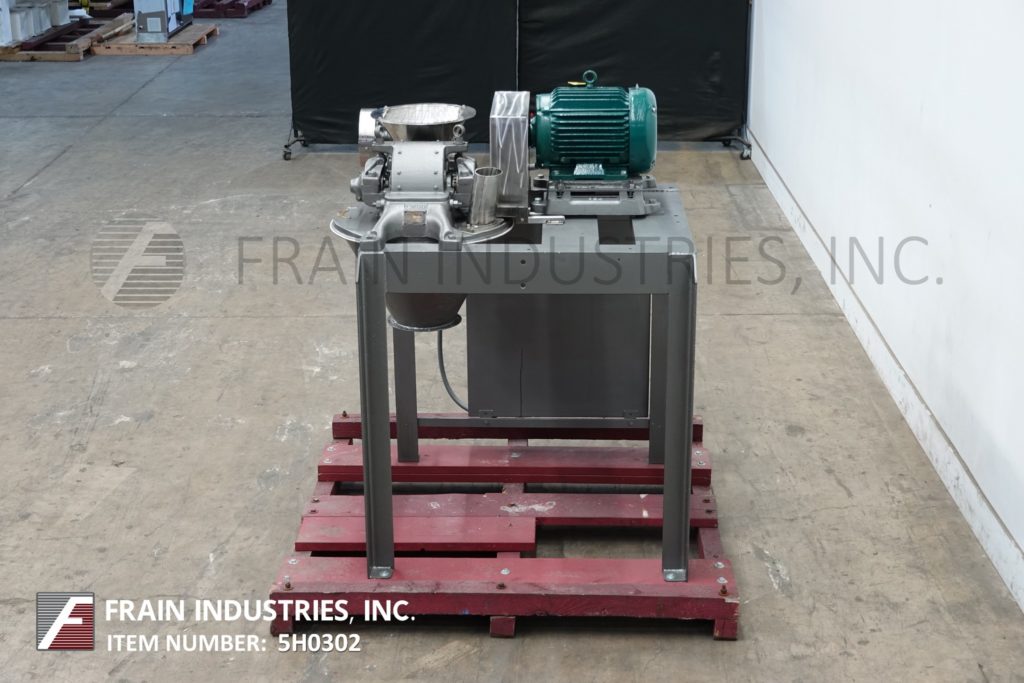

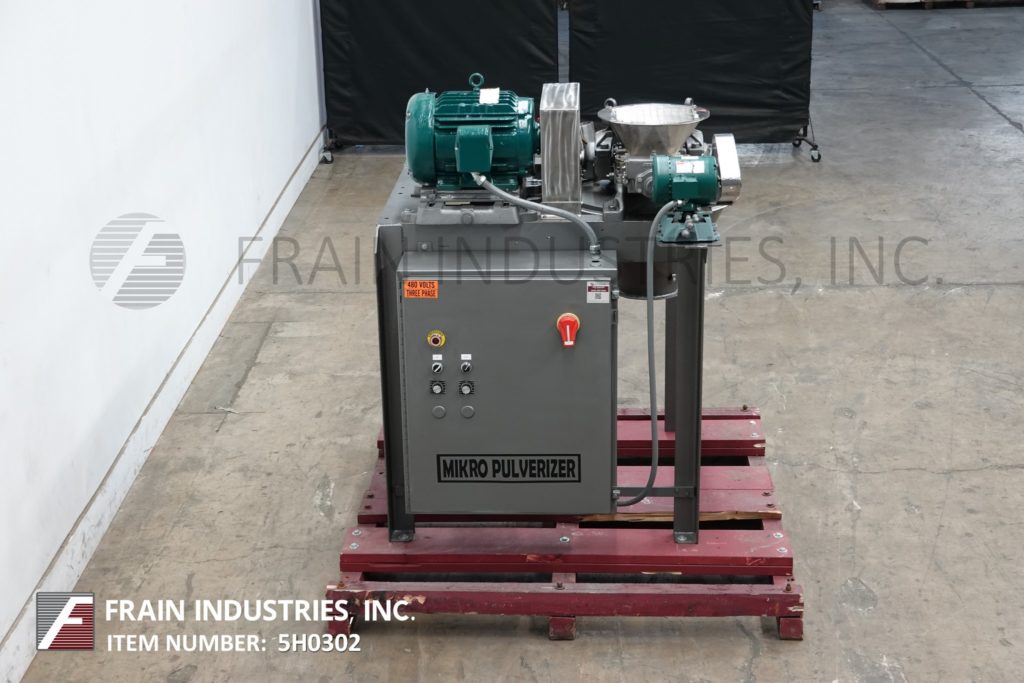

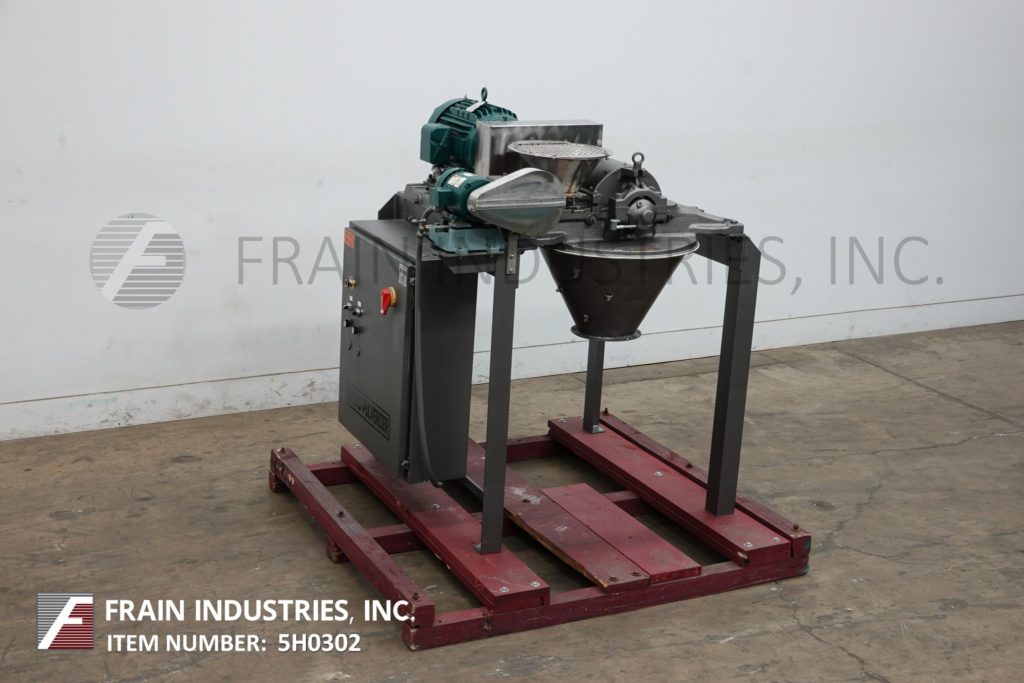

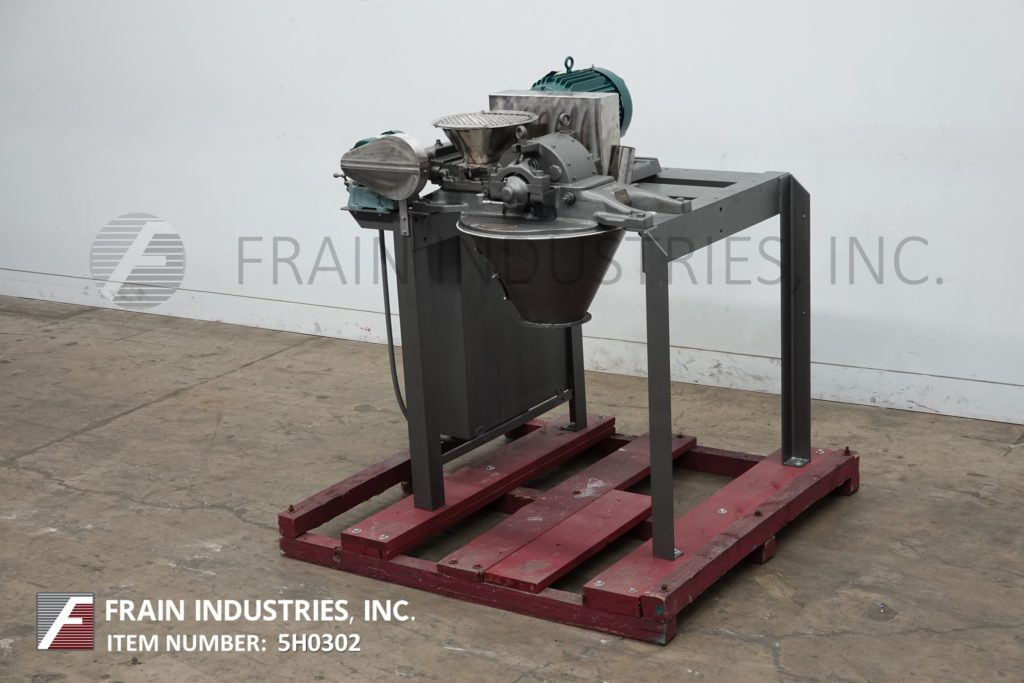

Hosokawa Mill Hammer MP 25 HP

Photo of Hosokawa Mill Hammer MP 25 HP
Thumbnail of Hosokawa Mill Hammer MP 25 HP Thumbnail of Hosokawa Mill Hammer MP 25 HP Thumbnail of Hosokawa Mill Hammer MP 25 HP Thumbnail of Hosokawa Mill Hammer MP 25 HP Thumbnail of Hosokawa Mill Hammer MP 25 HP Thumbnail of Hosokawa Mill Hammer MP 25 HP Thumbnail of Hosokawa Mill Hammer MP 25 HP Thumbnail of Hosokawa Mill Hammer MP 25 HP Thumbnail of Hosokawa Mill Hammer MP 25 HP

Hosokawa Mill Hammer MP 25 HP

  • Manufacturer:Hosokawa
  • Model Number:MP 25 HP
  • Frain Number:5H0302

Mikro Pulverizer, hammer mill with carbon steel contact parts. Production rates per hour – depending on materials, application and machine configuration. Equipped with a 13" diameter x 6" deep feed hopper, (3) 1¾" diameter feed augers powered by a ¾ HP drive and (12) 6" wide swinging impact hammers powered by 25 Hp drive. Reduced product is discharge into a 24" diameter x 15" deep conical product hopper with a 10" diameter flanged discharge. Variable speed augers and mill.

OAD: 55"L x 55"W x 66"H

Get a Free Quote Call:630-629-9900
