Mill Machines

Ross Mill Roller (Mill) TRM

• Manufacturer:Ross
• Model Number:TRM
• Frain Number:5G9745

Ross, Model 4 x 8 TRM, 3-Roll mill with volumes of product per hour – depending on materials and application. Equipped with (3) 4" in diameter x 8" long rollers powered by 1 Hp motor drive, with hand crank gap adjustment, scraper blades and 8" long working roll area. All (3) rolls made of hardened steel. Roller cooling with ¼" NPT inlet port for cooling medium and ¾" NPT outlet. Control panel has push button start, stop and e-stop chain. Mounted on heavy duty base frame.

OAD: 40"L x 28"W x 51"H

Greerco Mill Colloid W500V

• Manufacturer:Greerco
• Model Number:W500V
• Frain Number:5G9737

Greeco, Model W500V, colloid mill. Capable of complete dispersion and deagglomeration of liquids in liquids or solids in liquids at rates from 100 to 300 gallons per hour – depending on materials, application and machine configuration. Equipped with 20" diameter x 20" deep (20 gallon capacity) stainless steel hopper and 1" diamter discharge with 44" ground clearance. Rotor powered by a 10 hp drive and mounted on a push cart base.

OAD: 30"L x 20"W x 71"H

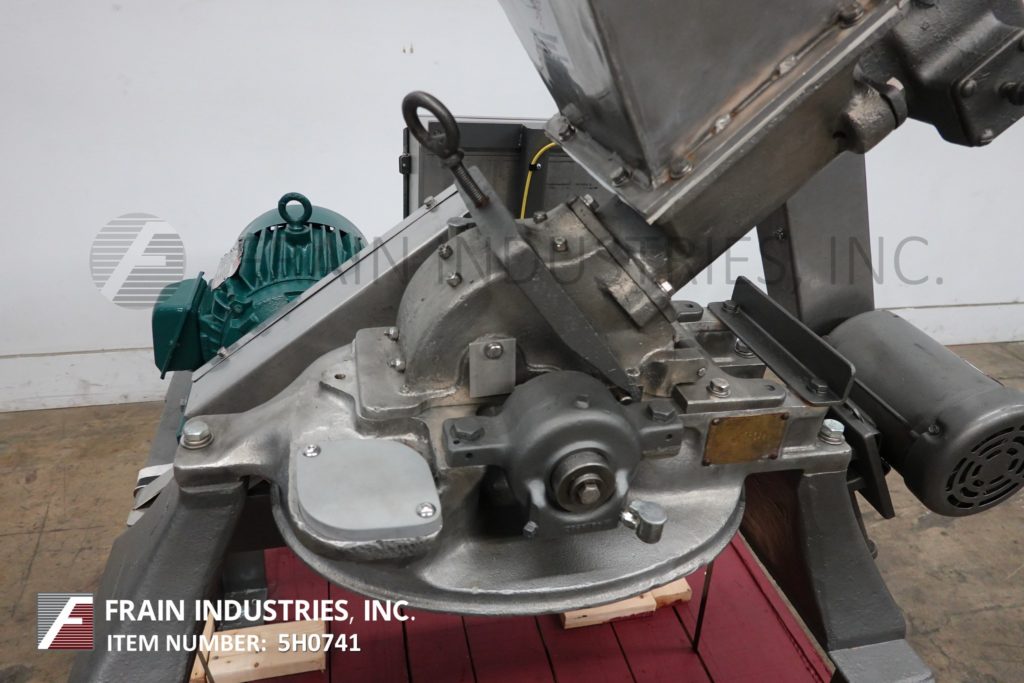

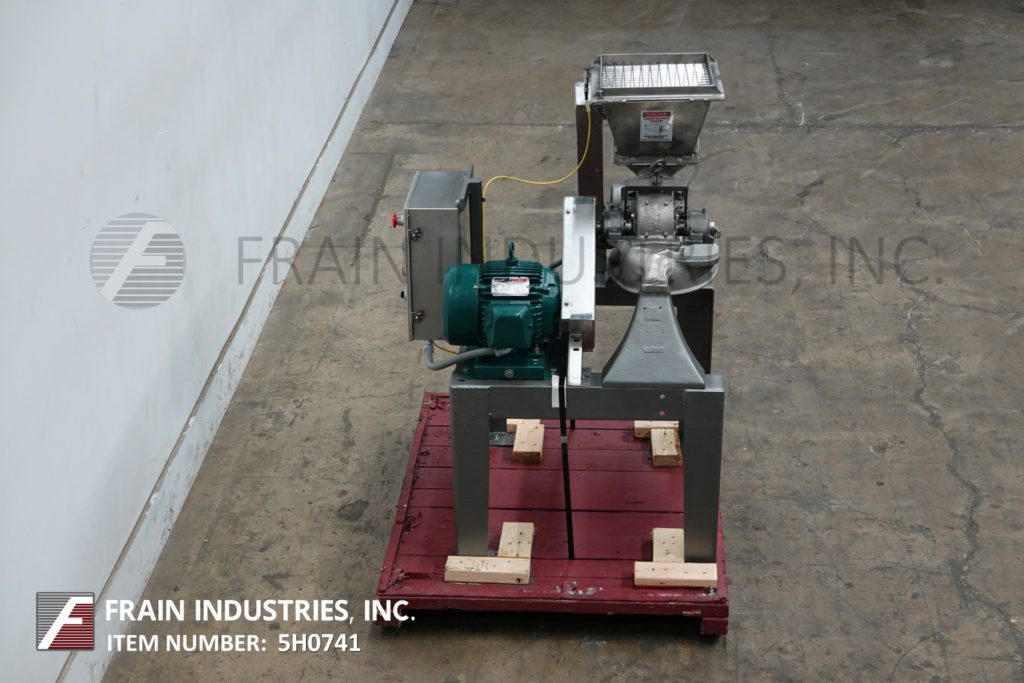

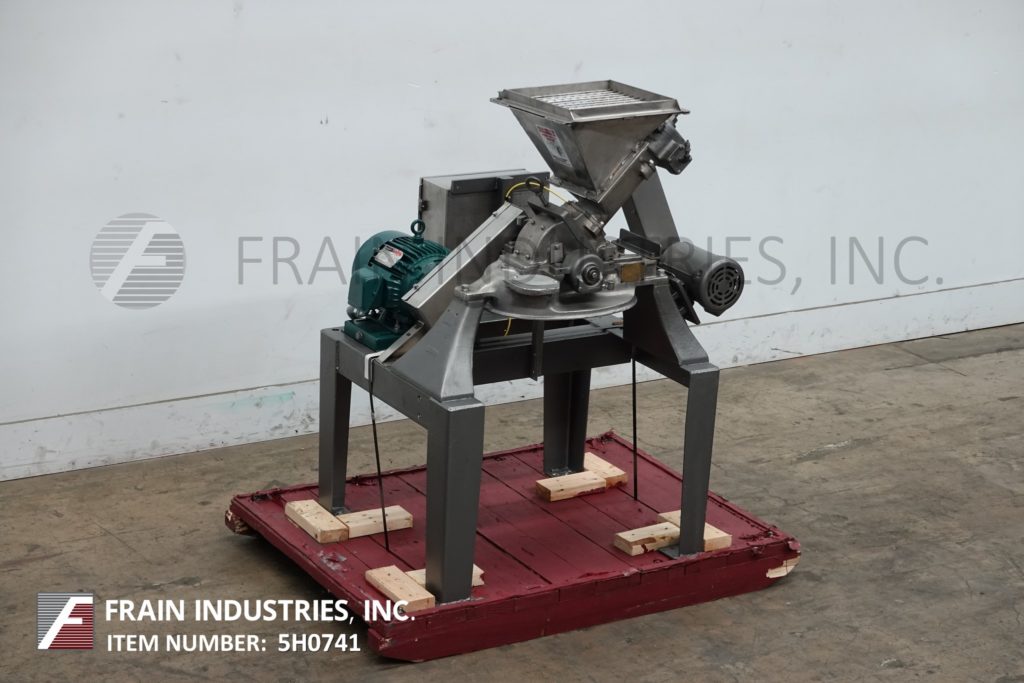

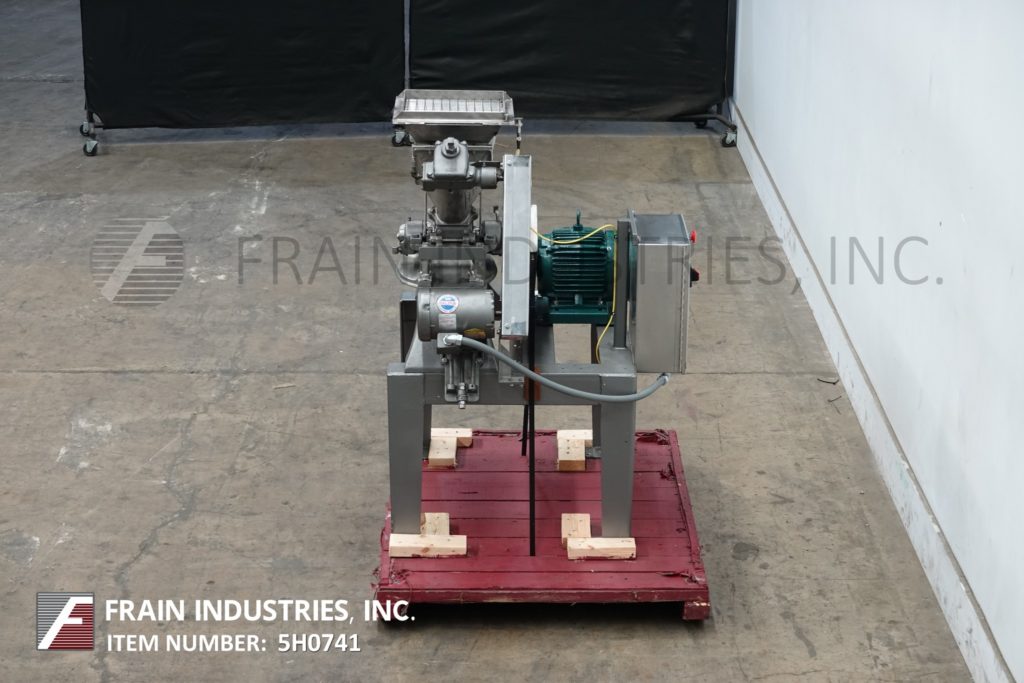

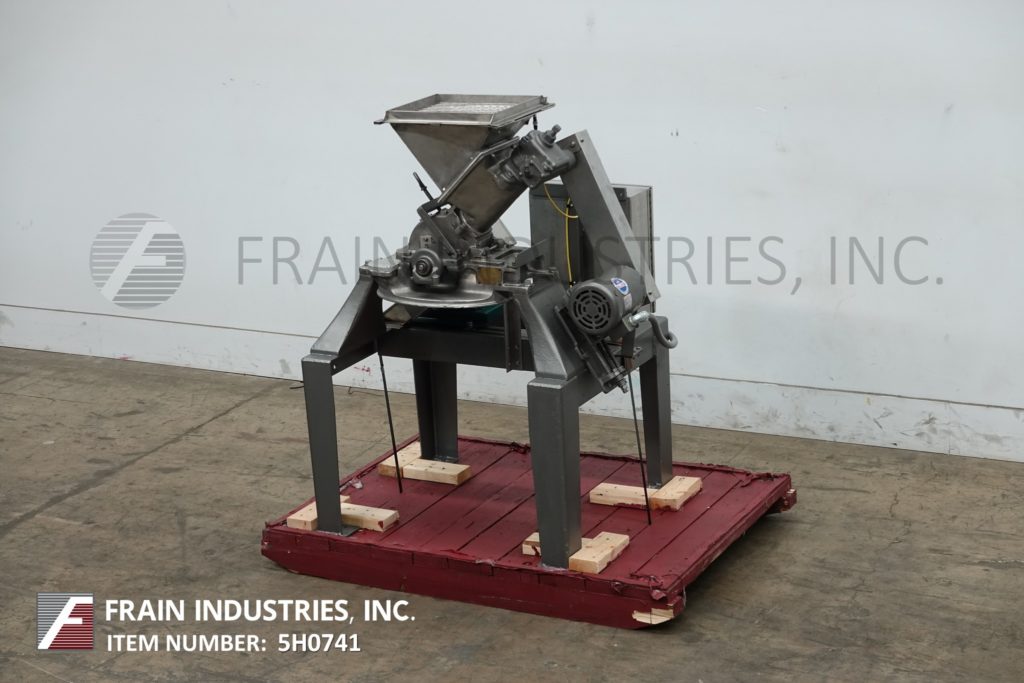

细川护熙机锤1 sh

• Manufacturer:Hosokawa
• Model Number:1SH
• Frain Number:5H0741

Mikro Pulverizer, Model 1SH, hammer mill with 316 stainless steel contact parts. Production rates per hour – depending on materials, application and machine configuration. Equipped with a 12" wide x 13" long x 9" deep feed hopper, 1½" diameter feed auger powered by a 1/3 HP drive and (6) 3¼" wide swinging blunt impact hammers powered by a 5 HP drive. Product discharge is 16” long x 11” wide with 36” floor clearance. Mounted on a (4) leg painted base frame with a 3" diameter port for use with a dust collector and casters. Used to grind, de-lump, pulverize and process wet / dry products.

OAD: 43"L x 32"W x 57"H

Fitzmill Mill Hammer DAS06

• Manufacturer:Fitzmill
• Model Number:DAS06
• Frain Number:R27670

Fitzmill, Model DASO6, stainless steel hammer mill. Equipped with a 28" long x 20" wide x 4" deep feed pan, 6" wide x 4" high feed throat, 11” long x 6” wide blade chamber and (16) fixed knife / impact blades powered by a 7½ Hp motor drive. Product discharge is 15½” long x 5¾” wide with 36” floor clearance. Start / stop controls, mounted on casters.
Production rates dependant on materials, application and machine configuration.
OAD: 48"L x 35"W x 64"H

加州制片机Mill Pellet CL

• Manufacturer:California Pellet Mill
• Model Number:CL
• Frain Number:5G8579

California Pellet Mill, Model CL, Laboratory size pellet Mill. Rated from 30 to 200 pounds of pellets per hour – depending on materials, application and machine configuration. Equipped with 17" long x 13" wide x 17" deep product hopper, 4" wide x 20" long vibratory feeder, 36" long x 4" OD continuous paddle mixer and conditioner powered by ¾ hp drive, 7" long x 1½" OD auger feeder powered by (1/3) hp drive and pellet mill housing powered by 2 hp drive with 5" OD die and 5" wide discharge chute with 15" ground clearance. Control panel with push button start / stop for mill, auger and mixer. On / off switch and variable speed dial for vibratory feeder. System mounted on a painted base frame with casters.

OAD: 60"L x 35"W x 86"H

Mikropul International Inc Mill Hammer 1SH

• Manufacturer:Mikropul International Inc
• Model Number:1SH
• Frain Number:R26860

Mikro Pulverizer, Model 1SH, hammer mill with 316 stainless steel contact parts and 304 stainless steal hopper. Production rates per hour – depending on materials and application. Equipped with a 13" wide x 19" long x 14" deep feed hopper, 1¾" diameter feed auger powered by a ¼ HP drive and (6) 3" wide swinging blunt impact hammers powered by a 5 HP drive. Product discharge is 16½” long x 10½” wide with 46” floor clearance, start / stop controls and mounted on (4) leg mild steel base frame with casters. Used to grind, de-lump, pulverize and process wet / dry products.

OAD: 45"L x 40"W x 70"H

Fitzmill Mill Hammer JT

• Manufacturer:Fitzmill
• Model Number:JT
• Frain Number:5G7894

菲茨帕特里克, Model JT, 304 stainless steel homoloid mill. with production rates per minute – depending on materials and application. Equipped with12" ID x 6" deep feed pan with 3" diameter product port, (12) fixed impact blades with screen area of 2½" wide x 16" long and 8" long x 2½" wide bottom product discharge with 24” ground clearance. Start, stop push button controls and mounted on a base with casters.

OAD: 38"L x 35"W x 53"H

Fitzmill Mill Hammer DAS06

• Manufacturer:Fitzmill
• Model Number:DAS06
• Frain Number:5G7220

Fitzmill模型U,不锈钢锤式粉碎机。情商uipped with a 12" L x 12" W x 12" D (½ ft³) product hopper, 3" diameter feed screw with 1½" centers powered by a ¼ HP drive with variable speed gearbox and (16) 4" L x 1" W fixed impact blades powered by a 7½ HP drive with variable speed gearbox. Product discharge is 15”L x 5½” W with 38" of ground clearance. Unit mounted on mild steel frame with casters.

OAD: 80"L x 40" W x 70"H

Fitzmill Mill Hammer JT6

• Manufacturer:Fitzmill
• Model Number:JT6
• Frain Number:R27050

Stainless steel, homoloid mill. Production rates dependent on materials and application. Equipped with a 12" ID x 3" Deep stainless steel feed pan with 3" OD product port, a 6" throat, bolt down safety cover, 12 swinging knife impact blades with a screen area of 2" wide x 16" long and a 8" long x 2" wide bottom product discharge with 37” floor clearance. Start, stop and reset buttons with e-stop.

OAD: 60" L x 34" W x 44" H

Quadro Mill Hammer 196

• Manufacturer:Quadro
• Model Number:196
• Frain Number:R27030

Quadro Model 196, 316 stainless steel particle size reduction Comil. Rated from 3,600 to 8,000 lbs of product per hour – depending on materials and application. Equipped with a ¾ cubic foot stainless steel product hopper, 12" diameter screen and 14" diameter discharge port with 10" ground clearance. Includes an AC variable speed control with an output rpm of 450 – 2700. Mounted on stainless steel (4) leg base frame.

OAD: 55"L x 28"W x 47"H

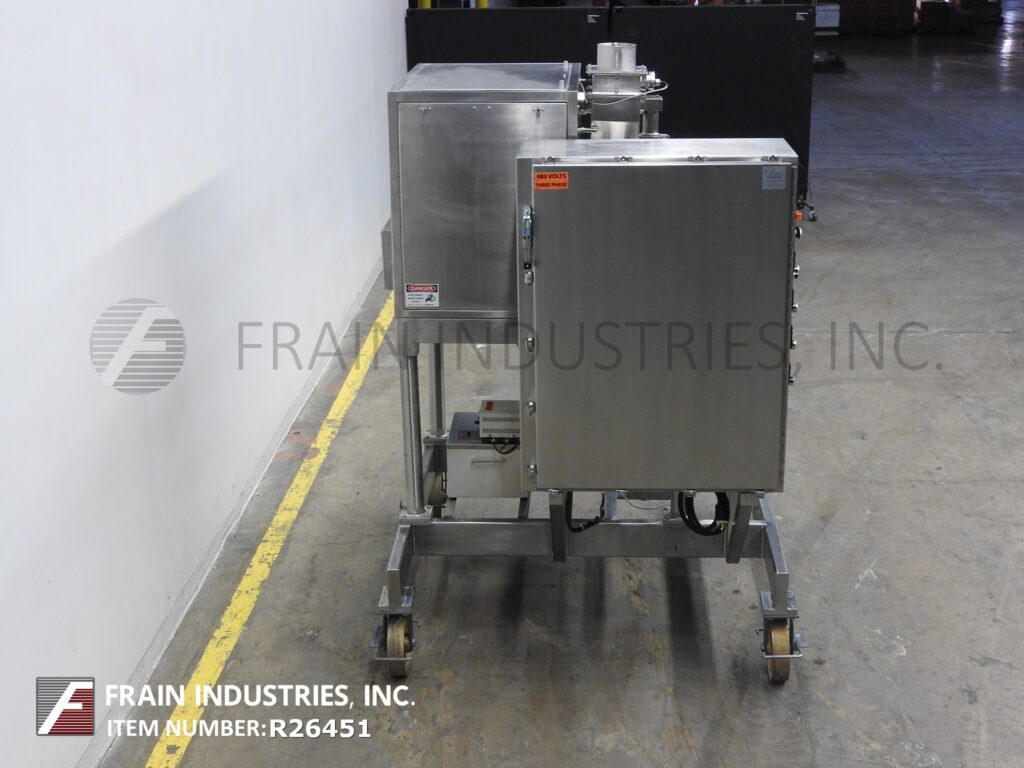

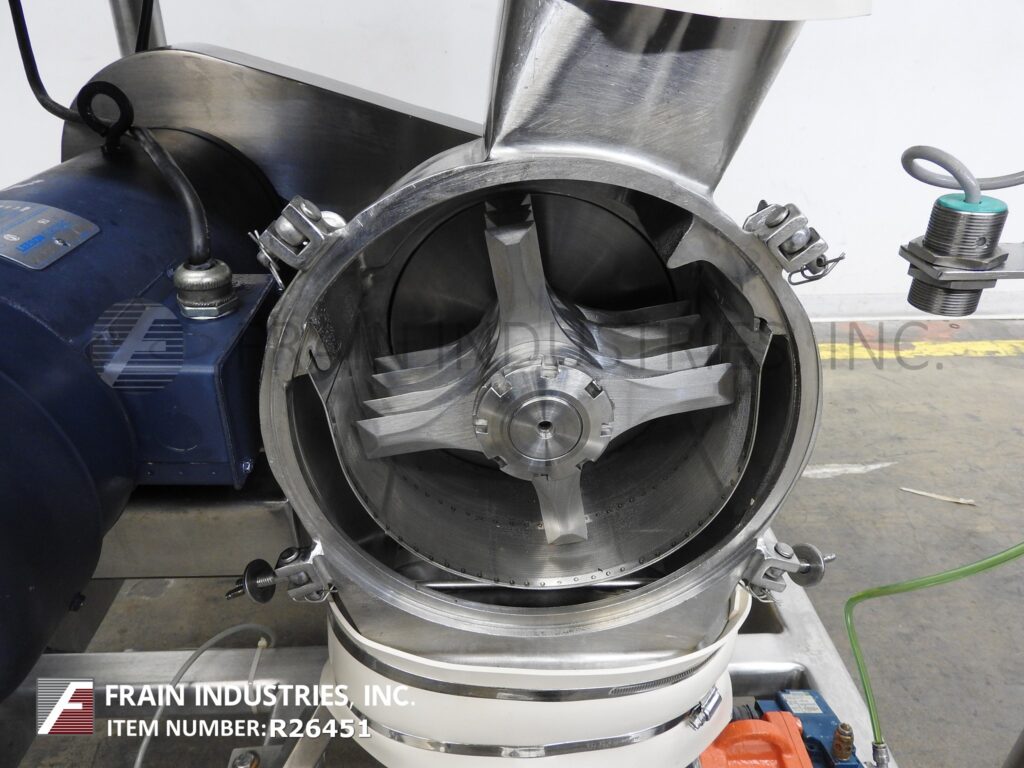

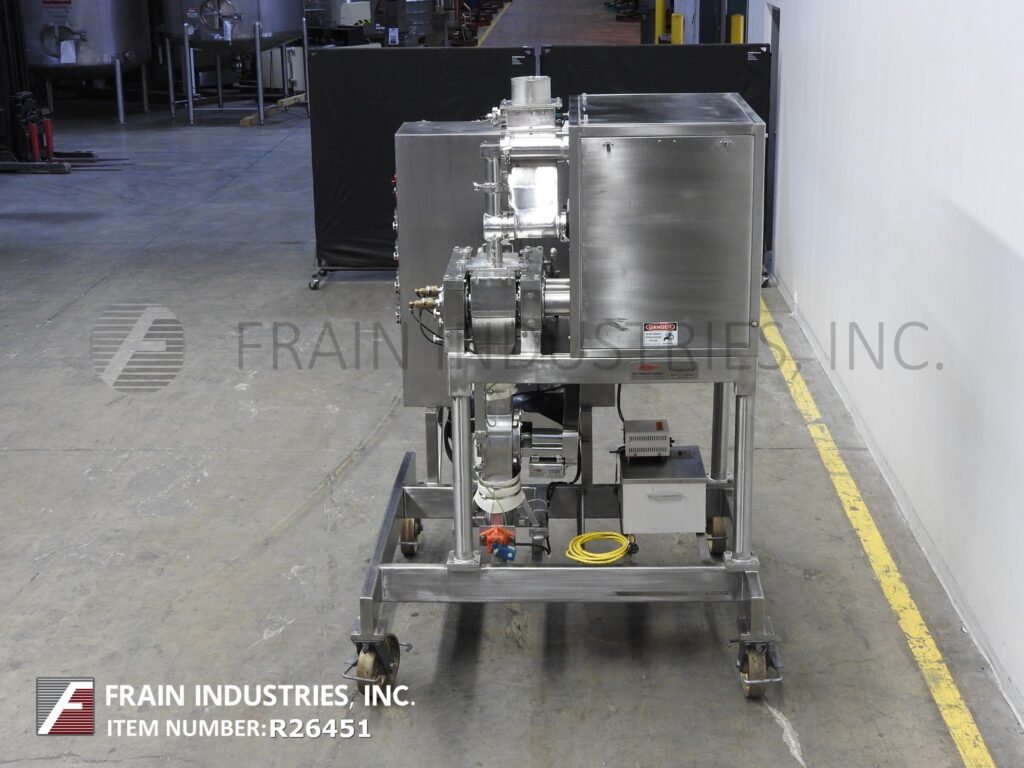

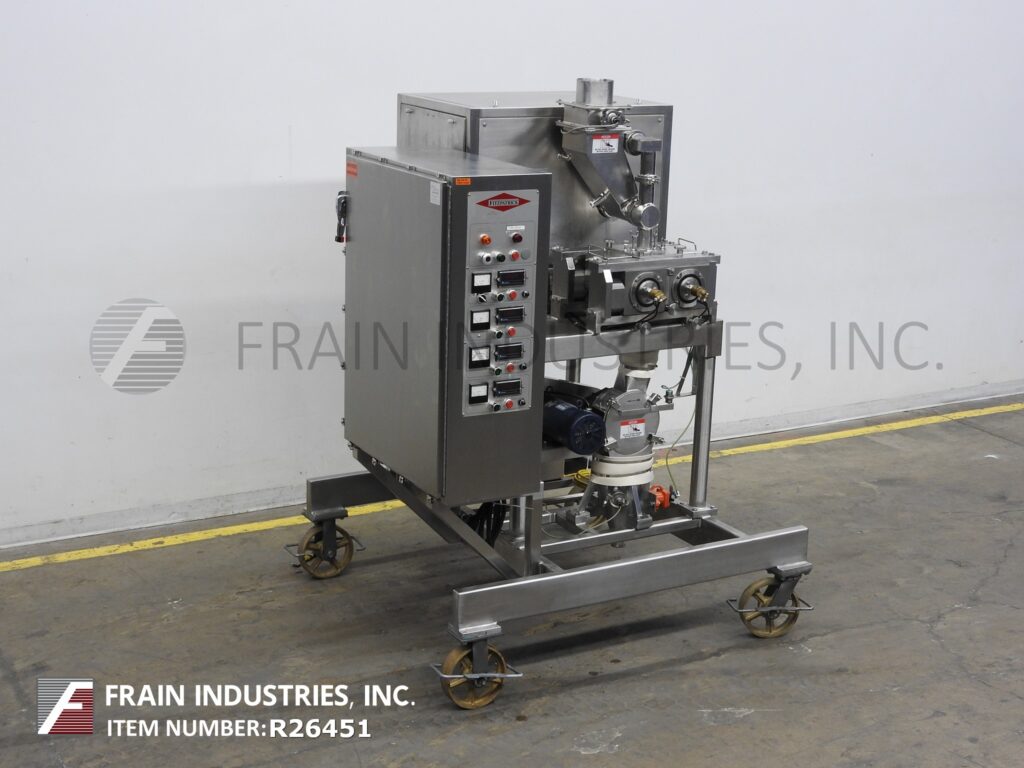

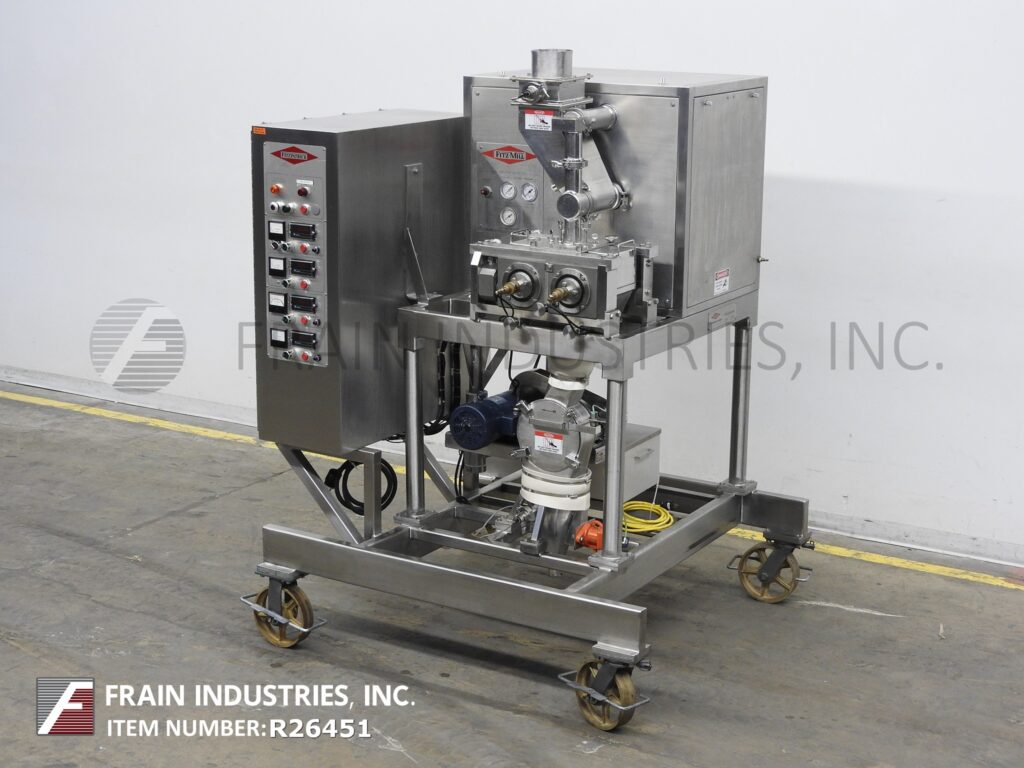

菲茨帕特里克Mill Chilsonator 2LX8D

• Manufacturer:菲茨帕特里克
• Model Number:2LX8D
• Frain Number:R26451

菲茨帕特里克, Model 2L X 8D, chilsonator roller compactor mill. Able to process 45Kg to 181Kg (100lbs to 400 lbs) per hour – depending on materials, application, environment and machine configuration. Equipped with 316 stainless steel contact parts, a 6" diameter charge port, 2½" OD / 1¾" ID tri-clamp style discharge with 8½" ground clearance , feed system controlled by both a vertical and horizontal screw and model JT homoloid mill. The vertical screw has 2" OD and is driven by ½ Hp motor with a speed range of 100 to 450 rpm. The horizontal screw has 3" OD and is driven by ¼ Hp motor with a speed range of 0 to 62 rpm. The compaction rolls are 2" wide x 8" OD and made of 17-4PH stainless steel. The homoloid mill equipped with (16) 2½" long x 1" wide knife blades powered by 1½ Hp motor drive. Mounted on 304 stainless steel base with locking casters

OAD: 75" L x 63" W x 88" H

Mill Hammer

• Model Number:
• Frain Number:5G2482

C.Horn & Co. all stainless steel twin shaft lump breaker. Equipped with 60"L x 60" W x 40" deep hopper (24"H straight side wall). Two 24"L x 2"diameter shaft with 8"diameter fixed blades. 24"L x 16"W x 10" deep hull, with 11" diameter flanged discharge chute. Ground clearance, 11"H.

OAD: 82"L x 69"W x 74"H
