Collette Granulator High Shear GRAL75

Back to All Equipment

• Manufacturer:Collette
• Model:GRAL75
• Category:Granulator
• Subcategory:High Shear

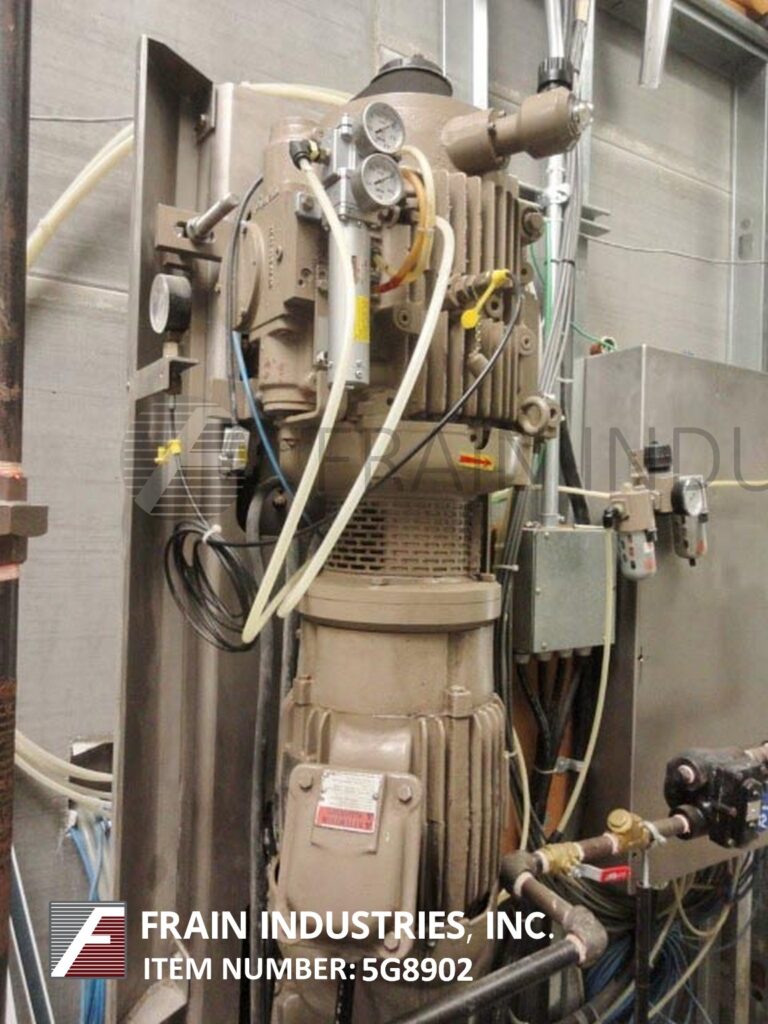

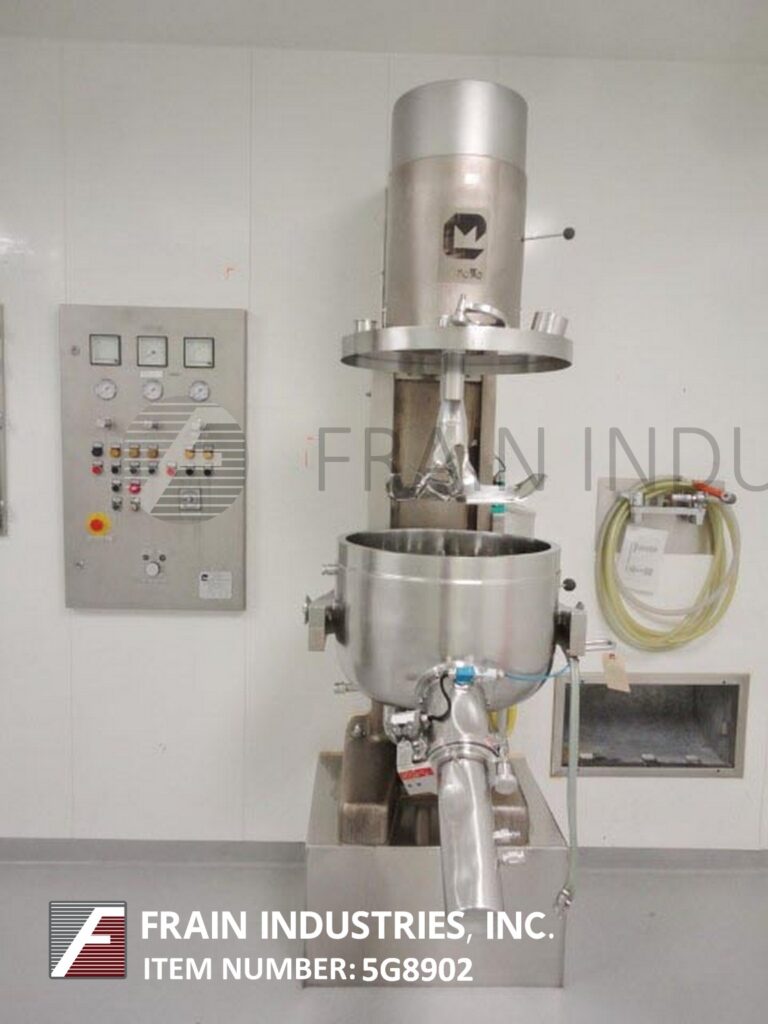

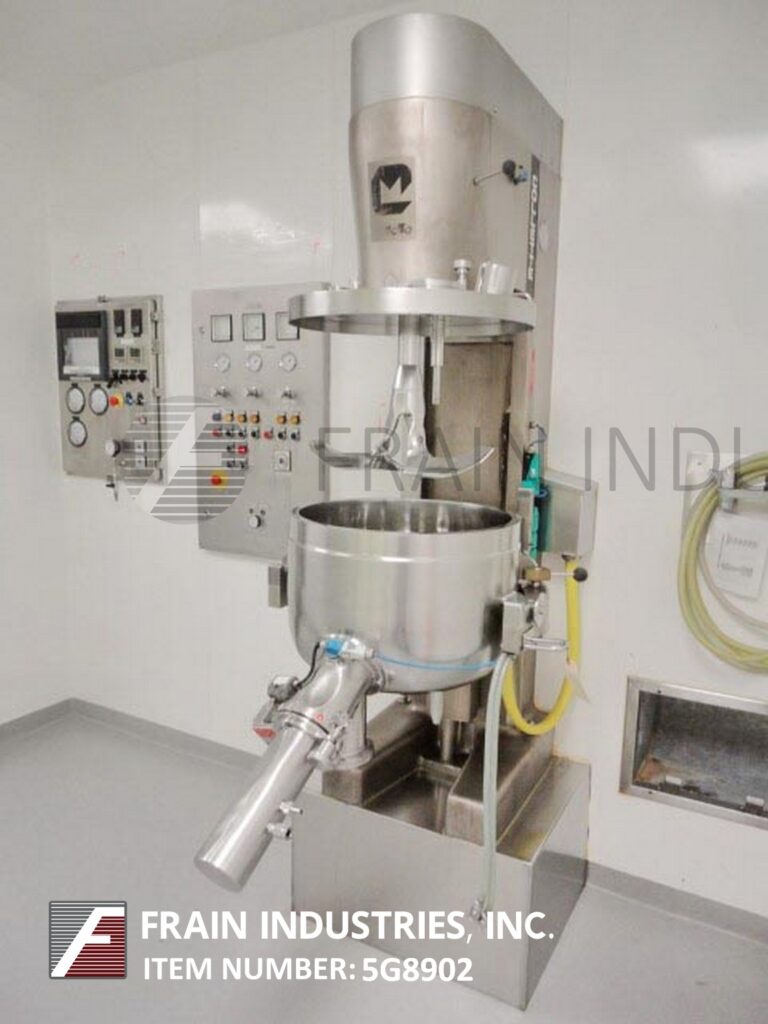

Collette Model GRAL 75, High speed, high shear 316 stainless steel, single pot, GAMP rated vertical granulator, with gross capacity of 75 liters and working capacity of 60 liters per batch. Equipped with jacketed, vacuum mixing bowl with dimensions of: 20" ID x 14" Deep and has (4) 1" ID threaded side / bottom jacket in / outlets and side bottom pneumatic operated discharge valve. Hydraulic lift up top cover and has 16" OD (3) blade anchor style mixer with 8" long x 2" wide blades and 6" OD (4) blade high shear mixer with (4) 3" long x 1" wide blades and 2-1/2 ID site port, (1) 3-1/2" and (1) 2-1/2" OD sanitary top ports with 10 Hp belt to motor drive. Control panels (1) main remote and (1) operator with high and low speed start, stop, jog and hydraulic lift controls with pressure, vacuum, rpm and temperature gauges. Mounted on 48" long x 28 " wide x 16" high stainless steel base platform.

OAD: 60" L x 32" W x 74" H Mixer

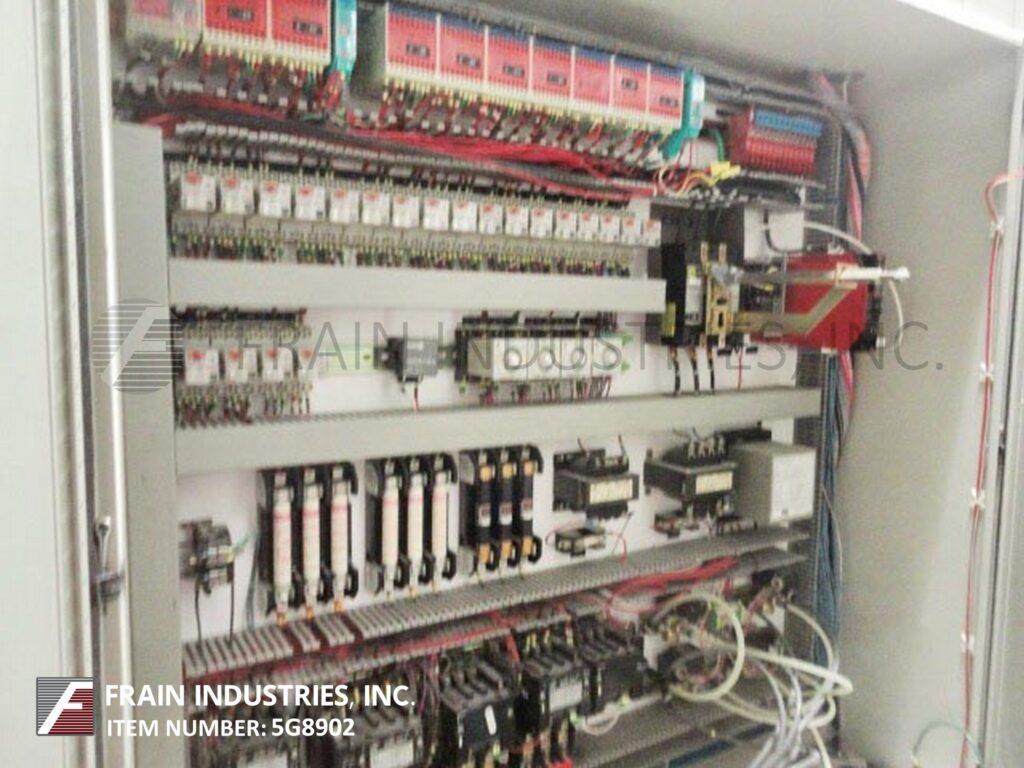

48" L x 28" W x 16" H Main Control Panel

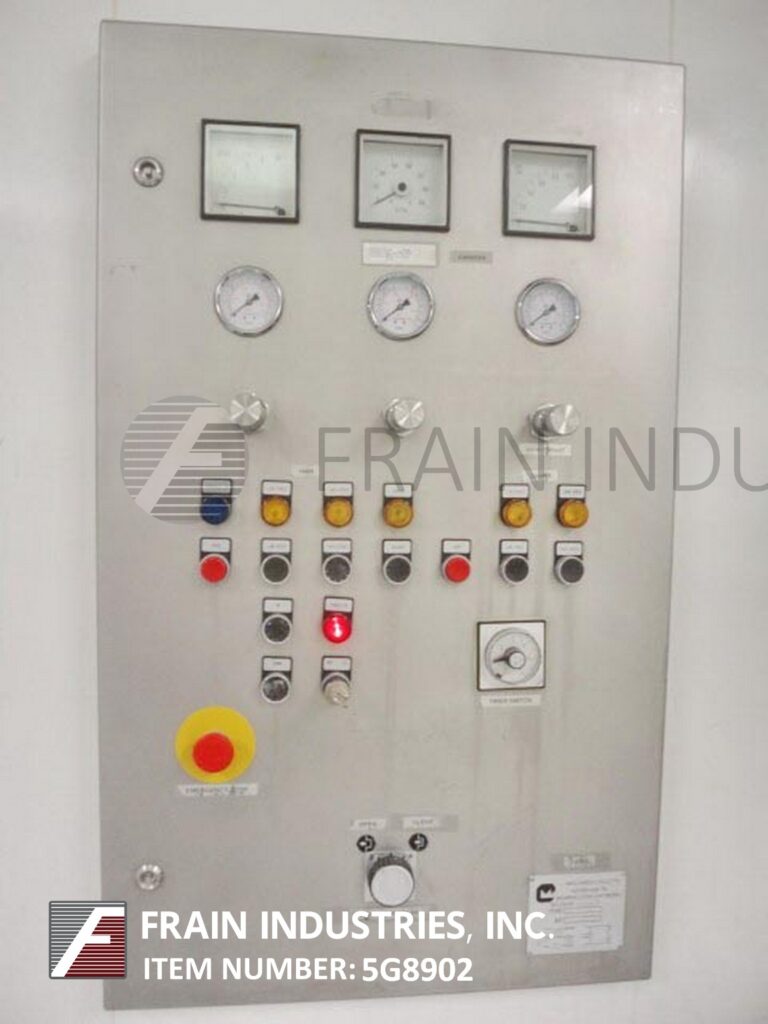

24" L x 12" W x 39" H Operator Control Panel

Single pot processing is the production of pharmaceutical granules using a wet granulation process in which dry mixing, liquid addition, wet granulation, drying and sizing of the granules is done in one machine.

GAMP (good automated manufacturing practice) design for 25% less granulating liquid use resulting in reduction time in drying with no wet sizing required
